Nikon D200 vs Olympus E-420

The Nikon D200 and the Olympus E-420 are two digital cameras that were officially introduced, respectively, in November 2005 and March 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D200) and a Four Thirds (E-420) sensor. Both cameras offer a resolution of 10 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Nikon D200 VS Olympus E-420
Nikon D200 Olympus E-420
Digital single lens reflex Digital single lens reflex
Nikon F mount lenses Four Thirds lenses
10 MP, APS-C Sensor 10 MP, Four Thirds Sensor
no Video no Video
ISO 100-1600 (100-3200) ISO 100-1600
Optical viewfinder Optical viewfinder
2.5" LCD, 230k dots 2.7" LCD, 215k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
5 shutter flaps per second 3.5 shutter flaps per second
Weathersealed bodyNot weather sealed
400 shots per battery charge500 shots per battery charge
147 x 113 x 74 mm, 920 g 130 x 91 x 53 mm, 440 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D200 and the Olympus E-420? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Nikon D200 and the Olympus E-420 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

Size Nikon D200 vs Olympus E-420
Compare D200 versus E-420 top

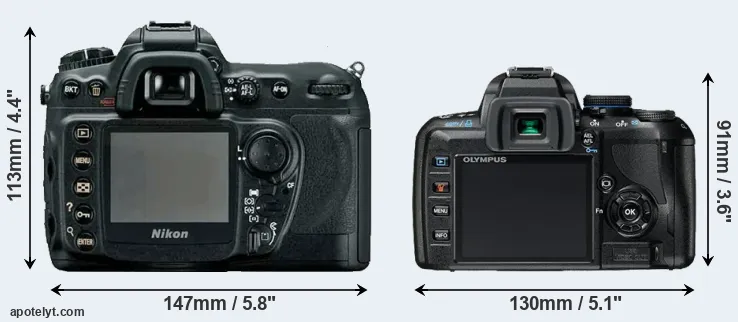

Comparison D200 or E-420 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-420 is notably smaller (29 percent) than the Nikon D200. Moreover, the E-420 is substantially lighter (52 percent) than the D200. It is worth mentioning in this context that the D200 is splash and dust resistant, while the E-420 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D200) and the Four Thirds Lens Catalog (E-420).

Concerning battery life, the D200 gets 400 shots out of its EN-EL3e battery, while the E-420 can take 500 images on a single charge of its BLS-1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Camera
Model

Nikon D200» 147 mm 113 mm 74 mm 920 g 400 Y Nov 2005 1,699iNikon D200

Olympus E-420« 130 mm 91 mm 53 mm 440 g 500 n Mar 2008 599iOlympus E-420

Canon 30D« » 144 mm 106 mm 74 mm 785 g 750 n Feb 2006 1,399iCanon 30D

Canon 20D« » 144 mm 106 mm 72 mm 770 g 700 n Aug 2004 1,499iCanon 20D

Nikon D500« » 147 mm 115 mm 81 mm 860 g 1240 Y Jan 2016 1,999 iNikon D500

Nikon D7000« » 132 mm 105 mm 77 mm 780 g 1050 Y Sep 2010 1,499iNikon D7000

Nikon D300S« » 147 mm 115 mm 81 mm 938 g 950 Y Jul 2009 1,799iNikon D300S

Nikon D300« » 147 mm 114 mm 74 mm 925 g 1000 Y Aug 2007 1,799iNikon D300

Nikon D2Xs« » 158 mm 150 mm 86 mm 1252 g 3800 Y Jun 2006 4,699iNikon D2Xs

Nikon D80« » 132 mm 103 mm 77 mm 668 g 600 n Aug 2006 999iNikon D80

Nikon D2X« » 158 mm 150 mm 86 mm 1252 g 3800 Y Sep 2004 4,999iNikon D2X

Nikon D100« » 144 mm 116 mm 81 mm 780 g 370 n Feb 2002 1,999iNikon D100

Olympus E-450« » 130 mm 91 mm 53 mm 440 g 500 n Mar 2009 499iOlympus E-450

Olympus E-620« » 130 mm 94 mm 60 mm 521 g 500 n Feb 2009 699iOlympus E-620

Olympus E-520« » 136 mm 92 mm 68 mm 535 g 750 n May 2008 699iOlympus E-520

Olympus E-410« » 130 mm 91 mm 53 mm 435 g 500 n Mar 2007 699iOlympus E-410

Olympus E-400« » 130 mm 91 mm 53 mm 435 g 500 n Sep 2006 699iOlympus E-400
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-420 was launched at a markedly lower price (by 65 percent) than the D200, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon D200 features an APS-C sensor and the Olympus E-420 a Four Thirds sensor. The sensor area in the E-420 is 40 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D200 has a native 3:2 aspect ratio, while the one in the E-420 offers a 4:3 aspect.

Nikon D200 and Olympus E-420 sensor measures

Even though the D200 has a larger sensor, both cameras offer the same resolution of 10 megapixels. This implies that the D200 has a lower pixel density and larger individual pixels (with a pixel pitch of 6.11μm versus 4.74μm for the E-420), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the E-420 is much more recent (by 2 years and 4 months) than the D200, and its sensor will have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size.

The Nikon D200 has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Olympus E-420 are ISO 100 to ISO 1600 (no boost).

D200 versus E-420 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the D200 has a notably higher overall DXO score than the E-420 (overall score 8 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.8 bits higher color depth, 1.1 EV in additional dynamic range, and 0.1 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Nikon D200 APS-C 10.0 3872 2592none22.311.558364Nikon D200

Olympus E-420 Four Thirds 10.0 3648 2736none21.510.452756Olympus E-420

Canon 30D APS-C 8.2 3504 2336none21.510.873659Canon 30D

Canon 20D APS-C 8.2 3504 2336none21.911.072162Canon 20D

Nikon D500 APS-C 20.7 5568 37124K/30p24.014.0132483Nikon D500

Nikon D7000 APS-C 16.1 4928 326410800/24p23.513.9116780Nikon D7000

Nikon D300S APS-C 12.2 4288 2848720/24p22.512.278770Nikon D300S

Nikon D300 APS-C 12.2 4288 2848none22.112.067967Nikon D300

Nikon D2Xs APS-C 12.2 4288 2848none22.210.948959Nikon D2Xs

Nikon D80 APS-C 10.0 3872 2592none22.111.252461Nikon D80

Nikon D2X APS-C 12.2 4288 2848none22.110.947659Nikon D2X

Nikon D100 APS-C 6.0 3008 2000none........Nikon D100

Olympus E-450 Four Thirds 10.0 3648 2736none21.510.551256Olympus E-450

Olympus E-620 Four Thirds 12.2 4032 3024none21.310.353655Olympus E-620

Olympus E-520 Four Thirds 10.0 3648 2736none21.410.454855Olympus E-520

Olympus E-410 Four Thirds 10.0 3648 2736none21.110.049451Olympus E-410

Olympus E-400 Four Thirds 10.0 3648 2736none........Olympus E-400
The E-420 offers Live View, so that it can project the live image that the sensor receives onto the rear screen for framing. The D200 lacks this capability. Both cameras are still-image focused and cannot record videos.


Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The D200 and the E-420 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the D200 has a higher magnification than the one of the E-420 (0.63x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D200, the Olympus E-420, and comparable cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Nikon D200optical Y 2.5 230 fixed n 1/8000s 5.0 Y n Nikon D200

Olympus E-420optical n 2.7 215 fixed n 1/4000s 3.5 Y n Olympus E-420

Canon 30Doptical Y 2.5 230 fixed n 1/8000s 5.0 Y n Canon 30D

Canon 20Doptical Y 1.8 118 fixed n 1/8000s 5.0 Y n Canon 20D

Nikon D500optical Y 3.2 2359 tilting Y 1/8000s 10.0 n n Nikon D500

Nikon D7000optical Y 3.0 921 fixed n 1/8000s 6.0 Y n Nikon D7000

Nikon D300Soptical Y 3.0 920 fixed n 1/8000s 7.0 Y n Nikon D300S

Nikon D300optical Y 3.0 922 fixed n 1/8000s 6.0 Y n Nikon D300

Nikon D2Xsoptical Y 2.5 230 fixed n 1/8000s 5.0 n n Nikon D2Xs

Nikon D80optical n 2.5 230 fixed n 1/4000s 3.0 Y n Nikon D80

Nikon D2Xoptical Y 2.5 235 fixed n 1/8000s 5.0 n n Nikon D2X

Nikon D100optical Y 1.8 118 fixed n 1/4000s 3.0 Y n Nikon D100

Olympus E-450optical n 2.7 215 fixed n 1/4000s 3.5 Y n Olympus E-450

Olympus E-620optical n 2.7 230 swivel n 1/4000s 4.0 Y Y Olympus E-620

Olympus E-520optical n 2.7 215 fixed n 1/4000s 3.5 Y Y Olympus E-520

Olympus E-410optical n 2.5 215 fixed n 1/4000s 3.0 Y n Olympus E-410

Olympus E-400optical n 2.5 215 fixed n 1/4000s 3.0 Y n Olympus E-400

One feature that is present on the D200, but is missing on the E-420 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Nikon D200 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D200 writes its imaging data to Compact Flash cards, while the E-420 uses Compact Flash or xD Picture cards. The E-420 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D200 only has one slot.



Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D200 and Olympus E-420 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Nikon D200Ynonenone--none2.0---Nikon D200

Olympus E-420Ynonenone--none2.0---Olympus E-420

Canon 30DYnonenone--none2.0---Canon 30D

Canon 20DYnonenone--none1.1---Canon 20D

Nikon D500YstereomonoYYmini3.0YYYNikon D500

Nikon D7000YmonomonoY-mini2.0---Nikon D7000

Nikon D300SYstereomonoY-mini2.0---Nikon D300S

Nikon D300Ynonenone--mini2.0---Nikon D300

Nikon D2XsYnonenone--none2.0---Nikon D2Xs

Nikon D80Ynonenone--none2.0---Nikon D80

Nikon D2XYnonenone--none2.0---Nikon D2X

Nikon D100Ynonenone--none1.1---Nikon D100

Olympus E-450Ynonenone--none2.0---Olympus E-450

Olympus E-620Ynonenone--none2.0---Olympus E-620

Olympus E-520Ynonenone--none2.0---Olympus E-520

Olympus E-410Ynonenone--none2.0---Olympus E-410

Olympus E-400Ynonenone--none2.0---Olympus E-400

Studio photographers will appreciate that the Nikon D200 (unlike the E-420) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D200 and the E-420 have been discontinued, but can regularly be found used on eBay. The D200 was replaced by the Nikon D300, while the E-420 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.

Review summary

So what is the bottom line? Is the Nikon D200 better than the Olympus E-420 or vice versa? The listing below highlights the relative strengths of the two models.

ilogo

Arguments in favor of the Nikon D200:

  • Better image quality: Scores markedly higher (8 points) in the DXO overall assessment.
  • More dynamic range: Captures a larger spectrum of light and dark details (1.1 EV of extra DR).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.46x).
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (5 vs 3.5 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • More heavily discounted: Has been available for much longer (launched in November 2005).

ilogo

Reasons to prefer the Olympus E-420:

  • Larger screen: Has a bigger rear LCD (2.7" vs 2.5") for image review and settings control.
  • More compact: Is smaller (130x91mm vs 147x113mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 480g or 52 percent) and is thus easier to take along.
  • Longer lasting: Gets more shots (500 versus 400) out of a single battery charge.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More affordable: Was introduced into a lower priced category (65 percent cheaper at launch).
  • More modern: Reflects 2 years and 4 months of technical progress since the D200 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the D200 emerges as the winner of the contest (10 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D200 10:07 E-420

How about other alternatives? Do the specifications of the Nikon D200 and the Olympus E-420 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D200 and the E-420 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cam
era
  labs
dp
re
  view
e
  zine
ima
ging
resource
graphy
  blog
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Camera
Model

Nikon D200+ ++ +o5/5.. Nov 2005 1,699iNikon D200

Olympus E-42085/100+ +4/5o4.5/5 Mar 2008 599iOlympus E-420

Canon 30D+ ++ +oo.. Feb 2006 1,399iCanon 30D

Canon 20D..+ +..o.. Aug 2004 1,499iCanon 20D

Nikon D500+ +91/1004.5/55/55/5 Jan 2016 1,999 iNikon D500

Nikon D7000..80/1004.5/55/54.5/5 Sep 2010 1,499iNikon D7000

Nikon D300S+ +82/1004/55/54.5/5 Jul 2009 1,799iNikon D300S

Nikon D300+ ++ +5/5o4.5/5 Aug 2007 1,799iNikon D300

Nikon D2Xs......o.. Jun 2006 4,699iNikon D2Xs

Nikon D80++ +o4.5/54.5/5 Aug 2006 999iNikon D80

Nikon D2X..+ +..o.. Sep 2004 4,999iNikon D2X

Nikon D100..+ +oo.. Feb 2002 1,999iNikon D100

Olympus E-450....4/5..4/5 Mar 2009 499iOlympus E-450

Olympus E-62088/10072/1004.5/5o5/5 Feb 2009 699iOlympus E-620

Olympus E-52087/100+ +4.5/54/54.5/5 May 2008 699iOlympus E-520

Olympus E-41086/100+ +4/5o4.5/5 Mar 2007 699iOlympus E-410

Olympus E-40085/100..4/5..4/5 Sep 2006 699iOlympus E-400
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Nikon D200:
Check Ebay offers
Olympus E-420:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

    Specifications: Nikon D200 vs Olympus E-420

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Nikon D200 Olympus E-420
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Nikon F mount lenses Four Thirds lenses
    Launch Date November 2005 March 2008
    Launch Price USD 1699 USD 599
    Sensor Specs Nikon D200 Olympus E-420
    Sensor Technology CCD CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 23.6 x 15.8 mm 17.3 x 13.0 mm
    Sensor Area 372.88 mm2 224.9 mm2
    Sensor Diagonal 28.4 mm 21.6 mm
    Crop Factor 1.5x 2.0x
    Sensor Resolution 10 Megapixels 10 Megapixels
    Image Resolution 3872 x 2592 pixels 3648 x 2736 pixels
    Pixel Pitch 6.11 μm 4.74 μm
    Pixel Density 2.69 MP/cm2 4.44 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability no Video no Video
    ISO Setting 100-1600 ISO 100-1600 ISO
    ISO Boost 100-3200 ISO no Enhancement
    DXO Sensor Quality (score) 64 56
    DXO Color Depth (bits) 22.3 21.5
    DXO Dynamic Range (EV) 11.5 10.4
    DXO Low Light (ISO) 583 527
    Screen Specs Nikon D200 Olympus E-420
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 95% 95%
    Viewfinder Magnification 0.63x 0.46x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View
    Rear LCD Size 2.5 inch 2.7 inch
    LCD Resolution 230k dots 215k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Nikon D200 Olympus E-420
    Focus System Phase-detect AF Phase-detect AF
    Continuous Shooting 5 shutter flaps/s 3.5 shutter flaps/s
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium CF cards CF or XD cards
    Second Storage Option Single card slot Dual card slots
    Connectivity Specs Nikon D200 Olympus E-420
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 2.0 USB 2.0
    HDMI Port no HDMI no HDMI
    Wifi Support no Wifi no Wifi
    Body Specs Nikon D200 Olympus E-420
    Environmental SealingWeathersealed bodyNot weather sealed
    Battery Type EN-EL3e BLS-1
    Battery Life (CIPA)400 shots per charge500 shots per charge
    Body Dimensions 147 x 113 x 74 mm
    (5.8 x 4.4 x 2.9 in)
    130 x 91 x 53 mm
    (5.1 x 3.6 x 2.1 in)
    Camera Weight 920 g (32.5 oz) 440 g (15.5 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Nikon D200 vs Olympus E-420
