Leica V-LUX 1 vs Pentax 645D

The Leica V-LUX 1 and the Pentax 645D are two digital cameras that were revealed to the public, respectively, in September 2006 and March 2010. The V-LUX 1 is a fixed lens compact, while the 645D is a DSLR. The cameras are based on a 1/1.8-inch (V-LUX 1) and a medium format (645D) sensor. The Leica has a resolution of 10 megapixels, whereas the Pentax provides 39.5 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica V-LUX 1		Pentax 645D
Fixed lens compact camera		Digital single lens reflex
35-420mm f/2.8-3.7		Pentax 645 mount lenses
10 MP – 1/1.8" sensor		39.5 MP – Medium Format sensor
480/30p Video		no Video
ISO 100-1,600 (100 - 3,200)		ISO 100-1,600
Electronic viewfinder (235k dots)		Optical viewfinder
2.0" LCD – 207k dots		3.0" LCD – 921k dots
Tilting screen (no touchscreen)		Fixed screen (not touch-sensitive)
2 shutter flaps per second		1.1 shutter flaps per second
not weather sealed		Weathersealed body
360 shots per battery charge		800 shots per battery charge
141 x 86 x 142 mm, 734 g		156 x 117 x 119 mm, 1480 g

Check V-LUX 1 offers at
ebay.com
Check 645D offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica V-LUX 1 and the Pentax 645D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

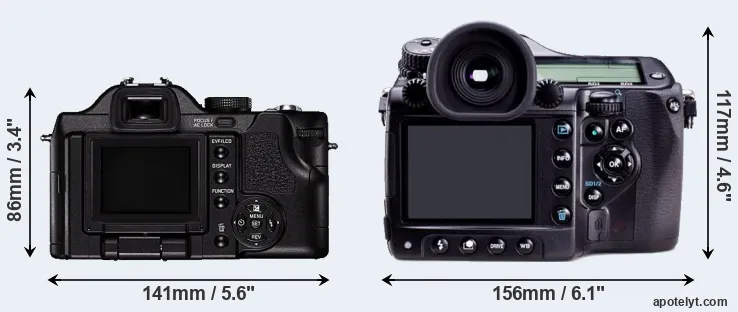

An illustration of the physical size and weight of the Leica V-LUX 1 and the Pentax 645D is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax 645D is considerably larger (51 percent) than the Leica V-LUX 1. It is noteworthy in this context that the 645D is splash and dust-proof, while the V-LUX 1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the V-LUX 1 has a lens built in, whereas the 645D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica V-LUX 1	141 mm	86 mm	142 mm	734 g	360	n	Sep 2006	US$ 849	ebay.com
2.		Pentax 645D	156 mm	117 mm	119 mm	1480 g	800	Y	Mar 2010	US$ 9 995	ebay.com
3.		Canon 1D Mark IV	156 mm	157 mm	80 mm	1230 g	1500	Y	Oct 2009	US$ 4 999	ebay.com
4.		Canon 1D X	158 mm	168 mm	83 mm	1551 g	1120	Y	Oct 2011	US$ 6 799	ebay.com
5.		Leica D-LUX 5	110 mm	65 mm	43 mm	271 g	400	n	Sep 2010	US$ 699	ebay.com
6.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	US$ 699	ebay.com
7.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
8.		Leica S Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2012	US$ 21 949	ebay.com
9.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	US$ 849	ebay.com
10.		Leica V-LUX 3	124 mm	81 mm	95 mm	540 g	410	n	Dec 2011	US$ 949	ebay.com
11.		Leica V-LUX 4	125 mm	87 mm	110 mm	588 g	540	n	Sep 2012	US$ 949	ebay.com
12.		Leica X1	124 mm	60 mm	32 mm	306 g	260	n	Sep 2009	US$ 1 999	ebay.com
13.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
14.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	US$ 5 199	ebay.com
15.		Nikon D80	132 mm	103 mm	77 mm	668 g	600	n	Aug 2006	US$ 999	ebay.com
16.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	US$ 899	ebay.com
17.		Pentax 645Z	156 mm	117 mm	123 mm	1550 g	650	Y	Apr 2014	US$ 8 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The V-LUX 1 was launched at a lower price than the 645D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica V-LUX 1 features a 1/1.8-inch sensor and the Pentax 645D a medium format sensor. The sensor area in the 645D is 3721 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.8 and 0.79. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

With 39.5MP, the 645D offers a higher resolution than the V-LUX 1 (10MP), but the 645D nevertheless has larger individual pixels (pixel pitch of 6.06μm versus 1.95μm for the V-LUX 1) due to its larger sensor. Moreover, the 645D is a much more recent model (by 3 years and 5 months) than the V-LUX 1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Pentax 645D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 645D for good quality output (200 dots per inch) amounts to 36.3 x 27.2 inches or 92.3 x 69.1 cm, for very good quality (250 dpi) 29.1 x 21.8 inches or 73.8 x 55.3 cm, and for excellent quality (300 dpi) 24.2 x 18.1 inches or 61.5 x 46.1 cm. The corresponding values for the Leica V-LUX 1 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Leica V-LUX 1 has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Pentax 645D are ISO 100 to ISO 1600 (no boost).

In terms of underlying technology, the V-LUX 1 is build around a CMOS sensor, while the 645D uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica V-LUX 1	1/1.8	10.0	3648	2736	480/30p	18.4	9.5	-727	29
2.		Pentax 645D	Medium Format	39.5	7264	5440	none	24.6	12.6	1262	82
3.		Canon 1D Mark IV	APS-H	16.0	4896	3264	1080/30p	22.8	12.0	1320	74
4.		Canon 1D X	Full Frame	17.9	5184	3456	1080/30p	23.8	11.8	2786	82
5.		Leica D-LUX 5	1/1.7	10.0	3648	2736	720/60p	19.5	10.4	-583	39
6.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
7.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
8.		Leica S Typ 006	Medium Format	37.5	7500	5000	none	23.9	12.2	824	76
9.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
10.		Leica V-LUX 3	1/2.3	12.0	4000	3000	1080/60p	19.7	11.0	430	42
11.		Leica V-LUX 4	1/2.3	12.0	4000	3000	1080/60p	19.8	11.1	501	43
12.		Leica X1	APS-C	12.2	4272	2856	none	22.6	11.8	1037	69
13.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
14.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
15.		Nikon D80	APS-C	10.0	3872	2592	none	22.1	11.2	524	61
16.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
17.		Pentax 645Z	Medium Format	51.1	8256	6192	1080/60i	26.0	14.7	4505	101
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The V-LUX 1 indeed provides movie recording capabilities, while the 645D does not. The highest resolution format that the V-LUX 1 can use is 480/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the V-LUX 1 has an electronic viewfinder (235k dots), while the 645D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Leica V-LUX 1 and Pentax 645D in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica V-LUX 1	235	n	2.0 / 207	tilting	n	1/2000s	2.0/s	Y	Y
2.		Pentax 645D	optical	Y	3.0 / 921	fixed	n	1/4000s	1.1/s	n	n
3.		Canon 1D Mark IV	optical	Y	3.0 / 920	fixed	n	1/8000s	10.0/s	n	n
4.		Canon 1D X	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
5.		Leica D-LUX 5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
6.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
7.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
8.		Leica S Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
9.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
10.		Leica V-LUX 3	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
11.		Leica V-LUX 4	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
12.		Leica X1	none	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	n
13.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
14.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
15.		Nikon D80	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
16.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
17.		Pentax 645Z	optical	Y	3.2 / 1037	tilting	n	1/4000s	3.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The V-LUX 1 has one, while the 645D does not. While the built-in flash of the V-LUX 1 is not very powerful, it can at times be useful as a fill-in light.

The Pentax 645D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The V-LUX 1 writes its imaging data to SDHC cards, while the 645D uses SDXC cards. The 645D features dual card slots, which can be very useful in case a memory card fails. In contrast, the V-LUX 1 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica V-LUX 1 and Pentax 645D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica V-LUX 1	Y	mono / mono	-	-	-	2.0	-	-	-
2.		Pentax 645D	Y	stereo / -	-	-	-	2.0	-	-	-
3.		Canon 1D Mark IV	Y	stereo / -	Y	-	mini	2.0	-	-	-
4.		Canon 1D X	Y	mono / -	Y	-	mini	2.0	-	-	-
5.		Leica D-LUX 5	Y	mono / mono	-	-	mini	2.0	-	-	-
6.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Leica S Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
9.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Leica V-LUX 3	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Leica V-LUX 4	Y	stereo / mono	Y	-	mini	2.0	-	-	-
12.		Leica X1	Y	- / -	-	-	mini	2.0	-	-	-
13.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Nikon D80	Y	- / -	-	-	-	2.0	-	-	-
16.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
17.		Pentax 645Z	Y	stereo / mono	Y	-	mini	3.0	-	-	-

Studio photographers will appreciate that the Pentax 645D (unlike the V-LUX 1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the V-LUX 1 and the 645D have been discontinued, but can regularly be found used on ebay. The V-LUX 1 was replaced by the Leica V-LUX 2, while the 645D was followed by the Pentax 645Z. Further information on the features and operation of the V-LUX 1 and 645D can be found, respectively, in the Leica V-LUX 1 Manual (free pdf) or the online Pentax 645D Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Leica V-LUX 1 and the Pentax 645D? Which camera is better? The listing below highlights the relative strengths of the two models.

Advantages of the Leica V-LUX 1:

• Broader imaging potential: Can record not only still images but also 480/30p movies.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (2 vs 1.1 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the 645D requires a separate lens.
• More compact: Is smaller (141x86mm vs 156x117mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the 645D).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been available for much longer (launched in September 2006).

Reasons to prefer the Pentax 645D:

• More detail: Has more megapixels (39.5 vs 10MP), which boosts linear resolution by 99%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 207k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (800 versus 360) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More modern: Reflects 3 years and 5 months of technical progress since the V-LUX 1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the 645D is the clear winner of the contest (17 : 13 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica V-LUX 1 and the Pentax 645D place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the V-LUX 1 or the 645D perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica V-LUX 1	..	..	..	..	..	..	Sep 2006	US$ 849	ebay.com
2.		Pentax 645D	5/5	..	..	..	..	..	Mar 2010	US$ 9 995	ebay.com
3.		Canon 1D Mark IV	5/5	..	..	89/100	..	..	Oct 2009	US$ 4 999	ebay.com
4.		Canon 1D X	5/5	..	..	..	4.5/5	4.5/5	Oct 2011	US$ 6 799	ebay.com
5.		Leica D-LUX 5	..	..	..	..	4.5/5	4/5	Sep 2010	US$ 699	ebay.com
6.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	US$ 699	ebay.com
7.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
8.		Leica S Typ 006	..	..	..	..	..	..	Sep 2012	US$ 21 949	ebay.com
9.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	US$ 849	ebay.com
10.		Leica V-LUX 3	..	..	..	..	..	..	Dec 2011	US$ 949	ebay.com
11.		Leica V-LUX 4	..	..	..	..	..	..	Sep 2012	US$ 949	ebay.com
12.		Leica X1	3/5	..	..	+	..	4/5	Sep 2009	US$ 1 999	ebay.com
13.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
14.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	US$ 5 199	ebay.com
15.		Nikon D80	..	+	..	+ +	o	4.5/5	Aug 2006	US$ 999	ebay.com
16.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	US$ 899	ebay.com
17.		Pentax 645Z	5/5	..	3.5/5	..	4.5/5	5/5	Apr 2014	US$ 8 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check V-LUX 1 offers at
ebay.com
Check 645D offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check V-LUX 1 offers at
ebay.com
Check 645D offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
