Leica TL vs Pentax MX-1

The Leica TL and the Pentax MX-1 are two digital cameras that were officially introduced, respectively, in November 2016 and January 2013. The TL is a mirrorless interchangeable lens camera, while the MX-1 is a fixed lens compact. The cameras are based on an APS-C (TL) and a 1/1.7-inch (MX-1) sensor. The Leica has a resolution of 16.1 megapixels, whereas the Pentax provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica TL		Pentax MX-1
Mirrorless system camera		Fixed lens compact camera
Leica T mount lenses		28-112mm f/1.8-2.5
16.1 MP – APS-C sensor		12 MP – 1/1.7" sensor
1080/30p Video		1080/30p Video
ISO 100-12,500		ISO 100-12,800
Viewfinder optional		No viewfinder, LCD framing
3.7" LCD – 1230k dots		3.0" LCD – 920k dots
Fixed touchscreen		Tilting screen (no touchscreen)
5 shutter flaps per second		1 shutter flaps per second
Lens stabilization only		In-body stabilization
400 shots per battery charge		290 shots per battery charge
134 x 69 x 33 mm, 384 g		122 x 61 x 51 mm, 391 g

Check TL offers at
ebay.com
Check MX-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica TL and the Pentax MX-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

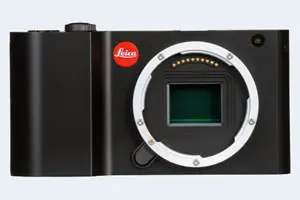

The side-by-side display below illustrates the physical size and weight of the Leica TL and the Pentax MX-1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The TL can be obtained in three different colors (black, silver, titanium), while the MX-1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax MX-1 is notably smaller (20 percent) than the Leica TL. In this context, it is worth noting that neither the TL nor the MX-1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the MX-1 has a lens built in, whereas the TL is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The power pack in the TL can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica TL	134 mm	69 mm	33 mm	384 g	400	n	Nov 2016	1,695	ebay.com
2.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	499	ebay.com
3.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	499	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
5.		Fujifilm X-A2	117 mm	67 mm	40 mm	350 g	410	n	Jan 2015	399	ebay.com
6.		Fujifilm X-A10	117 mm	67 mm	40 mm	331 g	410	n	Dec 2016	399	ebay.com
7.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	699	ebay.com
8.		Fujifilm X-Pro1	140 mm	82 mm	43 mm	450 g	300	n	Jan 2012	1,699	ebay.com
9.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	799	ebay.com
10.		Fujifilm X70	113 mm	64 mm	44 mm	340 g	330	n	Jan 2016	799	ebay.com
11.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	2,795	ebay.com
12.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	1,850	ebay.com
13.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	1,950	ebay.com
14.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	1,995	ebay.com
15.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	549	ebay.com
16.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	599	ebay.com
17.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The MX-1 was launched at a lower price than the TL, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Leica TL features an APS-C sensor and the Pentax MX-1 a 1/1.7-inch sensor. The sensor area in the MX-1 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 4.5. The sensor in the TL has a native 3:2 aspect ratio, while the one in the MX-1 offers a 4:3 aspect.

With 16.1MP, the TL offers a higher resolution than the MX-1 (12MP), but the TL nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 1.89μm for the MX-1) due to its larger sensor. Moreover, the TL is a much more recent model (by 3 years and 10 months) than the MX-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the TL has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica TL implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TL for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Pentax MX-1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Leica TL has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Pentax MX-1 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica TL	APS-C	16.1	4928	3264	1080/30p	23.9	13.2	1690	81
2.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
3.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Fujifilm X-A2	APS-C	16.0	4896	3264	1080/30p	23.6	12.8	1515	79
6.		Fujifilm X-A10	APS-C	16.0	4896	3264	1080/30p	23.9	13.2	1691	81
7.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
8.		Fujifilm X-Pro1	APS-C	16.0	4896	3264	1080/24p	23.1	12.3	1238	74
9.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
10.		Fujifilm X70	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
11.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
12.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
13.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
14.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
15.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
16.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
17.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The TL and the MX-1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the TL can be equipped with an optional viewfinder – the Visoflex (Typ 020). The adjacent table lists some of the other core features of the Leica TL and Pentax MX-1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica TL	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
2.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
3.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Fujifilm X-A2	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
6.		Fujifilm X-A10	none	n	3.0 / 1040	tilting	n	1/4000s	6.0/s	Y	n
7.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
8.		Fujifilm X-Pro1	1440	n	3.0 / 1230	fixed	n	1/4000s	6.0/s	n	n
9.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
10.		Fujifilm X70	optional	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
11.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
12.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
13.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
14.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
15.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
16.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
17.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The TL has a touchscreen, while the MX-1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the TL and the MX-1 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica TL and Pentax MX-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica TL	Y	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Fujifilm X-A2	Y	stereo / mono	-	-	mini	2.0	Y	-	-
6.		Fujifilm X-A10	-	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Fujifilm X-Pro1	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
10.		Fujifilm X70	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
12.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
13.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
14.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
15.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-

It is notable that the TL has a hotshoe, while the MX-1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the TL and the MX-1 have been discontinued, but can regularly be found used on ebay. The TL was replaced by the Leica TL2, while the MX-1 does not have a direct successor. Further information on the features and operation of the TL and MX-1 can be found, respectively, in the Leica TL Manual (free pdf) or the online Pentax MX-1 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Leica TL and the Pentax MX-1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Leica TL:

• More detail: Offers more megapixels (16.1 vs 12MP) with a 18% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Larger screen: Has a bigger rear LCD (3.7" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1230k vs 920k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (5 vs 1 flaps/sec) to capture the decisive moment.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Longer lasting: Can take more shots (400 versus 290) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Reflects 3 years and 10 months of technical progress since the MX-1 launch.

Arguments in favor of the Pentax MX-1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Ready to shoot: Has an integrated lens, whereas the TL necessitates an extra lens.
• More compact: Is smaller (122x61mm vs 134x69mm) and will fit more readily into a bag.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been around for much longer (launched in January 2013).

If the count of relative strengths (bullet points above) is taken as a measure, the TL is the clear winner of the match-up (18 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica TL and the Pentax MX-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the TL and the MX-1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica TL	..	..	..	..	..	4/5	Nov 2016	1,695	ebay.com
2.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	499	ebay.com
3.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	499	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
5.		Fujifilm X-A2	4/5	..	..	..	4.5/5	4.5/5	Jan 2015	399	ebay.com
6.		Fujifilm X-A10	..	..	..	..	4/5	4/5	Dec 2016	399	ebay.com
7.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	699	ebay.com
8.		Fujifilm X-Pro1	5/5	+ +	..	79/100	4.5/5	4.5/5	Jan 2012	1,699	ebay.com
9.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	799	ebay.com
10.		Fujifilm X70	4.5/5	..	..	76/100	4.5/5	4.5/5	Jan 2016	799	ebay.com
11.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	2,795	ebay.com
12.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	1,850	ebay.com
13.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	1,950	ebay.com
14.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	1,995	ebay.com
15.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	549	ebay.com
16.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
17.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
