Leica TL vs Nikon D1H

The Leica TL and the Nikon D1H are two digital cameras that were officially introduced, respectively, in November 2016 and February 2001. The TL is a mirrorless interchangeable lens camera, while the D1H is a DSLR. Both cameras are equipped with an APS-C sensor. The Leica has a resolution of 16.1 megapixels, whereas the Nikon provides 2.6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica TL		Nikon D1H
Mirrorless system camera		Digital single lens reflex
Leica T mount lenses		Nikon F mount lenses
16.1 MP – APS-C sensor		2.6 MP – APS-C sensor
1080/30p Video		no Video
ISO 100-12,500		ISO 200-800 (200 - 3,200)
Viewfinder optional		Optical viewfinder
3.7" LCD – 1230k dots		2.0" LCD – 120k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
5 shutter flaps per second		5 shutter flaps per second
not weather sealed		Weathersealed body
400 shots per battery charge		1200 shots per battery charge
134 x 69 x 33 mm, 384 g		157 x 153 x 85 mm, 1100 g

Check TL offers at
ebay.com
Check D1H offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica TL and the Nikon D1H? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

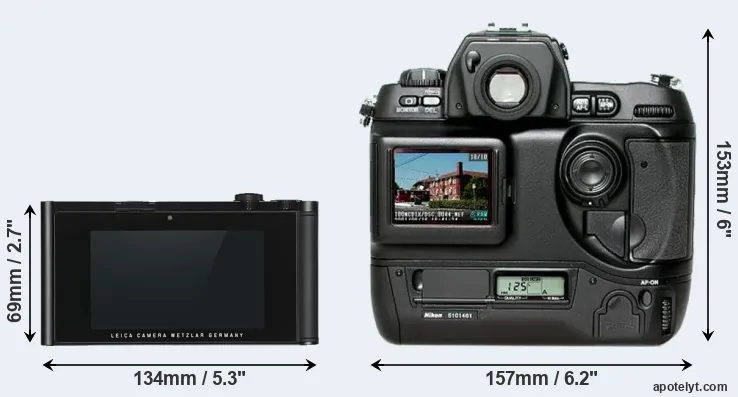

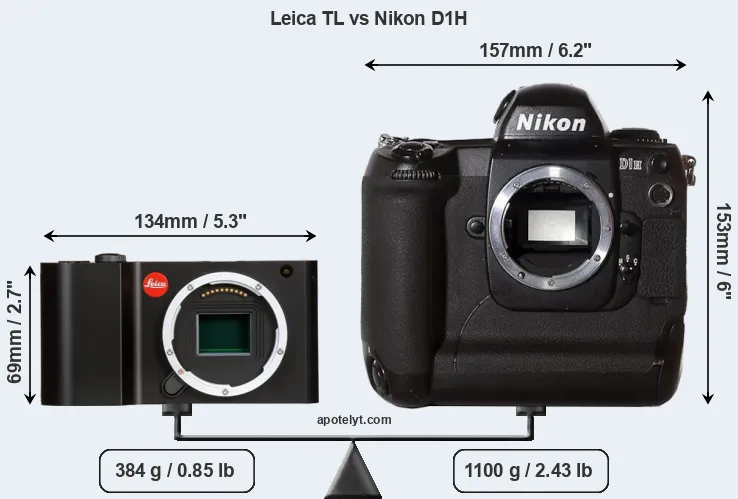

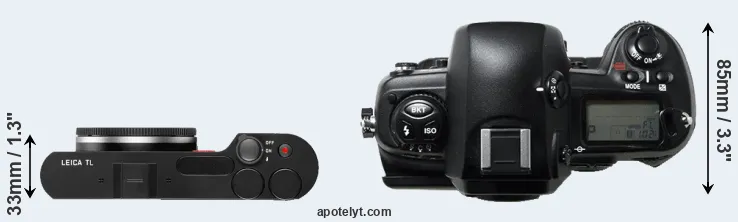

The physical size and weight of the Leica TL and the Nikon D1H are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The TL can be obtained in three different colors (black, silver, titanium), while the D1H is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D1H is considerably larger (160 percent) than the Leica TL. Moreover, the D1H is substantially heavier (186 percent) than the TL. It is noteworthy in this context that the D1H is splash and dust-proof, while the TL does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the TL gets 400 shots out of its Leica BP-DC13 battery, while the D1H can take 1200 images on a single charge of its Nikon EN-4 power pack. As can be seen in the images above, the D1H has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the TL can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica TL	134 mm	69 mm	33 mm	384 g	400	n	Nov 2016	1,695	ebay.com
2.		Nikon D1H	157 mm	153 mm	85 mm	1100 g	1200	Y	Feb 2001	4,499	ebay.com
3.		Fujifilm X-A2	117 mm	67 mm	40 mm	350 g	410	n	Jan 2015	399	ebay.com
4.		Fujifilm X-A10	117 mm	67 mm	40 mm	331 g	410	n	Dec 2016	399	ebay.com
5.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	699	ebay.com
6.		Fujifilm X-Pro1	140 mm	82 mm	43 mm	450 g	300	n	Jan 2012	1,699	ebay.com
7.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	799	ebay.com
8.		Fujifilm X70	113 mm	64 mm	44 mm	340 g	330	n	Jan 2016	799	ebay.com
9.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	2,795	ebay.com
10.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	1,850	ebay.com
11.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	1,950	ebay.com
12.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	1,995	ebay.com
13.		Nikon D1	157 mm	153 mm	85 mm	1100 g	..	Y	Jun 1999	5,499	ebay.com
14.		Nikon D1X	157 mm	153 mm	85 mm	1100 g	1200	Y	Feb 2001	5,999	ebay.com
15.		Nikon D2H	158 mm	150 mm	86 mm	1070 g	2900	Y	Jul 2003	3,499	ebay.com
16.		Nikon D2X	158 mm	150 mm	86 mm	1252 g	3800	Y	Sep 2004	4,999	ebay.com
17.		Nikon D2Xs	158 mm	150 mm	86 mm	1252 g	3800	Y	Jun 2006	4,699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The TL was launched at a markedly lower price (by 62 percent) than the D1H, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

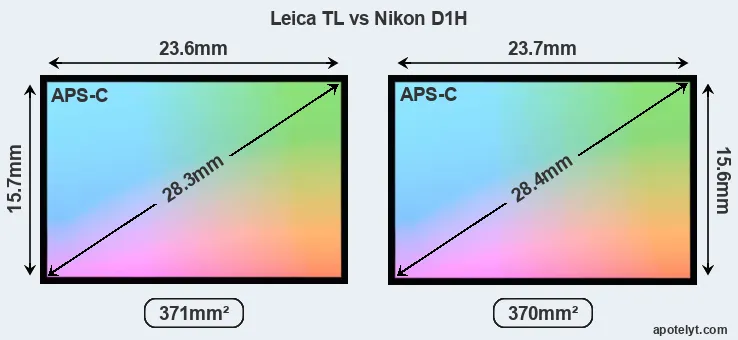

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

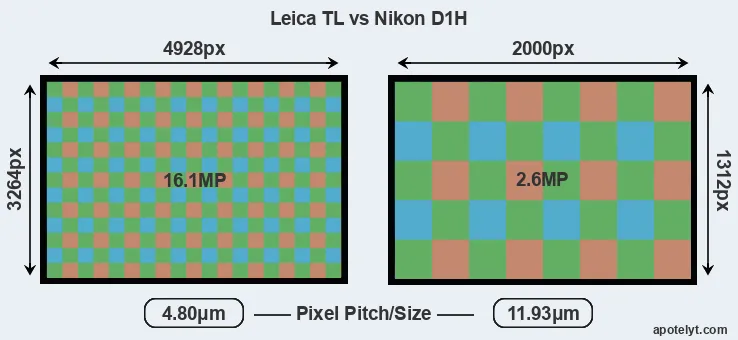

With 16.1MP, the TL offers a higher resolution than the D1H (2.6MP), but the TL has smaller individual pixels (pixel pitch of 4.80μm versus 11.93μm for the D1H). However, the TL is a much more recent model (by 15 years and 9 months) than the D1H, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the TL has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica TL implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TL for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Nikon D1H are 10 x 6.6 inches or 25.4 x 16.7 cm for good quality, 8 x 5.2 inches or 20.3 x 13.3 cm for very good quality, and 6.7 x 4.4 inches or 16.9 x 11.1 cm for excellent quality prints.

The Leica TL has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Nikon D1H are ISO 200 to ISO 800, with the possibility to increase the ISO range to 200-3200.

In terms of underlying technology, the TL is build around a CMOS sensor, while the D1H uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica TL	APS-C	16.1	4928	3264	1080/30p	23.9	13.2	1690	81
2.		Nikon D1H	APS-C	2.6	2000	1312	none	..	..	..	..
3.		Fujifilm X-A2	APS-C	16.0	4896	3264	1080/30p	23.6	12.8	1515	79
4.		Fujifilm X-A10	APS-C	16.0	4896	3264	1080/30p	23.9	13.2	1691	81
5.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
6.		Fujifilm X-Pro1	APS-C	16.0	4896	3264	1080/24p	23.1	12.3	1238	74
7.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
8.		Fujifilm X70	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
9.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
10.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
11.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
12.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
13.		Nikon D1	APS-C	2.6	2000	1312	none	..	..	..	..
14.		Nikon D1X	APS-C	5.9	3008	1960	none	..	..	..	..
15.		Nikon D2H	APS-C	4.0	2464	1632	none	18.9	10.0	352	40
16.		Nikon D2X	APS-C	12.2	4288	2848	none	22.1	10.9	476	59
17.		Nikon D2Xs	APS-C	12.2	4288	2848	none	22.2	10.9	489	59
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The TL indeed provides movie recording capabilities, while the D1H does not. The highest resolution format that the TL can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D1H has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TL relies on live view and the rear LCD for framing. That said, the TL can be equipped with an optional viewfinder – the Visoflex (Typ 020). The adjacent table lists some of the other core features of the Leica TL and Nikon D1H along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica TL	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
2.		Nikon D1H	optical	Y	2.0 / 120	fixed	n	1/16000s	5.0/s	n	n
3.		Fujifilm X-A2	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
4.		Fujifilm X-A10	none	n	3.0 / 1040	tilting	n	1/4000s	6.0/s	Y	n
5.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
6.		Fujifilm X-Pro1	1440	n	3.0 / 1230	fixed	n	1/4000s	6.0/s	n	n
7.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
8.		Fujifilm X70	optional	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
9.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
10.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
11.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
12.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
13.		Nikon D1	optical	Y	2.0 / 120	fixed	n	1/16000s	4.5/s	n	n
14.		Nikon D1X	optical	Y	2.0 / 120	fixed	n	1/16000s	3.0/s	n	n
15.		Nikon D2H	optical	Y	2.5 / 211	fixed	n	1/8000s	8.0/s	n	n
16.		Nikon D2X	optical	Y	2.5 / 235	fixed	n	1/8000s	5.0/s	n	n
17.		Nikon D2Xs	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The TL has one, while the D1H does not. While the built-in flash of the TL is not very powerful, it can at times be useful as a fill-in light.

The TL writes its imaging data to SDXC cards, while the D1H uses Compact Flash cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica TL and Nikon D1H and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica TL	Y	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Nikon D1H	Y	- / -	-	-	-	FW	-	-	-
3.		Fujifilm X-A2	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Fujifilm X-A10	-	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
6.		Fujifilm X-Pro1	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Fujifilm X70	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
10.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
11.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
12.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
13.		Nikon D1	Y	- / -	-	-	-	FW	-	-	-
14.		Nikon D1X	Y	- / -	-	-	-	FW	-	-	-
15.		Nikon D2H	Y	- / -	-	-	-	2.0	-	-	-
16.		Nikon D2X	Y	- / -	-	-	-	2.0	-	-	-
17.		Nikon D2Xs	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the TL offers wifi support, while the D1H does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Nikon D1H (unlike the TL) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the TL and the D1H have been discontinued, but can regularly be found used on ebay. The D1H was replaced by the Nikon D2H, while the TL was followed by the Leica TL2. Further information on the features and operation of the TL and D1H can be found, respectively, in the Leica TL Manual (free pdf) or the online Nikon D1H Manual.

Review summary

So what is the bottom line? Is the Leica TL better than the Nikon D1H or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Leica TL:

• More detail: Offers more megapixels (16.1 vs 2.6MP) with a 147% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Larger screen: Has a bigger rear LCD (3.7" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1230k vs 120k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More compact: Is smaller (134x69mm vs 157x153mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 716g or 65 percent) and hence easier to carry around.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More affordable: Was introduced into a lower priced category (62 percent cheaper at launch).
• More modern: Reflects 15 years and 9 months of technical progress since the D1H launch.

Arguments in favor of the Nikon D1H:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/4000s) to freeze action.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Gets more shots (1200 versus 400) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been around for much longer (launched in February 2001).

If the count of relative strengths (bullet points above) is taken as a measure, the TL is the clear winner of the match-up (15 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica TL and the Nikon D1H place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the TL or the D1H. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica TL	..	..	..	..	..	4/5	Nov 2016	1,695	ebay.com
2.		Nikon D1H	..	..	..	+ +	..	..	Feb 2001	4,499	ebay.com
3.		Fujifilm X-A2	4/5	..	..	..	4.5/5	4.5/5	Jan 2015	399	ebay.com
4.		Fujifilm X-A10	..	..	..	..	4/5	4/5	Dec 2016	399	ebay.com
5.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	699	ebay.com
6.		Fujifilm X-Pro1	5/5	+ +	..	79/100	4.5/5	4.5/5	Jan 2012	1,699	ebay.com
7.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	799	ebay.com
8.		Fujifilm X70	4.5/5	..	..	76/100	4.5/5	4.5/5	Jan 2016	799	ebay.com
9.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	2,795	ebay.com
10.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	1,850	ebay.com
11.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	1,950	ebay.com
12.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	1,995	ebay.com
13.		Nikon D1	..	..	..	+ +	..	..	Jun 1999	5,499	ebay.com
14.		Nikon D1X	..	..	..	+ +	..	..	Feb 2001	5,999	ebay.com
15.		Nikon D2H	..	..	..	+ +	..	..	Jul 2003	3,499	ebay.com
16.		Nikon D2X	..	..	..	+ +	..	..	Sep 2004	4,999	ebay.com
17.		Nikon D2Xs	..	..	..	..	..	..	Jun 2006	4,699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
