Leica S2 vs Zeiss ZX1

The Leica S2 and the Zeiss ZX1 are two digital cameras that were announced, respectively, in September 2008 and September 2018. The S2 is a DSLR, while the ZX1 is a fixed lens compact. The cameras are based on a medium format (S2) and a full frame (ZX1) sensor. The Leica has a resolution of 37.5 megapixels, whereas the Zeiss provides 37.4 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica S2		Zeiss ZX1
Digital single lens reflex		Fixed lens compact camera
Leica S mount lenses		35mm f/2.8
37.5 MP – Medium Format sensor		37.4 MP – Full Frame sensor
no Video		4K/30p Video
ISO 80-1,250		ISO 80-51,200
Optical viewfinder		Electronic viewfinder (6221k dots)
3.0" LCD – 460k dots		4.3" LCD – 2765k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
1.5 shutter flaps per second		3 shutter flaps per second
Weathersealed body		not weather sealed
160 x 120 x 80 mm, 1410 g		142 x 93 x 46 mm, 800 g

Check S2 offers at
ebay.com
Check ZX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica S2 and the Zeiss ZX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

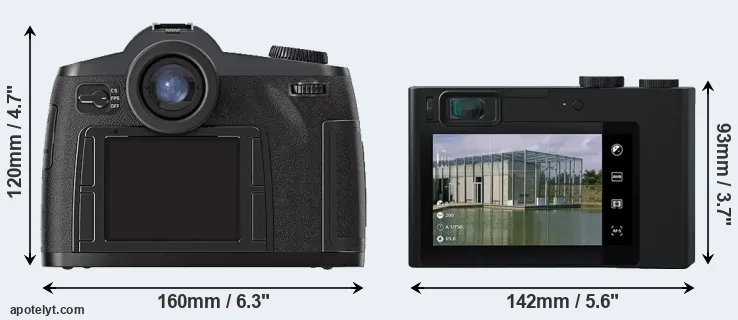

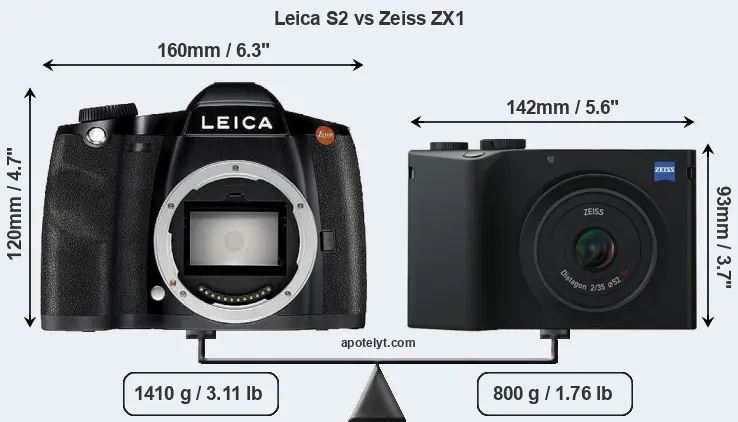

The physical size and weight of the Leica S2 and the Zeiss ZX1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Zeiss ZX1 is considerably smaller (31 percent) than the Leica S2. It is worth mentioning in this context that the S2 is splash and dust resistant, while the ZX1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the ZX1 has a lens built in, whereas the S2 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the S2 gets .. shots out of its Leica BP-PRO1 battery, while the ZX1 can take 250 images on a single charge of its Zeiss DD-PS1A power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica S2	160 mm	120 mm	80 mm	1410 g	..	Y	Sep 2008	US$ 22 999	ebay.com
2.		Zeiss ZX1	142 mm	93 mm	46 mm	800 g	250	n	Sep 2018	US$ 5 999	ebay.com
3.		Canon 1Ds Mark III	150 mm	160 mm	80 mm	1385 g	1800	Y	Aug 2007	US$ 7 999	ebay.com
4.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
5.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
6.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	US$ 4 999	amazon.com
7.		Leica S1	339 mm	214 mm	119 mm	2500 g	..	n	Aug 1996	US$ 21 499	ebay.com
8.		Leica S3	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2018	US$ 18 999	ebay.com
9.		Leica S Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2012	US$ 21 949	ebay.com
10.		Leica S-E Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2014	US$ 16 599	ebay.com
11.		Leica S Typ 007	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2014	US$ 24 499	ebay.com
12.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	US$ 4 999	ebay.com
13.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	US$ 5 199	ebay.com
14.		Nikon D3X	160 mm	157 mm	88 mm	1260 g	4400	Y	Dec 2008	US$ 7 999	ebay.com
15.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	US$ 899	ebay.com
16.		Pentax 645D	156 mm	117 mm	119 mm	1480 g	800	Y	Mar 2010	US$ 9 995	ebay.com
17.		Sony RX1R II	113 mm	65 mm	72 mm	507 g	220	n	Oct 2015	US$ 3 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The ZX1 was launched at a lower price than the S2, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica S2 features a medium format sensor and the Zeiss ZX1 a full frame sensor. The sensor area in the ZX1 is 36 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 0.8 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

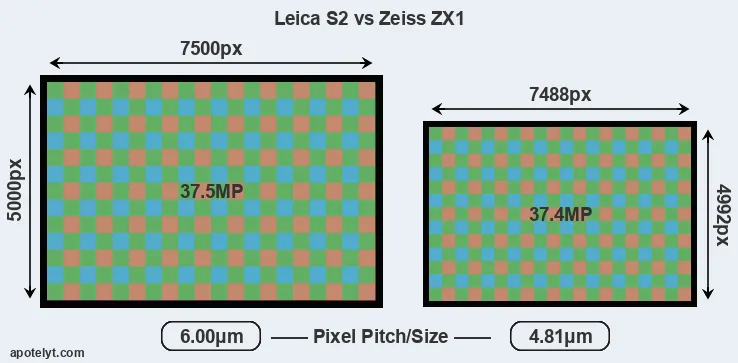

With 37.5MP, the S2 offers a slightly higher resolution than the ZX1 (37.4MP), but the S2 nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 4.81μm for the ZX1) due to its larger sensor. However, the ZX1 is a much more recent model (by 10 years) than the S2, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the S2 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Leica S2 has a native sensitivity range from ISO 80 to ISO 1250. The corresponding ISO settings for the Zeiss ZX1 are ISO 80 to ISO 51200 (no boost).

In terms of underlying technology, the S2 is build around a CCD sensor, while the ZX1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica S2	Medium Format	37.5	7500	5000	none	23.9	12.5	2224	82
2.		Zeiss ZX1	Full Frame	37.4	7488	4992	4K/30p	25.2	14.1	2759	94
3.		Canon 1Ds Mark III	Full Frame	21.0	5616	3744	none	24.0	12.0	1663	80
4.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
5.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
6.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
7.		Leica S1	Medium Format	26.4	5140	5140	none	..	..	..	..
8.		Leica S3	Medium Format	64.0	9800	6533	4K/24p	25.6	14.4	3143	98
9.		Leica S Typ 006	Medium Format	37.5	7500	5000	none	23.9	12.2	824	76
10.		Leica S-E Typ 006	Medium Format	37.5	7500	5000	none	25.1	13.7	2763	93
11.		Leica S Typ 007	Medium Format	37.5	7500	5000	4K/24p	25.1	13.7	2763	93
12.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
13.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
14.		Nikon D3X	Full Frame	24.4	6048	4032	none	24.7	13.7	1992	88
15.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
16.		Pentax 645D	Medium Format	39.5	7264	5440	none	24.6	12.6	1262	82
17.		Sony RX1R II	Full Frame	42.2	7952	5304	1080/60p	25.8	13.9	3204	97
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The ZX1 indeed provides for movie recording, while the S2 does not. The highest resolution format that the ZX1 can use is 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the ZX1 has an electronic viewfinder (6221k dots), while the S2 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the ZX1 offers a wider field of view (100%) than the one in the S2 (96%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the S2 has a higher magnification (0.86x vs 0.74x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Leica S2 and Zeiss ZX1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica S2	optical	Y	3.0 / 460	fixed	n	1/4000s	1.5/s	n	n
2.		Zeiss ZX1	6221	n	4.3 / 2765	fixed	Y	1/1000s	3.0/s	n	n
3.		Canon 1Ds Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	5.0/s	n	n
4.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
5.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
6.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
7.		Leica S1	optical	n	none / none	none	n	..	0.01/s	n	n
8.		Leica S3	optical	Y	3.0 / 922	fixed	n	1/4000s	3.0/s	n	n
9.		Leica S Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
10.		Leica S-E Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
11.		Leica S Typ 007	optical	Y	3.0 / 922	fixed	n	1/4000s	3.5/s	n	n
12.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
13.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
14.		Nikon D3X	optical	Y	3.0 / 922	fixed	n	1/8000s	5.0/s	n	n
15.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
16.		Pentax 645D	optical	Y	3.0 / 921	fixed	n	1/4000s	1.1/s	n	n
17.		Sony RX1R II	2360	n	3.0 / 1229	tilting	n	1/4000s	5.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the S2, but is missing on the ZX1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the ZX1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The S2 writes its imaging data to Compact Flash or SDHC cards, while the ZX1 uses an internal SSD.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica S2 and Zeiss ZX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica S2	Y	- / -	-	-	mini	2.0	-	-	-
2.		Zeiss ZX1	Y	stereo / mono	-	-	-	3.1	Y	Y	Y
3.		Canon 1Ds Mark III	Y	mono / -	-	-	-	2.0	-	-	-
4.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
5.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
7.		Leica S1	-	- / -	-	-	-	-	-	-	-
8.		Leica S3	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
9.		Leica S Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
10.		Leica S-E Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
11.		Leica S Typ 007	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
12.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
13.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Nikon D3X	Y	- / -	-	-	mini	2.0	-	-	-
15.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
16.		Pentax 645D	Y	stereo / -	-	-	-	2.0	-	-	-
17.		Sony RX1R II	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-

It is notable that the ZX1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the S2 does not provide wifi capability.

Studio photographers will appreciate that the Leica S2 (unlike the ZX1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the S2 and the ZX1 have been discontinued, but can regularly be found used on ebay. The S2 was replaced by the Leica S Typ 006, while the ZX1 does not have a direct successor. Further information on the features and operation of the S2 and ZX1 can be found, respectively, in the Leica S2 Manual (free pdf) or the online Zeiss ZX1 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Leica S2 or the Zeiss ZX1 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Leica S2:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.86x vs 0.74x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in September 2008).

Advantages of the Zeiss ZX1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 96%).
• Larger screen: Has a bigger rear LCD (4.3" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2765k vs 460k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (3 vs 1.5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Ready to shoot: Comes with an integrated lens, while the S2 requires a separate lens.
• More compact: Is smaller (142x93mm vs 160x120mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the S2).
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 10 years of technical progress since the S2 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the ZX1 is the clear winner of the contest (18 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica S2 and the Zeiss ZX1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the S2 or the ZX1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica S2	..	..	..	..	..	..	Sep 2008	US$ 22 999	ebay.com
2.		Zeiss ZX1	3/5	..	..	83/100	4/5	4/5	Sep 2018	US$ 5 999	ebay.com
3.		Canon 1Ds Mark III	..	..	..	+ +	4.5/5	..	Aug 2007	US$ 7 999	ebay.com
4.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
5.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
6.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	US$ 4 999	amazon.com
7.		Leica S1	..	..	..	..	..	..	Aug 1996	US$ 21 499	ebay.com
8.		Leica S3	..	..	..	..	..	..	Sep 2018	US$ 18 999	ebay.com
9.		Leica S Typ 006	..	..	..	..	..	..	Sep 2012	US$ 21 949	ebay.com
10.		Leica S-E Typ 006	..	..	..	..	..	..	Sep 2014	US$ 16 599	ebay.com
11.		Leica S Typ 007	4/5	..	..	..	..	..	Sep 2014	US$ 24 499	ebay.com
12.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	US$ 4 999	ebay.com
13.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	US$ 5 199	ebay.com
14.		Nikon D3X	..	..	..	86/100	4/5	5/5	Dec 2008	US$ 7 999	ebay.com
15.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	US$ 899	ebay.com
16.		Pentax 645D	5/5	..	..	..	..	..	Mar 2010	US$ 9 995	ebay.com
17.		Sony RX1R II	5/5	..	..	82/100	..	4.5/5	Oct 2015	US$ 3 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
