Leica M9 vs Zeiss ZX1
The Leica M9 and the Zeiss ZX1 are two enthusiast cameras that were officially introduced, respectively, in September 2009 and September 2018. The M9 is a rangefinder-focusing mirrorless camera, while the ZX1 is a fixed lens compact. Both cameras are equipped with a full frame sensor. The Leica has a resolution of 18.1 megapixels, whereas the Zeiss provides 37.4 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M9 and the Zeiss ZX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Leica M9 and the Zeiss ZX1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The M9 can be obtained in two different colors (black, silver), while the ZX1 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Zeiss ZX1 is notably larger (19 percent) than the Leica M9. In this context, it is worth noting that neither the M9 nor the ZX1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the ZX1 has a lens built in, whereas the M9 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the M9 and their specifications in the Leica M Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Leica M9||139 mm||80 mm||37 mm||585 g||..||n||Sep 2009||7,999||ebay.com|
|2.||Zeiss ZX1||142 mm||93 mm||46 mm||800 g||250||n||Sep 2018||5,999||amazon.com|
|3.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||ebay.com|
|4.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|5.||Leica M11||139 mm||80 mm||39 mm||640 g||700||Y||Jan 2022||8,995||amazon.com|
|6.||Leica M10-R||139 mm||80 mm||39 mm||660 g||210||Y||Jul 2020||8,295||amazon.com|
|7.||Leica Q2||130 mm||80 mm||92 mm||718 g||370||Y||Mar 2019||4,995||amazon.com|
|8.||Leica M10-P||139 mm||80 mm||39 mm||660 g||210||Y||Aug 2018||7,995||amazon.com|
|9.||Leica M10||139 mm||80 mm||39 mm||660 g||210||Y||Jan 2017||6,595||ebay.com|
|10.||Leica Q Typ 116||130 mm||80 mm||93 mm||640 g||300||n||Jun 2015||4,249||ebay.com|
|11.||Leica X Typ 113||133 mm||73 mm||78 mm||486 g||350||n||Sep 2014||2,295||ebay.com|
|12.||Leica X Vario||133 mm||73 mm||95 mm||680 g||450||n||Jun 2013||2,850||ebay.com|
|13.||Leica M Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Sep 2012||6,950||ebay.com|
|14.||Leica M8||139 mm||80 mm||37 mm||591 g||..||n||Sep 2006||5,499||ebay.com|
|15.||Panasonic FZ1000||137 mm||99 mm||131 mm||831 g||360||n||Jun 2014||899||ebay.com|
|16.||Sony RX1R II||113 mm||65 mm||72 mm||507 g||220||n||Oct 2015||3,299||amazon.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The ZX1 was launched at a lower price than the M9, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a full frame sensor and have a format factor (sometimes also referred to as "crop factor") of 1.0. Within the spectrum of camera sensors, this places the review cameras among the large-sensor cameras that aim for top notch image quality. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

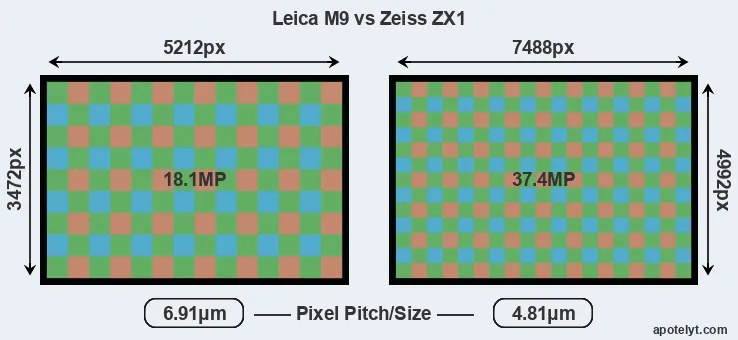

While the two cameras under review share the same sensor size, the ZX1 offers a higher resolution of 37.4 megapixels, compared with 18.1 MP of the M9. This megapixels advantage translates into a 44 percent gain in linear resolution. On the other hand, these sensor specs imply that the ZX1 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.81μm versus 6.91μm for the M9). However, it should be noted that the ZX1 is much more recent (by 9 years) than the M9, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the M9 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Zeiss ZX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the ZX1 for good quality output (200 dots per inch) amounts to 37.4 x 25 inches or 95.1 x 63.4 cm, for very good quality (250 dpi) 30 x 20 inches or 76.1 x 50.7 cm, and for excellent quality (300 dpi) 25 x 16.6 inches or 63.4 x 42.3 cm. The corresponding values for the Leica M9 are 26.1 x 17.4 inches or 66.2 x 44.1 cm for good quality, 20.8 x 13.9 inches or 53 x 35.3 cm for very good quality, and 17.4 x 11.6 inches or 44.1 x 29.4 cm for excellent quality prints.
The Leica M9 has a native sensitivity range from ISO 80 to ISO 2500. The corresponding ISO settings for the Zeiss ZX1 are ISO 80 to ISO 51200 (no boost).
In terms of underlying technology, the M9 is build around a CCD sensor, while the ZX1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|1.||Leica M9||Full Frame||18.1||5212||3472||none||22.5||11.7||884||69|
|2.||Zeiss ZX1||Full Frame||37.4||7488||4992||4K/30p||25.2||14.1||2759||94|
|5.||Leica M11||Full Frame||60.3||9528||6328||none||26.3||14.8||3376||100|
|6.||Leica M10-R||Full Frame||40.9||7864||5200||none||25.3||14.3||2924||95|
|7.||Leica Q2||Full Frame||46.7||8368||5584||4K/30p||26.4||13.5||2491||96|
|8.||Leica M10-P||Full Frame||23.8||5952||3992||none||25.1||14.1||2739||93|
|9.||Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|10.||Leica Q Typ 116||Full Frame||24.0||6000||4000||1080/60p||24.3||12.7||2221||85|
|11.||Leica X Typ 113||APS-C||16.1||4928||3264||1080/30p||23.6||12.8||1491||78|
|12.||Leica X Vario||APS-C||16.1||4928||3272||1080/30p||23.4||12.7||1320||78|
|13.||Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84|
|16.||Sony RX1R II||Full Frame||42.2||7952||5304||1080/60p||25.8||13.9||3204||97|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The ZX1 indeed provides for movie recording, while the M9 does not. The highest resolution format that the ZX1 can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the ZX1 has an electronic viewfinder (6221k dots), while the M9 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the ZX1 has a higher magnification than the one of the M9 (0.74x vs 0.68x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Leica M9 and Zeiss ZX1 in connection with corresponding information for a sample of similar cameras.
|1.||Leica M9||optical||n||2.5 / 230||fixed||n||1/4000s||2.0/s||n||n|
|2.||Zeiss ZX1||6221||n||4.3 / 2765||fixed||Y||1/1000s||3.0/s||n||n|
|3.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|4.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|5.||Leica M11||optical||n||3.0 / 2333||fixed||Y||1/4000s||4.5/s||n||n|
|6.||Leica M10-R||optical||n||3.0 / 1037||fixed||Y||1/4000s||4.5/s||n||n|
|7.||Leica Q2||3680||n||3.0 / 1040||fixed||Y||1/2000s||20.0/s||n||Y|
|8.||Leica M10-P||optical||n||3.0 / 1037||fixed||Y||1/4000s||5.0/s||n||n|
|9.||Leica M10||optical||n||3.0 / 1037||fixed||n||1/4000s||5.0/s||n||n|
|10.||Leica Q Typ 116||3680||n||3.0 / 1040||fixed||Y||1/2000s||10.0/s||n||Y|
|11.||Leica X Typ 113||optional||n||3.0 / 920||fixed||n||1/2000s||5.0/s||Y||n|
|12.||Leica X Vario||optional||n||3.0 / 920||fixed||n||1/2000s||5.0/s||Y||n|
|13.||Leica M Typ 240||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||n||n|
|14.||Leica M8||optical||n||2.5 / 230||fixed||n||1/8000s||2.0/s||n||n|
|15.||Panasonic FZ1000||2359||n||3.0 / 921||swivel||n||1/4000s||12.0/s||Y||Y|
|16.||Sony RX1R II||2360||n||3.0 / 1229||tilting||n||1/4000s||5.0/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The ZX1 has a touchscreen, while the M9 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the ZX1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The M9 writes its imaging data to SDXC cards, while the ZX1 uses an internal SSD.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M9 and Zeiss ZX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Leica M9||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Zeiss ZX1||Y||stereo / mono||-||-||-||3.1||Y||Y||Y|
|3.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|4.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|5.||Leica M11||Y||- / -||-||-||-||3.2||Y||-||Y|
|6.||Leica M10-R||Y||- / -||-||-||-||-||Y||-||-|
|7.||Leica Q2||Y||stereo / mono||-||-||-||-||Y||-||Y|
|8.||Leica M10-P||Y||- / -||-||-||-||-||Y||-||-|
|9.||Leica M10||Y||- / -||-||-||-||-||Y||-||-|
|10.||Leica Q Typ 116||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|11.||Leica X Typ 113||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|12.||Leica X Vario||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|13.||Leica M Typ 240||Y||stereo / mono||-||-||-||2.0||-||-||-|
|14.||Leica M8||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Panasonic FZ1000||Y||stereo / mono||Y||-||micro||2.0||Y||Y||-|
|16.||Sony RX1R II||Y||stereo / mono||Y||-||micro||2.0||Y||Y||-|
It is notable that the ZX1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the M9 does not provide wifi capability.
The ZX1 is a recent model that features in the current product line-up of Zeiss. In contrast, the M9 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the M9 was succeeded by the Leica M Typ 240. Further information on the features and operation of the M9 and ZX1 can be found, respectively, in the Leica M9 Manual (free pdf) or the online Zeiss ZX1 Manual.
So what conclusions can be drawn? Which of the two cameras – the Leica M9 or the Zeiss ZX1 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Leica M9:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1000s) to freeze action.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- More compact: Is smaller (139x80mm vs 142x93mm) and thus needs less room in the bag.
Advantages of the Zeiss ZX1:
- More detail: Has more megapixels (37.4 vs 18.1MP), which boosts linear resolution by 44%.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.68x).
- Larger screen: Has a bigger rear LCD (4.3" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2765k vs 230k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (3 vs 2 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Ready to shoot: Has an integrated lens, whereas the M9 necessitates an extra lens.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
If the count of relative strengths (bullet points above) is taken as a measure, the ZX1 is the clear winner of the contest (16 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M9 or the ZX1. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica M9||..||..||..||..||4.5/5||..||Sep 2009||7,999||ebay.com|
|2.||Zeiss ZX1||3/5||..||..||83/100||4/5||4/5||Sep 2018||5,999||amazon.com|
|3.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699||ebay.com|
|4.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|5.||Leica M11||4.5/5||..||4.5/5||..||4.5/5||4.5/5||Jan 2022||8,995||amazon.com|
|6.||Leica M10-R||4.5/5||..||4/5||..||..||4/5||Jul 2020||8,295||amazon.com|
|7.||Leica Q2||..||..||4.5/5||84/100||4.5/5||4/5||Mar 2019||4,995||amazon.com|
|8.||Leica M10-P||..||..||3/5||..||..||4/5||Aug 2018||7,995||amazon.com|
|9.||Leica M10||4.5/5||..||..||..||4/5||4.5/5||Jan 2017||6,595||ebay.com|
|10.||Leica Q Typ 116||5/5||..||..||80/100||4.5/5||4.5/5||Jun 2015||4,249||ebay.com|
|11.||Leica X Typ 113||3.5/5||..||..||..||3.5/5||4/5||Sep 2014||2,295||ebay.com|
|12.||Leica X Vario||3/5||..||..||..||4/5||4/5||Jun 2013||2,850||ebay.com|
|13.||Leica M Typ 240||4/5||..||..||..||4/5||..||Sep 2012||6,950||ebay.com|
|14.||Leica M8||..||..||..||+ +||..||..||Sep 2006||5,499||ebay.com|
|15.||Panasonic FZ1000||4/5||+ +||..||82/100||4.5/5||4.5/5||Jun 2014||899||ebay.com|
|16.||Sony RX1R II||5/5||..||..||82/100||..||4.5/5||Oct 2015||3,299||amazon.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Leica M9 vs Zeiss ZX1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica M9||Zeiss ZX1|
|Camera Type||Rangefinder camera||Fixed lens compact camera|
|Camera Lens||Leica M mount lenses||35mm f/2.8|
|Launch Date||September 2009||September 2018|
|Launch Price||USD 7,999||USD 5,999|
|Sensor Specs||Leica M9||Zeiss ZX1|
|Sensor Format||Full Frame Sensor||Full Frame Sensor|
|Sensor Size||36.0 x 24.0 mm||36.0 x 24.0 mm|
|Sensor Area||864 mm2||864 mm2|
|Sensor Diagonal||43.3 mm||43.3 mm|
|Sensor Resolution||18.1 Megapixels||37.4 Megapixels|
|Image Resolution||5212 x 3472 pixels||7488 x 4992 pixels|
|Pixel Pitch||6.91 μm||4.81 μm|
|Pixel Density||2.09 MP/cm2||4.33 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||80 - 2,500 ISO||80 - 51,200 ISO|
|DXO Sensor Quality (score)||69||..|
|DXO Color Depth (bits)||22.5||..|
|DXO Dynamic Range (EV)||11.7||..|
|DXO Low Light (ISO)||884||..|
|Screen Specs||Leica M9||Zeiss ZX1|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||6221k dots|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||4.3inch|
|LCD Resolution||230k dots||2765k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Leica M9||Zeiss ZX1|
|Focus System||Manual Focus||Contrast-detect AF|
|Continuous Shooting||2 shutter flaps/s||3 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/8000s|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SSD cards|
|Single or Dual Card Slots||Single card slot||Single SSD|
|Connectivity Specs||Leica M9||Zeiss ZX1|
|USB Connector||USB 2.0||USB 3.1|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Leica M9||Zeiss ZX1|
139 x 80 x 37 mm
(5.5 x 3.1 x 1.5 in)
142 x 93 x 46 mm
(5.6 x 3.7 x 1.8 in)
|Camera Weight||585 g (20.6 oz)||800 g (28.2 oz)|
