Epson R-D1 vs Leica M-E Typ 240

The Epson R-D1 and the Leica M-E (Typ 240) are two enthusiast cameras that were revealed to the public, respectively, in March 2004 and June 2019. Both the R-D1 and the M-E Typ 240 are rangefinder-focusing mirrorless cameras that are based on an APS-C (R-D1) and a full frame (M-E Typ 240) sensor. The Epson has a resolution of 6 megapixels, whereas the Leica provides 23.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Epson R-D1		Leica M-E Typ 240
Rangefinder camera		Rangefinder camera
Leica M mount lenses		Leica M mount lenses
6 MP – APS-C sensor		23.7 MP – Full Frame sensor
no Video		1080/25p Video
ISO 200-1,600		ISO 200-6,400
Optical viewfinder		Optical viewfinder
2.0" LCD – 235k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1 shutter flaps per second		3 shutter flaps per second
not weather sealed		Weathersealed body
142 x 89 x 40 mm, 620 g		139 x 80 x 42 mm, 680 g

Check R-D1 offers at
ebay.com
Check M-E Typ 240 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Epson R-D1 and the Leica M-E (Typ 240)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Epson R-D1 and the Leica M-E Typ 240. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M-E Typ 240 is notably smaller (12 percent) than the Epson R-D1. However, the M-E Typ 240 is markedly heavier (10 percent) than the R-D1. It is noteworthy in this context that the M-E Typ 240 is splash and dust-proof, while the R-D1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the M-E Typ 240) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (R-D1). You can compare the optics available in the Leica M Lens Catalog.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	2,999	ebay.com
2.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	..	Y	Jun 2019	3,999	amazon.com
3.		Canon 350D	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	899	ebay.com
4.		Canon 300D	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	899	ebay.com
5.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	8,295	amazon.com
6.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	7,995	amazon.com
7.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	6,595	ebay.com
8.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	..	Y	Nov 2015	5,195	ebay.com
9.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	2,850	ebay.com
10.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	..	Y	Sep 2012	6,950	ebay.com
11.		Leica M9	139 mm	80 mm	37 mm	585 g	..	n	Sep 2009	7,999	ebay.com
12.		Leica M8	139 mm	80 mm	37 mm	591 g	..	n	Sep 2006	5,499	ebay.com
13.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	749	ebay.com
14.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	899	ebay.com
15.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	999	ebay.com
16.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The R-D1 was launched at a somewhat lower price (by 25 percent) than the M-E Typ 240, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

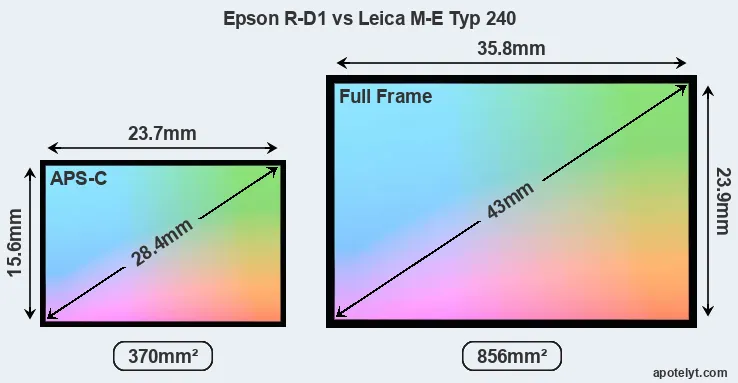

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Epson R-D1 features an APS-C sensor and the Leica M-E Typ 240 a full frame sensor. The sensor area in the M-E Typ 240 is 131 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 23.7MP, the M-E Typ 240 offers a higher resolution than the R-D1 (6MP), but the M-E Typ 240 has smaller individual pixels (pixel pitch of 6.01μm versus 7.85μm for the R-D1). Yet, the M-E Typ 240 is a much more recent model (by 15 years and 3 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Leica M-E Typ 240 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M-E Typ 240 for good quality output (200 dots per inch) amounts to 29.8 x 19.9 inches or 75.6 x 50.5 cm, for very good quality (250 dpi) 23.8 x 15.9 inches or 60.5 x 40.4 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inches or 50.4 x 33.7 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Epson R-D1 has a native sensitivity range from ISO 200 to ISO 1600. The corresponding ISO settings for the Leica M-E (Typ 240) are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-6400.

In terms of underlying technology, the R-D1 is build around a CCD sensor, while the M-E Typ 240 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
2.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
3.		Canon 350D	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
4.		Canon 300D	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
5.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
6.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
7.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
8.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
9.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
10.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
11.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
12.		Leica M8	APS-H	10.4	3936	2630	none	21.1	11.3	663	59
13.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
14.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
15.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
16.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The M-E Typ 240 indeed provides for movie recording, while the R-D1 does not. The highest resolution format that the M-E Typ 240 can use is 1080/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The R-D1 and the M-E Typ 240 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The table below summarizes some of the other core capabilities of the Epson R-D1 and Leica M-E Typ 240 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
2.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
3.		Canon 350D	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 300D	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
5.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
6.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
7.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
8.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
9.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
10.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
11.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
12.		Leica M8	optical	n	2.5 / 230	fixed	n	1/8000s	2.0/s	n	n
13.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
14.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
15.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
16.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The R-D1 writes its imaging data to SDHC cards, while the M-E Typ 240 uses SDXC cards. The M-E Typ 240 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the R-D1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Epson R-D1 and Leica M-E (Typ 240) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
2.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
3.		Canon 350D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon 300D	Y	- / -	-	-	-	1.1	-	-	-
5.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
6.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
7.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
8.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
9.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
11.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
12.		Leica M8	Y	- / -	-	-	-	2.0	-	-	-
13.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
14.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
15.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
16.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-

Studio photographers will appreciate that the Epson R-D1 (unlike the M-E Typ 240) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The M-E Typ 240 is a recent model that features in the current product line-up of Leica. In contrast, the R-D1 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the R-D1 from Epson. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Epson and Leica websites.

Review summary

So what is the bottom line? Which of the two cameras – the Epson R-D1 or the Leica M-E Typ 240 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Advantages of the Epson R-D1:

• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More affordable: Was introduced into a lower priced segment (25 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in March 2004).

Reasons to prefer the Leica M-E (Typ 240):

• More detail: Has more megapixels (23.7 vs 6MP), which boosts linear resolution by 98%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can capture not only stills but also 1080/25p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 235k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (3 vs 1 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (139x80mm vs 142x89mm) and will fit more readily into a bag.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More modern: Reflects 15 years and 3 months of technical progress since the R-D1 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the M-E Typ 240 is the clear winner of the contest (15 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the R-D1 and the M-E Typ 240 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Epson R-D1	..	..	..	..	..	..	Mar 2004	2,999	ebay.com
2.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	3,999	amazon.com
3.		Canon 350D	..	80/100	..	+ +	o	..	Feb 2005	899	ebay.com
4.		Canon 300D	..	..	..	+ +	..	..	Aug 2003	899	ebay.com
5.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	8,295	amazon.com
6.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	7,995	amazon.com
7.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	6,595	ebay.com
8.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	5,195	ebay.com
9.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	2,850	ebay.com
10.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	6,950	ebay.com
11.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	7,999	ebay.com
12.		Leica M8	..	..	..	+ +	..	..	Sep 2006	5,499	ebay.com
13.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	749	ebay.com
14.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	899	ebay.com
15.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	999	ebay.com
16.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	799	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
