Epson R-D1 vs Leica D-LUX 6

The Epson R-D1 and the Leica D-LUX 6 are two enthusiast cameras that were announced, respectively, in March 2004 and September 2012. The R-D1 is a rangefinder-focusing mirrorless camera, while the D-LUX 6 is a fixed lens compact. The cameras are based on an APS-C (R-D1) and a 1/1.7-inch (D-LUX 6) sensor. The Epson has a resolution of 6 megapixels, whereas the Leica provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Epson R-D1		Leica D-LUX 6
Rangefinder camera		Fixed lens compact camera
Leica M mount lenses		24-90mm f/1.4-2.3
6 MP – APS-C sensor		10 MP – 1/1.7" sensor
no Video		1080/60p Video
ISO 200-1,600		ISO 80-6,400 (80 - 12,800)
Optical viewfinder		Viewfinder optional
2.0" LCD – 235k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1 shutter flaps per second		11 shutter flaps per second
142 x 89 x 40 mm, 620 g		111 x 68 x 46 mm, 298 g

Check R-D1 offers at
ebay.com
Check D-LUX 6 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Epson R-D1 and the Leica D-LUX 6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

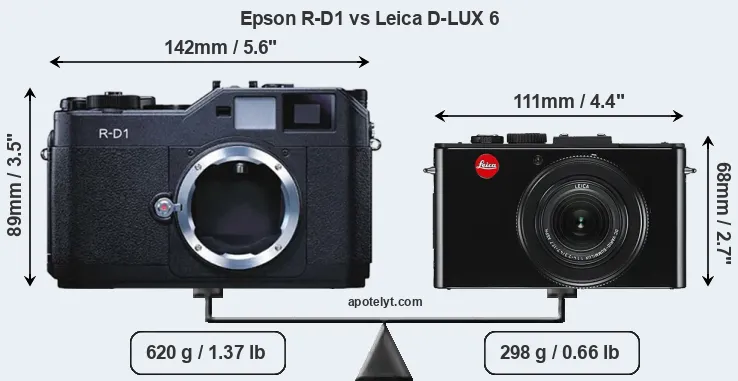

The physical size and weight of the Epson R-D1 and the Leica D-LUX 6 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The D-LUX 6 can be obtained in three different colors (black, silver, white), while the R-D1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica D-LUX 6 is considerably smaller (40 percent) than the Epson R-D1. In this context, it is worth noting that neither the R-D1 nor the D-LUX 6 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX 6 has a lens built in, whereas the R-D1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the R-D1 and their specifications in the Leica M Lens Catalog.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	US$ 2 999	ebay.com
2.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	US$ 699	ebay.com
3.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
4.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
5.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
6.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
7.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	US$ 2 795	ebay.com
8.		Leica D-LUX 5	110 mm	65 mm	43 mm	271 g	400	n	Sep 2010	US$ 699	ebay.com
9.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	US$ 7 999	ebay.com
10.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
11.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
12.		Leica X-U Typ 113	140 mm	79 mm	88 mm	635 g	450	Y	Jan 2016	US$ 2 949	ebay.com
13.		Nikon D40	124 mm	94 mm	64 mm	522 g	470	n	Nov 2006	US$ 499	ebay.com
14.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
15.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
16.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
17.		Sony RX100 II	102 mm	58 mm	38 mm	281 g	350	n	Jun 2013	US$ 749	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D-LUX 6 was launched at a lower price than the R-D1, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Epson R-D1 features an APS-C sensor and the Leica D-LUX 6 a 1/1.7-inch sensor. The sensor area in the D-LUX 6 is 89 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 4.65. The sensor in the R-D1 has a native 3:2 aspect ratio, while the one in the D-LUX 6 offers a 4:3 aspect. The D-LUX 6 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

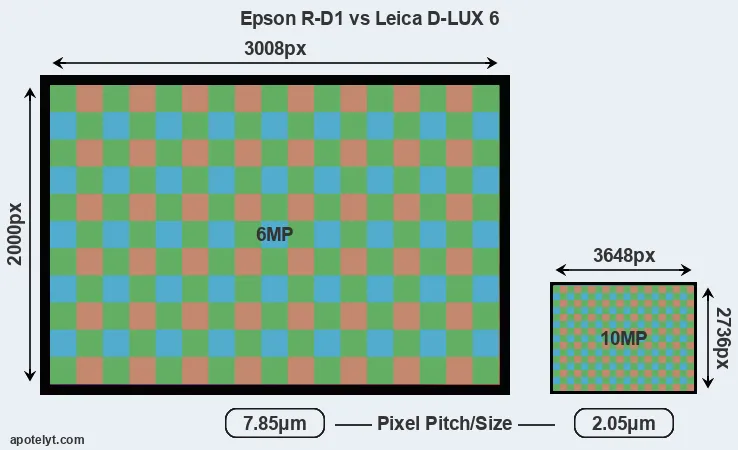

Despite having a smaller sensor, the D-LUX 6 offers a higher resolution of 10 megapixels, compared with 6 MP of the R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.05μm versus 7.85μm for the R-D1). However, it should be noted that the D-LUX 6 is much more recent (by 8 years and 6 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Leica D-LUX 6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D-LUX 6 for good quality output (200 dots per inch) amounts to 18.2 x 13.7 inches or 46.3 x 34.7 cm, for very good quality (250 dpi) 14.6 x 10.9 inches or 37.1 x 27.8 cm, and for excellent quality (300 dpi) 12.2 x 9.1 inches or 30.9 x 23.2 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Epson R-D1 has a native sensitivity range from ISO 200 to ISO 1600. The corresponding ISO settings for the Leica D-LUX 6 are ISO 80 to ISO 6400, with the possibility to increase the ISO range to 80-12800.

In terms of underlying technology, the R-D1 is build around a CCD sensor, while the D-LUX 6 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
2.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
3.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
4.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
5.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
6.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
7.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
8.		Leica D-LUX 5	1/1.7	10.0	3648	2736	720/60p	19.5	10.4	-583	39
9.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
10.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
11.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
12.		Leica X-U Typ 113	APS-C	16.1	4928	3264	1080/30p	23.8	13.0	1614	80
13.		Nikon D40	APS-C	6.0	3008	2000	none	21.0	11.0	561	56
14.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
15.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
16.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
17.		Sony RX100 II	1-inch	20.0	5472	3648	1080/60p	22.5	12.4	483	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The D-LUX 6 indeed provides for movie recording, while the R-D1 does not. The highest resolution format that the D-LUX 6 can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the R-D1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the D-LUX 6 relies on live view and the rear LCD for framing. That said, the D-LUX 6 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The adjacent table lists some of the other core features of the Epson R-D1 and Leica D-LUX 6 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
2.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
3.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
4.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
5.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
6.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
7.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
8.		Leica D-LUX 5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
9.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
10.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
11.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
12.		Leica X-U Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
13.		Nikon D40	optical	n	2.5 / 230	fixed	n	1/4000s	2.5/s	Y	n
14.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
15.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
16.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
17.		Sony RX100 II	optional	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The D-LUX 6 has one, while the R-D1 does not. While the built-in flash of the D-LUX 6 is not very powerful, it can at times be useful as a fill-in light.

The Leica D-LUX 6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R-D1 writes its imaging data to SDHC cards, while the D-LUX 6 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Epson R-D1 and Leica D-LUX 6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
2.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
5.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
7.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
8.		Leica D-LUX 5	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
10.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
11.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Leica X-U Typ 113	Y	stereo / mono	-	-	-	2.0	-	-	-
13.		Nikon D40	Y	- / -	-	-	-	2.0	-	-	-
14.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
15.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
16.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
17.		Sony RX100 II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

Studio photographers will appreciate that the Epson R-D1 (unlike the D-LUX 6) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R-D1 and the D-LUX 6 have been discontinued, but can regularly be found used on ebay. The D-LUX 6 was replaced by the Leica D-LUX Typ 109, while the R-D1 does not have a direct successor. Further information on the features and operation of the R-D1 and D-LUX 6 can be found, respectively, in the Epson R-D1 Manual (free pdf) or the online Leica D-LUX 6 Manual.

Review summary

So what conclusions can be drawn? Is the Epson R-D1 better than the Leica D-LUX 6 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Epson R-D1:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in March 2004).

Arguments in favor of the Leica D-LUX 6:

• More detail: Has more megapixels (10 vs 6MP), which boosts linear resolution by 26%.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Broader imaging potential: Can capture not only stills but also 1080/60p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 235k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (11 vs 1 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has an integrated lens, whereas the R-D1 necessitates an extra lens.
• More compact: Is smaller (111x68mm vs 142x89mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the R-D1).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 8 years and 6 months of technical progress since the R-D1 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the D-LUX 6 is the clear winner of the contest (16 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the R-D1 or the D-LUX 6 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Epson R-D1	..	..	..	..	..	..	Mar 2004	US$ 2 999	ebay.com
2.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	US$ 699	ebay.com
3.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
4.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
5.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
6.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
7.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	US$ 2 795	ebay.com
8.		Leica D-LUX 5	..	..	..	..	4.5/5	4/5	Sep 2010	US$ 699	ebay.com
9.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	US$ 7 999	ebay.com
10.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
11.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
12.		Leica X-U Typ 113	3.5/5	..	..	..	..	3.5/5	Jan 2016	US$ 2 949	ebay.com
13.		Nikon D40	..	81/100	..	+ +	o	4.5/5	Nov 2006	US$ 499	ebay.com
14.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
15.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
16.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
17.		Sony RX100 II	5/5	+ +	..	79/100	4.5/5	4.5/5	Jun 2013	US$ 749	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
