Epson R-D1 vs Fujifilm X-M1

The Epson R-D1 and the Fujifilm X-M1 are two digital cameras that were revealed to the public, respectively, in March 2004 and June 2013. The R-D1 is a rangefinder-focusing mirrorless, while the X-M1 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Epson has a resolution of 6 megapixels, whereas the Fujifilm provides 16 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

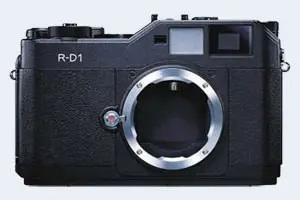

Epson R-D1
versus
Fujifilm X-M1
Epson R-D1   Fujifilm X-M1
Rangefinder camera Mirrorless system camera
Leica M mount lenses Fujifilm X mount lenses
6 MP – APS-C sensor 16 MP – APS-C sensor
no Video 1080/30p Video
ISO 200-1,600 ISO 200-6,400 (100 - 25,600)
Optical viewfinder No viewfinder, LCD framing
2.0" LCD – 235k dots 3.0" LCD – 920k dots
Fixed screen (not touch-sensitive) Tilting screen (no touchscreen)
1 shutter flaps per second 5.6 shutter flaps per second
142 x 89 x 40 mm, 620 g 117 x 67 x 39 mm, 330 g
logo
Check R-D1 offers at
ebay.com
logo
Check X-M1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Epson R-D1 and the Fujifilm X-M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Epson R-D1 and the Fujifilm X-M1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The X-M1 can be obtained in three different colors (black, silver, brown), while the R-D1 is only available in black.

Size Epson R-D1 vs Fujifilm X-M1
Compare R-D1 versus X-M1 top
Comparison R-D1 or X-M1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-M1 is considerably smaller (38 percent) than the Epson R-D1. Moreover, the X-M1 is substantially lighter (47 percent) than the R-D1. In this context, it is worth noting that neither the R-D1 nor the X-M1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Leica M Lens Catalog (R-D1) and the Fujinon X Lens Catalog (X-M1).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Epson R-D1 142 mm 89 mm 40 mm 620 g .. i Mar 2004 US$ 2 999ebay.com
2.

Fujifilm X-M1 117 mm 67 mm 39 mm 330 g 350 i Jun 2013 US$ 699ebay.com
3.

Canon Rebel 142 mm 99 mm 72 mm 649 g 400 i Aug 2003 US$ 899ebay.com
4.

Fujifilm X-E2 129 mm 75 mm 37 mm 350 g 350 i Oct 2013 US$ 999ebay.com
5.

Fujifilm X-E2S 129 mm 75 mm 37 mm 350 g 350 i Jan 2016 US$ 699ebay.com
6.

Fujifilm X-M5 112 mm 67 mm 38 mm 355 g 330 i Oct 2025 US$ 799 amazon.com
7.

Fujifilm X-Pro1 140 mm 82 mm 43 mm 450 g 300 i Jan 2012 US$ 1 699ebay.com
8.

Fujifilm X-T10 118 mm 83 mm 41 mm 381 g 350 i May 2015 US$ 799ebay.com
9.

Leica CL 131 mm 78 mm 45 mm 403 g 220 i Nov 2017 US$ 2 795ebay.com
10.

Leica M9 139 mm 80 mm 37 mm 585 g 550 i Sep 2009 US$ 7 999ebay.com
11.

Leica M10 139 mm 80 mm 39 mm 660 g 210 i Jan 2017 US$ 6 599ebay.com
12.

Leica X Vario 133 mm 73 mm 95 mm 680 g 450 i Jun 2013 US$ 2 849ebay.com
13.

Leica X-U Typ 113 140 mm 79 mm 88 mm 635 g 450 i Jan 2016 US$ 2 949ebay.com
14.

Nikon D40 124 mm 94 mm 64 mm 522 g 470 i Nov 2006 US$ 499ebay.com
15.

Nikon D50 133 mm 102 mm 76 mm 620 g 400 i Apr 2005 US$ 749ebay.com
16.

Nikon D70 140 mm 111 mm 78 mm 679 g 400 i Jan 2004 US$ 999ebay.com
17.

Nikon D70s 140 mm 111 mm 78 mm 679 g 500 i Apr 2005 US$ 899ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
  empty Camera
Model

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-M1 was launched at a markedly lower price (by 77 percent) than the R-D1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-M1 is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Epson R-D1 and Fujifilm X-M1 sensor measures

Despite having a slightly smaller sensor, the X-M1 offers a higher resolution of 16 megapixels, compared with 6 MP of the R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.80μm versus 7.85μm for the R-D1). However, it should be noted that the X-M1 is much more recent (by 9 years and 3 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the X-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Fujifilm X-M1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-M1 for good quality output (200 dots per inch) amounts to 24.5 x 16.3 inches or 62.2 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.7 x 33.2 cm, and for excellent quality (300 dpi) 16.3 x 10.9 inches or 41.5 x 27.6 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Epson R-D1 has a native sensitivity range from ISO 200 to ISO 1600. The corresponding ISO settings for the Fujifilm X-M1 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the R-D1 is build around a CCD sensor, while the X-M1 uses a CMOS imager. Like most digital cameras, the R-D1 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-M1 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

R-D1 versus X-M1 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Epson R-D1 APS-C 6.0 3008 2000i21.110.456455
2.

Fujifilm X-M1 APS-C 16.0 4896 32641080/30p23.412.6137176
3.

Canon Rebel APS-C 6.3 3072 2048i21.010.854455
4.

Fujifilm X-E2 APS-C 16.0 4896 32641080/60p23.412.6140077
5.

Fujifilm X-E2S APS-C 16.0 4896 32641080/60p23.713.0160880
6.

Fujifilm X-M5 APS-C 26.0 6240 41604K/60p24.314.2255886
7.

Fujifilm X-Pro1 APS-C 16.0 4896 32641080/24p23.112.3123874
8.

Fujifilm X-T10 APS-C 16.0 4896 32641080/60p23.712.9154679
9.

Leica CL APS-C 24.1 6014 40144K/30p24.013.3178882
10.

Leica M9 Full Frame 18.1 5212 3472i22.511.788469
11.

Leica M10 Full Frame 23.8 5952 3992i24.413.2213386
12.

Leica X Vario APS-C 16.1 4928 32721080/30p23.412.7132078
13.

Leica X-U Typ 113 APS-C 16.1 4928 32641080/30p23.813.0161480
14.

Nikon D40 APS-C 6.0 3008 2000i21.011.056156
15.

Nikon D50 APS-C 6.0 3008 2000i20.910.856055
16.

Nikon D70 APS-C 6.0 3008 2000i20.410.352950
17.

Nikon D70s APS-C 6.0 3008 2000i20.410.352950
Note: DXO values in italics represent estimates based on sensor size and age.
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
  empty Camera
Model

Many modern cameras cannot only take still pictures, but also record videos. The X-M1 indeed provides for movie recording, while the R-D1 does not. The highest resolution format that the X-M1 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the R-D1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X-M1 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Epson R-D1 and Fujifilm X-M1 along with similar information for a selection of comparators.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Epson R-D1optical i2.0 / 235 fixed i 1/2000s 1.0/s i i
2.

Fujifilm X-M1i i3.0 / 920 tilting i 1/4000s 5.6/s i i
3.

Canon Rebeloptical i1.8 / 118 fixed i 1/4000s 2.5/s i i
4.

Fujifilm X-E22360 i3.0 / 1040 fixed i 1/4000s 7.0/s i i
5.

Fujifilm X-E2S2360 i3.0 / 1040 fixed i 1/4000s 7.0/s i i
6.

Fujifilm X-M5i i3.0 / 1040 swivel i 1/4000s 8.0/s i i
7.

Fujifilm X-Pro11440 i3.0 / 1230 fixed i 1/4000s 6.0/s i i
8.

Fujifilm X-T102360 i3.0 / 920 tilting i 1/4000s 8.0/s i i
9.

Leica CL2360 i3.0 / 1040 fixed i 1/8000s 10.0/s i i
10.

Leica M9optical i2.5 / 230 fixed i 1/4000s 2.0/s i i
11.

Leica M10optical i3.0 / 1037 fixed i 1/4000s 5.0/s i i
12.

Leica X Variooptional i3.0 / 920 fixed i 1/2000s 5.0/s i i
13.

Leica X-U Typ 113optional i3.0 / 920 fixed i 1/2000s 5.0/s i i
14.

Nikon D40optical i2.5 / 230 fixed i 1/4000s 2.5/s i i
15.

Nikon D50optical i2.0 / 130 fixed i 1/4000s 2.5/s i i
16.

Nikon D70optical i1.8 / 130 fixed i 1/8000s 3.0/s i i
17.

Nikon D70soptical i2.0 / 130 fixed i 1/8000s 3.0/s i i
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
  empty Camera
Model

One difference between the cameras concerns the presence of an on-board flash. The X-M1 has one, while the R-D1 does not. While the built-in flash of the X-M1 is not very powerful, it can at times be useful as a fill-in light.

The R-D1 writes its imaging data to SDHC cards, while the X-M1 uses SDXC cards. The X-M1 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the R-D1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Epson R-D1 and Fujifilm X-M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Epson R-D1ii / iiiiiiii
2.

Fujifilm X-M1istereo / monoiimini2.0iii
3.

Canon Rebelii / iiii1.1iii
4.

Fujifilm X-E2istereo / monoiimicro2.0iii
5.

Fujifilm X-E2Sistereo / monoiimicro2.0iii
6.

Fujifilm X-M5istereo / monoiimicro3.2iii
7.

Fujifilm X-Pro1istereo / monoiimini2.0iii
8.

Fujifilm X-T10istereo / monoiimicro2.0iii
9.

Leica CListereo / monoiiiiiii
10.

Leica M9ii / iiii2.0iii
11.

Leica M10ii / iiiiiiii
12.

Leica X Varioistereo / monoiimini2.0iii
13.

Leica X-U Typ 113istereo / monoiii2.0iii
14.

Nikon D40ii / iiii2.0iii
15.

Nikon D50ii / iiii2.0iii
16.

Nikon D70ii / iiii1.0iii
17.

Nikon D70sii / iiii2.0iii
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
  empty Camera
Model

It is notable that the X-M1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the R-D1 does not provide wifi capability.

Studio photographers will appreciate that the Epson R-D1 (unlike the X-M1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R-D1 and the X-M1 have been discontinued, but can regularly be found used on ebay. The X-M1 was replaced by the Fujifilm X-M5, while the R-D1 does not have a direct successor. Further information on the features and operation of the R-D1 and X-M1 can be found, respectively, in the Epson R-D1 Manual (free pdf) or the online Fujifilm X-M1 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Epson R-D1 and the Fujifilm X-M1? Which camera is better? The listing below highlights the relative strengths of the two models.

ilogo

Arguments in favor of the Epson R-D1:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • More heavily discounted: Has been available for much longer (launched in March 2004).

ilogo

Advantages of the Fujifilm X-M1:

  • More detail: Has more megapixels (16 vs 6MP), which boosts linear resolution by 63%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Broader imaging potential: Can capture not only stills but also 1080/30p video.
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (920k vs 235k dots).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
  • Faster burst: Shoots at higher frequency (5.6 vs 1 flaps/sec) to capture the decisive moment.
  • More compact: Is smaller (117x67mm vs 142x89mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 290g or 47 percent) and is thus easier to take along.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More affordable: Was introduced into a lower priced category (77 percent cheaper at launch).
  • More modern: Reflects 9 years and 3 months of technical progress since the R-D1 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the X-M1 is the clear winner of the contest (16 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

R-D1 04:16 X-M1

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the R-D1 and the X-M1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Epson R-D1............ Mar 2004 US$ 2 999ebay.com
2.

Fujifilm X-M13/5+..77/1004.5/54.5/5 Jun 2013 US$ 699ebay.com
3.

Canon Rebel......+ +.... Aug 2003 US$ 899ebay.com
4.

Fujifilm X-E24/5....80/1004.5/55/5 Oct 2013 US$ 999ebay.com
5.

Fujifilm X-E2S4.5/5....77/1004.5/54.5/5 Jan 2016 US$ 699ebay.com
6.

Fujifilm X-M5......84/100.... Oct 2025 US$ 799 amazon.com
7.

Fujifilm X-Pro15/5+ +..79/1004.5/54.5/5 Jan 2012 US$ 1 699ebay.com
8.

Fujifilm X-T104.5/5+ +..80/1005/55/5 May 2015 US$ 799ebay.com
9.

Leica CL....4.2/5....4/5 Nov 2017 US$ 2 795ebay.com
10.

Leica M9........4.5/5.. Sep 2009 US$ 7 999ebay.com
11.

Leica M104.5/5......4/54.5/5 Jan 2017 US$ 6 599ebay.com
12.

Leica X Vario3/5......4/54/5 Jun 2013 US$ 2 849ebay.com
13.

Leica X-U Typ 1133.5/5........3.5/5 Jan 2016 US$ 2 949ebay.com
14.

Nikon D40..81/100..+ +o4.5/5 Nov 2006 US$ 499ebay.com
15.

Nikon D50..78/100..+ +4/54.5/5 Apr 2005 US$ 749ebay.com
16.

Nikon D70......+ +.... Jan 2004 US$ 999ebay.com
17.

Nikon D70s..........5/5 Apr 2005 US$ 899ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
  empty  Camera
 Model

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check R-D1 offers at
ebay.com
logo
Check X-M1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
  • Credit Card
  • Canon 1D
  • Canon 1D Mark II
  • Canon 1D Mark II N
  • Canon 1D Mark III
  • Canon 1D Mark IV
  • Canon 1Ds
  • Canon 1Ds Mark II
  • Canon 1Ds Mark III
  • Canon 1D C
  • Canon 1D X
  • Canon 1D X Mark II
  • Canon 1D X Mark III
  • Canon 5D
  • Canon 5D Mark II
  • Canon 5D Mark III
  • Canon 5D Mark IV
  • Canon 5DS
  • Canon 5DS R
  • Canon 6D
  • Canon 6D Mark II
  • Canon 7D
  • Canon 7D II
  • Canon 10D
  • Canon 20D
  • Canon 30D
  • Canon 40D
  • Canon 50D
  • Canon 60D
  • Canon 70D
  • Canon 77D
  • Canon 80D
  • Canon 90D
  • Canon D30
  • Canon D60
  • Canon G1 X
  • Canon G1 X Mark II
  • Canon G1 X Mark III
  • Canon G3 X
  • Canon G5 X
  • Canon G5 X Mark II
  • Canon G7 X
  • Canon G7 X Mark II
  • Canon G7 X Mark III
  • Canon G9 X
  • Canon G9 X Mark II
  • Canon G12
  • Canon G15
  • Canon G16
  • Canon M
  • Canon M3
  • Canon M5
  • Canon M6
  • Canon M6 Mark II
  • Canon M10
  • Canon M50
  • Canon M50 Mark II
  • Canon M100
  • Canon M200
  • Canon R
  • Canon R1
  • Canon R3
  • Canon R5
  • Canon R5 Mark II
  • Canon R5 C
  • Canon R6
  • Canon R6 Mark II
  • Canon R7
  • Canon R8
  • Canon R10
  • Canon R50
  • Canon R50 V
  • Canon R100
  • Canon RP
  • Canon S120
  • Canon SL1
  • Canon SL2
  • Canon SL3
  • Canon SX1
  • Canon SX10
  • Canon SX20
  • Canon SX30
  • Canon SX40
  • Canon SX50
  • Canon SX60
  • Canon SX70
  • Canon SX400
  • Canon SX410
  • Canon SX420
  • Canon SX430
  • Canon SX500
  • Canon SX510
  • Canon SX520
  • Canon SX530
  • Canon SX540
  • Canon SX600
  • Canon SX610
  • Canon SX620
  • Canon SX700
  • Canon SX710
  • Canon SX720
  • Canon SX730
  • Canon SX740
  • Canon Rebel
  • Canon T1i
  • Canon T2i
  • Canon T3
  • Canon T3i
  • Canon T4i
  • Canon T5
  • Canon T5i
  • Canon T6
  • Canon T6i
  • Canon T6s
  • Canon T7
  • Canon T7i
  • Canon T8i
  • Canon T100
  • Canon V1
  • Canon XC10
  • Canon XS
  • Canon XSi
  • Canon XT
  • Canon XTi
  • Contax N Digital
  • Epson R-D1
  • Fujifilm GFX 50R
  • Fujifilm GFX 50S
  • Fujifilm GFX 50S II
  • Fujifilm GFX 100
  • Fujifilm GFX 100 II
  • Fujifilm GFX 100RF
  • Fujifilm GFX 100S
  • Fujifilm GFX 100S II
  • Fujifilm X-A1
  • Fujifilm X-A2
  • Fujifilm X-A3
  • Fujifilm X-A5
  • Fujifilm X-A7
  • Fujifilm X-A10
  • Fujifilm X-E1
  • Fujifilm X-E2
  • Fujifilm X-E2S
  • Fujifilm X-E3
  • Fujifilm X-E4
  • Fujifilm X-E5
  • Fujifilm X-H1
  • Fujifilm X-H2
  • Fujifilm X-H2S
  • Fujifilm X-M1
  • Fujifilm X-M5
  • Fujifilm X-Pro1
  • Fujifilm X-Pro2
  • Fujifilm X-Pro3
  • Fujifilm X-S10
  • Fujifilm X-S20
  • Fujifilm X-T1
  • Fujifilm X-T2
  • Fujifilm X-T3
  • Fujifilm X-T4
  • Fujifilm X-T5
  • Fujifilm X-T10
  • Fujifilm X-T20
  • Fujifilm X-T30
  • Fujifilm X-T30 II
  • Fujifilm X-T50
  • Fujifilm X-T100
  • Fujifilm X-T200
  • Fujifilm X10
  • Fujifilm X20
  • Fujifilm X30
  • Fujifilm X70
  • Fujifilm X100
  • Fujifilm X100S
  • Fujifilm X100T
  • Fujifilm X100F
  • Fujifilm X100V
  • Fujifilm X100VI
  • Fujifilm XF10
  • Fujifilm XQ1
  • Fujifilm XQ2
  • Fujifilm XP120
  • Fujifilm XP130
  • Fujifilm XP140
  • Hasselblad X1D
  • Hasselblad X1D II
  • Hasselblad X2D 100C
  • Kodak AZ901
  • Kodak S-1
  • Leica C-LUX
  • Leica CL
  • Leica D-LUX Typ 109
  • Leica D-LUX 5
  • Leica D-LUX 6
  • Leica D-LUX 7
  • Leica D-LUX 8
  • Leica Digilux 3
  • Leica M Typ 240
  • Leica M-E Typ 240
  • Leica M Typ 262
  • Leica M8
  • Leica M9
  • Leica M10
  • Leica M10-P
  • Leica M10-R
  • Leica M11
  • Leica Q Typ 116
  • Leica Q2
  • Leica Q3
  • Leica S1
  • Leica S2
  • Leica S3
  • Leica S Typ 006
  • Leica S-E Typ 006
  • Leica S Typ 007
  • Leica SL
  • Leica SL2
  • Leica SL2-S
  • Leica SL3
  • Leica SL3-S
  • Leica T
  • Leica TL
  • Leica TL2
  • Leica V-LUX 1
  • Leica V-LUX 2
  • Leica V-LUX 3
  • Leica V-LUX 4
  • Leica V-LUX Typ 114
  • Leica V-LUX 5
  • Leica X1
  • Leica X2
  • Leica X Vario
  • Leica X Typ 113
  • Leica X-U Typ 113
  • Leitz Ur-Leica
  • Nikon 1 J4
  • Nikon 1 J5
  • Nikon 1 V1
  • Nikon 1 V2
  • Nikon 1 V3
  • Nikon Coolpix A
  • Nikon A1000
  • Nikon B500
  • Nikon B600
  • Nikon B700
  • Nikon D1
  • Nikon D1H
  • Nikon D1X
  • Nikon D2H
  • Nikon D2X
  • Nikon D2Xs
  • Nikon D3
  • Nikon D3S
  • Nikon D3X
  • Nikon D4
  • Nikon D4S
  • Nikon D5
  • Nikon D6
  • Nikon D40
  • Nikon D40X
  • Nikon D50
  • Nikon D60
  • Nikon D70
  • Nikon D70s
  • Nikon D80
  • Nikon D90
  • Nikon D100
  • Nikon D200
  • Nikon D300
  • Nikon D300S
  • Nikon D500
  • Nikon D600
  • Nikon D610
  • Nikon D700
  • Nikon D750
  • Nikon D780
  • Nikon D800
  • Nikon D800E
  • Nikon D810
  • Nikon D850
  • Nikon D3000
  • Nikon D3100
  • Nikon D3200
  • Nikon D3300
  • Nikon D3400
  • Nikon D3500
  • Nikon D5000
  • Nikon D5100
  • Nikon D5200
  • Nikon D5300
  • Nikon D5500
  • Nikon D5600
  • Nikon D7000
  • Nikon D7100
  • Nikon D7200
  • Nikon D7500
  • Nikon Df
  • Nikon L840
  • Nikon P900
  • Nikon P950
  • Nikon P1000
  • Nikon P1100
  • Nikon P7800
  • Nikon W150
  • Nikon W300
  • Nikon Z5
  • Nikon Z5 II
  • Nikon Z6
  • Nikon Z6 II
  • Nikon Z6 III
  • Nikon Z7
  • Nikon Z7 II
  • Nikon Z8
  • Nikon Z9
  • Nikon Z30
  • Nikon Z50
  • Nikon Z50 II
  • Nikon Zf
  • Nikon Z fc
  • Olympus E-1
  • Olympus E-3
  • Olympus E-5
  • Olympus E-30
  • Olympus E-300
  • Olympus E-330
  • Olympus E-400
  • Olympus E-410
  • Olympus E-420
  • Olympus E-450
  • Olympus E-500
  • Olympus E-510
  • Olympus E-520
  • Olympus E-600
  • Olympus E-620
  • Olympus E-M1
  • Olympus E-M1 II
  • Olympus E-M1 III
  • Olympus E-M1X
  • Olympus E-M5
  • Olympus E-M5 II
  • Olympus E-M5 III
  • Olympus E-M10
  • Olympus E-M10 II
  • Olympus E-M10 III
  • Olympus E-M10 IV
  • Olympus E-P1
  • Olympus E-P2
  • Olympus E-P3
  • Olympus E-P5
  • Olympus E-P7
  • Olympus E-PL1
  • Olympus E-PL2
  • Olympus E-PL3
  • Olympus E-PL5
  • Olympus E-PL6
  • Olympus E-PL7
  • Olympus E-PL8
  • Olympus E-PL9
  • Olympus E-PL10
  • Olympus E-PM1
  • Olympus E-PM2
  • Olympus PEN-F
  • Olympus Stylus 1
  • Olympus Stylus 1s
  • Olympus TG-4
  • Olympus TG-5
  • Olympus TG-6
  • Olympus XZ-1
  • Olympus XZ-2
  • OM System OM-1
  • OM System OM-1 II
  • OM System OM-3
  • OM System OM-5
  • OM System OM-5 II
  • OM System TG-7
  • Panasonic FZ80
  • Panasonic FZ80D
  • Panasonic FZ100
  • Panasonic FZ150
  • Panasonic FZ200
  • Panasonic FZ300
  • Panasonic FZ1000
  • Panasonic FZ1000 II
  • Panasonic FZ2500
  • Panasonic G1
  • Panasonic G2
  • Panasonic G3
  • Panasonic G5
  • Panasonic G6
  • Panasonic G7
  • Panasonic G9
  • Panasonic G9 II
  • Panasonic G10
  • Panasonic G85
  • Panasonic G97
  • Panasonic G95
  • Panasonic G100
  • Panasonic GF1
  • Panasonic GF2
  • Panasonic GF3
  • Panasonic GF5
  • Panasonic GF6
  • Panasonic GF7
  • Panasonic GH1
  • Panasonic GH2
  • Panasonic GH3
  • Panasonic GH4
  • Panasonic GH5
  • Panasonic GH5 II
  • Panasonic GH5s
  • Panasonic GH6
  • Panasonic GH7
  • Panasonic GM1
  • Panasonic GM5
  • Panasonic GX1
  • Panasonic GX7
  • Panasonic GX8
  • Panasonic GX9
  • Panasonic GX85
  • Panasonic GX850
  • Panasonic L1
  • Panasonic L10
  • Panasonic LF1
  • Panasonic LX5
  • Panasonic LX7
  • Panasonic LX10
  • Panasonic LX100
  • Panasonic LX100 II
  • Panasonic S1
  • Panasonic S1 II
  • Panasonic S1H
  • Panasonic S1R
  • Panasonic S1R II
  • Panasonic S5
  • Panasonic S5 II
  • Panasonic S9
  • Panasonic TS7
  • Panasonic ZS70
  • Panasonic ZS80
  • Panasonic ZS100
  • Panasonic ZS200
  • Pentax 645D
  • Pentax 645Z
  • Pentax K-1
  • Pentax K-1 II
  • Pentax K-3
  • Pentax K-3 II
  • Pentax K-3 III
  • Pentax K-5
  • Pentax K-5 II
  • Pentax K-30
  • Pentax K-50
  • Pentax K-70
  • Pentax K-500
  • Pentax KP
  • Pentax K-S1
  • Pentax K-S2
  • Pentax MX-1
  • Pentax Q
  • Pentax WG-8
  • Pentax WG-90
  • Pentax WG-1000
  • Ricoh GR
  • Ricoh GR II
  • Ricoh GR III
  • Ricoh GR IIIx
  • Ricoh WG-6
  • Ricoh WG-60
  • Samsung NX1
  • Samsung NX30
  • Samsung NX500
  • Sigma fp
  • Sigma fp L
  • Sony A1
  • Sony A1 II
  • Sony A7
  • Sony A7 II
  • Sony A7 III
  • Sony A7 IV
  • Sony A7C
  • Sony A7C II
  • Sony A7C R
  • Sony A7R
  • Sony A7R II
  • Sony A7R III
  • Sony A7R IIIA
  • Sony A7R IV
  • Sony A7R IVA
  • Sony A7R V
  • Sony A7S
  • Sony A7S II
  • Sony A7S III
  • Sony A9
  • Sony A9 II
  • Sony A9 III
  • Sony A58
  • Sony A68
  • Sony A77
  • Sony A77 II
  • Sony A99
  • Sony A99 II
  • Sony A850
  • Sony A900
  • Sony A3000
  • Sony A5000
  • Sony A5100
  • Sony A6000
  • Sony A6100
  • Sony A6300
  • Sony A6400
  • Sony A6500
  • Sony A6600
  • Sony A6700
  • Sony H200
  • Sony H300
  • Sony H400
  • Sony HX80
  • Sony HX90V
  • Sony HX95
  • Sony HX99
  • Sony HX350
  • Sony HX400V
  • Sony NEX-3
  • Sony NEX-3N
  • Sony NEX-5
  • Sony NEX-5N
  • Sony NEX-5R
  • Sony NEX-5T
  • Sony NEX-6
  • Sony NEX-7
  • Sony NEX-C3
  • Sony NEX-F3
  • Sony RX0
  • Sony RX0 II
  • Sony RX1
  • Sony RX1R
  • Sony RX1R II
  • Sony RX1R III
  • Sony RX10
  • Sony RX10 II
  • Sony RX10 III
  • Sony RX10 IV
  • Sony RX100
  • Sony RX100 II
  • Sony RX100 III
  • Sony RX100 IV
  • Sony RX100 V
  • Sony RX100 VI
  • Sony RX100 VII
  • Sony WX800
  • Sony ZV-1
  • Sony ZV-1 II
  • Sony ZV-1F
  • Sony ZV-E1
  • Sony ZV-E10
  • Sony ZV-E10 II
  • YI M1
  • Zeiss ZX1
loader
ad

Specifications: Epson R-D1 vs Fujifilm X-M1

Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

Camera Specifications
Camera Model Epson R-D1 Fujifilm X-M1
Camera Type Rangefinder camera Mirrorless system camera
Camera Lens Leica M mount lenses Fujifilm X mount lenses
Launch Date March 2004 June 2013
Launch Price USD 2,999 USD 699
Sensor Specs Epson R-D1 Fujifilm X-M1
Sensor Technology CCD CMOS
Sensor Format APS-C Sensor APS-C Sensor
Sensor Size 23.7 x 15.6 mm 23.6 x 15.6 mm
Sensor Area 369.72 mm2 368.16 mm2
Sensor Diagonal 28.4 mm 28.3 mm
Crop Factor 1.5x 1.5x
Sensor Resolution 6 Megapixels 16 Megapixels
Image Resolution 3008 x 2000 pixels 4896 x 3264 pixels
Pixel Pitch 7.85 μm 4.80 μm
Pixel Density 1.63 MP/cm2 4.34 MP/cm2
Moiré control Anti-Alias filter no AA filter
Movie Capability no Video 1080/30p Video
ISO Setting 200 - 1,600 ISO 200 - 6,400 ISO
ISO Boost no Enhancement 100 - 25,600 ISO
Screen Specs Epson R-D1 Fujifilm X-M1
Viewfinder Type Optical viewfinder no viewfinder
Viewfinder Field of View 100%
LCD Framing Live View
Rear LCD Size 2.0inch 3.0inch
LCD Resolution 235k dots 920k dots
LCD Attachment Fixed screen Tilting screen
Shooting Specs Epson R-D1 Fujifilm X-M1
Focus System Manual Focus Contrast-detect AF
Manual Focusing Aidno Peaking FeatureFocus Peaking
Max Shutter Speed (mechanical) 1/2000s 1/4000s
Continuous Shooting 1 shutter flaps/s 5.6 shutter flaps/s
Fill Flash no On-Board Flash Built-in Flash
Storage Medium SDHC cards SDXC cards
Single or Dual Card Slots Single card slot Single card slot
UHS card support no UHS-I
Connectivity Specs Epson R-D1 Fujifilm X-M1
External Flash Hotshoe Hotshoe
Studio Flash PC Sync socket no PC Sync
USB Connector no USB USB 2.0
HDMI Port no HDMI mini HDMI
Wifi Support no Wifi Wifi built-in
Bluetooth Support no Bluetooth Bluetooth built-in
Body Specs Epson R-D1 Fujifilm X-M1
Battery Type Epson EU-85 Fujifilm NP-W126
Body Dimensions 142 x 89 x 40 mm
(5.6 x 3.5 x 1.6 in)
117 x 67 x 39 mm
(4.6 x 2.6 x 1.5 in)
Camera Weight 620 g (21.9 oz) 330 g (11.6 oz)
logo
Check R-D1 offers at
ebay.com
logo
Check X-M1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

You are here Home  »  CAM-parator  »  Epson R-D1 vs Fujifilm X-M1
