Canon XTi vs Olympus TG-5
The Canon EOS Rebel XTi (called Canon 400D in some regions) and the Olympus Tough TG-5 are two digital cameras that were officially introduced, respectively, in August 2006 and May 2017. The XTi is a DSLR, while the TG-5 is a fixed lens compact. The cameras are based on an APS-C (XTi) and a 1/2.3-inch (TG-5) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Olympus provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XTi and the Olympus Tough TG-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon XTi and the Olympus TG-5. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The TG-5 can be obtained in two different colors (black, red), while the XTi is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-5 is considerably smaller (30 percent) than the Canon XTi. It is noteworthy in this context that the TG-5 is splash and dust-proof, while the XTi does not feature any corresponding weather-sealing. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-5 has a lens built in, whereas the XTi is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the XTi and their specifications in the Canon EF Lens Catalog.
Concerning battery life, the XTi gets 370 shots out of its NB-2LH battery, while the TG-5 can take 340 images on a single charge of its LI-92B power pack. The power pack in the TG-5 can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|2.||Olympus TG-5||113 mm||66 mm||32 mm||250 g||340||Y||May 2017||449|
|3.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|4.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|5.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|6.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|7.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|8.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|9.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|10.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|11.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|12.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|13.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|14.||Nikon W300||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389|
|15.||Olympus TG-6||113 mm||66 mm||32 mm||253 g||340||Y||May 2019||449|
|16.||Olympus TG-4||112 mm||66 mm||31 mm||247 g||380||Y||Apr 2015||379|
|17.||Olympus XZ-1||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The TG-5 was launched at a lower price than the XTi, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

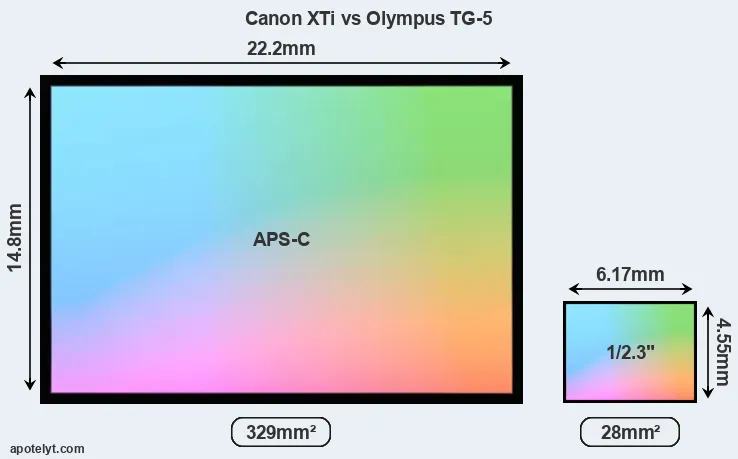

Of the two cameras under consideration, the Canon XTi features an APS-C sensor and the Olympus TG-5 a 1/2.3-inch sensor. The sensor area in the TG-5 is 91 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the XTi has a native 3:2 aspect ratio, while the one in the TG-5 offers a 4:3 aspect.

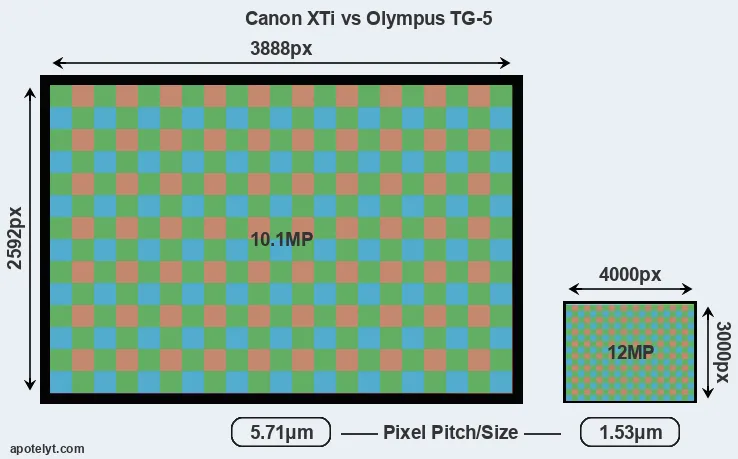

Despite having a smaller sensor, the TG-5 offers a higher resolution of 12 megapixels, compared with 10.1 MP of the XTi. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.53μm versus 5.71μm for the XTi). However, it should be noted that the TG-5 is much more recent (by 10 years and 8 months) than the XTi, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus TG-5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TG-5 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Canon XTi are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS Rebel XTi has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus Tough TG-5 are ISO 100 to ISO 12800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The TG-5 indeed provides for movie recording, while the XTi does not. The highest resolution format that the TG-5 can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the XTi has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TG-5 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon XTi and Olympus TG-5 in connection with corresponding information for a sample of similar cameras.
|1.||Canon XTi||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|2.||Olympus TG-5||none||n||3.0 / 460||fixed||n||1/2000s||20.0||Y||Y|
|3.||Canon SX730||none||n||3.0 / 922||tilting||n||1/3200s||5.9||Y||Y|
|4.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|5.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|6.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|7.||Canon T3||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|8.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7||Y||n|
|9.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4||Y||n|
|10.||Canon XSi||optical||n||3.0 / 230||fixed||n||1/4000s||3.5||Y||n|
|11.||Canon 40D||optical||Y||3.0 / 230||fixed||n||1/8000s||6.5||Y||n|
|12.||Canon XT||optical||n||1.8 / 115||fixed||n||1/4000s||3.0||Y||n|
|13.||Canon Rebel||optical||n||1.8 / 118||fixed||n||1/4000s||2.5||Y||n|
|14.||Nikon W300||none||n||3.0 / 921||fixed||n||1/4000s||7.0||Y||Y|
|15.||Olympus TG-6||none||n||3.0 / 1040||fixed||n||1/2000s||20.0||Y||Y|
|16.||Olympus TG-4||none||n||3.0 / 460||fixed||n||1/2000s||5.0||Y||Y|
|17.||Olympus XZ-1||optional||n||3.0 / 614||fixed||n||1/2000s||2.0||Y||Y|
The Olympus TG-5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The XTi writes its imaging data to Compact Flash cards, while the TG-5 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XTi and Olympus Tough TG-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon XTi||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Olympus TG-5||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon SX730||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|4.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|6.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|7.||Canon T3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|8.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|9.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|10.||Canon XSi||Y||- / -||-||-||mini||2.0||-||-||-|
|11.||Canon 40D||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Canon XT||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Canon Rebel||Y||- / -||-||-||-||1.1||-||-||-|
|14.||Nikon W300||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|15.||Olympus TG-6||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|16.||Olympus TG-4||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|17.||Olympus XZ-1||Y||mono / -||-||-||mini||2.0||-||-||-|
It is notable that the XTi has a hotshoe, while the TG-5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the XTi and the TG-5 have been discontinued, but can regularly be found used on eBay. The XTi was replaced by the Canon Xsi, while the TG-5 was followed by the Olympus TG-6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Is the Canon XTi better than the Olympus TG-5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS Rebel XTi:
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been available for much longer (launched in August 2006).
Advantages of the Olympus Tough TG-5:
- More detail: Has more megapixels (12 vs 10.1MP), which boosts linear resolution by 7%.
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
- Faster burst: Shoots at higher frequency (20 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Comes with an integrated lens, while the XTi requires a separate lens.
- More compact: Is smaller (113x66mm vs 127x84mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the XTi).
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 10 years and 8 months of technical progress since the XTi launch.
If the count of individual advantages (bullet points above) is taken as a guide, the TG-5 is the clear winner of the contest (17 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XTi and the Olympus TG-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the XTi and the TG-5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XTi||..||+ +||..||+ +||o||4/5||Aug 2006||799|
|2.||Olympus TG-5||..||+ +||..||..||4/5||4/5||May 2017||449|
|3.||Canon SX730||..||+||..||..||4/5||4/5||Apr 2017||399|
|4.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|5.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|6.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|7.||Canon T3||..||80/100||..||69/100||4/5||4.5/5||Feb 2011||449|
|8.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699|
|9.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799|
|10.||Canon XSi||..||+ +||..||+ +||4/5||4.5/5||Jan 2008||799|
|11.||Canon 40D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|12.||Canon XT||..||80/100||..||+ +||o||..||Feb 2005||899|
|13.||Canon Rebel||..||..||..||+ +||..||..||Aug 2003||899|
|14.||Nikon W300||..||+||..||..||4/5||4/5||May 2017||389|
|15.||Olympus TG-6||..||+ +||4.5/5||76/100||4/5||4/5||May 2019||449|
|16.||Olympus TG-4||..||+||..||79/100||4/5||4/5||Apr 2015||379|
|17.||Olympus XZ-1||4/5||..||..||74/100||4.5/5||4.5/5||Jan 2011||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 550D vs Canon XTi
- Canon S120 vs Olympus TG-5
- Canon XTi vs Olympus E-420
- Canon XTi vs Olympus E-PL6
- Canon XTi vs Pentax K-1
- Canon XTi vs Sony A7R III
- Canon XTi vs Sony NEX-F3
- Fujifilm X-T3 vs Olympus TG-5
- Nikon D2H vs Olympus TG-5
- Nikon D600 vs Olympus TG-5
- Olympus TG-5 vs Panasonic ZS80
- Olympus TG-5 vs Sony RX0 II
Specifications: Canon XTi vs Olympus TG-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XTi||Olympus TG-5|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||25-100mm f/2.0-4.9|
|Launch Date||August 2006||May 2017|
|Launch Price||USD 799||USD 449|
|Sensor Specs||Canon XTi||Olympus TG-5|
|Sensor Format||APS-C Sensor||1/2.3" Sensor|
|Sensor Size||22.2 x 14.8 mm||6.17 x 4.55 mm|
|Sensor Area||328.56 mm2||28.0735 mm2|
|Sensor Diagonal||26.7 mm||7.7 mm|
|Sensor Resolution||10.1 Megapixels||12 Megapixels|
|Image Resolution||3888 x 2592 pixels||4000 x 3000 pixels|
|Pixel Pitch||5.71 μm||1.53 μm|
|Pixel Density||3.07 MP/cm2||42.74 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||100 - 12,800 ISO|
|Image Processor||DIGIC II||TruePic VIII|
|DXO Sensor Quality (score)||62||..|
|DXO Color Depth (bits)||22.1||..|
|DXO Dynamic Range (EV)||11.0||..|
|DXO Low Light (ISO)||664||..|
|Screen Specs||Canon XTi||Olympus TG-5|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||460k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon XTi||Olympus TG-5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/2000s|
|Continuous Shooting||3 shutter flaps/s||20 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon XTi||Olympus TG-5|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon XTi||Olympus TG-5|
|Environmental Sealing||not weather sealed||Waterproof body (15m)|
|Battery Life (CIPA)||370 shots per charge||340 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
127 x 84 x 65 mm
(5.0 x 3.3 x 2.6 in)
113 x 66 x 32 mm
(4.4 x 2.6 x 1.3 in)
|Camera Weight||556 g (19.6 oz)||250 g (8.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
