Canon XT vs Panasonic LX7

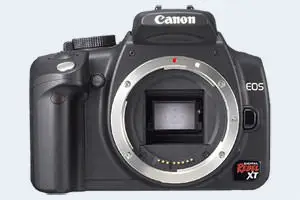

The Canon EOS Rebel XT (called Canon 350D in some regions) and the Panasonic Lumix DMC-LX7 are two digital cameras that were revealed to the public, respectively, in February 2005 and July 2012. The XT is a DSLR, while the LX7 is a fixed lens compact. The cameras are based on an APS-C (XT) and a 1/1.7-inch (LX7) sensor. The Canon has a resolution of 8 megapixels, whereas the Panasonic provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XT		Panasonic LX7
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-90mm f/1.4-2.3
8 MP – APS-C sensor		10 MP – 1/1.7" sensor
no Video		1080/60p Video
ISO 100-1,600		ISO 80-6,400 (80 - 12,800)
Optical viewfinder		Viewfinder optional
1.8" LCD – 115k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		11 shutter flaps per second
400 shots per battery charge		330 shots per battery charge
127 x 94 x 64 mm, 540 g		111 x 68 x 46 mm, 298 g

Check XT offers at
ebay.com
Check LX7 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XT and the Panasonic Lumix DMC-LX7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon XT and the Panasonic LX7 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The XT can be obtained in two different colors (black, silver), while the LX7 is also available in two color-versions, but different ones (black, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX7 is considerably smaller (37 percent) than the Canon XT. In this context, it is worth noting that neither the XT nor the LX7 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LX7 has a lens built in, whereas the XT is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the XT and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the XT gets 400 shots out of its Canon NB-2LH battery, while the LX7 can take 330 images on a single charge of its Panasonic DMW-BCJ13 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	899	ebay.com
2.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	499	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
4.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
5.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
6.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
7.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
8.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	799	ebay.com
9.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	799	ebay.com
10.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	1,399	ebay.com
11.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	799	ebay.com
12.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	1,499	ebay.com
13.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	899	ebay.com
14.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	599	ebay.com
15.		Panasonic GF5	108 mm	67 mm	37 mm	267 g	360	n	Apr 2012	499	ebay.com
16.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	549	ebay.com
17.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The LX7 was launched at a lower price than the XT, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon XT features an APS-C sensor and the Panasonic LX7 a 1/1.7-inch sensor. The sensor area in the LX7 is 87 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.65. The sensor in the XT has a native 3:2 aspect ratio, while the one in the LX7 offers a 4:3 aspect. The LX7 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

Despite having a smaller sensor, the LX7 offers a higher resolution of 10 megapixels, compared with 8 MP of the XT. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.05μm versus 6.41μm for the XT). However, it should be noted that the LX7 is much more recent (by 7 years and 5 months) than the XT, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Panasonic LX7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the LX7 for good quality output (200 dots per inch) amounts to 18.2 x 13.7 inches or 46.3 x 34.7 cm, for very good quality (250 dpi) 14.6 x 10.9 inches or 37.1 x 27.8 cm, and for excellent quality (300 dpi) 12.2 x 9.1 inches or 30.9 x 23.2 cm. The corresponding values for the Canon XT are 17.3 x 11.5 inches or 43.9 x 29.3 cm for good quality, 13.8 x 9.2 inches or 35.1 x 23.4 cm for very good quality, and 11.5 x 7.7 inches or 29.3 x 19.5 cm for excellent quality prints.

The Canon EOS Rebel XT has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DMC-LX7 are ISO 80 to ISO 6400, with the possibility to increase the ISO range to 80-12800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the XT has a notably higher overall DXO score than the LX7 (overall score 10 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 1.1 bits higher color depth, 0.9 EV of lower dynamic range, and 2.1 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
2.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
5.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
6.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
7.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
8.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
9.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
10.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
11.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
12.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
13.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
14.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
15.		Panasonic GF5	Four Thirds	12.0	4000	3000	1080/60i	20.5	10.0	573	50
16.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
17.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41

Many modern cameras are not only capable of taking still images, but can also record movies. The LX7 indeed provides for movie recording, while the XT does not. The highest resolution format that the LX7 can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the XT has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the LX7 relies on live view and the rear LCD for framing. That said, the LX7 can be equipped with an optional viewfinder – the DMW-LVF2. The table below summarizes some of the other core capabilities of the Canon XT and Panasonic LX7 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
2.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
7.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
9.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
10.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
11.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
13.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
14.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
15.		Panasonic GF5	none	n	3.0 / 920	fixed	Y	1/4000s	4.0/s	Y	n
16.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
17.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Panasonic LX7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The XT writes its imaging data to Compact Flash cards, while the LX7 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XT and Panasonic Lumix DMC-LX7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-
2.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
10.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
11.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
12.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
13.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
14.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic GF5	-	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-

Both the XT and the LX7 have been discontinued, but can regularly be found used on ebay. The XT was replaced by the Canon Xti, while the LX7 was followed by the Panasonic LX10. Further information on the features and operation of the XT and LX7 can be found, respectively, in the Canon XT Manual (free pdf) or the online Panasonic LX7 Manual.

Review summary

So what conclusions can be drawn? Is the Canon XT better than the Panasonic LX7 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon EOS Rebel XT:

• Better image quality: Scores markedly higher (10 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.1 bits more color depth).
• Better low-light sensitivity: Requires less light for good images (2.1 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (400 versus 330) on a single battery charge.
• More heavily discounted: Has been available for much longer (launched in February 2005).

Advantages of the Panasonic Lumix DMC-LX7:

• More detail: Has more megapixels (10 vs 8MP), which boosts linear resolution by 10%.
• More dynamic range: Captures a broader range of light and dark details (0.9 EV of extra DR).
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Broader imaging potential: Can capture not only stills but also 1080/60p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 115k dots).
• Faster burst: Shoots at higher frequency (11 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the XT requires a separate lens.
• More compact: Is smaller (111x68mm vs 127x94mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the XT).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 7 years and 5 months of technical progress since the XT launch.

If the number of relative strengths (bullet points above) is taken as a guide, the LX7 is the clear winner of the contest (14 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XT and the Panasonic LX7 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the XT and the LX7 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	899	ebay.com
2.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	499	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
4.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
5.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
6.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
7.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
8.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	799	ebay.com
9.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	799	ebay.com
10.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	1,399	ebay.com
11.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	799	ebay.com
12.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	1,499	ebay.com
13.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	899	ebay.com
14.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	599	ebay.com
15.		Panasonic GF5	3/5	..	..	..	4.5/5	4.5/5	Apr 2012	499	ebay.com
16.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	549	ebay.com
17.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
