Canon XSi vs Nikon D300S

The Canon EOS Rebel XSi (called Canon 450D in some regions) and the Nikon D300S are two digital cameras that were officially introduced, respectively, in January 2008 and July 2009. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 12.2 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon XSi
versus
Nikon D300S
Canon XSi   Nikon D300S
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Nikon F mount lenses
12.2 MP, APS-C Sensor 12.2 MP, APS-C Sensor
no Video 720/24p Video
ISO 100-1,600 ISO 200-3,200 (100 - 6,400)
Optical viewfinder Optical viewfinder
3.0 LCD, 230k dots 3.0 LCD, 920k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
3.5 shutter flaps per second 7 shutter flaps per second
not weather sealedWeathersealed body
500 shots per battery charge950 shots per battery charge
129 x 98 x 62 mm, 524 g 147 x 115 x 81 mm, 938 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XSi and the Nikon D300S? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon XSi and the Nikon D300S. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

Size Canon XSi vs Nikon D300S
Compare XSi versus D300S top

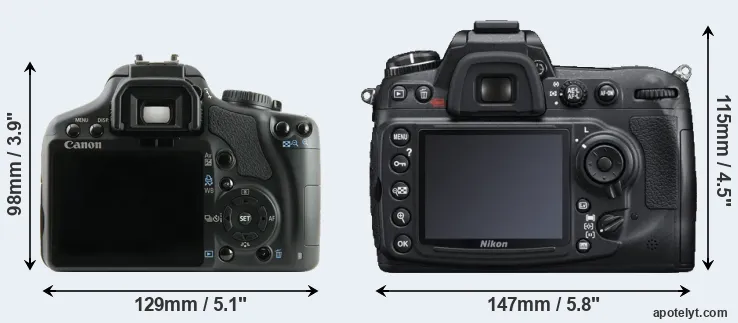

Comparison XSi or D300S rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D300S is notably larger (34 percent) than the Canon XSi. Moreover, the D300S is substantially heavier (79 percent) than the XSi. It is noteworthy in this context that the D300S is splash and dust-proof, while the XSi does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XSi) and the Nikon Lens Catalog (D300S).

Concerning battery life, the XSi gets 500 shots out of its LP-E5 battery, while the D300S can take 950 images on a single charge of its EN-EL3e power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon XSi 129 mm 98 mm 62 mm 524 g 500 n Jan 2008 799i
2.

Nikon D300S 147 mm 115 mm 81 mm 938 g 950 Y Jul 2009 1,799i
3.

Canon T6i 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749i
4.

Canon T6s 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649i
5.

Canon T4i 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 849i
6.

Canon T3 130 mm 100 mm 78 mm 495 g 700 n Feb 2011 449i
7.

Canon T2i 129 mm 98 mm 62 mm 530 g 440 n Feb 2010 699i
8.

Canon T1i 129 mm 98 mm 62 mm 520 g 400 n Mar 2009 799i
9.

Canon XS 126 mm 98 mm 65 mm 502 g 500 n Jun 2008 449i
10.

Canon 40D 146 mm 108 mm 74 mm 822 g 750 n Aug 2007 1,299i
11.

Canon XTi 127 mm 84 mm 65 mm 556 g 370 n Aug 2006 799i
12.

Canon XT 127 mm 94 mm 64 mm 540 g 400 n Feb 2005 899i
13.

Nikon D500 147 mm 115 mm 81 mm 860 g 1240 Y Jan 2016 1,999 i
14.

Nikon D7000 132 mm 105 mm 77 mm 780 g 1050 Y Sep 2010 1,499i
15.

Nikon D700 147 mm 123 mm 77 mm 1074 g 1000 Y Jul 2008 2,999i
16.

Nikon D300 147 mm 114 mm 74 mm 925 g 1000 Y Aug 2007 1,799i
17.

Nikon D200 147 mm 113 mm 74 mm 920 g 400 Y Nov 2005 1,699i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XSi was launched at a markedly lower price (by 56 percent) than the D300S, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D300S is 13 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (XSi) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of underlying technology, both cameras are build around CMOS sensors.

Canon XSi and Nikon D300S sensor measures

Even though the D300S has a larger sensor, both cameras offer the same resolution of 12.2 megapixels. This implies that the D300S has a lower pixel density and larger individual pixels (with a pixel pitch of 5.53μm versus 5.19μm for the XSi), which gives it a potential advantage in terms of light gathering capacity. In addition, the D300S is a somewhat more recent model (by 1 year and 6 months) than the XSi, and its sensor might have benefitted from technological advances during this time.

The Canon EOS Rebel XSi has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Nikon D300S are ISO 200 to ISO 3200, with the possibility to increase the ISO range to 100-6400.

XSi versus D300S MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the D300S has a markedly higher DXO score than the XSi (overall score 9 points higher), which will translate into better image quality. The advantage is based on 0.6 bits higher color depth, 1.4 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon XSi APS-C 12.2 4272 2848none21.910.869261
2.

Nikon D300S APS-C 12.2 4288 2848720/24p22.512.278770
3.

Canon T6i APS-C 24.0 6000 40001080/30p22.712.091971
4.

Canon T6s APS-C 24.0 6000 40001080/30p22.612.091570
5.

Canon T4i APS-C 17.9 5184 34561080/30p21.711.272262
6.

Canon T3 APS-C 12.2 4272 2848720/30p21.911.075562
7.

Canon T2i APS-C 17.9 5184 34561080/30p22.111.578466
8.

Canon T1i APS-C 15.1 4752 31681080/20p21.711.566363
9.

Canon XS APS-C 10.1 3888 2592none22.111.478364
10.

Canon 40D APS-C 10.1 3888 2592none22.111.370364
11.

Canon XTi APS-C 10.1 3888 2592none22.111.066462
12.

Canon XT APS-C 8.0 3456 2304none21.810.863760
13.

Nikon D500 APS-C 20.7 5568 37124K/30p24.014.0132483
14.

Nikon D7000 APS-C 16.1 4928 32641080/24p23.513.9116780
15.

Nikon D700 Full Frame 12.1 4256 2832none23.512.2230380
16.

Nikon D300 APS-C 12.2 4288 2848none22.112.067967
17.

Nikon D200 APS-C 10.0 3872 2592none22.311.558364
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The D300S indeed provides for movie recording, while the XSi does not. The highest resolution format that the D300S can use is 720/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The XSi and the D300S are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D300S offers a wider field of view (100%) than the one in the XSi (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D300S has a higher magnification (0.63x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon XSi and Nikon D300S in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon XSioptical n3.0 / 230 fixed n 1/4000s 3.5 Y n
2.

Nikon D300Soptical Y3.0 / 920 fixed n 1/8000s 7.0 Y n
3.

Canon T6ioptical n3.0 / 1040 swivel Y 1/4000s 5.0 Y n
4.

Canon T6soptical Y3.0 / 1040 swivel Y 1/4000s 5.0 Y n
5.

Canon T4ioptical n3.0 / 1040 swivel Y 1/4000s 5.0 Y n
6.

Canon T3optical n2.7 / 230 fixed n 1/4000s 3.0 Y n
7.

Canon T2ioptical n3.0 / 1040 fixed n 1/4000s 3.7 Y n
8.

Canon T1ioptical n3.0 / 920 fixed n 1/4000s 3.4 Y n
9.

Canon XSoptical n2.5 / 230 fixed n 1/4000s 3.0 Y n
10.

Canon 40Doptical Y3.0 / 230 fixed n 1/8000s 6.5 Y n
11.

Canon XTioptical n2.5 / 230 fixed n 1/4000s 3.0 Y n
12.

Canon XToptical n1.8 / 115 fixed n 1/4000s 3.0 Y n
13.

Nikon D500optical Y3.2 / 2359 tilting Y 1/8000s 10.0 n n
14.

Nikon D7000optical Y3.0 / 921 fixed n 1/8000s 6.0 Y n
15.

Nikon D700optical Y3.0 / 922 fixed n 1/8000s 8.0 Y n
16.

Nikon D300optical Y3.0 / 922 fixed n 1/8000s 6.0 Y n
17.

Nikon D200optical Y2.5 / 230 fixed n 1/8000s 5.0 Y n

One feature that is present on the D300S, but is missing on the XSi is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Nikon D300S has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The XSi writes its imaging data to SDHC cards, while the D300S uses Compact Flash or SDXC cards. The D300S features dual card slots, which can be very useful in case a memory card fails. In contrast, the XSi only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XSi and Nikon D300S and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon XSiY- / ---mini2.0---
2.

Nikon D300SYstereo / monoY-mini2.0---
3.

Canon T6iYstereo / monoY-mini2.0YY-
4.

Canon T6sYstereo / monoY-mini2.0YY-
5.

Canon T4iYstereo / monoY-mini2.0---
6.

Canon T3Ystereo / mono--mini2.0---
7.

Canon T2iYstereo / -Y-mini2.0---
8.

Canon T1iYmono / mono--mini2.0---
9.

Canon XSY- / ----2.0---
10.

Canon 40DY- / ----2.0---
11.

Canon XTiY- / ----2.0---
12.

Canon XTY- / ----2.0---
13.

Nikon D500Ystereo / monoYYmini3.0YYY
14.

Nikon D7000Ymono / monoY-mini2.0---
15.

Nikon D700Y- / ---mini2.0---
16.

Nikon D300Y- / ---mini2.0---
17.

Nikon D200Y- / ----2.0---

Studio photographers will appreciate that the Nikon D300S (unlike the XSi) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the XSi and the D300S have been discontinued, but can regularly be found used on eBay. The XSi was replaced by the Canon T1i, while the D300S was followed by the Nikon D500. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.

Review summary

So how do things add up? Is the Canon XSi better than the Nikon D300S or vice versa? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Reasons to prefer the Canon EOS Rebel XSi:

  • More compact: Is smaller (129x98mm vs 147x115mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 414g or 44 percent) and hence easier to carry around.
  • More affordable: Was introduced into a lower priced category (56 percent cheaper at launch).
  • More heavily discounted: Has been on the market for longer (launched in January 2008).

ilogo

Advantages of the Nikon D300S:

  • Better image quality: Scores markedly higher (9 points) in the DXO overall evaluation.
  • More dynamic range: Captures a broader range of light and dark details (1.4 EV of extra DR).
  • Broader imaging potential: Can capture not only stills but also 720/24p video.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.54x).
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (7 vs 3.5 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Gets more shots (950 versus 500) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More modern: Was introduced somewhat (1 year and 6 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the D300S is the clear winner of the contest (15 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

XSi 04:15 D300S

How about other alternatives? Do the specifications of the Canon XSi and the Nikon D300S place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the XSi or the D300S perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon XSi..+ +..+ +4/54.5/5 Jan 2008 799i
2.

Nikon D300S5/5+ +..82/1004/54.5/5 Jul 2009 1,799i
3.

Canon T6i5/5....75/1004.5/54.5/5 Feb 2015 749i
4.

Canon T6s5/5+..77/1004.5/54.5/5 Feb 2015 649i
5.

Canon T4i4/5+ +..77/1004.5/54.5/5 Jun 2012 849i
6.

Canon T3..80/100..69/1004/54.5/5 Feb 2011 449i
7.

Canon T2i..+ +..77/1004/54.5/5 Feb 2010 699i
8.

Canon T1i..+ +..74/1004.5/54.5/5 Mar 2009 799i
9.

Canon XS..82/100..+ +3.5/54.5/5 Jun 2008 449i
10.

Canon 40D..+ +..+ +4.5/54.5/5 Aug 2007 1,299i
11.

Canon XTi..+ +..+ +o4/5 Aug 2006 799i
12.

Canon XT..80/100..+ +o.. Feb 2005 899i
13.

Nikon D5005/5+ +4.7/591/1004.5/55/5 Jan 2016 1,999 i
14.

Nikon D70004/5....80/1004.5/54.5/5 Sep 2010 1,499i
15.

Nikon D700..89/100..+ +4.5/54.5/5 Jul 2008 2,999i
16.

Nikon D300..+ +..+ +5/54.5/5 Aug 2007 1,799i
17.

Nikon D200..+ +..+ +o.. Nov 2005 1,699i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Canon XSi:
Check Ebay offers
Nikon D300S:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader

    Specifications: Canon XSi vs Nikon D300S

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon XSi Nikon D300S
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Nikon F mount lenses
    Launch Date January 2008 July 2009
    Launch Price USD 799 USD 1,799
    Sensor Specs Canon XSi Nikon D300S
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 22.2 x 14.8 mm 23.6 x 15.8 mm
    Sensor Area 328.56 mm2 372.88 mm2
    Sensor Diagonal 26.7 mm 28.4 mm
    Crop Factor 1.6x 1.5x
    Sensor Resolution 12.2 Megapixels 12.2 Megapixels
    Image Resolution 4272 x 2848 pixels 4288 x 2848 pixels
    Pixel Pitch 5.19 μm 5.53 μm
    Pixel Density 3.70 MP/cm2 3.28 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability no Video 720/24p Video
    ISO Setting 100 - 1,600 ISO 200 - 3,200 ISO
    ISO Boost no Enhancement 100 - 6,400 ISO
    Image Processor DIGIC 3 EXPEED
    DXO Sensor Quality (score) 61 70
    DXO Color Depth (bits) 21.9 22.5
    DXO Dynamic Range (EV) 10.8 12.2
    DXO Low Light (ISO) 692 787
    Screen Specs Canon XSi Nikon D300S
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.54x 0.63x
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 230k dots 920k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon XSi Nikon D300S
    Focus System Phase-detect AF Phase-detect AF
    Continuous Shooting 3.5 shutter flaps/s 7 shutter flaps/s
    Shutter Life Expectancy100 000 actuations150 000 actuations
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium SDHC cards CF or SDXC cards
    Second Storage Option Single card slot Dual card slots
    UHS card support no no
    Connectivity Specs Canon XSi Nikon D300S
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port no MIC socket External MIC port
    Wifi Support no Wifi no Wifi
    Body Specs Canon XSi Nikon D300S
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type LP-E5 EN-EL3e
    Battery Life (CIPA)500 shots per charge950 shots per charge
    Body Dimensions 129 x 98 x 62 mm
    (5.1 x 3.9 x 2.4 in)
    147 x 115 x 81 mm
    (5.8 x 4.5 x 3.2 in)
    Camera Weight 524 g (18.5 oz) 938 g (33.1 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon XSi vs Nikon D300S

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.


    If you like it, make sure you share it:

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference.
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback. I appreciate it.
