Canon XS vs Ricoh GR II

The Canon EOS Rebel XS (called Canon 1000D in some regions) and the Ricoh GR II are two digital cameras that were officially introduced, respectively, in June 2008 and June 2015. The XS is a DSLR, while the GR II is a fixed lens compact. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 10.1 megapixels, whereas the Ricoh provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XS		Ricoh GR II
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		28mm f/2.8
10.1 MP – APS-C sensor		16.1 MP – APS-C sensor
no Video		1080/30p Video
ISO 100-800 (100 - 1,600)		ISO 100-25,600
Optical viewfinder		Viewfinder optional
2.5" LCD – 230k dots		3.0" LCD – 1230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		4 shutter flaps per second
500 shots per battery charge		320 shots per battery charge
126 x 98 x 65 mm, 502 g		117 x 63 x 35 mm, 251 g

Check XS offers at
ebay.com
Check GR II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XS and the Ricoh GR II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

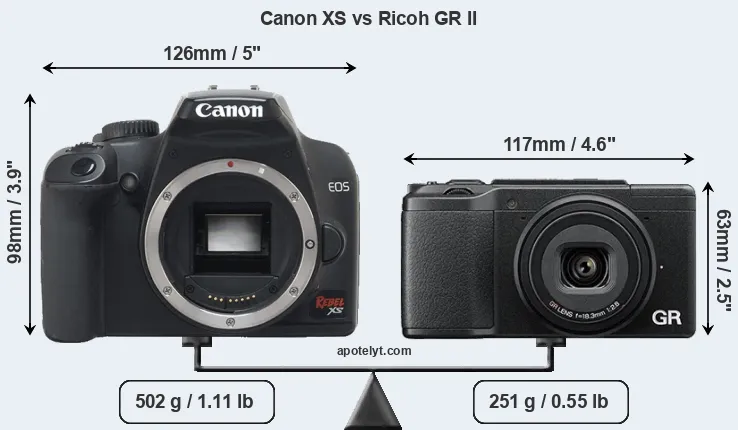

The side-by-side display below illustrates the physical size and weight of the Canon XS and the Ricoh GR II. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Ricoh GR II is considerably smaller (40 percent) than the Canon XS. In this context, it is worth noting that neither the XS nor the GR II are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the GR II has a lens built in, whereas the XS is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the XS and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the XS gets 500 shots out of its Canon LP-E5 battery, while the GR II can take 320 images on a single charge of its Ricoh DB-65 power pack. The power pack in the GR II can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
2.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	US$ 699	ebay.com
3.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
4.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
5.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
6.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
7.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
8.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
9.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
10.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
11.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	US$ 399	amazon.com
12.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	US$ 799	ebay.com
13.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	US$ 799	ebay.com
14.		Fujifilm X70	113 mm	64 mm	44 mm	340 g	330	n	Jan 2016	US$ 799	ebay.com
15.		Panasonic GM5	99 mm	60 mm	36 mm	211 g	220	n	Sep 2014	US$ 749	ebay.com
16.		Ricoh GR	117 mm	61 mm	35 mm	245 g	290	n	Apr 2013	US$ 799	ebay.com
17.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the GR II is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (XS) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 16.1MP, the GR II offers a higher resolution than the XS (10.1MP), but the GR II has smaller individual pixels (pixel pitch of 4.79μm versus 5.71μm for the XS). Yet, the GR II is a much more recent model (by 7 years) than the XS, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the GR II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Ricoh GR II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GR II for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Canon XS are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The Canon EOS Rebel XS has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-1600. The corresponding ISO settings for the Ricoh GR II are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the GR II offers substantially better image quality than the XS (overall score 18 points higher). The advantage is based on 1.6 bits higher color depth, 2.8 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
2.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
3.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
4.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
5.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
6.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
7.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
8.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
9.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
10.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
11.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
12.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
13.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
14.		Fujifilm X70	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
15.		Panasonic GM5	Four Thirds	15.8	4592	3448	1080/60p	22.1	11.7	721	66
16.		Ricoh GR	APS-C	16.1	4928	3264	1080/30p	23.6	13.5	972	78
17.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The GR II indeed provides for movie recording, while the XS does not. The highest resolution format that the GR II can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the XS has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the GR II relies on live view and the rear LCD for framing. That said, the GR II can be equipped with an optional viewfinder – the GV-1. The adjacent table lists some of the other core features of the Canon XS and Ricoh GR II along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
2.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
3.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
4.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
5.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
6.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
7.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
8.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
13.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Fujifilm X70	optional	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
15.		Panasonic GM5	1166	n	3.0 / 921	fixed	Y	1/500s	5.8/s	n	n
16.		Ricoh GR	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
17.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Ricoh GR II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The XS writes its imaging data to SDHC cards, while the GR II uses SDXC cards. The GR II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XS cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XS and Ricoh GR II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
2.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
6.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
7.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
10.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
11.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
12.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
13.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
14.		Fujifilm X70	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
15.		Panasonic GM5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Ricoh GR	Y	mono / mono	-	-	micro	2.0	-	-	-
17.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the GR II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the XS does not provide wifi capability.

Both the XS and the GR II have been discontinued, but can regularly be found used on ebay. The XS was replaced by the Canon T3, while the GR II was followed by the Ricoh GR III. Further information on the features and operation of the XS and GR II can be found, respectively, in the Canon XS Manual (free pdf) or the online Ricoh GR II Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon XS and the Ricoh GR II? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS Rebel XS:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (500 versus 320) on a single battery charge.
• More heavily discounted: Has been available for much longer (launched in June 2008).

Arguments in favor of the Ricoh GR II:

• More detail: Has more megapixels (16.1 vs 10.1MP), which boosts linear resolution by 26%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores substantially higher (18 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.6 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2.8 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.6 stops ISO advantage).
• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1230k vs 230k dots).
• Faster burst: Shoots at higher frequency (4 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the XS requires a separate lens.
• More compact: Is smaller (117x63mm vs 126x98mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the XS).
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 7 years of technical progress since the XS launch.

If the count of individual advantages (bullet points above) is taken as a guide, the GR II is the clear winner of the contest (19 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XS and the Ricoh GR II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the XS and the GR II in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
2.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	US$ 699	ebay.com
3.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
4.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
5.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
6.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
7.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
8.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
9.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
10.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
11.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	US$ 399	amazon.com
12.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	US$ 799	ebay.com
13.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	US$ 799	ebay.com
14.		Fujifilm X70	4.5/5	..	..	76/100	4.5/5	4.5/5	Jan 2016	US$ 799	ebay.com
15.		Panasonic GM5	3.5/5	+	..	77/100	5/5	4.5/5	Sep 2014	US$ 749	ebay.com
16.		Ricoh GR	5/5	..	..	79/100	4.5/5	4.5/5	Apr 2013	US$ 799	ebay.com
17.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
