Canon XS vs Nikon D1

The Canon EOS Rebel XS (called Canon 1000D in some regions) and the Nikon D1 are two digital cameras that were announced, respectively, in June 2008 and June 1999. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 10.1 megapixels, whereas the Nikon provides 2.6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XS		Nikon D1
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Nikon F mount lenses
10.1 MP – APS-C sensor		2.6 MP – APS-C sensor
no Video		no Video
ISO 100-800 (100 - 1,600)		ISO 200-1,600 (200 - 6,400)
Optical viewfinder		Optical viewfinder
2.5" LCD – 230k dots		2.0" LCD – 120k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		1.5 shutter flaps per second
not weather sealed		Weathersealed body
126 x 98 x 65 mm, 502 g		157 x 153 x 85 mm, 1100 g

Check XS offers at
ebay.com
Check D1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XS and the Nikon D1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

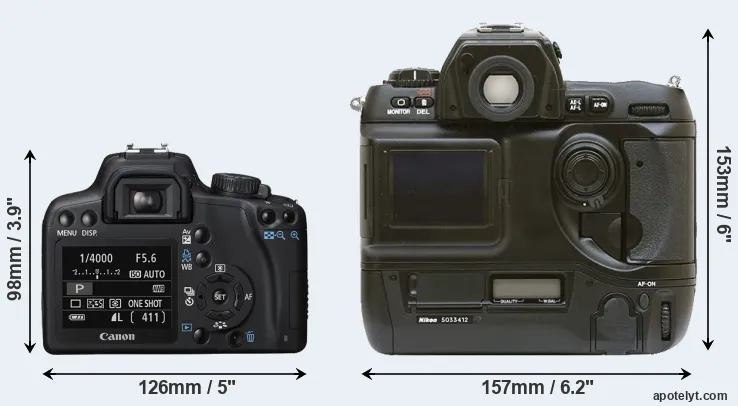

The side-by-side display below illustrates the physical size and weight of the Canon XS and the Nikon D1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D1 is considerably larger (95 percent) than the Canon XS. Moreover, the D1 is substantially heavier (119 percent) than the XS. It is noteworthy in this context that the D1 is splash and dust-proof, while the XS does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XS) and the Nikon Lens Catalog (D1).

As can be seen in the images above, the D1 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the XS, Canon provides the BG-E5 vertical grip as an optional accessory (see here on ebay).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	449	ebay.com
2.		Nikon D1	157 mm	153 mm	85 mm	1100 g	..	Y	Jun 1999	5,499	ebay.com
3.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	449	amazon.com
4.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	399	amazon.com
5.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
6.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
7.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
8.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	399	ebay.com
9.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	799	ebay.com
10.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	799	ebay.com
11.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	1,299	ebay.com
12.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	799	ebay.com
13.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	1,799	ebay.com
14.		Nikon D300	147 mm	114 mm	74 mm	925 g	1000	Y	Aug 2007	1,799	ebay.com
15.		Nikon D2Xs	158 mm	150 mm	86 mm	1252 g	3800	Y	Jun 2006	4,699	ebay.com
16.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	1,699	ebay.com
17.		Nikon D1X	157 mm	153 mm	85 mm	1100 g	1200	Y	Feb 2001	5,999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XS was launched at a markedly lower price (by 92 percent) than the D1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

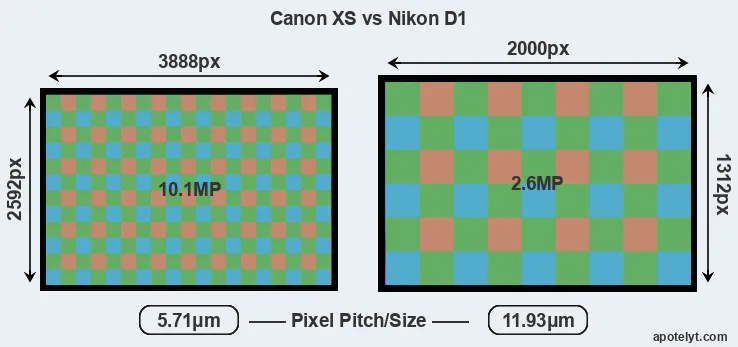

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D1 is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (XS) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the Canon XS offers a higher resolution of 10.1 megapixels, compared with 2.6 MP of the Nikon D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 5.71μm versus 11.93μm for the D1). However, it should be noted that the XS is much more recent (by 8 years and 11 months) than the D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon XS implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the XS for good quality output (200 dots per inch) amounts to 19.4 x 13 inches or 49.4 x 32.9 cm, for very good quality (250 dpi) 15.6 x 10.4 inches or 39.5 x 26.3 cm, and for excellent quality (300 dpi) 13 x 8.6 inches or 32.9 x 21.9 cm. The corresponding values for the Nikon D1 are 10 x 6.6 inches or 25.4 x 16.7 cm for good quality, 8 x 5.2 inches or 20.3 x 13.3 cm for very good quality, and 6.7 x 4.4 inches or 16.9 x 11.1 cm for excellent quality prints.

The Canon EOS Rebel XS has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-1600. The corresponding ISO settings for the Nikon D1 are ISO 200 to ISO 1600, with the possibility to increase the ISO range to 200-6400.

In terms of underlying technology, the XS is build around a CMOS sensor, while the D1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
2.		Nikon D1	APS-C	2.6	2000	1312	none	..	..	..	..
3.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
4.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
5.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
6.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
7.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
8.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
9.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
10.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
11.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
12.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
13.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
14.		Nikon D300	APS-C	12.2	4288	2848	none	22.1	12.0	679	67
15.		Nikon D2Xs	APS-C	12.2	4288	2848	none	22.2	10.9	489	59
16.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
17.		Nikon D1X	APS-C	5.9	3008	1960	none	..	..	..	..
Note: DXO values in italics represent estimates based on sensor size and age.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The XS and the D1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D1 offers a wider field of view (96%) than the one in the XS (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D1 has a higher magnification (0.53x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon XS, the Nikon D1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
2.		Nikon D1	optical	Y	2.0 / 120	fixed	n	1/16000s	1.5/s	n	n
3.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
7.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
8.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
9.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
10.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
11.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
12.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
13.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
14.		Nikon D300	optical	Y	3.0 / 922	fixed	n	1/8000s	6.0/s	Y	n
15.		Nikon D2Xs	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	n	n
16.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
17.		Nikon D1X	optical	Y	2.0 / 120	fixed	n	1/16000s	3.0/s	n	n
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The XS has one, while the D1 does not. While the built-in flash of the XS is not very powerful, it can at times be useful as a fill-in light.

The XS writes its imaging data to SDHC cards, while the D1 uses Compact Flash cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XS and Nikon D1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
2.		Nikon D1	Y	- / -	-	-	-	FW	-	-	-
3.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
4.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
7.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
9.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
10.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
11.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
12.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
13.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Nikon D300	Y	- / -	-	-	mini	2.0	-	-	-
15.		Nikon D2Xs	Y	- / -	-	-	-	2.0	-	-	-
16.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-
17.		Nikon D1X	Y	- / -	-	-	-	FW	-	-	-

Studio photographers will appreciate that the Nikon D1 (unlike the XS) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the XS and the D1 have been discontinued, but can regularly be found used on ebay. The D1 was replaced by the Nikon D1X, while the XS was followed by the Canon T3. Further information on the features and operation of the XS and D1 can be found, respectively, in the Canon XS Manual (free pdf) or the online Nikon D1 Manual.

Review summary

So how do things add up? Is the Canon XS better than the Nikon D1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon EOS Rebel XS:

• More detail: Offers more megapixels (10.1 vs 2.6MP) with a 95% higher linear resolution.
• Larger screen: Has a bigger rear LCD (2.5" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (230k vs 120k dots).
• Faster burst: Shoots at higher frequency (3 vs 1.5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (126x98mm vs 157x153mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 598g or 54 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (92 percent cheaper at launch).
• More modern: Reflects 8 years and 11 months of technical progress since the D1 launch.

Arguments in favor of the Nikon D1:

• More complete view: Has a viewfinder with a larger field of view (96% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.53x vs 0.51x).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/4000s) to freeze action.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been around for much longer (launched in June 1999).

If the number of relative strengths (bullet points above) is taken as a guide, the XS comes out slightly ahead of the D1 (9 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XS and the Nikon D1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the XS or the D1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	449	ebay.com
2.		Nikon D1	..	..	..	+ +	..	..	Jun 1999	5,499	ebay.com
3.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	449	amazon.com
4.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	399	amazon.com
5.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
6.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
7.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
8.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	399	ebay.com
9.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	799	ebay.com
10.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	799	ebay.com
11.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	1,299	ebay.com
12.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	799	ebay.com
13.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	1,799	ebay.com
14.		Nikon D300	..	+ +	..	+ +	5/5	4.5/5	Aug 2007	1,799	ebay.com
15.		Nikon D2Xs	..	..	..	..	..	..	Jun 2006	4,699	ebay.com
16.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	1,699	ebay.com
17.		Nikon D1X	..	..	..	+ +	..	..	Feb 2001	5,999	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
