Canon XC10 vs Nikon D1X

The Canon XC10 and the Nikon D1X are two digital cameras that were announced, respectively, in April 2015 and February 2001. The XC10 is a fixed lens compact, while the D1X is a DSLR. The cameras are based on an one-inch (XC10) and an APS-C (D1X) sensor. The Canon has a resolution of 12 megapixels, whereas the Nikon provides 5.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XC10		Nikon D1X
Fixed lens compact camera		Digital single lens reflex
24-240mm f/2.8-5.6		Nikon F mount lenses
12 MP – 1" sensor		5.9 MP – APS-C sensor
4K/30p Video		no Video
ISO 160-20,000		ISO 125-800 (125 - 3,200)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 1030k dots		2.0" LCD – 120k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
3.8 shutter flaps per second		3 shutter flaps per second
not weather sealed		Weathersealed body
370 shots per battery charge		1200 shots per battery charge
125 x 102 x 122 mm, 1040 g		157 x 153 x 85 mm, 1100 g

Check XC10 offers at
ebay.com
Check D1X offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon XC10 and the Nikon D1X? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

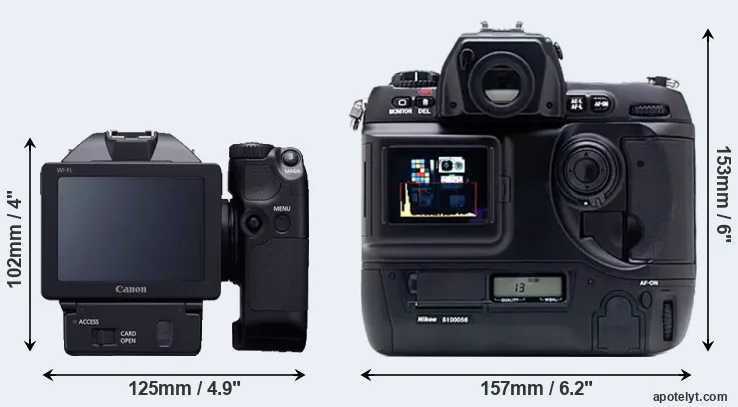

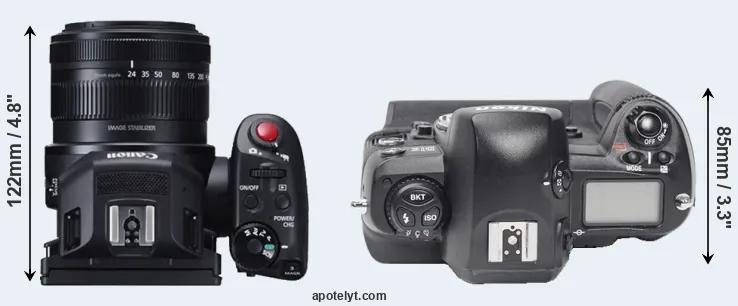

The side-by-side display below illustrates the physical size and weight of the Canon XC10 and the Nikon D1X. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D1X is considerably larger (88 percent) than the Canon XC10. It is noteworthy in this context that the D1X is splash and dust-proof, while the XC10 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XC10 has a lens built in, whereas the D1X is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D1X and their specifications in the Nikon Lens Catalog.

Concerning battery life, the XC10 gets 370 shots out of its Canon LP-E6N battery, while the D1X can take 1200 images on a single charge of its Nikon EN-4 power pack. As can be seen in the images above, the D1X has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the XC10 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon XC10	125 mm	102 mm	122 mm	1040 g	370	n	Apr 2015	US$ 2 499	ebay.com
2.		Nikon D1X	157 mm	153 mm	85 mm	1100 g	1200	Y	Feb 2001	US$ 5 999	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
4.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
6.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
7.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
8.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
9.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
10.		Nikon D1	157 mm	153 mm	85 mm	1100 g	..	Y	Jun 1999	US$ 5 499	ebay.com
11.		Nikon D2X	158 mm	150 mm	86 mm	1252 g	3800	Y	Sep 2004	US$ 4 999	ebay.com
12.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	US$ 1 699	ebay.com
13.		Nikon D300	147 mm	114 mm	74 mm	925 g	1000	Y	Aug 2007	US$ 1 799	ebay.com
14.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	US$ 1 799	ebay.com
15.		Nikon P900	140 mm	103 mm	137 mm	899 g	360	n	Mar 2015	US$ 599	ebay.com
16.		Panasonic FZ2500	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	US$ 1 199	amazon.com
17.		Panasonic LX100	115 mm	66 mm	55 mm	393 g	300	n	Sep 2014	US$ 899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XC10 was launched at a lower price than the D1X, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

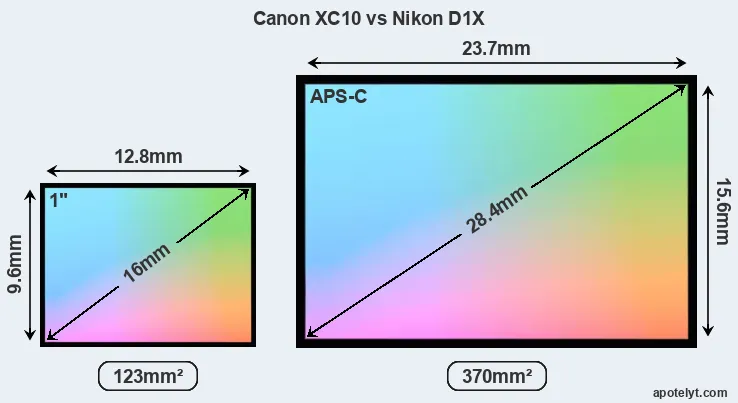

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon XC10 features an one-inch sensor and the Nikon D1X an APS-C sensor. The sensor area in the D1X is 201 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.75 and 1.5. The sensor in the XC10 has a native 4:3 aspect ratio, while the one in the D1X offers a 3:2 aspect.

Despite having a smaller sensor, the Canon XC10 offers a higher resolution of 12 megapixels, compared with 5.9 MP of the Nikon D1X. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.20μm versus 7.92μm for the D1X). However, it should be noted that the XC10 is much more recent (by 14 years and 2 months) than the D1X, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon XC10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the XC10 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Nikon D1X are 15 x 9.8 inches or 38.2 x 24.9 cm for good quality, 12 x 7.8 inches or 30.6 x 19.9 cm for very good quality, and 10 x 6.5 inches or 25.5 x 16.6 cm for excellent quality prints.

The Canon XC10 has a native sensitivity range from ISO 160 to ISO 20000. The corresponding ISO settings for the Nikon D1X are ISO 125 to ISO 800, with the possibility to increase the ISO range to 125-3200.

In terms of underlying technology, the XC10 is build around a CMOS sensor, while the D1X uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XC10	1-inch	12.0	4000	3000	4K/30p	21.7	11.8	197	61
2.		Nikon D1X	APS-C	5.9	3008	1960	none	..	..	..	..
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
7.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
8.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
9.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
10.		Nikon D1	APS-C	2.6	2000	1312	none	..	..	..	..
11.		Nikon D2X	APS-C	12.2	4288	2848	none	22.1	10.9	476	59
12.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
13.		Nikon D300	APS-C	12.2	4288	2848	none	22.1	12.0	679	67
14.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
15.		Nikon P900	1/2.3	15.9	4608	3456	1080/60p	20.2	11.6	727	47
16.		Panasonic FZ2500	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
17.		Panasonic LX100	Four Thirds	12.7	4112	3088	4K/30p	22.3	12.5	553	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The XC10 indeed provides movie recording capabilities, while the D1X does not. The highest resolution format that the XC10 can use is 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D1X has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the XC10 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon XC10, the Nikon D1X, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XC10	none	n	3.0 / 1030	tilting	Y	1/2000s	3.8/s	n	Y
2.		Nikon D1X	optical	Y	2.0 / 120	fixed	n	1/16000s	3.0/s	n	n
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
7.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
8.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
9.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
10.		Nikon D1	optical	Y	2.0 / 120	fixed	n	1/16000s	4.5/s	n	n
11.		Nikon D2X	optical	Y	2.5 / 235	fixed	n	1/8000s	5.0/s	n	n
12.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
13.		Nikon D300	optical	Y	3.0 / 922	fixed	n	1/8000s	6.0/s	Y	n
14.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
15.		Nikon P900	921	n	3.0 / 921	swivel	n	1/4000s	7.0/s	Y	Y
16.		Panasonic FZ2500	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
17.		Panasonic LX100	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The XC10 has a touchscreen, while the D1X has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon XC10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The XC10 writes its imaging data to CFast or SDXC cards, while the D1X uses Compact Flash cards. The XC10 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D1X only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon XC10 and Nikon D1X and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XC10	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
2.		Nikon D1X	Y	- / -	-	-	-	FW	-	-	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Nikon D1	Y	- / -	-	-	-	FW	-	-	-
11.		Nikon D2X	Y	- / -	-	-	-	2.0	-	-	-
12.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-
13.		Nikon D300	Y	- / -	-	-	mini	2.0	-	-	-
14.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Nikon P900	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Panasonic FZ2500	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
17.		Panasonic LX100	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the XC10 offers wifi support, while the D1X does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Nikon D1X (unlike the XC10) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the XC10 and the D1X have been discontinued, but can regularly be found used on ebay. The D1X was replaced by the Nikon D2X, while the XC10 was followed by the Canon XC15. Further information on the features and operation of the XC10 and D1X can be found, respectively, in the Canon XC10 Manual (free pdf) or the online Nikon D1X Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon XC10 or the Nikon D1X – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon XC10:

• More detail: Offers more megapixels (12 vs 5.9MP) with a 39% higher linear resolution.
• Broader imaging potential: Can record not only still images but also 4K/30p movies.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1030k vs 120k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (3.8 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with a built-in lens, while the D1X requires a separate lens.
• More compact: Is smaller (125x102mm vs 157x153mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the D1X).
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 14 years and 2 months of technical progress since the D1X launch.

Arguments in favor of the Nikon D1X:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/2000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Gets more shots (1200 versus 370) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been around for much longer (launched in February 2001).

If the number of relative strengths (bullet points above) is taken as a guide, the XC10 is the clear winner of the match-up (18 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XC10 and the Nikon D1X place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the XC10 or the D1X perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon XC10	..	..	..	80/100	..	..	Apr 2015	US$ 2 499	ebay.com
2.		Nikon D1X	..	..	..	+ +	..	..	Feb 2001	US$ 5 999	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
4.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
6.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
7.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
8.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
9.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
10.		Nikon D1	..	..	..	+ +	..	..	Jun 1999	US$ 5 499	ebay.com
11.		Nikon D2X	..	..	..	+ +	..	..	Sep 2004	US$ 4 999	ebay.com
12.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	US$ 1 699	ebay.com
13.		Nikon D300	..	+ +	..	+ +	5/5	4.5/5	Aug 2007	US$ 1 799	ebay.com
14.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	US$ 1 799	ebay.com
15.		Nikon P900	..	..	..	77/100	4/5	4/5	Mar 2015	US$ 599	ebay.com
16.		Panasonic FZ2500	..	+	..	82/100	4.5/5	5/5	Sep 2016	US$ 1 199	amazon.com
17.		Panasonic LX100	5/5	+ +	..	85/100	5/5	5/5	Sep 2014	US$ 899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check XC10 offers at
ebay.com
Check D1X offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check XC10 offers at
ebay.com
Check D1X offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
