Canon T2i vs Epson R-D1

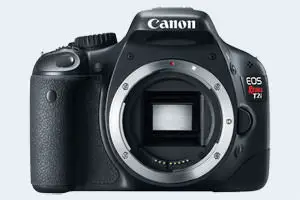

The Canon EOS Rebel T2i (called Canon 550D in some regions) and the Epson R-D1 are two digital cameras that were officially introduced, respectively, in February 2010 and March 2004. The T2i is a DSLR, while the R-D1 is a rangefinder-focusing mirrorless camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Epson provides 6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon T2i
versus
Epson R-D1
Canon T2i   Epson R-D1
Digital single lens reflex Rangefinder camera
Canon EF mount lenses Leica M mount lenses
17.9 MP, APS-C Sensor 6 MP, APS-C Sensor
1080/30p Video no Video
ISO 100-6,400 (100 - 12,800) ISO 200-1,600
Optical viewfinder Optical viewfinder
3.0 LCD, 1040k dots 2.0 LCD, 235k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
3.7 shutter flaps per second 1 shutter flaps per second
129 x 98 x 62 mm, 530 g 142 x 89 x 40 mm, 620 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T2i and the Epson R-D1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon T2i and the Epson R-D1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

Size Canon T2i vs Epson R-D1
Compare T2i versus R-D1 top
Comparison T2i or R-D1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T2i and the Epson R-D1 are of equal size. However, the R-D1 is markedly heavier (17 percent) than the T2i. In this context, it is worth noting that neither the T2i nor the R-D1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T2i) and the Leica M Lens Catalog (R-D1).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon T2i 129 mm 98 mm 62 mm 530 g 440 n Feb 2010 699i
2.

Epson R-D1 142 mm 89 mm 40 mm 620 g .. n Mar 2004 2,999i
3.

Canon T100 129 mm 102 mm 77 mm 436 g 500 n Feb 2018 399 i
4.

Canon T6s 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649i
5.

Canon T5 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449i
6.

Canon T5i 133 mm 100 mm 79 mm 580 g 440 n Mar 2013 649i
7.

Canon T4i 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 849i
8.

Canon T3 130 mm 100 mm 78 mm 495 g 700 n Feb 2011 449i
9.

Canon T3i 133 mm 100 mm 80 mm 570 g 440 n Feb 2011 599i
10.

Canon T1i 129 mm 98 mm 62 mm 520 g 400 n Mar 2009 799i
11.

Canon XSi 129 mm 98 mm 62 mm 524 g 500 n Jan 2008 799i
12.

Canon XTi 127 mm 84 mm 65 mm 556 g 370 n Aug 2006 799i
13.

Canon 300D 142 mm 99 mm 72 mm 649 g 400 n Aug 2003 899i
14.

Nikon D50 133 mm 102 mm 76 mm 620 g 400 n Apr 2005 749i
15.

Nikon D70s 140 mm 111 mm 78 mm 679 g 500 n Apr 2005 899i
16.

Nikon D70 140 mm 111 mm 78 mm 679 g 400 n Jan 2004 999i
17.

Olympus E-300 147 mm 85 mm 64 mm 624 g 750 n Sep 2004 799i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The T2i was launched at a markedly lower price (by 77 percent) than the R-D1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the R-D1 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (T2i) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Canon T2i and Epson R-D1 sensor measures

Despite having a smaller sensor, the Canon T2i offers a higher resolution of 17.9 megapixels, compared with 6 MP of the Epson R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 7.85μm for the R-D1). However, it should be noted that the T2i is much more recent (by 5 years and 11 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon T2i implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T2i for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Canon EOS Rebel T2i has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Epson R-D1 are ISO 200 to ISO 1600 (no boost).

T2i versus R-D1 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon T2i APS-C 17.9 5184 34561080/30p22.111.578466
2.

Epson R-D1 APS-C 6.0 3008 2000none21.110.456455
3.

Canon T100 APS-C 17.9 5184 34561080/30p21.911.469563
4.

Canon T6s APS-C 24.0 6000 40001080/30p22.612.091570
5.

Canon T5 APS-C 17.9 5184 34561080/30p21.911.372463
6.

Canon T5i APS-C 17.9 5184 34561080/30p21.711.268161
7.

Canon T4i APS-C 17.9 5184 34561080/30p21.711.272262
8.

Canon T3 APS-C 12.2 4272 2848720/30p21.911.075562
9.

Canon T3i APS-C 17.9 5184 34561080/30p22.111.579365
10.

Canon T1i APS-C 15.1 4752 31681080/20p21.711.566363
11.

Canon XSi APS-C 12.2 4272 2848none21.910.869261
12.

Canon XTi APS-C 10.1 3888 2592none22.111.066462
13.

Canon 300D APS-C 6.3 3072 2048none21.010.854455
14.

Nikon D50 APS-C 6.0 3008 2000none20.910.856055
15.

Nikon D70s APS-C 6.0 3008 2000none20.410.352950
16.

Nikon D70 APS-C 6.0 3008 2000none20.410.352950
17.

Olympus E-300 Four Thirds 8.0 3264 2448none20.410.1-4048
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The T2i indeed provides movie recording capabilities, while the R-D1 does not. The highest resolution format that the T2i can use is 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The T2i and the R-D1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The adjacent table lists some of the other core features of the Canon T2i and Epson R-D1 along with similar information for a selection of comparators.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon T2ioptical n3.0 / 1040 fixed n 1/4000s 3.7 Y n
2.

Epson R-D1optical n2.0 / 235 fixed n 1/2000s 1.0 n n
3.

Canon T100optical n2.7 / 230 fixed n 1/4000s 3.0 Y n
4.

Canon T6soptical Y3.0 / 1040 swivel Y 1/4000s 5.0 Y n
5.

Canon T5optical n3.0 / 460 fixed n 1/4000s 3.0 Y n
6.

Canon T5ioptical n3.0 / 1040 swivel Y 1/4000s 5.0 Y n
7.

Canon T4ioptical n3.0 / 1040 swivel Y 1/4000s 5.0 Y n
8.

Canon T3optical n2.7 / 230 fixed n 1/4000s 3.0 Y n
9.

Canon T3ioptical n3.0 / 1040 swivel n 1/4000s 3.7 Y n
10.

Canon T1ioptical n3.0 / 920 fixed n 1/4000s 3.4 Y n
11.

Canon XSioptical n3.0 / 230 fixed n 1/4000s 3.5 Y n
12.

Canon XTioptical n2.5 / 230 fixed n 1/4000s 3.0 Y n
13.

Canon 300Doptical n1.8 / 118 fixed n 1/4000s 2.5 Y n
14.

Nikon D50optical n2.0 / 130 fixed n 1/4000s 2.5 Y n
15.

Nikon D70soptical n2.0 / 130 fixed n 1/8000s 3.0 Y n
16.

Nikon D70optical n1.8 / 130 fixed n 1/8000s 3.0 Y n
17.

Olympus E-300optical n1.8 / 134 fixed n 1/4000s 2.5 Y n

One difference between the cameras concerns the presence of an on-board flash. The T2i has one, while the R-D1 does not. While the built-in flash of the T2i is not very powerful, it can at times be useful as a fill-in light.

The T2i writes its imaging data to SDXC cards, while the R-D1 uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T2i and Epson R-D1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon T2iYstereo / -Y-mini2.0---
2.

Epson R-D1Y- / --------
3.

Canon T100Ymono / mono--mini2.0YY-
4.

Canon T6sYstereo / monoY-mini2.0YY-
5.

Canon T5Ymono / mono--mini2.0---
6.

Canon T5iYstereo / monoY-mini2.0---
7.

Canon T4iYstereo / monoY-mini2.0---
8.

Canon T3Ystereo / mono--mini2.0---
9.

Canon T3iYmono / monoY-mini2.0---
10.

Canon T1iYmono / mono--mini2.0---
11.

Canon XSiY- / ---mini2.0---
12.

Canon XTiY- / ----2.0---
13.

Canon 300DY- / ----1.1---
14.

Nikon D50Y- / ----2.0---
15.

Nikon D70sY- / ----2.0---
16.

Nikon D70Y- / ----1.0---
17.

Olympus E-300Y- / ----2.0---

Studio photographers will appreciate that the Epson R-D1 (unlike the T2i) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the T2i and the R-D1 have been discontinued, but can regularly be found used on eBay. The T2i was replaced by the Canon T3i, while the R-D1 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Epson websites.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon T2i and the Epson R-D1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Advantages of the Canon EOS Rebel T2i:

  • More detail: Offers more megapixels (17.9 vs 6MP) with a 72% higher linear resolution.
  • Broader imaging potential: Can record not only still images but also 1080/30p movies.
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 235k dots).
  • Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
  • Faster burst: Shoots at higher frequency (3.7 vs 1 flaps/sec) to capture the decisive moment.
  • Less heavy: Is lighter (by 90g or 15 percent) and hence easier to carry around.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • More affordable: Was introduced into a lower priced category (77 percent cheaper at launch).
  • More modern: Reflects 5 years and 11 months of technical progress since the R-D1 launch.

ilogo

Arguments in favor of the Epson R-D1:

  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • More heavily discounted: Has been around for much longer (launched in March 2004).

If the number of relative strengths (bullet points above) is taken as a guide, the T2i is the clear winner of the match-up (10 : 2 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

T2i 10:02 R-D1

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the T2i or the R-D1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon T2i..+ +..77/1004/54.5/5 Feb 2010 699i
2.

Epson R-D1............ Mar 2004 2,999i
3.

Canon T100..o3/5..3.5/53.5/5 Feb 2018 399 i
4.

Canon T6s5/5+..77/1004.5/54.5/5 Feb 2015 649i
5.

Canon T53/5+....4/54.5/5 Feb 2014 449i
6.

Canon T5i......76/1004.5/54.5/5 Mar 2013 649i
7.

Canon T4i4/5+ +..77/1004.5/54.5/5 Jun 2012 849i
8.

Canon T3..80/100..69/1004/54.5/5 Feb 2011 449i
9.

Canon T3i3/5o..77/1004.5/54.5/5 Feb 2011 599i
10.

Canon T1i..+ +..74/1004.5/54.5/5 Mar 2009 799i
11.

Canon XSi..+ +..+ +4/54.5/5 Jan 2008 799i
12.

Canon XTi..+ +..+ +o4/5 Aug 2006 799i
13.

Canon 300D......+ +.... Aug 2003 899i
14.

Nikon D50..78/100..+ +4/54.5/5 Apr 2005 749i
15.

Nikon D70s..........5/5 Apr 2005 899i
16.

Nikon D70......+ +.... Jan 2004 999i
17.

Olympus E-300......+o4.5/5 Sep 2004 799i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

Canon T2i:
Check Ebay offers
Epson R-D1:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader

    Specifications: Canon T2i vs Epson R-D1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon T2i Epson R-D1
    Camera Type Digital single lens reflex Rangefinder camera
    Camera Lens Canon EF mount lenses Leica M mount lenses
    Launch Date February 2010 March 2004
    Launch Price USD 699 USD 2,999
    Sensor Specs Canon T2i Epson R-D1
    Sensor Technology CMOS CCD
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 22.3 x 14.9 mm 23.7 x 15.6 mm
    Sensor Area 332.27 mm2 369.72 mm2
    Sensor Diagonal 26.8 mm 28.4 mm
    Crop Factor 1.6x 1.5x
    Sensor Resolution 17.9 Megapixels 6 Megapixels
    Image Resolution 5184 x 3456 pixels 3008 x 2000 pixels
    Pixel Pitch 4.31 μm 7.85 μm
    Pixel Density 5.39 MP/cm2 1.63 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/30p Video no Video
    ISO Setting 100 - 6,400 ISO 200 - 1,600 ISO
    ISO Boost 100 - 12,800 ISO no Enhancement
    DXO Sensor Quality (score) 66 ..
    DXO Color Depth (bits) 22.1 ..
    DXO Dynamic Range (EV) 11.5 ..
    DXO Low Light (ISO) 784 ..
    Screen Specs Canon T2i Epson R-D1
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.54x
    LCD Framing Live View
    Rear LCD Size 3.0inch 2.0inch
    LCD Resolution 1040k dots 235k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon T2i Epson R-D1
    Focus System Phase-detect AF Manual Focus
    Continuous Shooting 3.7 shutter flaps/s 1 shutter flaps/s
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium SDXC cards SDHC cards
    Second Storage Option Single card slot Single card slot
    UHS card support no no
    Connectivity Specs Canon T2i Epson R-D1
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 no USB
    HDMI Port mini HDMI no HDMI
    Microphone Port External MIC port no MIC socket
    Wifi Support no Wifi no Wifi
    Body Specs Canon T2i Epson R-D1
    Battery Type LP-E8 EU-85
    Body Dimensions 129 x 98 x 62 mm
    (5.1 x 3.9 x 2.4 in)
    142 x 89 x 40 mm
    (5.6 x 3.5 x 1.6 in)
    Camera Weight 530 g (18.7 oz) 620 g (21.9 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon T2i vs Epson R-D1

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.


    If you like it, make sure you share it:

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference.
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback. I appreciate it.
