Canon SX70 vs Pentax K-5
The Canon PowerShot SX70 HS and the Pentax K-5 are two digital cameras that were officially introduced, respectively, in September 2018 and September 2010. The SX70 is a fixed lens compact, while the K-5 is a DSLR. The cameras are based on a 1/2.3-inch (SX70) and an APS-C (K-5) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Pentax provides 16.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX70 HS and the Pentax K-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

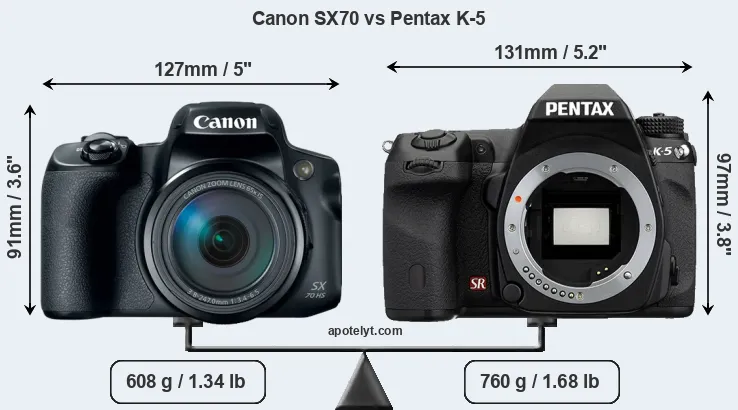

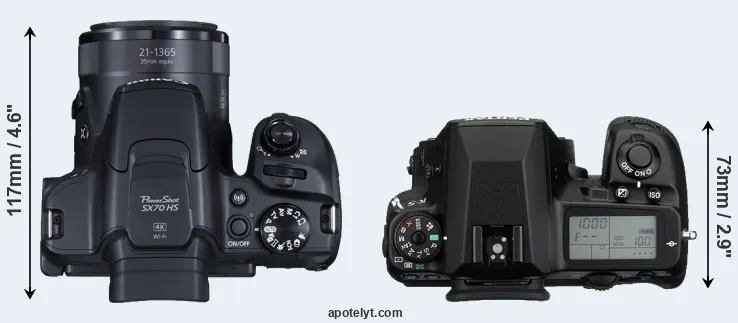

The physical size and weight of the Canon SX70 and the Pentax K-5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-5 is notably larger (10 percent) than the Canon SX70. It is noteworthy in this context that the K-5 is splash and dust-proof, while the SX70 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX70 has a lens built in, whereas the K-5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon SX70||127 mm||91 mm||117 mm||608 g||325||n||Sep 2018||549|
|2.||Pentax K-5||131 mm||97 mm||73 mm||760 g||740||Y||Sep 2010||1,099|
|3.||Canon SX740||110 mm||64 mm||40 mm||299 g||265||n||Jul 2018||399|
|4.||Canon SX430||104 mm||69 mm||85 mm||323 g||195||n||Jan 2017||299|
|5.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|6.||Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529|
|7.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|8.||Canon SX60||128 mm||93 mm||114 mm||650 g||340||n||Sep 2014||549|
|9.||Canon SX1||128 mm||88 mm||88 mm||615 g||..||n||Sep 2008||599|
|10.||Nikon B700||125 mm||85 mm||107 mm||565 g||350||n||Feb 2016||499|
|11.||Panasonic FZ80||130 mm||94 mm||119 mm||616 g||330||n||Jan 2017||399|
|12.||Pentax K-3 II||131 mm||100 mm||77 mm||800 g||720||Y||Apr 2015||1,099|
|13.||Pentax K-50||130 mm||97 mm||71 mm||650 g||410||Y||Jun 2013||599|
|14.||Pentax K-3||131 mm||100 mm||77 mm||800 g||560||Y||Oct 2013||1,299|
|15.||Pentax K-30||130 mm||97 mm||71 mm||650 g||410||Y||May 2012||849|
|16.||Pentax K-5 II||131 mm||97 mm||73 mm||760 g||740||Y||Sep 2012||1,099|
|17.||Sony HX400V||130 mm||93 mm||103 mm||660 g||300||n||Feb 2014||499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX70 was launched at a lower price than the K-5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

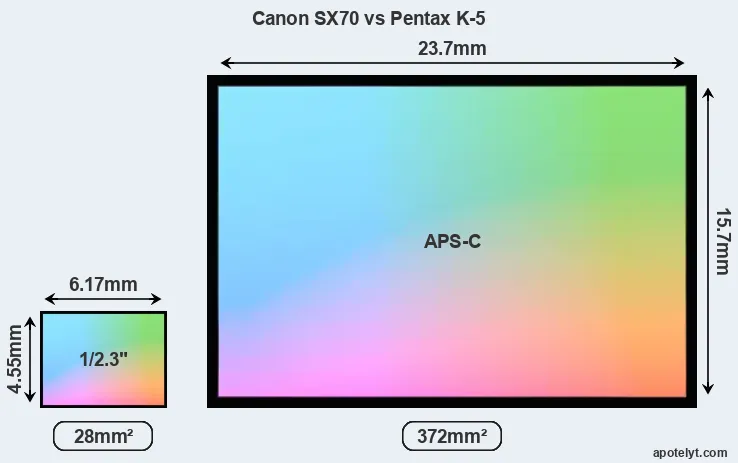

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon SX70 features a 1/2.3-inch sensor and the Pentax K-5 an APS-C sensor. The sensor area in the K-5 is 1229 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX70 has a native 4:3 aspect ratio, while the one in the K-5 offers a 3:2 aspect.

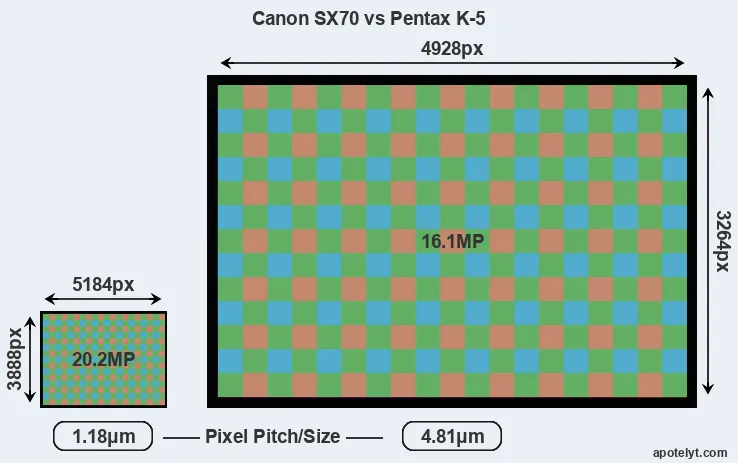

Despite having a smaller sensor, the Canon SX70 offers a higher resolution of 20.2 megapixels, compared with 16.1 MP of the Pentax K-5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 4.81μm for the K-5). However, it should be noted that the SX70 is much more recent (by 8 years) than the K-5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX70 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon SX70 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX70 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Pentax K-5 are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.
The Canon PowerShot SX70 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Pentax K-5 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 80-51200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|6.||Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|12.||Pentax K-3 II||APS-C||24.1||6016||4000||1080/60i||23.6||13.6||1106||80|
|16.||Pentax K-5 II||APS-C||16.1||4928||3264||1080/25p||23.8||14.1||1235||82|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX70 provides a higher video resolution than the K-5. It can shoot video footage at 4K/30p, while the Pentax is limited to 1080/25p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the SX70 has an electronic viewfinder (2360k dots), while the K-5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon SX70 and Pentax K-5 along with similar information for a selection of comparators.
|6.||Canon G9 X Mark II||none||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y|
|12.||Pentax K-3 II||optical||Y||3.2||1037||fixed||n||1/8000s||8.3||n||Y|
|16.||Pentax K-5 II||optical||Y||3.0||921||fixed||n||1/8000s||7.0||Y||Y|
One feature that is present on the K-5, but is missing on the SX70 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The SX70 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the K-5 does not have a selfie-screen.
The Pentax K-5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SX70 and the K-5 write their files to SDXC cards. The SX70 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the K-5 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX70 HS and Pentax K-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|6.||Canon G9 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
|12.||Pentax K-3 II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|16.||Pentax K-5 II||Y||stereo||mono||Y||-||mini||2.0||-||-||-|
It is notable that the SX70 offers wifi support, while the K-5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Pentax K-5 (unlike the SX70) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The SX70 is a recent model that features in the current product line-up of Canon. In contrast, the K-5 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the K-5 was succeeded by the Pentax K-5 II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So what is the bottom line? Which of the two cameras – the Canon SX70 or the Pentax K-5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon PowerShot SX70 HS:
- More detail: Offers more megapixels (20.2 vs 16.1MP) with a 10% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/25p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (10 vs 7 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with a built-in lens, while the K-5 requires a separate lens.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the K-5).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 8 years of technical progress since the K-5 launch.
Advantages of the Pentax K-5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Makes it possible to change lenses and thus to use specialty optics.
- Longer lasting: Gets more shots (740 versus 325) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been around for much longer (launched in September 2010).
If the count of relative strengths (bullet points above) is taken as a measure, the K-5 comes out slightly ahead of the SX70 (15 : 14 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX70 and the Pentax K-5 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the SX70 and the K-5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SX70||..||+ +||..||3.5/5||3.5/5||Sep 2018||549|
|2.||Pentax K-5||4/5||..||83/100||5/5||4.5/5||Sep 2010||1,099|
|3.||Canon SX740||..||+||..||4/5||4/5||Jul 2018||399|
|4.||Canon SX430||..||..||..||3.5/5||3.5/5||Jan 2017||299|
|5.||Canon 77D||4.5/5||..||82/100||4.5/5||4/5||Feb 2017||899|
|6.||Canon G9 X Mark II||4/5||..||75/100||4.5/5||4.5/5||Jan 2017||529|
|7.||Canon SX730||..||+||..||4/5||4/5||Apr 2017||399|
|8.||Canon SX60||3/5||+ +||75/100||4/5||4.5/5||Sep 2014||549|
|9.||Canon SX1||..||+ +||+||..||3.5/5||Sep 2008||599|
|10.||Nikon B700||..||+||..||4/5||4/5||Feb 2016||499|
|11.||Panasonic FZ80||..||+ +||..||4.5/5||4.5/5||Jan 2017||399|
|12.||Pentax K-3 II||4.5/5||..||..||5/5||5/5||Apr 2015||1,099|
|13.||Pentax K-50||5/5||..||..||5/5||4.5/5||Jun 2013||599|
|14.||Pentax K-3||4/5||..||83/100||5/5||5/5||Oct 2013||1,299|
|15.||Pentax K-30||4/5||..||78/100||4.5/5||4.5/5||May 2012||849|
|16.||Pentax K-5 II||5/5||..||80/100||5/5||4.5/5||Sep 2012||1,099|
|17.||Sony HX400V||4/5||+ +||..||4/5||4/5||Feb 2014||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon SX70 vs Pentax K-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX70||Pentax K-5|
|Camera Type||Fixed lens compact camera||Digital single lens reflex|
|Camera Lens||21-1365mm f/3.4-6.5||Pentax K mount lenses|
|Launch Date||September 2018||September 2010|
|Launch Price||USD 549||USD 1,099|
|Sensor Specs||Canon SX70||Pentax K-5|
|Sensor Format||1/2.3" Sensor||APS-C Sensor|
|Sensor Size||6.17 x 4.55 mm||23.7 x 15.7 mm|
|Sensor Area||28.0735 mm2||372.09 mm2|
|Sensor Diagonal||7.7 mm||28.4 mm|
|Sensor Resolution||20.2 Megapixels||16.1 Megapixels|
|Image Resolution||5184 x 3888 pixels||4928 x 3264 pixels|
|Pixel Pitch||1.18 μm||4.81 μm|
|Pixel Density||71.80 MP/cm2||4.32 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||1080/25p Video|
|ISO Setting||100 - 3,200 ISO||100 - 12,800 ISO|
|ISO Boost||no Enhancement||80 - 51,200 ISO|
|Image Processor||DIGIC 8||PRIME II|
|DXO Sensor Quality (score)||..||82|
|DXO Color Depth (bits)||..||23.7|
|DXO Dynamic Range (EV)||..||14.1|
|DXO Low Light (ISO)||..||1162|
|Screen Specs||Canon SX70||Pentax K-5|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||922k dots||921k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Shooting Specs||Canon SX70||Pentax K-5|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||10 shutter flaps/s||7 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon SX70||Pentax K-5|
|External Flash||no Hotshoe||Hotshoe|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||Wifi built-in||no Wifi|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon SX70||Pentax K-5|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||325 shots per charge||740 shots per charge|
127 x 91 x 117 mm
(5.0 x 3.6 x 4.6 in)
131 x 97 x 73 mm
(5.2 x 3.8 x 2.9 in)
|Camera Weight||608 g (21.4 oz)||760 g (26.8 oz)|
