Canon SX530 vs T6s

The Canon PowerShot SX530 HS and the Canon EOS Rebel T6s (labelled Canon 760D in some countries) are two digital cameras that were revealed to the public, respectively, in January 2015 and February 2015. The SX530 is a fixed lens compact, while the T6s is a DSLR. The cameras are based on a 1/2.3-inch (SX530) and an APS-C (T6s) sensor. The SX530 has a resolution of 15.9 megapixels, whereas the T6s provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX530		Canon T6s
Fixed lens compact camera		Digital single lens reflex
24-1200mm f/3.4-6.5		Canon EF mount lenses
15.9 MP – 1/2.3" sensor		24 MP – APS-C sensor
1080/30p Video		1080/30p Video
ISO 100-3,200		ISO 100-12,800 (100 - 25,600)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 461k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Swivel touchscreen
1.6 shutter flaps per second		5 shutter flaps per second
210 shots per battery charge		440 shots per battery charge
120 x 82 x 92 mm, 442 g		132 x 101 x 78 mm, 565 g

Check SX530 offers at
ebay.com
Check T6s offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX530 HS and the Canon EOS Rebel T6s? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

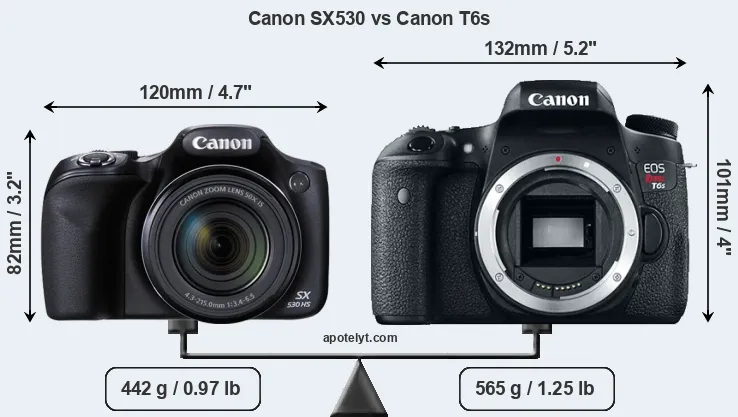

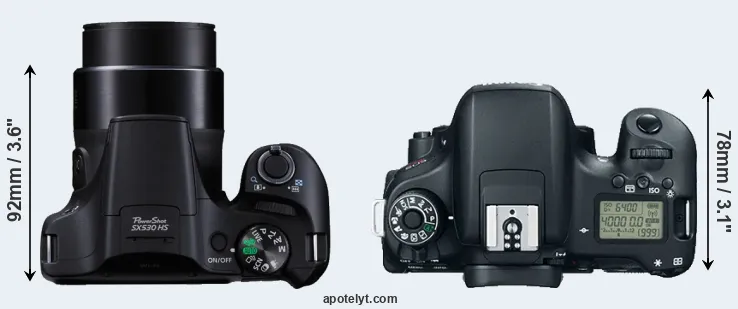

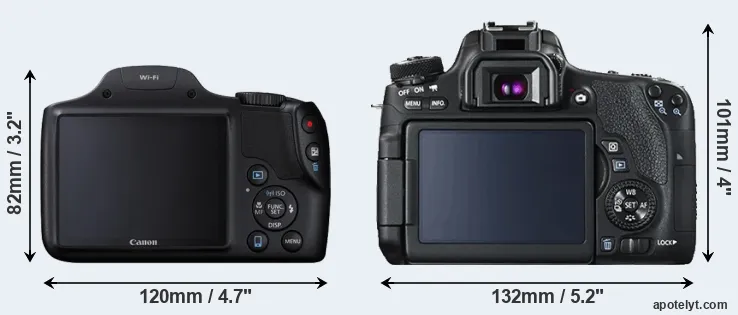

An illustration of the physical size and weight of the Canon SX530 and the Canon T6s is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T6s is notably larger (35 percent) than the Canon SX530. In this context, it is worth noting that neither the SX530 nor the T6s are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX530 has a lens built in, whereas the T6s is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the T6s and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the SX530 gets 210 shots out of its NB-6LH battery, while the T6s can take 440 images on a single charge of its LP-E17 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	429	ebay.com
2.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
4.		Canon T7i	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	749	ebay.com
5.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
6.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	399	ebay.com
7.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	379	ebay.com
8.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
9.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	399	ebay.com
10.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	349	ebay.com
11.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	549	ebay.com
12.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
13.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
14.		Nikon L840	113 mm	78 mm	96 mm	538 g	590	n	Feb 2015	299	ebay.com
15.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	499	ebay.com
16.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	429	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX530 was launched at a lower price than the T6s, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

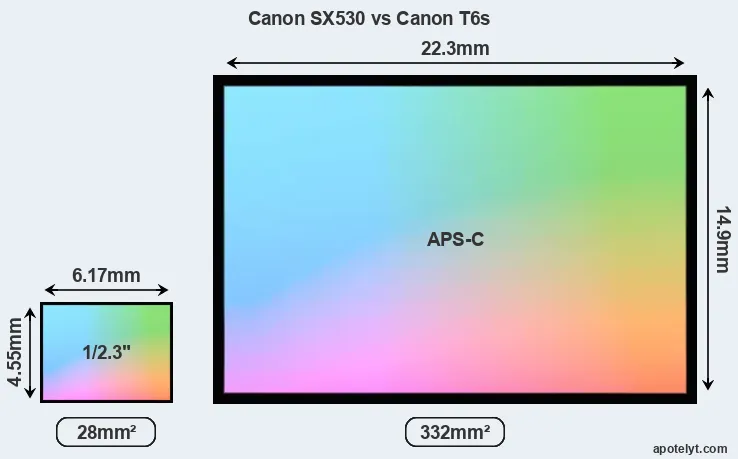

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX530 features a 1/2.3-inch sensor and the Canon T6s an APS-C sensor. The sensor area in the T6s is 1086 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.6. The sensor in the SX530 has a native 4:3 aspect ratio, while the one in the T6s offers a 3:2 aspect.

Technology-wise, the T6s uses a more advanced image processing engine (DIGIC 6) than the SX530 (DIGIC 4+), with benefits for noise reduction, color accuracy, and processing speed.

With 24MP, the T6s offers a higher resolution than the SX530 (15.9MP), but the T6s nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.33μm for the SX530) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the SX530 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon T6s implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T6s for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX530 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The T6s has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon PowerShot SX530 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Canon EOS Rebel T6s are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the SX530 is build around a BSI-CMOS sensor, while the T6s uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
2.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon T7i	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
5.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
6.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
7.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
8.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
9.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
10.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
11.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
12.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
13.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
14.		Nikon L840	1/2.3	15.9	4608	3456	1080/60i	20.2	11.6	721	47
15.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
16.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the T6s has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX530 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX530 and Canon T6s in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
2.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon T7i	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
5.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
7.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
8.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
10.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
11.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
12.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
13.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
14.		Nikon L840	none	n	3.0 / 921	tilting	n	1/4000s	7.4/s	Y	Y
15.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
16.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The T6s has a touchscreen, while the SX530 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the SX530 and the T6s write their files to SDXC cards. The T6s supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX530 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX530 HS and Canon EOS Rebel T6s and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon T7i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
10.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
13.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Nikon L840	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the T6s has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The SX530 does not feature such a mic input.

Both the SX530 and the T6s have been discontinued, but can regularly be found used on ebay. The SX530 was replaced by the Canon SX540, while the T6s was followed by the Canon 77D. Further information on the features and operation of the SX530 and T6s can be found, respectively, in the Canon SX530 Manual (free pdf) or the online Canon T6s Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon SX530 and the Canon T6s? Which camera is better? The listing below highlights the relative strengths of the two models.

Advantages of the Canon PowerShot SX530 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Ready to shoot: Comes with a built-in lens, while the T6s requires a separate lens.
• More compact: Is smaller (120x82mm vs 132x101mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the T6s).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.

Reasons to prefer the Canon EOS Rebel T6s:

• More detail: Has more megapixels (24 vs 15.9MP), which boosts linear resolution by 25%.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better jpgs: Has a more modern image processing engine (DIGIC 6 vs DIGIC 4+).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 461k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (5 vs 1.6 flaps/sec) to capture the decisive moment.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (440 versus 210) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.

If the count of individual advantages (bullet points above) is taken as a guide, the T6s is the clear winner of the contest (21 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX530 and the Canon T6s place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the SX530 or the T6s perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	429	ebay.com
2.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
4.		Canon T7i	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	749	ebay.com
5.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
6.		Canon SX540	..	..	..	..	..	..	Jan 2016	399	ebay.com
7.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	379	ebay.com
8.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
9.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	399	ebay.com
10.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	349	ebay.com
11.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	549	ebay.com
12.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
13.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
14.		Nikon L840	..	+ +	..	..	3.5/5	4/5	Feb 2015	299	ebay.com
15.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	499	ebay.com
16.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	429	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
