Canon SX520 vs Leica X1

The Canon PowerShot SX520 HS and the Leica X1 are two digital cameras that were revealed to the public, respectively, in July 2014 and September 2009. Both the SX520 and the X1 are fixed lens compact cameras that are based on a 1/2.3-inch (SX520) and an APS-C (X1) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Leica provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX520		Leica X1
Fixed lens compact camera		Fixed lens compact camera
24-1008mm f/3.4-6		36mm f/2.8
15.9 MP – 1/2.3" sensor		12.2 MP – APS-C sensor
1080/30p Video		no Video
ISO 100-3,200		ISO 100-3,200
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 461k dots		2.7" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1.6 shutter flaps per second		3 shutter flaps per second
210 shots per battery charge		260 shots per battery charge
120 x 82 x 92 mm, 441 g		124 x 60 x 32 mm, 306 g

Check SX520 offers at
ebay.com
Check X1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Leica X1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

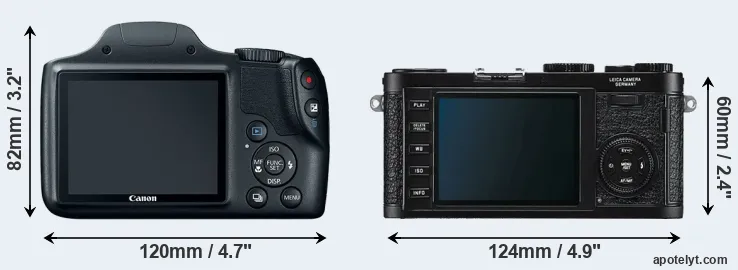

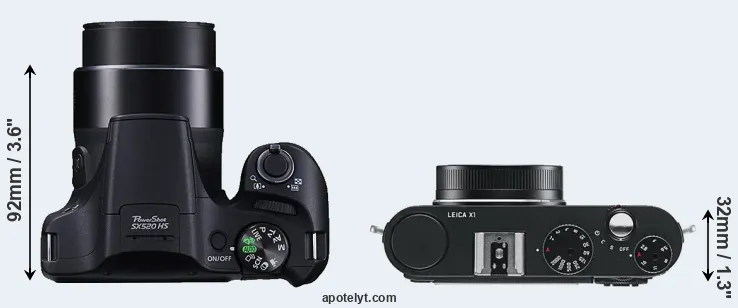

The side-by-side display below illustrates the physical size and weight of the Canon SX520 and the Leica X1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The X1 can be obtained in two different colors (black, silver), while the SX520 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica X1 is notably smaller (24 percent) than the Canon SX520. Moreover, the X1 is markedly lighter (31 percent) than the SX520. In this context, it is worth noting that neither the SX520 nor the X1 are weather-sealed.

Concerning battery life, the SX520 gets 210 shots out of its Canon NB-6LH battery, while the X1 can take 260 images on a single charge of its Leica BP-DC8 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	US$ 399	ebay.com
2.		Leica X1	124 mm	60 mm	32 mm	306 g	260	n	Sep 2009	US$ 1 999	ebay.com
3.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
4.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	US$ 249	ebay.com
5.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	US$ 429	ebay.com
6.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	US$ 399	ebay.com
7.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	US$ 349	ebay.com
8.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
9.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
10.		Fujifilm X100	126 mm	75 mm	54 mm	445 g	300	n	Sep 2010	US$ 1 199	ebay.com
11.		Leica D-LUX 5	110 mm	65 mm	43 mm	271 g	400	n	Sep 2010	US$ 699	ebay.com
12.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	US$ 699	ebay.com
13.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	US$ 1 999	ebay.com
14.		Nikon B600	122 mm	82 mm	99 mm	500 g	280	n	Jan 2019	US$ 349	ebay.com
15.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
16.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	US$ 249	ebay.com
17.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	US$ 429	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX520 was launched at a markedly lower price (by 80 percent) than the X1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon SX520 features a 1/2.3-inch sensor and the Leica X1 an APS-C sensor. The sensor area in the X1 is 1221 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX520 has a native 4:3 aspect ratio, while the one in the X1 offers a 3:2 aspect.

Despite having a smaller sensor, the Canon SX520 offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the Leica X1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 5.51μm for the X1). However, it should be noted that the SX520 is much more recent (by 4 years and 10 months) than the X1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX520 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX520 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX520 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Leica X1 are 21.4 x 14.3 inches or 54.3 x 36.3 cm for good quality, 17.1 x 11.4 inches or 43.4 x 29 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.2 cm for excellent quality prints.

The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The Leica X1 offers exactly the same ISO settings.

In terms of underlying technology, the SX520 is build around a BSI-CMOS sensor, while the X1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
2.		Leica X1	APS-C	12.2	4272	2856	none	22.6	11.8	1037	69
3.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
4.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
5.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
6.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
7.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
8.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
9.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
10.		Fujifilm X100	APS-C	12.2	4288	2848	720/30p	22.9	12.4	1001	73
11.		Leica D-LUX 5	1/1.7	10.0	3648	2736	720/60p	19.5	10.4	-583	39
12.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
13.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
14.		Nikon B600	1/2.3	15.9	4608	3456	1080/30p	20.7	12.2	1095	52
15.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
16.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
17.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The SX520 indeed provides movie recording capabilities, while the X1 does not. The highest resolution format that the SX520 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The SX520 and the X1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The following table reports on some other key feature differences and similarities of the Canon SX520, the Leica X1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
2.		Leica X1	none	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	n
3.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
4.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
5.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
6.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
7.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
8.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
9.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
10.		Fujifilm X100	1440	n	2.8 / 460	fixed	n	1/4000s	5.0/s	Y	n
11.		Leica D-LUX 5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
12.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
13.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
14.		Nikon B600	none	n	3.0 / 921	fixed	n	1/4000s	7.4/s	Y	Y
15.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
16.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
17.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The SX520 is equipped with a zoom lens, while the X1 comes with a built-in prime. The SX520 has a 24-1008mm f/3.4-6 optic and the X1 offers a 36mm f/2.8 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Leica. The X1 offers the faster maximum aperture.

The SX520 writes its imaging data to SDXC cards, while the X1 uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Leica X1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Leica X1	Y	- / -	-	-	mini	2.0	-	-	-
3.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
10.		Fujifilm X100	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Leica D-LUX 5	Y	mono / mono	-	-	mini	2.0	-	-	-
12.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
14.		Nikon B600	-	stereo / mono	-	-	micro	2.0	Y	-	Y
15.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
16.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-
17.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the X1 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX520 does not feature such an accessory-socket.

Both the SX520 and the X1 have been discontinued, but can regularly be found used on ebay. The X1 was replaced by the Leica X2, while the SX520 was followed by the Canon SX530. Further information on the features and operation of the SX520 and X1 can be found, respectively, in the Canon SX520 Manual (free pdf) or the online Leica X1 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon SX520 and the Leica X1? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon PowerShot SX520 HS:

• More detail: Offers more megapixels (15.9 vs 12.2MP) with a 12% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (461k vs 230k dots).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced into a lower priced category (80 percent cheaper at launch).
• More modern: Reflects 4 years and 10 months of technical progress since the X1 launch.

Reasons to prefer the Leica X1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Faster burst: Shoots at higher frequency (3 vs 1.6 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.8 vs f/3.4).
• More compact: Is smaller (124x60mm vs 120x82mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 135g or 31 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (260 versus 210) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More heavily discounted: Has been around for much longer (launched in September 2009).

If the count of individual advantages (bullet points above) is taken as a guide, the X1 is the clear winner of the contest (13 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX520 and the Leica X1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the SX520 or the X1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	US$ 399	ebay.com
2.		Leica X1	3/5	..	..	+	..	4/5	Sep 2009	US$ 1 999	ebay.com
3.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
4.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	US$ 249	ebay.com
5.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	US$ 429	ebay.com
6.		Canon SX540	..	..	..	..	..	..	Jan 2016	US$ 399	ebay.com
7.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	US$ 349	ebay.com
8.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
9.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
10.		Fujifilm X100	3/5	..	..	75/100	4/5	5/5	Sep 2010	US$ 1 199	ebay.com
11.		Leica D-LUX 5	..	..	..	..	4.5/5	4/5	Sep 2010	US$ 699	ebay.com
12.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	US$ 699	ebay.com
13.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	US$ 1 999	ebay.com
14.		Nikon B600	..	+	..	..	3.5/5	3/5	Jan 2019	US$ 349	ebay.com
15.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
16.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	US$ 249	ebay.com
17.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	US$ 429	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check SX520 offers at
ebay.com
Check X1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check SX520 offers at
ebay.com
Check X1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
