Canon SX520 vs SX530
The Canon PowerShot SX520 HS and the Canon PowerShot SX530 HS are two digital cameras that were announced, respectively, in July 2014 and January 2015. Both the SX520 and the SX530 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. Both cameras offer a resolution of 15.9 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Canon PowerShot SX530 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

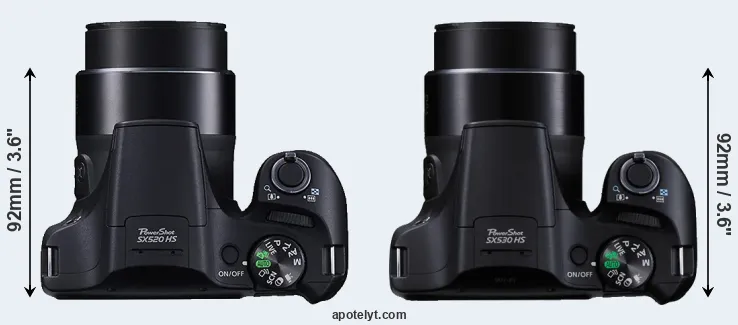

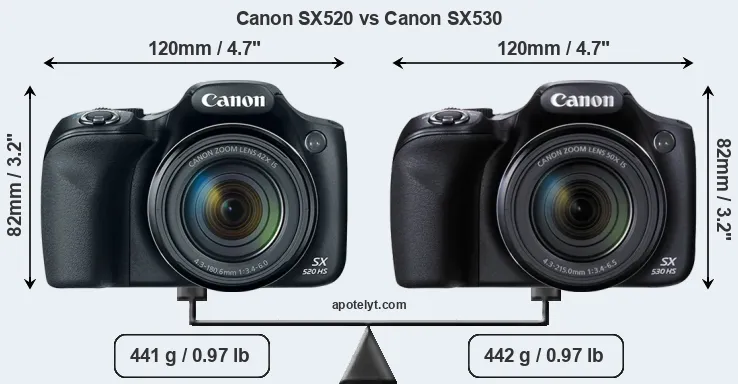

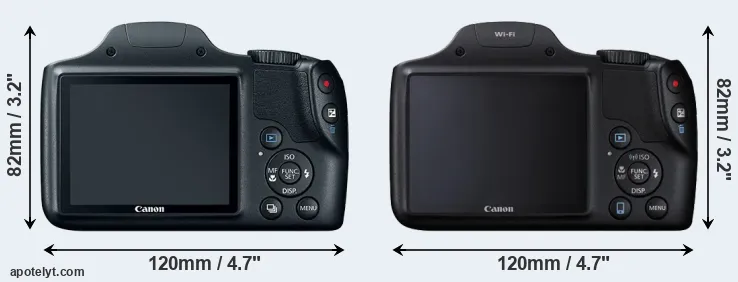

The physical size and weight of the Canon SX520 and the Canon SX530 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
In this particular case, the Canon SX520 and the Canon SX530 have exactly the same width and height, and, thus, have identically-sized bodies. Moreover, the two cameras also share the same weight. In this context, it is worth noting that neither the SX520 nor the SX530 are weather-sealed.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX520 | 120 mm | 82 mm | 92 mm | 441 g | 210 | n | Jul 2014 | US$ 399 | ebay.com | |
2. | Canon SX530 | 120 mm | 82 mm | 92 mm | 442 g | 210 | n | Jan 2015 | US$ 429 | ebay.com | |
3. | Canon SX60 | 128 mm | 93 mm | 114 mm | 650 g | 340 | n | Sep 2014 | US$ 549 | ebay.com | |
4. | Canon SX510 | 104 mm | 70 mm | 80 mm | 349 g | 250 | n | Aug 2013 | US$ 249 | ebay.com | |
5. | Canon SX540 | 120 mm | 82 mm | 92 mm | 442 g | 205 | n | Jan 2016 | US$ 399 | ebay.com | |
6. | Canon SX700 | 113 mm | 66 mm | 35 mm | 269 g | 250 | n | Feb 2014 | US$ 349 | ebay.com | |
7. | Canon SX710 | 113 mm | 66 mm | 35 mm | 269 g | 230 | n | Jan 2015 | US$ 349 | ebay.com | |
8. | Canon T5 | 130 mm | 100 mm | 78 mm | 480 g | 500 | n | Feb 2014 | US$ 449 | ebay.com | |
9. | Canon T6 | 129 mm | 101 mm | 78 mm | 485 g | 500 | n | Mar 2016 | US$ 449 | ebay.com | |
10. | Nikon B600 | 122 mm | 82 mm | 99 mm | 500 g | 280 | n | Jan 2019 | US$ 349 | ebay.com | |
11. | Sony H200 | 123 mm | 83 mm | 87 mm | 530 g | 240 | n | Jan 2013 | US$ 249 | ebay.com | |
12. | Sony HX90V | 102 mm | 58 mm | 36 mm | 245 g | 360 | n | Apr 2015 | US$ 429 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX520 was somewhat cheaper (by 7 percent) than the SX530 at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 15.9 megapixels. This similarity in sensor specs implies that both the SX520 and the SX530 have the same pixel density, as well as the same pixel size. It should, however, be noted that the SX530 is a somewhat more recent model (by 5 months) than the SX520, and its sensor might have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The Canon PowerShot SX530 HS offers exactly the same ISO settings.
Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX520 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.1 | 11.5 | 672 | 46 | |
2. | Canon SX530 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.2 | 11.6 | 712 | 47 | |
3. | Canon SX60 | 1/2.3 | 14.2 | 4608 | 3072 | 1080/60p | 19.2 | 10.8 | 127 | 39 | |
4. | Canon SX510 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/24p | 20.0 | 11.3 | 586 | 45 | |
5. | Canon SX540 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.3 | 11.7 | 806 | 48 | |
6. | Canon SX700 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/60p | 20.1 | 11.4 | 629 | 45 | |
7. | Canon SX710 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.2 | 11.6 | 712 | 47 | |
8. | Canon T5 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.9 | 11.3 | 724 | 63 | |
9. | Canon T6 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.0 | 11.7 | 781 | 66 | |
10. | Nikon B600 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.7 | 12.2 | 1095 | 52 | |
11. | Sony H200 | 1/2.3 | 15.2 | 5184 | 2930 | 720/30p | 19.9 | 11.2 | 529 | 44 | |
12. | Sony HX90V | 1/2.3 | 18.0 | 4896 | 3672 | 1080/60p | 20.2 | 11.6 | 738 | 47 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).
Feature comparison
Beyond body and sensor, cameras can and do differ across a range of features. The SX520 and the SX530 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The following table reports on some other key feature differences and similarities of the Canon SX520, the Canon SX530, and comparable cameras.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX520 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 1.6/s | Y | Y | |
2. | Canon SX530 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 1.6/s | Y | Y | |
3. | Canon SX60 | 922 | n | 3.0 / 922 | swivel | n | 1/2000s | 6.4/s | Y | Y | |
4. | Canon SX510 | none | n | 3.0 / 461 | fixed | n | 1/1600s | 3.8/s | Y | Y | |
5. | Canon SX540 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 5.9/s | Y | Y | |
6. | Canon SX700 | none | n | 3.0 / 922 | fixed | n | 1/3200s | 8.5/s | Y | Y | |
7. | Canon SX710 | none | n | 3.0 / 922 | fixed | n | 1/3200s | 6.0/s | Y | Y | |
8. | Canon T5 | optical | n | 3.0 / 460 | fixed | n | 1/4000s | 3.0/s | Y | n | |
9. | Canon T6 | optical | n | 3.0 / 920 | fixed | n | 1/4000s | 3.0/s | Y | n | |
10. | Nikon B600 | none | n | 3.0 / 921 | fixed | n | 1/4000s | 7.4/s | Y | Y | |
11. | Sony H200 | none | n | 3.0 / 460 | fixed | n | 1/1500s | 0.8/s | Y | Y | |
12. | Sony HX90V | 638 | n | 3.0 / 921 | tilting | n | 1/2000s | 10.0/s | Y | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
Both the SX520 and the SX530 have zoom lenses built in. The SX520 has a 24-1008mm f/3.4-6 optic and the SX530 offers a 24-1200mm f/3.4-6.5 (focal lengths in full frame equivalent terms). Hence, the SX520 and SX530 provide the same view at the wide-angle end, but the SX530 has more tele-photo reach at the long end. Both cameras offer the same maximum aperture.
Concerning the storage of imaging data, both the SX520 and the SX530 write their files to SDXC cards.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Canon PowerShot SX530 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX520 | - | stereo / mono | - | - | mini | 2.0 | - | - | - | |
2. | Canon SX530 | - | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
3. | Canon SX60 | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | - | |
4. | Canon SX510 | - | stereo / mono | - | - | mini | 2.0 | Y | - | - | |
5. | Canon SX540 | - | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
6. | Canon SX700 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
7. | Canon SX710 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
8. | Canon T5 | Y | mono / mono | - | - | mini | 2.0 | - | - | - | |
9. | Canon T6 | Y | mono / mono | - | - | mini | 2.0 | Y | Y | - | |
10. | Nikon B600 | - | stereo / mono | - | - | micro | 2.0 | Y | - | Y | |
11. | Sony H200 | - | mono / mono | - | - | - | 2.0 | - | - | - | |
12. | Sony HX90V | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - |
It is notable that the SX530 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SX520 does not provide wifi capability.
Both the SX520 and the SX530 have been discontinued, but can regularly be found used on ebay. The SX520 was replaced by the Canon SX530, while the SX530 was followed by the Canon SX540. Further information on the features and operation of the SX520 and SX530 can be found, respectively, in the Canon SX520 Manual (free pdf) or the online Canon SX530 Manual.
Review summary
So what conclusions can be drawn? Is there a clear favorite between the Canon SX520 and the Canon SX530? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon PowerShot SX520 HS:
- More heavily discounted: Has been on the market for longer (launched in July 2014).
Arguments in favor of the Canon PowerShot SX530 HS:
- More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More modern: Was introduced somewhat (5 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the SX530 emerges as the winner of the match-up (4 : 1 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX520 and the Canon SX530 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the SX520 or the SX530 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX520 | .. | + | .. | .. | 3.5/5 | 3.5/5 | Jul 2014 | US$ 399 | ebay.com | |
2. | Canon SX530 | .. | + + | .. | .. | 4/5 | 4/5 | Jan 2015 | US$ 429 | ebay.com | |
3. | Canon SX60 | 3/5 | + + | .. | 75/100 | 4/5 | 4.5/5 | Sep 2014 | US$ 549 | ebay.com | |
4. | Canon SX510 | .. | + + | .. | .. | 4.5/5 | 4/5 | Aug 2013 | US$ 249 | ebay.com | |
5. | Canon SX540 | .. | .. | .. | .. | .. | .. | Jan 2016 | US$ 399 | ebay.com | |
6. | Canon SX700 | .. | + + | .. | .. | 4/5 | 4/5 | Feb 2014 | US$ 349 | ebay.com | |
7. | Canon SX710 | .. | + | .. | .. | 4/5 | 3.5/5 | Jan 2015 | US$ 349 | ebay.com | |
8. | Canon T5 | 3/5 | + | .. | .. | 4/5 | 4.5/5 | Feb 2014 | US$ 449 | ebay.com | |
9. | Canon T6 | 4/5 | o | 4/5 | 73/100 | 4/5 | 4/5 | Mar 2016 | US$ 449 | ebay.com | |
10. | Nikon B600 | .. | + | .. | .. | 3.5/5 | 3/5 | Jan 2019 | US$ 349 | ebay.com | |
11. | Sony H200 | .. | .. | .. | .. | 3.5/5 | 3.5/5 | Jan 2013 | US$ 249 | ebay.com | |
12. | Sony HX90V | 4/5 | + + | .. | .. | 4/5 | 4.5/5 | Apr 2015 | US$ 429 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D Mark IV vs Canon SX530
- Canon M10 vs Canon SX530
- Canon SX520 vs Nikon 1 J5
- Canon SX520 vs Nikon 1 V1
- Canon SX520 vs Olympus E-600
- Canon SX520 vs Panasonic G5
- Canon SX520 vs Panasonic LX5
- Canon SX520 vs Sony NEX-3
- Canon SX530 vs Fujifilm X-Pro1
- Canon SX530 vs Leica V-LUX 5
- Canon SX530 vs Olympus E-400
- Canon SX530 vs Panasonic GF1
Specifications: Canon SX520 vs Canon SX530
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon SX520 | Canon SX530 |
---|---|---|
Camera Type | Fixed lens compact camera | Fixed lens compact camera |
Camera Lens | 24-1008mm f/3.4-6 | 24-1200mm f/3.4-6.5 |
Launch Date | July 2014 | January 2015 |
Launch Price | USD 399 | USD 429 |
Sensor Specs | Canon SX520 | Canon SX530 |
Sensor Technology | BSI-CMOS | BSI-CMOS |
Sensor Format | 1/2.3" Sensor | 1/2.3" Sensor |
Sensor Size | 6.17 x 4.55 mm | 6.17 x 4.55 mm |
Sensor Area | 28.0735 mm2 | 28.0735 mm2 |
Sensor Diagonal | 7.7 mm | 7.7 mm |
Crop Factor | 5.6x | 5.6x |
Sensor Resolution | 15.9 Megapixels | 15.9 Megapixels |
Image Resolution | 4608 x 3456 pixels | 4608 x 3456 pixels |
Pixel Pitch | 1.33 μm | 1.33 μm |
Pixel Density | 56.73 MP/cm2 | 56.73 MP/cm2 |
Moiré control | no AA filter | no AA filter |
Movie Capability | 1080/30p Video | 1080/30p Video |
ISO Setting | 100 - 3,200 ISO | 100 - 3,200 ISO |
Image Processor | DIGIC 4+ | DIGIC 4+ |
Screen Specs | Canon SX520 | Canon SX530 |
Viewfinder Type | no viewfinder | no viewfinder |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 461k dots | 461k dots |
LCD Attachment | Fixed screen | Fixed screen |
Shooting Specs | Canon SX520 | Canon SX530 |
Focus System | Contrast-detect AF | Contrast-detect AF |
Continuous Shooting | 1.6 shutter flaps/s | 1.6 shutter flaps/s |
Fill Flash | Built-in Flash | Built-in Flash |
Storage Medium | SDXC cards | SDXC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
UHS card support | no | no |
Connectivity Specs | Canon SX520 | Canon SX530 |
External Flash | no Hotshoe | no Hotshoe |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | mini HDMI | mini HDMI |
Wifi Support | no Wifi | Wifi built-in |
Near-Field Communication | no NFC | NFC built-in |
Body Specs | Canon SX520 | Canon SX530 |
Battery Type | Canon NB-6LH | Canon NB-6LH |
Battery Life (CIPA) | 210 shots per charge | 210 shots per charge |
Body Dimensions |
120 x 82 x 92 mm (4.7 x 3.2 x 3.6 in) |
120 x 82 x 92 mm (4.7 x 3.2 x 3.6 in) |
Camera Weight | 441 g (15.6 oz) | 442 g (15.6 oz) |
