Canon SX510 vs Sony HX400V

The Canon PowerShot SX510 HS and the Sony Cyber-shot DSC-HX400V are two digital cameras that were announced, respectively, in August 2013 and February 2014. Both the SX510 and the HX400V are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. The Canon has a resolution of 15.9 megapixels, whereas the Sony provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX510		Sony HX400V
Fixed lens compact camera		Fixed lens compact camera
24-720mm f/3.4-5.8		24-1200mm f/2.8-6.3
15.9 MP – 1/2.3" sensor		20.2 MP – 1/2.3" sensor
1080/24p Video		1080/60p Video
ISO 80-3,200		ISO 80-3,200 (80 - 12,800)
No viewfinder, LCD framing		Electronic viewfinder (210k dots)
3.0" LCD – 461k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
3.8 shutter flaps per second		10 shutter flaps per second
250 shots per battery charge		300 shots per battery charge
104 x 70 x 80 mm, 349 g		130 x 93 x 103 mm, 660 g

Check SX510 offers at
ebay.com
Check HX400V offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX510 HS and the Sony Cyber-shot DSC-HX400V? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

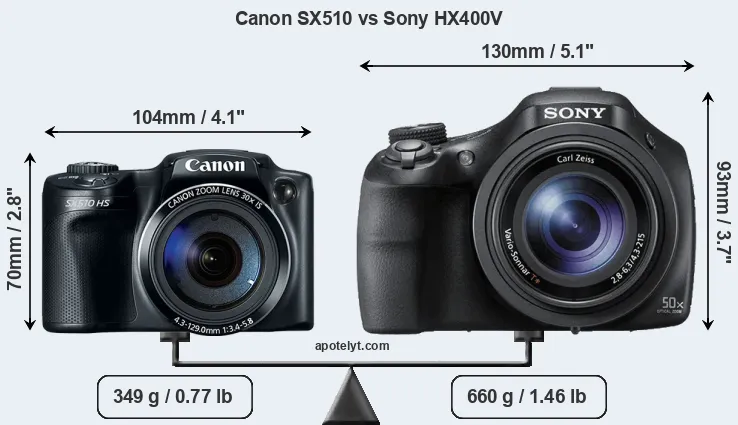

An illustration of the physical size and weight of the Canon SX510 and the Sony HX400V is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony HX400V is considerably larger (66 percent) than the Canon SX510. Moreover, the HX400V is substantially heavier (89 percent) than the SX510. In this context, it is worth noting that neither the SX510 nor the HX400V are weather-sealed.

Concerning battery life, the SX510 gets 250 shots out of its Canon NB-6LH battery, while the HX400V can take 300 images on a single charge of its Sony NP-BX1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	US$ 249	ebay.com
2.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	US$ 499	ebay.com
3.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
4.		Canon SX400	104 mm	69 mm	80 mm	313 g	190	n	Jul 2014	US$ 249	ebay.com
5.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
6.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
7.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
8.		Canon SX500	104 mm	70 mm	80 mm	341 g	195	n	Aug 2012	US$ 329	ebay.com
9.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	US$ 399	ebay.com
10.		Canon SX600	104 mm	61 mm	26 mm	188 g	290	n	Jan 2014	US$ 249	ebay.com
11.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	US$ 349	ebay.com
12.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	US$ 249	ebay.com
13.		Sony H300	128 mm	89 mm	92 mm	590 g	350	n	Feb 2014	US$ 219	ebay.com
14.		Sony H400	130 mm	95 mm	122 mm	628 g	300	n	Feb 2014	US$ 319	ebay.com
15.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	US$ 429	ebay.com
16.		Sony HX350	130 mm	93 mm	103 mm	652 g	300	n	Dec 2016	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX510 was launched at a markedly lower price (by 50 percent) than the HX400V, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

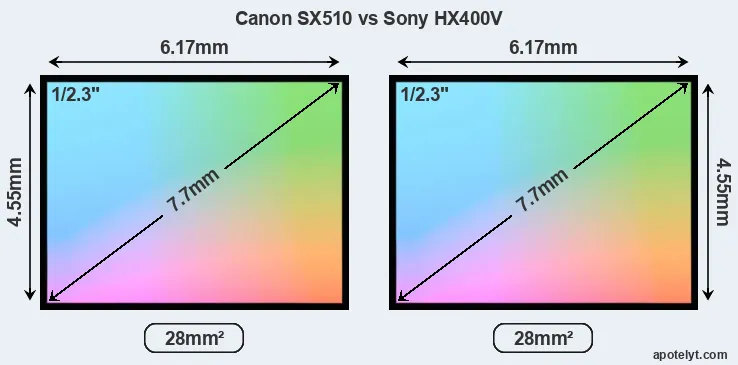

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

While the two cameras under review share the same sensor size, the HX400V offers a higher resolution of 20.2 megapixels, compared with 15.9 MP of the SX510. This megapixels advantage translates into a 13 percent gain in linear resolution. On the other hand, these sensor specs imply that the HX400V has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 1.33μm for the SX510). However, it should be noted that the HX400V is a somewhat more recent model (by 5 months) than the SX510, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Sony HX400V implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the HX400V for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Canon SX510 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon PowerShot SX510 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Sony Cyber-shot DSC-HX400V are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.

In terms of underlying technology, the SX510 is build around a CMOS sensor, while the HX400V uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
2.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
3.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
4.		Canon SX400	1/2.3	15.9	4608	3456	720/30p	20.1	11.5	672	46
5.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
6.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
7.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
8.		Canon SX500	1/2.3	15.9	4608	3456	720/30p	19.8	11.1	494	43
9.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
10.		Canon SX600	1/2.3	15.9	4608	3456	1080/30p	20.0	11.4	620	45
11.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
12.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
13.		Sony H300	1/2.3	19.9	5152	3864	720/30p	20.1	11.4	630	45
14.		Sony H400	1/2.3	19.9	5152	3864	720/30p	20.1	11.4	630	45
15.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
16.		Sony HX350	1/2.3	19.9	5152	3864	1080/60p	20.5	11.9	896	49
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the HX400V provides a faster frame rate than the SX510. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the HX400V has an electronic viewfinder (210k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX510 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon SX510 and Sony HX400V along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
2.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
3.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
4.		Canon SX400	none	n	3.0 / 230	fixed	n	1/1600s	0.8/s	Y	Y
5.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
6.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX500	none	n	3.0 / 461	fixed	n	1/1600s	0.8/s	Y	Y
9.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
10.		Canon SX600	none	n	3.0 / 461	fixed	n	1/2000s	3.9/s	Y	Y
11.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
12.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
13.		Sony H300	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
14.		Sony H400	210	n	3.0 / 460	fixed	n	1/2000s	0.7/s	Y	Y
15.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony HX350	202	n	3.0 / 922	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the SX510 and the HX400V have zoom lenses built in. The SX510 has a 24-720mm f/3.4-5.8 optic and the HX400V offers a 24-1200mm f/2.8-6.3 (focal lengths in full frame equivalent terms). Hence, the Canon and Sony provide the same view at the wide-angle end, but the Sony has more tele-photo reach at the long end. The HX400V offers the faster maximum aperture.

The SX510 writes its imaging data to SDXC cards, while the HX400V uses SDXC or Memory Stick PRO Duo cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX510 HS and Sony Cyber-shot DSC-HX400V and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Canon SX400	-	stereo / mono	-	-	-	2.0	-	-	-
5.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
6.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
7.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
8.		Canon SX500	-	stereo / mono	-	-	-	2.0	-	-	-
9.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
10.		Canon SX600	-	mono / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-
13.		Sony H300	-	mono / mono	-	-	micro	2.0	Y	-	-
14.		Sony H400	-	mono / mono	-	-	micro	2.0	Y	-	-
15.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony HX350	-	stereo / mono	-	-	micro	2.0	-	-	-

It is notable that the HX400V has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX510 does not feature such an accessory-socket.

Travel and landscape photographers will find it useful that the HX400V has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the SX510 and the HX400V have been discontinued, but can regularly be found used on ebay. The SX510 was replaced by the Canon SX520, while the HX400V does not have a direct successor. Further information on the features and operation of the SX510 and HX400V can be found, respectively, in the Canon SX510 Manual (free pdf) or the online Sony HX400V Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon SX510 and the Sony HX400V? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon PowerShot SX510 HS:

• More compact: Is smaller (104x70mm vs 130x93mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 311g or 47 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in August 2013).

Arguments in favor of the Sony Cyber-shot DSC-HX400V:

• More detail: Has more megapixels (20.2 vs 15.9MP), which boosts linear resolution by 13%.
• Better video: Provides higher movie framerates (1080/60p versus 1080/24p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 461k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1600s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 3.8 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.8 vs f/3.4).
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Longer lasting: Gets more shots (300 versus 250) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More modern: Was introduced somewhat (5 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the HX400V is the clear winner of the contest (14 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX510 and the Sony HX400V place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the SX510 and the HX400V in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	US$ 249	ebay.com
2.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	US$ 499	ebay.com
3.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
4.		Canon SX400	..	+	..	..	..	..	Jul 2014	US$ 249	ebay.com
5.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
6.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
7.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
8.		Canon SX500	..	+ +	..	..	4/5	4/5	Aug 2012	US$ 329	ebay.com
9.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	US$ 399	ebay.com
10.		Canon SX600	..	+	..	..	4/5	4/5	Jan 2014	US$ 249	ebay.com
11.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	US$ 349	ebay.com
12.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	US$ 249	ebay.com
13.		Sony H300	..	+	..	..	4.5/5	4/5	Feb 2014	US$ 219	ebay.com
14.		Sony H400	..	o	..	..	3.5/5	3.5/5	Feb 2014	US$ 319	ebay.com
15.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	US$ 429	ebay.com
16.		Sony HX350	..	..	..	..	..	4/5	Dec 2016	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
