Canon SX400 vs Fujifilm X20

The Canon PowerShot SX400 IS and the Fujifilm X20 are two digital cameras that were revealed to the public, respectively, in July 2014 and January 2013. Both the SX400 and the X20 are fixed lens compact cameras that are based on a 1/2.3-inch (SX400) and a 2/3 (X20) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Fujifilm provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX400		Fujifilm X20
Fixed lens compact camera		Fixed lens compact camera
24-720mm f/3.4-5.8		28-112mm f/2.0-2.8
15.9 MP – 1/2.3" sensor		12 MP – Two Thirds sensor
720/30p Video		1080/60p Video
ISO 100-1,600		ISO 100-12,800
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 230k dots		2.8" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
0.8 shutter flaps per second		12 shutter flaps per second
190 shots per battery charge		270 shots per battery charge
104 x 69 x 80 mm, 313 g		117 x 70 x 57 mm, 353 g

Check SX400 offers at
ebay.com
Check X20 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX400 IS and the Fujifilm X20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

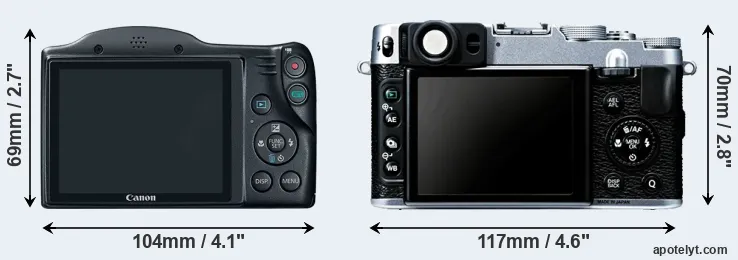

The side-by-side display below illustrates the physical size and weight of the Canon SX400 and the Fujifilm X20. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The X20 can be obtained in two different colors (black, silver), while the SX400 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X20 is notably larger (14 percent) than the Canon SX400. Moreover, the X20 is markedly heavier (13 percent) than the SX400. In this context, it is worth noting that neither the SX400 nor the X20 are weather-sealed.

Concerning battery life, the SX400 gets 190 shots out of its Canon NB-11LH battery, while the X20 can take 270 images on a single charge of its Fujifilm NP-50 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX400	104 mm	69 mm	80 mm	313 g	190	n	Jul 2014	US$ 249	ebay.com
2.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
3.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
6.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
7.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
8.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	US$ 249	ebay.com
9.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	US$ 429	ebay.com
10.		Canon SX600	104 mm	61 mm	26 mm	188 g	290	n	Jan 2014	US$ 249	ebay.com
11.		Canon SX610	105 mm	61 mm	27 mm	191 g	270	n	Jan 2015	US$ 249	ebay.com
12.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	US$ 349	ebay.com
13.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
14.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
15.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
16.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	US$ 699	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX400 was launched at a markedly lower price (by 58 percent) than the X20, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

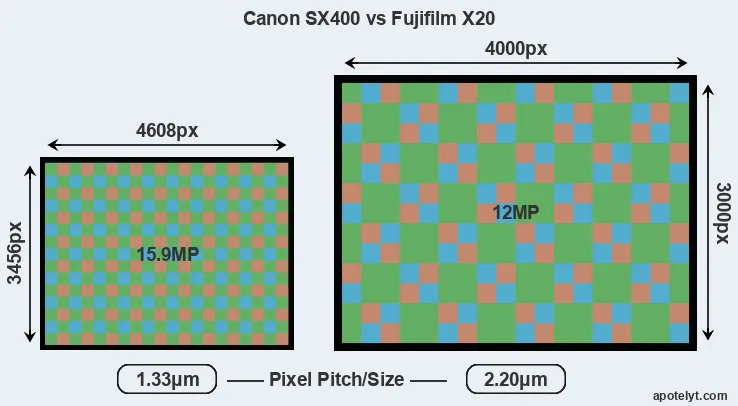

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX400 features a 1/2.3-inch sensor and the Fujifilm X20 a 2/3 sensor. The sensor area in the X20 is 107 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 3.9. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the Canon SX400 offers a higher resolution of 15.9 megapixels, compared with 12 MP of the Fujifilm X20. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 2.20μm for the X20). However, it should be noted that the SX400 is a somewhat more recent model (by 1 year and 6 months) than the X20, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Canon SX400 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX400 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Fujifilm X20 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The X20 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon PowerShot SX400 IS has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Fujifilm X20 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the SX400 is build around a CCD sensor, while the X20 uses a CMOS imager. Like most digital cameras, the SX400 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X20 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX400	1/2.3	15.9	4608	3456	720/30p	20.1	11.5	672	46
2.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
3.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
6.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
7.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
8.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
9.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
10.		Canon SX600	1/2.3	15.9	4608	3456	1080/30p	20.0	11.4	620	45
11.		Canon SX610	1/2.3	20.2	5184	3888	1080/30p	20.2	11.6	712	47
12.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
13.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
14.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
15.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
16.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the X20 provides a better video resolution than the SX400. It can shoot movie footage at 1080/60p, while the Canon is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the X20 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX400 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon SX400 and Fujifilm X20 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX400	none	n	3.0 / 230	fixed	n	1/1600s	0.8/s	Y	Y
2.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
3.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
6.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
9.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
10.		Canon SX600	none	n	3.0 / 461	fixed	n	1/2000s	3.9/s	Y	Y
11.		Canon SX610	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
12.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
13.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
14.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
15.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
16.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the SX400 and the X20 have zoom lenses built in. The SX400 has a 24-720mm f/3.4-5.8 optic and the X20 offers a 28-112mm f/2.0-2.8 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Fujifilm. The X20 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX400 and the X20 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX400 IS and Fujifilm X20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX400	-	stereo / mono	-	-	-	2.0	-	-	-
2.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
3.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
7.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
8.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
9.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
10.		Canon SX600	-	mono / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX610	-	- / -	-	-	micro	2.0	Y	Y	-
12.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the X20 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX400 does not feature such an accessory-socket.

Both the SX400 and the X20 have been discontinued, but can regularly be found used on ebay. The X20 was replaced by the Fujifilm X30, while the SX400 was followed by the Canon SX410. Further information on the features and operation of the SX400 and X20 can be found, respectively, in the Canon SX400 Manual (free pdf) or the online Fujifilm X20 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon SX400 and the Fujifilm X20? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon PowerShot SX400 IS:

• More detail: Offers more megapixels (15.9 vs 12MP) with a 15% higher linear resolution.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.8") for image review and settings control.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More compact: Is smaller (104x69mm vs 117x70mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 40g or 11 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced category (58 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 1 year and 6 months after the X20).

Arguments in favor of the Fujifilm X20:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1600s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 0.8 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/3.4).
• Longer lasting: Gets more shots (270 versus 190) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been on the market for longer (launched in January 2013).

If the count of individual advantages (bullet points above) is taken as a guide, the X20 is the clear winner of the contest (14 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX400 and the Fujifilm X20 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SX400 or the X20 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX400	..	+	..	..	..	..	Jul 2014	US$ 249	ebay.com
2.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
3.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
6.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
7.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
8.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	US$ 249	ebay.com
9.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	US$ 429	ebay.com
10.		Canon SX600	..	+	..	..	4/5	4/5	Jan 2014	US$ 249	ebay.com
11.		Canon SX610	..	..	..	..	4/5	4/5	Jan 2015	US$ 249	ebay.com
12.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	US$ 349	ebay.com
13.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
14.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
15.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
16.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	US$ 699	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
