Canon SX40 vs T100

The Canon PowerShot SX40 HS and the Canon EOS Rebel T100 (labelled Canon 4000D in some countries) are two digital cameras that were revealed to the public, respectively, in September 2011 and February 2018. The SX40 is a fixed lens compact, while the T100 is a DSLR. The cameras are based on a 1/2.3-inch (SX40) and an APS-C (T100) sensor. The SX40 has a resolution of 12 megapixels, whereas the T100 provides 17.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX40		Canon T100
Fixed lens compact camera		Digital single lens reflex
24-840mm f/2.7-5.8		Canon EF mount lenses
12 MP – 1/2.3" sensor		17.9 MP – APS-C sensor
1080/24p Video		1080/30p Video
ISO 100-3,200		ISO 100-6,400 (100 - 12,800)
Electronic viewfinder (202k dots)		Optical viewfinder
2.7" LCD – 230k dots		2.7" LCD – 230k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
10.3 shutter flaps per second		3 shutter flaps per second
380 shots per battery charge		500 shots per battery charge
123 x 92 x 108 mm, 600 g		129 x 102 x 77 mm, 436 g

Check SX40 offers at
ebay.com
Check T100 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX40 HS and the Canon EOS Rebel T100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

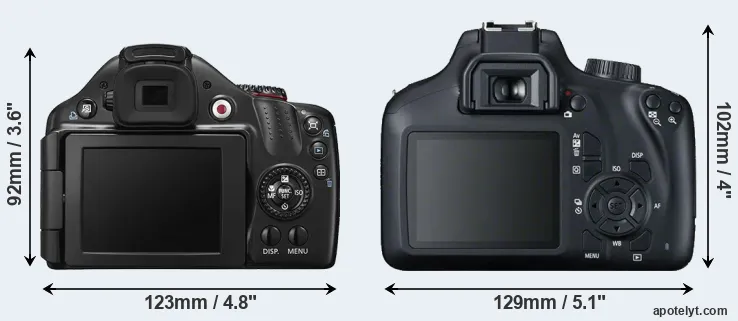

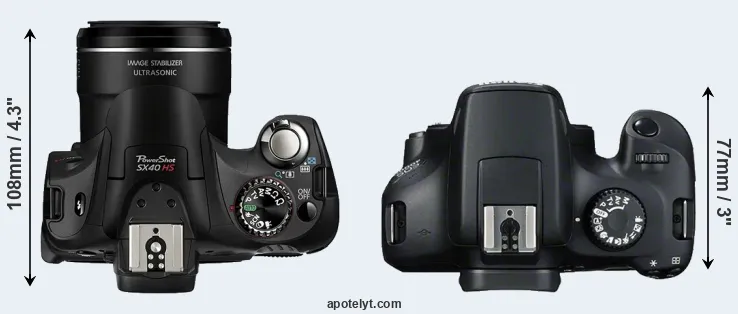

An illustration of the physical size and weight of the Canon SX40 and the Canon T100 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T100 is notably larger (16 percent) than the Canon SX40. In this context, it is worth noting that neither the SX40 nor the T100 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX40 has a lens built in, whereas the T100 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the T100 and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the SX40 gets 380 shots out of its Canon NB-10L battery, while the T100 can take 500 images on a single charge of its Canon LP-E10 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
2.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	US$ 399	amazon.com
3.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
4.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
5.		Canon G12	112 mm	76 mm	48 mm	401 g	370	n	Sep 2010	US$ 499	ebay.com
6.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
7.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
8.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	US$ 399	ebay.com
9.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
10.		Canon SX30	123 mm	92 mm	108 mm	601 g	370	n	Sep 2010	US$ 429	ebay.com
11.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
12.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
13.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
14.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
15.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
16.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	US$ 499	ebay.com
17.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX40 features a 1/2.3-inch sensor and the Canon T100 an APS-C sensor. The sensor area in the T100 is 1086 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.6. The sensor in the SX40 has a native 4:3 aspect ratio, while the one in the T100 offers a 3:2 aspect.

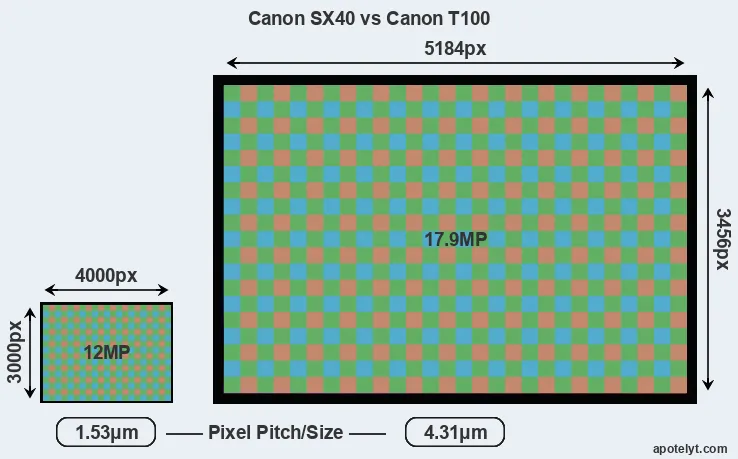

With 17.9MP, the T100 offers a higher resolution than the SX40 (12MP), but the T100 nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 1.53μm for the SX40) due to its larger sensor. Moreover, the T100 is a much more recent model (by 6 years and 5 months) than the SX40, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the SX40 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon T100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T100 for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Canon SX40 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon PowerShot SX40 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Canon EOS Rebel T100 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-12800.

In terms of underlying technology, the SX40 is build around a BSI-CMOS sensor, while the T100 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
2.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
3.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
4.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
5.		Canon G12	1/1.7	10.0	3648	2736	720/24p	20.4	11.2	161	47
6.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
7.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
8.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
9.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
10.		Canon SX30	1/2.3	14.0	4320	3240	720/30p	19.4	10.7	320	39
11.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
12.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
13.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
14.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
15.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
16.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
17.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the T100 provides a faster frame rate than the SX40. It can shoot movie footage at 1080/30p, while the SX40 is limited to 1080/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the SX40 has an electronic viewfinder (202k dots), while the T100 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Canon SX40 and Canon T100 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
2.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
5.		Canon G12	optical	n	2.8 / 461	swivel	n	1/4000s	1.1/s	Y	Y
6.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
7.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
8.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
9.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
10.		Canon SX30	202	n	2.7 / 230	swivel	n	1/3200s	0.6/s	Y	Y
11.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
12.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
13.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
14.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
15.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
16.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
17.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the SX40 and the T100 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX40 HS and Canon EOS Rebel T100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
2.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
3.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Canon G12	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
9.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
10.		Canon SX30	Y	stereo / mono	-	-	YES	2.0	-	-	-
11.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
14.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
15.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
16.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-

It is notable that the T100 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SX40 does not provide wifi capability.

The T100 is a recent model that features in the current product line-up of Canon. In contrast, the SX40 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the SX40 was succeeded by the Canon SX50. Further information on the features and operation of the SX40 and T100 can be found, respectively, in the Canon SX40 Manual (free pdf) or the online Canon T100 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon SX40 and the Canon T100? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon PowerShot SX40 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster burst: Shoots at higher frequency (10.3 vs 3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the T100 requires a separate lens.
• More compact: Is smaller (123x92mm vs 129x102mm) and thus needs less room in the bag.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More heavily discounted: Has been available for much longer (launched in September 2011).

Reasons to prefer the Canon EOS Rebel T100:

• More detail: Has more megapixels (17.9 vs 12MP), which boosts linear resolution by 25%.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher movie framerates (1080/30p versus 1080/24p).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (500 versus 380) out of a single battery charge.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More modern: Reflects 6 years and 5 months of technical progress since the SX40 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the T100 is the clear winner of the contest (14 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX40 and the Canon T100 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the SX40 and the T100 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
2.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	US$ 399	amazon.com
3.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
4.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
5.		Canon G12	4/5	+	..	73/100	4.5/5	4.5/5	Sep 2010	US$ 499	ebay.com
6.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
7.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
8.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	US$ 399	ebay.com
9.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
10.		Canon SX30	3/5	+ +	..	..	3.5/5	4/5	Sep 2010	US$ 429	ebay.com
11.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
12.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
13.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
14.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
15.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
16.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
17.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
