Canon SX1 vs SX60

The Canon PowerShot SX1 IS and the Canon PowerShot SX60 HS are two digital cameras that were announced, respectively, in September 2008 and September 2014. Both the SX1 and the SX60 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. The SX1 has a resolution of 10 megapixels, whereas the SX60 provides 14.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon SX1 versus Canon SX60
Canon SX1 Canon SX60
Fixed lens compact camera Fixed lens compact camera
28-560mm f/2.8-5.7 21-1365mm f/3.4-6.5
10 MP, 1/2.3" Sensor 14.2 MP, 1/2.3" Sensor
1080/30p Video 1080/60p Video
ISO 100-1,600 (100 - 3,200) ISO 100-3,200 (100 - 6,400)
Electronic viewfinder (202k dots) Electronic viewfinder (922k dots)
2.8 LCD, 230k dots 3.0 LCD, 922k dots
Swivel screen (not touch-sensitive) Swivel screen (not touch-sensitive)
4 shutter flaps per second 6.4 shutter flaps per second
128 x 88 x 88 mm, 615 g 128 x 93 x 114 mm, 650 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX1 IS and the Canon PowerShot SX60 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon SX1 and the Canon SX60 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Canon SX1 vs Canon SX60

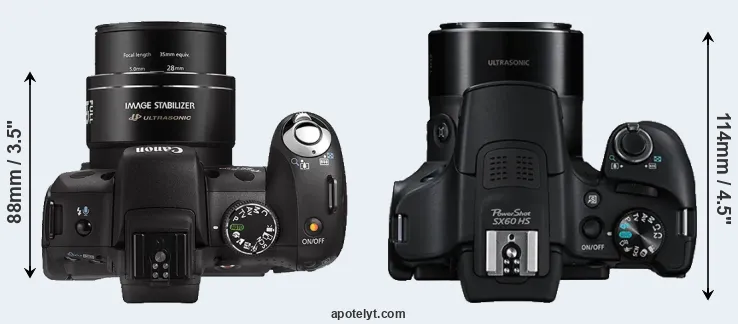

Compare SX1 versus SX60 top
Comparison SX1 or SX60 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX60 is notably larger (6 percent) than the Canon SX1. Moreover, the SX60 is markedly heavier (6 percent) than the SX1. In this context, it is worth noting that neither the SX1 nor the SX60 are weather-sealed.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life 1
Weather
Sealing
Camera
Launch 2
Launch
Price (USD)
Street
Price

Canon SX1 5.0 in 3.5 in 3.5 in 21.7 oz .. n Sep 2008 599i

Canon SX60 5.0 in 3.7 in 4.5 in 22.9 oz 340 n Sep 2014 549i

Canon SX70 5.0 in 3.6 in 4.6 in 21.4 oz 325 n Sep 2018 549 i

Canon G1 X Mark II 4.6 in 2.9 in 2.6 in 19.5 oz 240 n Feb 2014 799i

Canon G16 4.3 in 3.0 in 1.6 in 12.6 oz 360 n Aug 2013 549 i

Canon SX50 4.8 in 3.4 in 4.2 in 21.0 oz 315 n Sep 2012 429i

Canon SX40 4.8 in 3.6 in 4.3 in 21.2 oz 380 n Sep 2011 429i

Canon SX20 4.8 in 3.5 in 3.4 in 21.2 oz .. n Aug 2009 399i

Canon SX10 4.8 in 3.5 in 3.4 in 21.2 oz .. n Sep 2008 399i

Panasonic FZ300 5.2 in 3.6 in 4.6 in 24.4 oz 380 Y Jul 2015 599 i

Panasonic FZ200 4.9 in 3.4 in 4.3 in 20.7 oz 540 n Jul 2012 599i

Panasonic FZ150 4.9 in 3.2 in 3.6 in 18.6 oz 410 n Aug 2011 499i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX60 was somewhat cheaper (by 8 percent) than the SX1 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

ad

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Canon SX1 and Canon SX60 sensor measures

While the two cameras under review share the same sensor size, the SX60 offers a higher resolution of 14.2 megapixels, compared with 10 MP of the SX1. This megapixels advantage translates into a 26 percent gain in linear resolution. On the other hand, these sensor specs imply that the SX60 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.40μm versus 1.67μm for the SX1). However, it should be noted that the SX60 is much more recent (by 5 years and 11 months) than the SX1, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Canon SX60 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX60 for good quality output (200 dots per inch) amounts to 23 x 15.4 inches or 58.5 x 39 cm, for very good quality (250 dpi) 18.4 x 12.3 inches or 46.8 x 31.2 cm, and for excellent quality (300 dpi) 15.4 x 10.2 inches or 39 x 26 cm. The corresponding values for the Canon SX1 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Canon PowerShot SX1 IS has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Canon PowerShot SX60 HS are ISO 100 to ISO 3200, with the possibility to increase the ISO range to 100-6400.

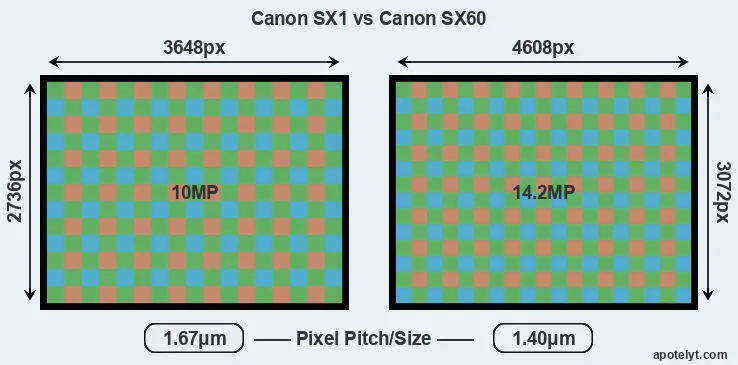

SX1 versus SX60 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall

Canon SX1 1/2.3 10.0 3648 27361080/30p........

Canon SX60 1/2.3 14.2 4608 30721080/60p19.210.812739

Canon SX70 1/2.3 20.2 5184 38884K/30p........

Canon G1 X Mark II 1.5-inch 13.0 4160 31201080/30p21.510.858158

Canon G16 1/1.7 12.0 4000 30001080/60p21.011.723054

Canon SX50 1/2.3 12.0 4000 30001080/24p20.311.217947

Canon SX40 1/2.3 12.0 4000 30001080/24p........

Canon SX20 1/2.3 12.0 4000 3000720/30p........

Canon SX10 1/2.3 10.0 3648 2736480/30p........

Panasonic FZ300 1/2.3 12.0 4000 30004K/30p19.311.09738

Panasonic FZ200 1/2.3 12.0 4000 30001080/60p19.110.811437

Panasonic FZ150 1/2.3 12.0 4000 30001080/60p19.410.913240

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX60 provides a faster frame rate than the SX1. It can shoot movie footage at 1080/60p, while the SX1 is limited to 1080/30p.

ad

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the SX60 offers a substantially higher resolution than the one in the SX1 (922k vs 202k dots). The following table reports on some other key feature differences and similarities of the Canon SX1, the Canon SX60, and comparable cameras.

scroll hint
Core Features
  Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab

Canon SX1202 n 2.8 230 swivel n 1/3200s 4.0 Y Y

Canon SX60922 n 3.0 922 swivel n 1/2000s 6.4 Y Y

Canon SX702360 n 3.0 922 swivel n 1/2000s 10.0 Y Y

Canon G1 X Mark IIoptional n 3.0 1040 tilting Y 1/4000s 5.2 Y Y

Canon G16optical n 3.0 922 fixed n 1/4000s 2.2 Y Y

Canon SX50202 n 3.0 461 swivel n 1/2000s 2.2 Y Y

Canon SX40202 n 2.7 230 swivel n 1/3200s 10.3 Y Y

Canon SX20202 n 2.5 230 swivel n 1/3200s 0.7 Y Y

Canon SX10202 n 2.5 230 swivel n 1/3200s 0.7 Y Y

Panasonic FZ3001440 n 3.0 1040 swivel Y 1/4000s 12.0 Y Y

Panasonic FZ2001312 n 3.0 460 swivel n 1/4000s 12.0 Y Y

Panasonic FZ150202 n 3.0 460 swivel n 1/2000s 12.0 Y Y
The SX60 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the SX1 does not have a selfie-screen.

Both the SX1 and the SX60 have zoom lenses built in. The SX1 has a 28-560mm f/2.8-5.7 optic and the SX60 offers a 21-1365mm f/3.4-6.5 (focal lengths in full frame equivalent terms). Hence, the SX60 provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the SX1. The SX1 offers the faster maximum aperture.

The SX1 writes its imaging data to SDHC cards, while the SX60 uses SDXC cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX1 IS and Canon PowerShot SX60 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support

Canon SX1Ystereomono--YES2.0---

Canon SX60YstereomonoY-mini2.0YY-

Canon SX70-stereomonoY-micro2.0Y-Y

Canon G1 X Mark IIYstereomono--mini2.0YY-

Canon G16Ystereomono--mini2.0Y--

Canon SX50Ystereomono--mini2.0---

Canon SX40Ystereomono--YES2.0---

Canon SX20Ystereomono--YES2.0---

Canon SX10Ystereomono---2.0---

Panasonic FZ300YstereomonoY-mini2.0Y--

Panasonic FZ200YstereomonoY-mini2.0---

Panasonic FZ150Ystereo---mini2.0---

It is notable that the SX60 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SX1 does not provide wifi capability.

Both the SX1 and the SX60 have been discontinued, but can regularly be found used on eBay. The SX60 was replaced by the Canon SX70, while the SX1 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

ad

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon SX1 or the Canon SX60 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.


Reasons to prefer the Canon PowerShot SX1 IS:

  • Faster shutter: Has higher mechanical shutter speed (1/3200s vs 1/2000s) to freeze action.
  • Better light gathering: Has a lens with a wider maximum aperture (f/2.8 vs f/3.4).
  • More heavily discounted: Has been available for much longer (launched in September 2008).


Arguments in favor of the Canon PowerShot SX60 HS:

  • More detail: Has more megapixels (14.2 vs 10MP), which boosts linear resolution by 21%.
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • More detailed viewfinder: Has higher resolution electronic viewfinder (922k vs 202k dots).
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.8") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (6.4 vs 4 flaps/sec) to capture the decisive moment.
  • Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
  • More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More modern: Reflects 5 years and 11 months of technical progress since the SX1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the SX60 is the clear winner of the contest (13 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

SX1 03:13 SX60

How about other alternatives? Do the specifications of the Canon SX1 and the Canon SX60 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the SX1 and the SX60 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Review Scores
  Camera
Model
camera
  labs
dp
review
ephoto
  zine
imaging
resource
photography
  blog
Camera
Launch
Launch
Price (USD)
Street
Price

Canon SX1+ ++..o3.5/5 Sep 2008 599i

Canon SX60+ +75/1004/5..4.5/5 Sep 2014 549i

Canon SX70+ +..3.5/5..3.5/5 Sep 2018 549 i

Canon G1 X Mark II+77/1004/54/54.5/5 Feb 2014 799i

Canon G16+..4.5/54.5/54.5/5 Aug 2013 549 i

Canon SX50+ +72/1004.5/5..4.5/5 Sep 2012 429i

Canon SX40+..4.5/55/54/5 Sep 2011 429i

Canon SX20+ +73/100..4/54/5 Aug 2009 399i

Canon SX10+ +....4.5/54/5 Sep 2008 399i

Panasonic FZ300+ +..4.5/54.5/54.5/5 Jul 2015 599 i

Panasonic FZ200+ +80/1004.5/54.5/54.5/5 Jul 2012 599i

Panasonic FZ150+ +76/1004/55/54.5/5 Aug 2011 499i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Canon SX1:
Check Ebay offers
Canon SX60:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader

    Specifications: Canon SX1 vs Canon SX60

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon SX1 Canon SX60
    Camera Type Fixed lens compact camera Fixed lens compact camera
    Camera Lens 28-560mm f/2.8-5.7 21-1365mm f/3.4-6.5
    Launch Date September 2008 September 2014
    Launch Price USD 599 USD 549
    Sensor Specs Canon SX1 Canon SX60
    Sensor Technology CMOS BSI-CMOS
    Sensor Format 1/2.3" Sensor 1/2.3" Sensor
    Sensor Size 6.17 x 4.55 mm 6.17 x 4.55 mm
    Sensor Area 28.0735 mm2 28.0735 mm2
    Sensor Diagonal 7.7 mm 7.7 mm
    Crop Factor 5.6x 5.6x
    Sensor Resolution 10 Megapixels 14.2 Megapixels
    Image Resolution 3648 x 2736 pixels 4608 x 3072 pixels
    Pixel Pitch 1.67 μm 1.40 μm
    Pixel Density 35.55 MP/cm2 50.42 MP/cm2
    Moiré control no AA filter no AA filter
    Movie Capability 1080/30p Video 1080/60p Video
    ISO Setting 100 - 1,600 ISO 100 - 3,200 ISO
    ISO Boost 100 - 3,200 ISO 100 - 6,400 ISO
    DXO Sensor Quality (score) .. 39
    DXO Color Depth (bits) .. 19.2
    DXO Dynamic Range (EV) .. 10.8
    DXO Low Light (ISO) .. 127
    Screen Specs Canon SX1 Canon SX60
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification
    Viewfinder Resolution 202k dots 922k dots
    LCD Framing Live View Live View
    Rear LCD Size 2.8inch 3.0inch
    LCD Resolution 230k dots 922k dots
    LCD Attachment Swivel screen Swivel screen
    Shooting Specs Canon SX1 Canon SX60
    Focus System Contrast-detect AF Contrast-detect AF
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/3200s 1/2000s
    Continuous Shooting 4 shutter flaps/s 6.4 shutter flaps/s
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDHC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support no no
    Connectivity Specs Canon SX1 Canon SX60
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port YES HDMI mini HDMI
    Microphone Port no MIC socket External MIC port
    Wifi Support no Wifi Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Body Specs Canon SX1 Canon SX60
    Battery Type 4xAA NB-10L
    Body Dimensions 128 x 88 x 88 mm
    (5.0 x 3.5 x 3.5 in)
    128 x 93 x 114 mm
    (5.0 x 3.7 x 4.5 in)
    Camera Weight 615 g (21.7 oz) 650 g (22.9 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon SX1 vs Canon SX60

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.



    If you like it, make sure you share it.

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback.

    ';
