Canon R5 vs Panasonic ZS70
The Canon EOS R5 and the Panasonic Lumix DC-ZS70 (labelled Panasonic TZ90 in some countries) are two digital cameras that were revealed to the public, respectively, in July 2020 and April 2017. The Canon R5 is a mirrorless interchangeable lens camera, while the ZS70 is a fixed lens compact. The cameras are based on a full frame (Canon R5) and a 1/2.3-inch (ZS70) sensor. The Canon has a resolution of 44.8 megapixels, whereas the Panasonic provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 and the Panasonic Lumix DC-ZS70? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

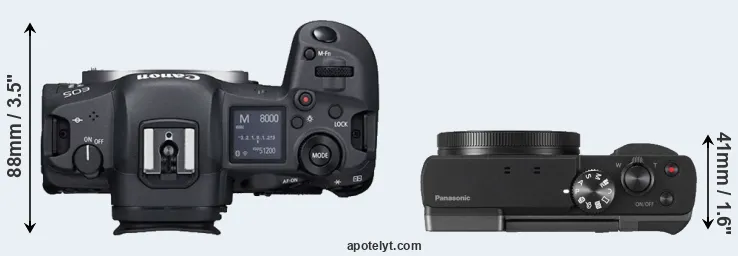

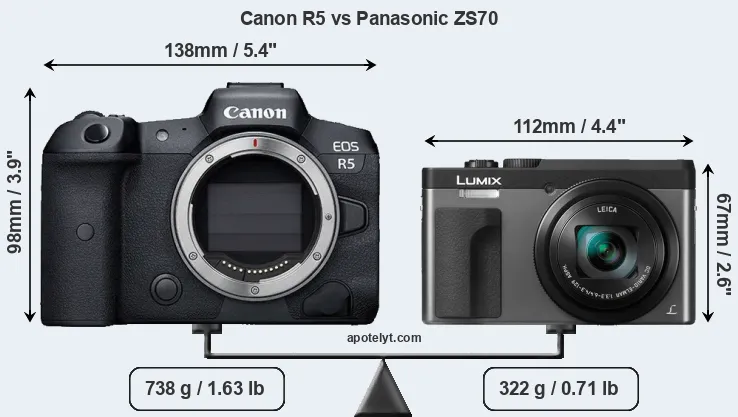

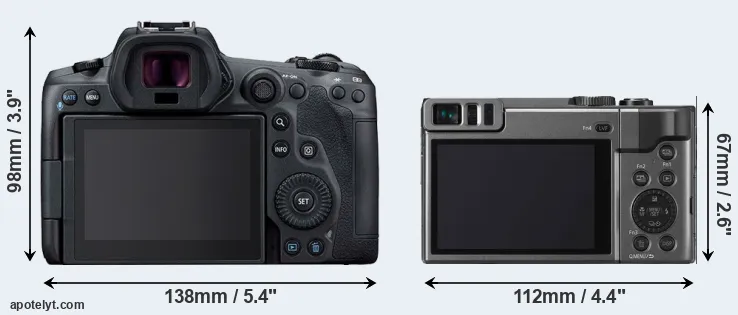

The side-by-side display below illustrates the physical size and weight of the Canon R5 and the Panasonic ZS70. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The ZS70 can be obtained in two different colors (black, silver), while the Canon R5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic ZS70 is considerably smaller (45 percent) than the Canon R5. It is worth mentioning in this context that the Canon R5 is splash and dust resistant, while the ZS70 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the ZS70 has a lens built in, whereas the Canon R5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
Concerning battery life, the Canon R5 gets 320 shots out of its LP-E6NH battery, while the ZS70 can take 380 images on a single charge of its DMW-BLG10 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon R5||138 mm||98 mm||88 mm||738 g||320||Y||Jul 2020||3,899|
|2.||Panasonic ZS70||112 mm||67 mm||41 mm||322 g||380||n||Apr 2017||449|
|3.||Canon R6||138 mm||98 mm||88 mm||680 g||360||Y||Jul 2020||2,499|
|4.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|5.||Canon SX720||110 mm||64 mm||36 mm||270 g||250||n||Feb 2016||379|
|6.||Nikon Z7 II||134 mm||101 mm||70 mm||705 g||420||Y||Oct 2020||2,999|
|7.||Nikon Z7||134 mm||101 mm||67 mm||675 g||330||Y||Aug 2018||3,399|
|8.||Panasonic S1R||149 mm||110 mm||97 mm||1016 g||380||Y||Feb 2019||3,699|
|9.||Panasonic ZS80||112 mm||69 mm||42 mm||327 g||380||n||Feb 2019||449|
|10.||Panasonic FZ80||130 mm||94 mm||119 mm||616 g||330||n||Jan 2017||399|
|11.||Panasonic FZ150||124 mm||82 mm||92 mm||528 g||410||n||Aug 2011||499|
|12.||Sony A7S III||127 mm||97 mm||81 mm||699 g||600||Y||Jul 2020||3,499|
|13.||Sony A9 II||129 mm||96 mm||76 mm||678 g||690||Y||Oct 2019||4,499|
|14.||Sony A7R IV||129 mm||96 mm||78 mm||665 g||670||Y||Jul 2019||3,499|
|15.||Sony A7R III||127 mm||96 mm||74 mm||650 g||650||Y||Oct 2017||3,199|
|16.||Sony A99 II||143 mm||104 mm||76 mm||849 g||490||Y||Sep 2016||3,199|
|17.||Sony A7R II||127 mm||96 mm||60 mm||625 g||290||Y||Jun 2015||3,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The ZS70 was launched at a lower price than the Canon R5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

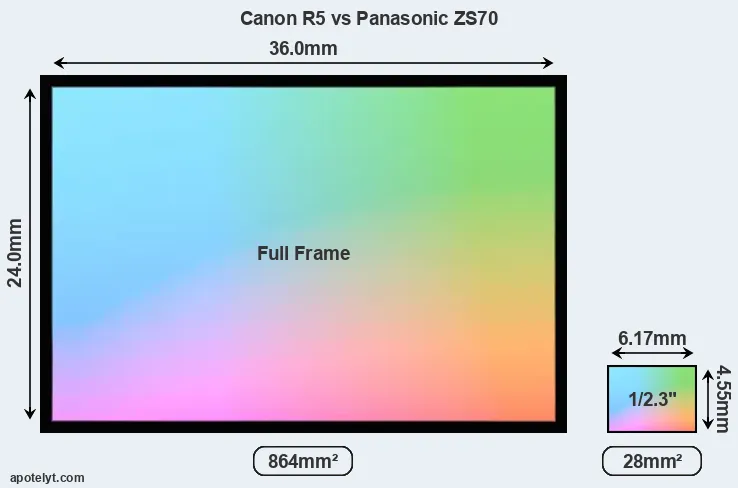

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon R5 features a full frame sensor and the Panasonic ZS70 a 1/2.3-inch sensor. The sensor area in the ZS70 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the Canon R5 has a native 3:2 aspect ratio, while the one in the ZS70 offers a 4:3 aspect.
With 44.8MP, the Canon R5 offers a higher resolution than the ZS70 (20.2MP), but the Canon R5 nevertheless has larger individual pixels (pixel pitch of 4.39μm versus 1.18μm for the ZS70) due to its larger sensor. Moreover, the Canon R5 is a much more recent model (by 3 years and 2 months) than the ZS70, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the ZS70 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon R5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Canon R5 for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Panasonic ZS70 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The Canon R5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS R5 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Panasonic Lumix DC-ZS70 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-6400.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the Canon R5 provides substantially higher image quality than the ZS70, with an overall score that is 59 points higher. This advantage is based on 6.2 bits higher color depth, 4 EV in additional dynamic range, and 4.8 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Canon R5||Full Frame||44.8||8192||5464||8k/30p||25.3||14.6||3042||95|
|3.||Canon R6||Full Frame||20.0||5472||3648||4k/60p||24.2||14.3||3394||90|
|6.||Nikon Z7 II||Full Frame||45.4||8256||5504||4K/60p||..||..||..||..|
|7.||Nikon Z7||Full Frame||45.4||8256||5504||4K/30p||26.3||14.6||2668||99|
|8.||Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|12.||Sony A7S III||Full Frame||12.0||4240||2832||4K/120p||23.7||13.9||2520||86|
|13.||Sony A9 II||Full Frame||24.0||6000||4000||4K/30p||25.0||14.0||3434||93|
|14.||Sony A7R IV||Full Frame||60.2||9504||6336||4K/30p||26.0||14.8||3344||99|
|15.||Sony A7R III||Full Frame||42.2||7952||5304||4K/30p||26.0||14.7||3523||100|
|16.||Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
|17.||Sony A7R II||Full Frame||42.2||7952||5304||4K/30p||26.0||13.9||3434||98|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the Canon R5 provides a higher video resolution than the ZS70. It can shoot video footage at 8k/30p, while the Panasonic is limited to 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the Canon R5 offers a substantially higher resolution than the one in the ZS70 (5760k vs 1166k dots). The table below summarizes some of the other core capabilities of the Canon R5 and Panasonic ZS70 in connection with corresponding information for a sample of similar cameras.
|6.||Nikon Z7 II||3690||Y||3.2||2100||tilting||Y||1/8000s||10.0||n||Y|
|12.||Sony A7S III||9440||n||3.0||1440||swivel||Y||1/8000s||10.0||n||Y|
|13.||Sony A9 II||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|14.||Sony A7R IV||5760||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|15.||Sony A7R III||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|16.||Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
|17.||Sony A7R II||2400||n||3.0||1229||tilting||n||1/8000s||5.0||n||Y|
One feature that is present on the Canon R5, but is missing on the ZS70 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon R5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The Canon R5 writes its imaging data to CFexpress or SDXC cards, while the ZS70 uses SDXC cards. The Canon R5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the ZS70 only has one slot. The Canon R5 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the ZS70 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 and Panasonic Lumix DC-ZS70 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|6.||Nikon Z7 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
|12.||Sony A7S III||Y||stereo||mono||Y||Y||full||3.2||Y||-||Y|
|13.||Sony A9 II||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|14.||Sony A7R IV||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|15.||Sony A7R III||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|16.||Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
|17.||Sony A7R II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the Canon R5 has a hotshoe, while the ZS70 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
The Canon R5 is a recent model that features in the current product line-up of Canon. In contrast, the ZS70 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the ZS70 was succeeded by the Panasonic ZS80. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what is the bottom line? Which of the two cameras – the Canon R5 or the Panasonic ZS70 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS R5:
- More detail: Offers more megapixels (44.8 vs 20.2MP) with a 52% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Scores substantially higher (59 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (6.2 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (4 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (4.8 stops ISO advantage).
- Better video: Provides higher definition movie capture (8k/30p vs 4K/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More detailed viewfinder: Has higher resolution electronic viewfinder (5760k vs 1166k dots).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 3 years and 2 months of technical progress since the ZS70 launch.
Reasons to prefer the Panasonic Lumix DC-ZS70:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Ready to shoot: Has an integrated lens, whereas the Canon R5 necessitates an extra lens.
- More compact: Is smaller (112x67mm vs 138x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the Canon R5).
- Longer lasting: Gets more shots (380 versus 320) out of a single battery charge.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been around for much longer (launched in April 2017).
If the number of relative strengths (bullet points above) is taken as a guide, the Canon R5 is the clear winner of the match-up (26 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon R5 and the Panasonic ZS70 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the Canon R5 and the ZS70 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon R5||4.5/5||..||91/100||4.5/5||4.5/5||Jul 2020||3,899|
|2.||Panasonic ZS70||..||+ +||..||4/5||4/5||Apr 2017||449|
|3.||Canon R6||5/5||+ +||90/100||4.5/5||5/5||Jul 2020||2,499|
|4.||Canon SX730||..||+||..||4/5||4/5||Apr 2017||399|
|5.||Canon SX720||..||+||..||4/5||4.5/5||Feb 2016||379|
|6.||Nikon Z7 II||4.5/5||..||..||4.5/5||4.5/5||Oct 2020||2,999|
|7.||Nikon Z7||5/5||+||89/100||4.5/5||5/5||Aug 2018||3,399|
|8.||Panasonic S1R||4.5/5||..||89/100||4.5/5||4.5/5||Feb 2019||3,699|
|9.||Panasonic ZS80||..||+ +||..||4.5/5||..||Feb 2019||449|
|10.||Panasonic FZ80||..||+ +||..||4.5/5||4.5/5||Jan 2017||399|
|11.||Panasonic FZ150||3/5||+ +||76/100||4/5||4.5/5||Aug 2011||499|
|12.||Sony A7S III||..||+ +||91/100||4.5/5||5/5||Jul 2020||3,499|
|13.||Sony A9 II||..||..||90/100||5/5||5/5||Oct 2019||4,499|
|14.||Sony A7R IV||5/5||+||91/100||4.5/5||5/5||Jul 2019||3,499|
|15.||Sony A7R III||..||+ +||90/100||4.5/5||5/5||Oct 2017||3,199|
|16.||Sony A99 II||..||..||85/100||4.5/5||4.5/5||Sep 2016||3,199|
|17.||Sony A7R II||5/5||+ +||90/100||5/5||5/5||Jun 2015||3,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon R5 vs Panasonic ZS70
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon R5||Panasonic ZS70|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Canon RF mount lenses||24-720mm f/3.3-6.4|
|Launch Date||July 2020||April 2017|
|Launch Price||USD 3,899||USD 449|
|Sensor Specs||Canon R5||Panasonic ZS70|
|Sensor Format||Full Frame Sensor||1/2.3" Sensor|
|Sensor Size||36.0 x 24.0 mm||6.17 x 4.55 mm|
|Sensor Area||864 mm2||28.0735 mm2|
|Sensor Diagonal||43.3 mm||7.7 mm|
|Sensor Resolution||44.8 Megapixels||20.2 Megapixels|
|Image Resolution||8192 x 5464 pixels||5184 x 3888 pixels|
|Pixel Pitch||4.39 μm||1.18 μm|
|Pixel Density||5.18 MP/cm2||71.80 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||8k/30p Video||4K/30p Video|
|ISO Setting||100 - 51,200 ISO||80 - 3,200 ISO|
|ISO Boost||50 - 102,400 ISO||80 - 6,400 ISO|
|Image Processor||DIGIC X||Venus|
|DXO Sensor Quality (score)||95||36|
|DXO Color Depth (bits)||25.3||19.1|
|DXO Dynamic Range (EV)||14.6||10.6|
|DXO Low Light (ISO)||3042||106|
|Screen Specs||Canon R5||Panasonic ZS70|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||5760k dots||1166k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||2100k dots||1040k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Canon R5||Panasonic ZS70|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/2000s|
|Continuous Shooting||10 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||up to 1/8000s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||In-body stabilization||Lens-based stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CFexpress or SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-II||UHS-I|
|Connectivity Specs||Canon R5||Panasonic ZS70|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 3.2||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon R5||Panasonic ZS70|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||320 shots per charge||380 shots per charge|
|In-Camera Charging||USB charging||USB charging|
138 x 98 x 88 mm
(5.4 x 3.9 x 3.5 in)
112 x 67 x 41 mm
(4.4 x 2.6 x 1.6 in)
|Camera Weight||738 g (26.0 oz)||322 g (11.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
