Canon M6 Mark II vs Epson R-D1

The Canon EOS M6 Mark II and the Epson R-D1 are two digital cameras that were announced, respectively, in August 2019 and March 2004. The M6 Mark II is a mirrorless interchangeable lens camera, while the R-D1 is a rangefinder-focusing mirrorless. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 32.3 megapixels, whereas the Epson provides 6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M6 Mark II		Epson R-D1
Mirrorless system camera		Rangefinder camera
Canon EF-M mount lenses		Leica M mount lenses
32.3 MP – APS-C sensor		6 MP – APS-C sensor
4K/30p Video		no Video
ISO 100-25,600 (100 - 51,200)		ISO 200-1,600
Viewfinder optional		Optical viewfinder
3.0" LCD – 1040k dots		2.0" LCD – 235k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
14 shutter flaps per second		1 shutter flaps per second
120 x 70 x 49 mm, 408 g		142 x 89 x 40 mm, 620 g

Check M6 Mark II offers at
ebay.com
Check R-D1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M6 Mark II and the Epson R-D1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

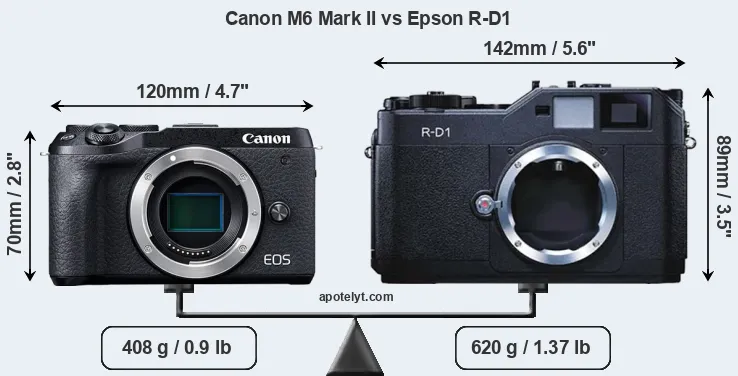

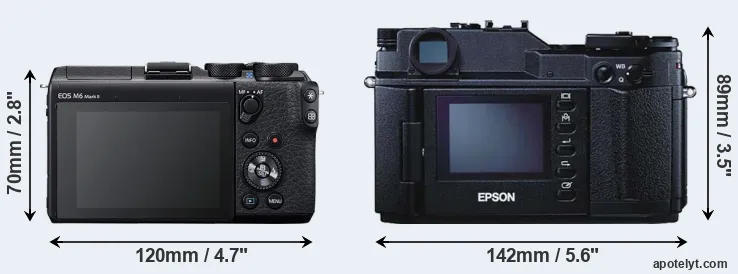

The side-by-side display below illustrates the physical size and weight of the Canon M6 Mark II and the Epson R-D1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Epson R-D1 is considerably larger (50 percent) than the Canon M6 Mark II. Moreover, the R-D1 is substantially heavier (52 percent) than the M6 Mark II. In this context, it is worth noting that neither the M6 Mark II nor the R-D1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the M6 Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	US$ 849	ebay.com
2.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	US$ 2 999	ebay.com
3.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	US$ 899	ebay.com
4.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
5.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
6.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
7.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
8.		Canon M50 Mark II	116 mm	88 mm	59 mm	387 g	305	n	Oct 2020	US$ 599	ebay.com
9.		Canon M200	108 mm	67 mm	35 mm	299 g	315	n	Sep 2019	US$ 549	ebay.com
10.		Canon SL3	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	US$ 599	amazon.com
11.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
12.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
13.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	US$ 399	amazon.com
14.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
15.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
16.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
17.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M6 Mark II was launched at a markedly lower price (by 72 percent) than the R-D1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

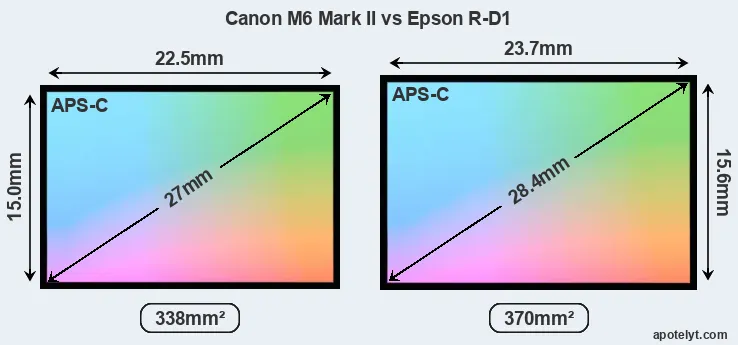

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the R-D1 is 9 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (M6 Mark II) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the Canon M6 Mark II offers a higher resolution of 32.3 megapixels, compared with 6 MP of the Epson R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.23μm versus 7.85μm for the R-D1). However, it should be noted that the M6 Mark II is much more recent (by 15 years and 5 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon M6 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M6 Mark II for good quality output (200 dots per inch) amounts to 34.8 x 23.2 inches or 88.4 x 58.9 cm, for very good quality (250 dpi) 27.8 x 18.6 inches or 70.7 x 47.1 cm, and for excellent quality (300 dpi) 23.2 x 15.5 inches or 58.9 x 39.3 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The M6 Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M6 Mark II has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Epson R-D1 are ISO 200 to ISO 1600 (no boost).

In terms of underlying technology, the M6 Mark II is build around a CMOS sensor, while the R-D1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
2.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
3.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
4.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
5.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
6.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
7.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
8.		Canon M50 Mark II	APS-C	24.0	6000	4000	4K/24p	24.0	13.6	1939	83
9.		Canon M200	APS-C	24.0	6000	4000	4k/25p	24.0	13.5	1836	82
10.		Canon SL3	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
11.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
12.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
13.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
14.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
15.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
16.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
17.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The M6 Mark II indeed provides movie recording capabilities, while the R-D1 does not. The highest resolution format that the M6 Mark II can use is 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the R-D1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M6 Mark II relies on live view and the rear LCD for framing. That said, the M6 Mark II can be equipped with an optional viewfinder – the EVF-DC2. The adjacent table lists some of the other core features of the Canon M6 Mark II and Epson R-D1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
2.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
3.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
4.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
5.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
7.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
8.		Canon M50 Mark II	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
9.		Canon M200	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
10.		Canon SL3	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
12.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
13.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
15.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
16.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
17.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The M6 Mark II has one, while the R-D1 does not. While the built-in flash of the M6 Mark II is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the M6 Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon M6 Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The M6 Mark II writes its imaging data to SDXC cards, while the R-D1 uses SDHC cards. The M6 Mark II supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the R-D1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M6 Mark II and Epson R-D1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
3.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
4.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon M50 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
9.		Canon M200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
10.		Canon SL3	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
11.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
12.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
13.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
14.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
16.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
17.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the M6 Mark II offers wifi support, while the R-D1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Epson R-D1 (unlike the M6 Mark II) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the M6 Mark II and the R-D1 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon and Epson. Further information on the features and operation of the M6 Mark II and R-D1 can be found, respectively, in the Canon M6 Mark II Manual (free pdf) or the online Epson R-D1 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon M6 Mark II or the Epson R-D1 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS M6 Mark II:

• More detail: Offers more megapixels (32.3 vs 6MP) with a 132% higher linear resolution.
• Broader imaging potential: Can record not only still images but also 4K/30p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 235k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (14 vs 1 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (120x70mm vs 142x89mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 212g or 34 percent) and hence easier to carry around.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
• More affordable: Was introduced into a lower priced category (72 percent cheaper at launch).
• More modern: Reflects 15 years and 5 months of technical progress since the R-D1 launch.

Advantages of the Epson R-D1:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been around for much longer (launched in March 2004).

If the number of relative strengths (bullet points above) is taken as a guide, the M6 Mark II is the clear winner of the match-up (21 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the M6 Mark II and the R-D1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	US$ 849	ebay.com
2.		Epson R-D1	..	..	..	..	..	..	Mar 2004	US$ 2 999	ebay.com
3.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	US$ 899	ebay.com
4.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
5.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
6.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
7.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
8.		Canon M50 Mark II	4/5	..	4/5	..	4.5/5	3.5/5	Oct 2020	US$ 599	ebay.com
9.		Canon M200	..	+	3/5	79/100	4/5	4/5	Sep 2019	US$ 549	ebay.com
10.		Canon SL3	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	US$ 599	amazon.com
11.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
12.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
13.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	US$ 399	amazon.com
14.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
15.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
16.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
17.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
