Canon M50 Mark II vs Pentax K-5

The Canon EOS M50 Mark II and the Pentax K-5 are two digital cameras that were officially introduced, respectively, in October 2020 and September 2010. The M50 Mark II is a mirrorless interchangeable lens camera, while the K-5 is a DSLR. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Pentax provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M50 Mark II		Pentax K-5
Mirrorless system camera		Digital single lens reflex
Canon EF-M mount lenses		Pentax K mount lenses
24 MP – APS-C sensor		16.1 MP – APS-C sensor
4K/24p Video		1080/25p Video
ISO 100-25,600 (100 - 51,200)		ISO 100-12,800 (80 - 51,200)
Electronic viewfinder (2360k dots)		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 921k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
10 shutter flaps per second		7 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
305 shots per battery charge		740 shots per battery charge
116 x 88 x 59 mm, 387 g		131 x 97 x 73 mm, 760 g

Check M50 Mark II offers at
ebay.com
Check K-5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M50 Mark II and the Pentax K-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

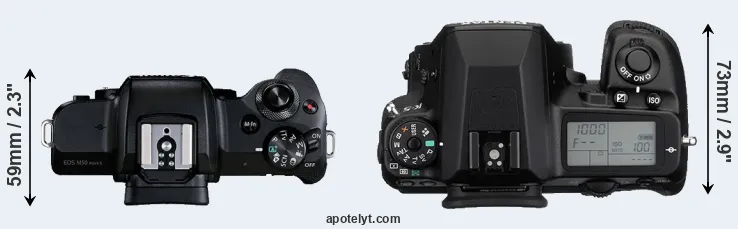

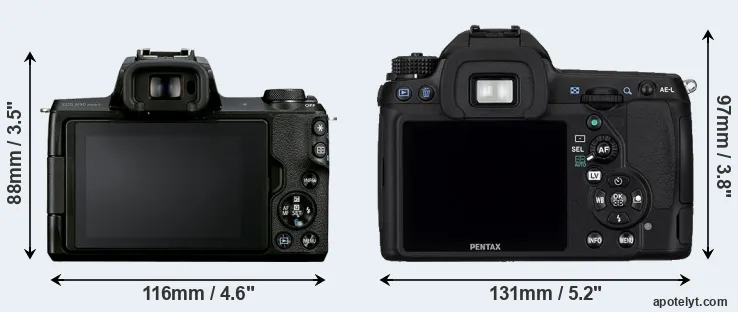

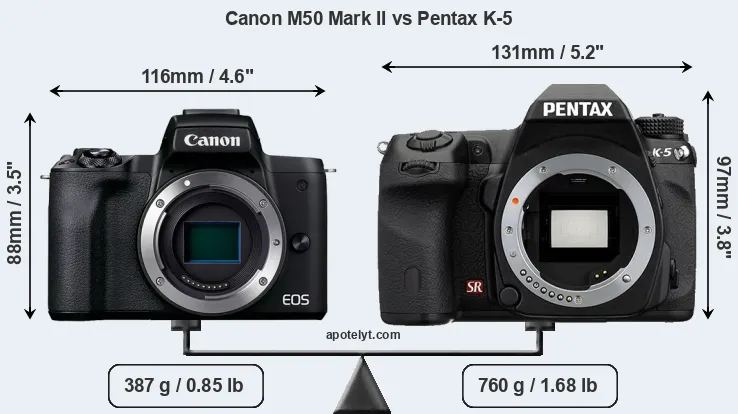

The physical size and weight of the Canon M50 Mark II and the Pentax K-5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The M50 Mark II can be obtained in two different colors (black, white), while the K-5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-5 is notably larger (24 percent) than the Canon M50 Mark II. Moreover, the K-5 is substantially heavier (96 percent) than the M50 Mark II. It is noteworthy in this context that the K-5 is splash and dust-proof, while the M50 Mark II does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M50 Mark II gets 305 shots out of its Canon LP-E12 battery, while the K-5 can take 740 images on a single charge of its Pentax D-LI90 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M50 Mark II	116 mm	88 mm	59 mm	387 g	305	n	Oct 2020	599	ebay.com
2.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	1,099	ebay.com
3.		Canon R50	116 mm	86 mm	69 mm	375 g	230	n	Feb 2023	679	amazon.com
4.		Canon M200	108 mm	67 mm	35 mm	299 g	315	n	Sep 2019	549	ebay.com
5.		Canon SL3	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	599	amazon.com
6.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	849	ebay.com
7.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	779	ebay.com
8.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779	ebay.com
9.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
10.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
11.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979	ebay.com
12.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	679	ebay.com
13.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	1,099	ebay.com
14.		Pentax K-50	130 mm	97 mm	71 mm	650 g	410	Y	Jun 2013	599	ebay.com
15.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	1,299	ebay.com
16.		Pentax K-30	130 mm	97 mm	71 mm	650 g	410	Y	May 2012	849	ebay.com
17.		Pentax K-5 II	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2012	1,099	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M50 Mark II was launched at a markedly lower price (by 45 percent) than the K-5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the K-5 is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (M50 Mark II) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

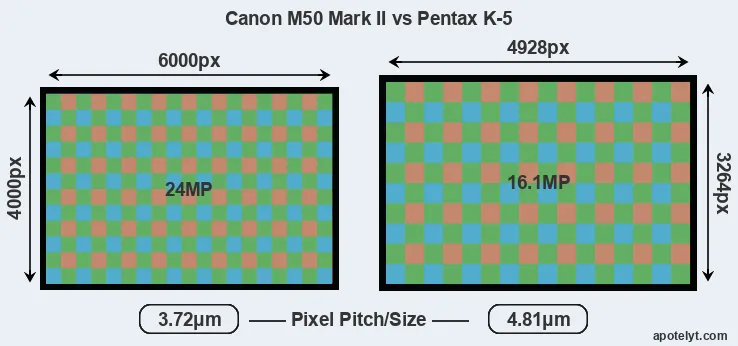

Despite having a smaller sensor, the Canon M50 Mark II offers a higher resolution of 24 megapixels, compared with 16.1 MP of the Pentax K-5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 4.81μm for the K-5). However, it should be noted that the M50 Mark II is much more recent (by 10 years) than the K-5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon M50 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M50 Mark II for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Pentax K-5 are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.

The M50 Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M50 Mark II has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Pentax K-5 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 80-51200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M50 Mark II	APS-C	24.0	6000	4000	4K/24p	24.0	13.6	1939	83
2.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
3.		Canon R50	APS-C	24.0	6000	4000	4K/30p	24.1	13.9	2168	84
4.		Canon M200	APS-C	24.0	6000	4000	4k/25p	24.0	13.5	1836	82
5.		Canon SL3	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
6.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
7.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
8.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
9.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
10.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
11.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
12.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
13.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
14.		Pentax K-50	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1120	79
15.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
16.		Pentax K-30	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1129	79
17.		Pentax K-5 II	APS-C	16.1	4928	3264	1080/25p	23.8	14.1	1235	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the M50 Mark II provides a higher video resolution than the K-5. It can shoot video footage at 4K/24p, while the Pentax is limited to 1080/25p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the M50 Mark II has an electronic viewfinder (2360k dots), while the K-5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon M50 Mark II and Pentax K-5 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M50 Mark II	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
2.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
3.		Canon R50	2360	n	3.0 / 1620	swivel	Y	1/4000s	12.0/s	Y	n
4.		Canon M200	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
5.		Canon SL3	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
7.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
8.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
9.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
10.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
12.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
13.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
14.		Pentax K-50	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
15.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
16.		Pentax K-30	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
17.		Pentax K-5 II	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M50 Mark II has a touchscreen, while the K-5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the M50 Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon M50 Mark II and the Pentax K-5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M50 Mark II and the K-5 write their files to SDXC cards. The M50 Mark II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the K-5 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M50 Mark II and Pentax K-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M50 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Canon R50	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
4.		Canon M200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
5.		Canon SL3	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
6.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
7.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
10.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
11.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
12.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
13.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
14.		Pentax K-50	Y	mono / mono	-	-	micro	2.0	-	-	-
15.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
16.		Pentax K-30	Y	mono / mono	-	-	-	2.0	-	-	-
17.		Pentax K-5 II	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the M50 Mark II offers wifi support, while the K-5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Pentax K-5 (unlike the M50 Mark II) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the M50 Mark II and the K-5 have been discontinued, but can regularly be found used on ebay. The K-5 was replaced by the Pentax K-5 II, while the M50 Mark II does not have a direct successor. Further information on the features and operation of the M50 Mark II and K-5 can be found, respectively, in the Canon M50 Mark II Manual (free pdf) or the online Pentax K-5 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon M50 Mark II or the Pentax K-5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS M50 Mark II:

• More detail: Offers more megapixels (24 vs 16.1MP) with a 22% higher linear resolution.
• Better video: Provides higher definition movie capture (4K/24p vs 1080/25p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (10 vs 7 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More compact: Is smaller (116x88mm vs 131x97mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 373g or 49 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (45 percent cheaper at launch).
• More modern: Reflects 10 years of technical progress since the K-5 launch.

Arguments in favor of the Pentax K-5:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Longer lasting: Gets more shots (740 versus 305) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been around for much longer (launched in September 2010).

If the count of individual advantages (bullet points above) is taken as a guide, the M50 Mark II is the clear winner of the match-up (18 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M50 Mark II and the Pentax K-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the M50 Mark II or the K-5 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M50 Mark II	4/5	..	4/5	..	4.5/5	3.5/5	Oct 2020	599	ebay.com
2.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	1,099	ebay.com
3.		Canon R50	4/5	+ +	4.5/5	84/100	..	4.5/5	Feb 2023	679	amazon.com
4.		Canon M200	..	+	3/5	79/100	4/5	4/5	Sep 2019	549	ebay.com
5.		Canon SL3	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	599	amazon.com
6.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	849	ebay.com
7.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	779	ebay.com
8.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779	ebay.com
9.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
10.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
11.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979	ebay.com
12.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	679	ebay.com
13.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	1,099	ebay.com
14.		Pentax K-50	5/5	..	..	..	5/5	4.5/5	Jun 2013	599	ebay.com
15.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	1,299	ebay.com
16.		Pentax K-30	4/5	..	..	78/100	4.5/5	4.5/5	May 2012	849	ebay.com
17.		Pentax K-5 II	5/5	..	..	80/100	5/5	4.5/5	Sep 2012	1,099	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check M50 Mark II offers at
ebay.com
Check K-5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check M50 Mark II offers at
ebay.com
Check K-5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
