Canon M100 vs Olympus E-M10 II
The Canon EOS M100 and the Olympus OM-D E-M10 Mark II are two digital cameras that were officially introduced, respectively, in August 2017 and August 2015. Both the M100 and the E-M10 II are mirrorless interchangeable lens cameras that are based on an APS-C (M100) and a Four Thirds (E-M10 II) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M100 and the Olympus OM-D E-M10 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon M100 and the Olympus E-M10 II. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The M100 can be obtained in two different colors (black, white), while the E-M10 II is available in three color-versions (black, silver, brown).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 II is notably larger (38 percent) than the Canon M100. Moreover, the E-M10 II is markedly heavier (29 percent) than the M100. In this context, it is worth noting that neither the M100 nor the E-M10 II are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|2.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|3.||Canon M200||108 mm||67 mm||35 mm||299 g||315||n||Sep 2019||549|
|4.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|5.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|6.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|7.||Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529|
|8.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|9.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|10.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|11.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|12.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|13.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|14.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|15.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|16.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|17.||Panasonic GX80||122 mm||71 mm||44 mm||426 g||290||n||Apr 2016||799|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M100 was launched at a somewhat lower price (by 23 percent) than the E-M10 II, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

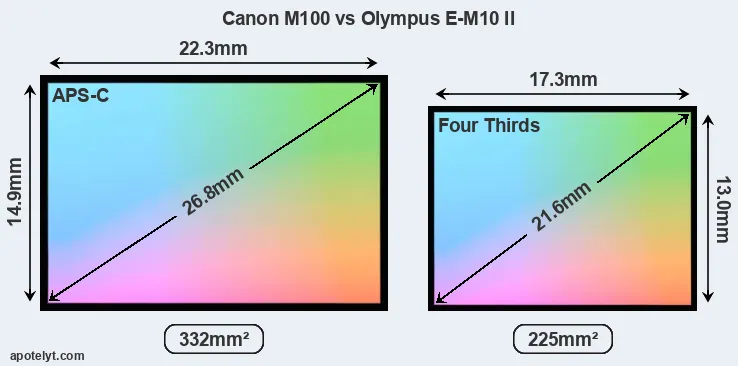

Of the two cameras under consideration, the Canon M100 features an APS-C sensor and the Olympus E-M10 II a Four Thirds sensor. The sensor area in the E-M10 II is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M100 has a native 3:2 aspect ratio, while the one in the E-M10 II offers a 4:3 aspect.
With 24MP, the M100 offers a higher resolution than the E-M10 II (15.9MP), but the M100 has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.76μm for the E-M10 II). However, the M100 is a much more recent model (by 2 years) than the E-M10 II, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M10 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon M100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M100 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-M10 II are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The M100 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M100 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus OM-D E-M10 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the M100 has a notably higher overall DXO score than the E-M10 II (overall score 5 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.4 bits higher color depth, 0.4 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|2.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|7.||Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|13.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|14.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|15.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|16.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|17.||Panasonic GX80||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60p).
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M10 II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M100 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon M100, the Olympus E-M10 II, and comparable cameras.
|1.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1||Y||n|
|2.||Olympus E-M10 II||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0||Y||Y|
|3.||Canon M200||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1||Y||n|
|4.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|5.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|6.||Canon 200D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|7.||Canon G9 X Mark II||none||n||3.0 / 1040||fixed||Y||1/2000s||8.2||Y||Y|
|8.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0||Y||n|
|9.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0||Y||n|
|10.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2||Y||n|
|11.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6||Y||n|
|12.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3||n||n|
|13.||Olympus E-M10 III||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.6||Y||Y|
|14.||Olympus E-M5 II||2360||n||3.0 / 1037||swivel||Y||1/8000s||10.0||n||Y|
|15.||Olympus E-M10||1440||n||3.0 / 1037||tilting||Y||1/4000s||8.0||Y||Y|
|16.||Olympus E-PL7||optional||n||3.0 / 1037||tilting||Y||1/4000s||8.0||n||Y|
|17.||Panasonic GX80||2765||n||3.0 / 1040||tilting||Y||1/4000s||8.0||Y||Y|
One feature that differentiates the E-M10 II and the M100 is in-body image stabilization (IBIS). The E-M10 II reduces the risk of handshake-induced blur with all attached lenses, while the M100 offers no blur reduction with lenses that themselves do not provide optical image stabilization.The M100 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-M10 II does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M10 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M10 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the M100 and the E-M10 II write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M100 and Olympus OM-D E-M10 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|2.||Olympus E-M10 II||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon M200||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|4.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon 200D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon G9 X Mark II||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|8.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|9.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|10.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|11.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|12.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|13.||Olympus E-M10 III||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|14.||Olympus E-M5 II||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|15.||Olympus E-M10||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|16.||Olympus E-PL7||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|17.||Panasonic GX80||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
It is notable that the E-M10 II has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The M100 does not feature such an accessory-socket.
Both the M100 and the E-M10 II have been discontinued, but can regularly be found used on eBay. The E-M10 II was replaced by the Olympus E-M10 III, while the M100 was followed by the Canon M200. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Is the Canon M100 better than the Olympus E-M10 II or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS M100:
- More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Scores markedly higher (5 points) in the DXO overall assessment.
- Better low-light sensitivity: Requires less light for good images (0.6 stops ISO advantage).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (108x67mm vs 120x83mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 88g or 23 percent) and hence easier to carry around.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced segment (23 percent cheaper at launch).
- More modern: Reflects 2 years of technical progress since the E-M10 II launch.
Reasons to prefer the Olympus OM-D E-M10 Mark II:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Faster burst: Shoots at higher frequency (8 vs 6.1 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been around for much longer (launched in August 2015).
If the count of relative strengths (bullet points above) is taken as a measure, the M100 is the clear winner of the match-up (12 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M100 and the Olympus E-M10 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M100 or the E-M10 II. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499|
|2.||Olympus E-M10 II||4.5/5||+ +||..||80/100||5/5||5/5||Aug 2015||649|
|3.||Canon M200||..||+||3/5||79/100||4/5||4/5||Sep 2019||549|
|4.||Canon 2000D||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|5.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|6.||Canon 200D||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|7.||Canon G9 X Mark II||4/5||..||4/5||75/100||4.5/5||4.5/5||Jan 2017||529|
|8.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779|
|9.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979|
|10.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679|
|11.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499|
|12.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599|
|13.||Olympus E-M10 III||..||+||5/5||80/100||4.5/5||4.5/5||Aug 2017||649|
|14.||Olympus E-M5 II||5/5||+ +||4.5/5||81/100||5/5||5/5||Feb 2015||1,099|
|15.||Olympus E-M10||4/5||..||..||80/100||5/5||5/5||Jan 2014||699|
|16.||Olympus E-PL7||4/5||+||..||..||5/5||4/5||Aug 2014||599|
|17.||Panasonic GX80||4.5/5||+ +||..||82/100||5/5||5/5||Apr 2016||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 650D vs Canon M100
- Canon G1 X Mark III vs Canon M100
- Canon M100 vs Canon SX710
- Canon M100 vs Canon SX740
- Canon M100 vs Olympus E-500
- Canon M100 vs Sony RX100 IV
- Canon R vs Olympus E-M10 II
- Olympus E-M10 II vs Olympus E-P3
- Olympus E-M10 II vs Olympus E-PL3
- Olympus E-M10 II vs Panasonic GF7
- Olympus E-M10 II vs Pentax K-70
- Olympus E-M10 II vs Sony A6600
Specifications: Canon M100 vs Olympus E-M10 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M100||Olympus E-M10 II|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Canon EF-M mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2017||August 2015|
|Launch Price||USD 499||USD 649|
|Sensor Specs||Canon M100||Olympus E-M10 II|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||15.9 Megapixels|
|Image Resolution||6000 x 4000 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.72 μm||3.76 μm|
|Pixel Density||7.22 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60p Video||1080/60p Video|
|ISO Setting||100 - 25,600 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||DIGIC 7||TruePic VII|
|DXO Sensor Quality (score)||78||73|
|DXO Color Depth (bits)||23.5||23.1|
|DXO Dynamic Range (EV)||12.9||12.5|
|DXO Low Light (ISO)||1272||842|
|Screen Specs||Canon M100||Olympus E-M10 II|
|Viewfinder Type||no viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Shooting Specs||Canon M100||Olympus E-M10 II|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||6.1 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon M100||Olympus E-M10 II|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon M100||Olympus E-M10 II|
|Battery Life (CIPA)||295 shots per charge||320 shots per charge|
108 x 67 x 35 mm
(4.3 x 2.6 x 1.4 in)
120 x 83 x 47 mm
(4.7 x 3.3 x 1.9 in)
|Camera Weight||302 g (10.7 oz)||390 g (13.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
