Canon G9 X Mark II vs SX420

The Canon PowerShot G9 X Mark II and the Canon PowerShot SX420 IS are two digital cameras that were announced, respectively, in January 2017 and January 2016. Both the G9X Mark II and the SX420 are fixed lens compact cameras that are based on an one-inch (G9X Mark II) and a 1/2.3-inch (SX420) sensor. The G9X Mark II has a resolution of 20 megapixels, whereas the SX420 provides 19.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G9 X Mark II		Canon SX420
Fixed lens compact camera		Fixed lens compact camera
28-84mm f/2.0-4.9		24-1008mm f/3.5-6.6
20 MP – 1" sensor		19.9 MP – 1/2.3" sensor
1080/60p Video		720/25p Video
ISO 125-12,800		ISO 100-1,600
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 230k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
8.2 shutter flaps per second		0.5 shutter flaps per second
235 shots per battery charge		195 shots per battery charge
98 x 58 x 31 mm, 206 g		104 x 69 x 85 mm, 325 g

Check G9X Mark II offers at
ebay.com
Check SX420 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G9 X Mark II and the Canon PowerShot SX420 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

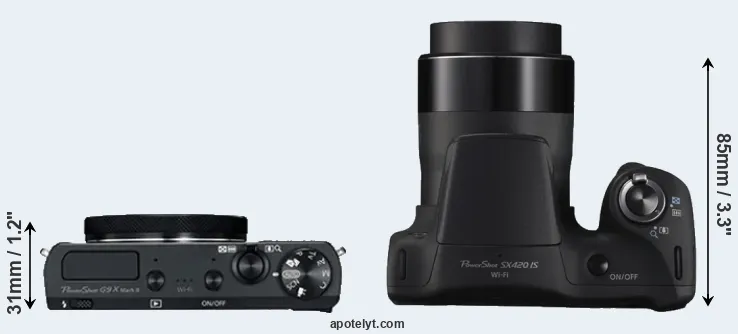

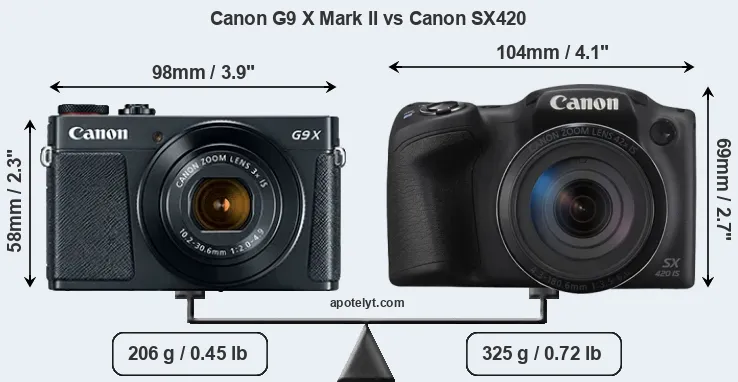

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon G9 X Mark II and the Canon SX420. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The G9X Mark II can be obtained in two different colors (black, silver), while the SX420 is also available in two color-versions, but different ones (black, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX420 is notably larger (26 percent) than the Canon G9 X Mark II. Moreover, the SX420 is substantially heavier (58 percent) than the G9X Mark II. In this context, it is worth noting that neither the G9X Mark II nor the SX420 are weather-sealed.

Concerning battery life, the G9X Mark II gets 235 shots out of its NB-13L battery, while the SX420 can take 195 images on a single charge of its NB-11LH power pack. The power pack in the G9X Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	529	ebay.com
2.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	299	ebay.com
3.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	449	amazon.com
4.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	549	amazon.com
5.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	299	amazon.com
6.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
7.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
8.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
9.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	699	ebay.com
10.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	279	ebay.com
11.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	799	ebay.com
12.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
13.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	279	ebay.com
14.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	349	ebay.com
15.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	449	ebay.com
16.		Sony HX99	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	449	ebay.com
17.		Sony HX95	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	429	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX420 was launched at a markedly lower price (by 43 percent) than the G9X Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

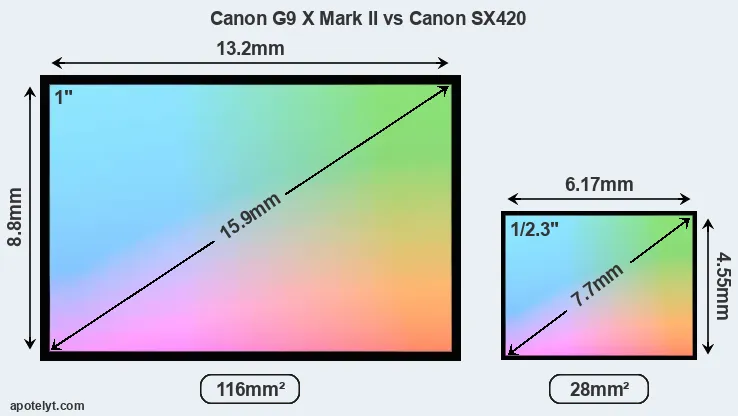

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon G9 X Mark II features an one-inch sensor and the Canon SX420 a 1/2.3-inch sensor. The sensor area in the SX420 is 76 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 5.6. The sensor in the G9X Mark II has a native 3:2 aspect ratio, while the one in the SX420 offers a 4:3 aspect.

In terms of chip-set technology, the G9X Mark II uses a more advanced image processing engine (DIGIC 7) than the SX420 (DIGIC 4+), with benefits for noise reduction, color accuracy, and processing speed.

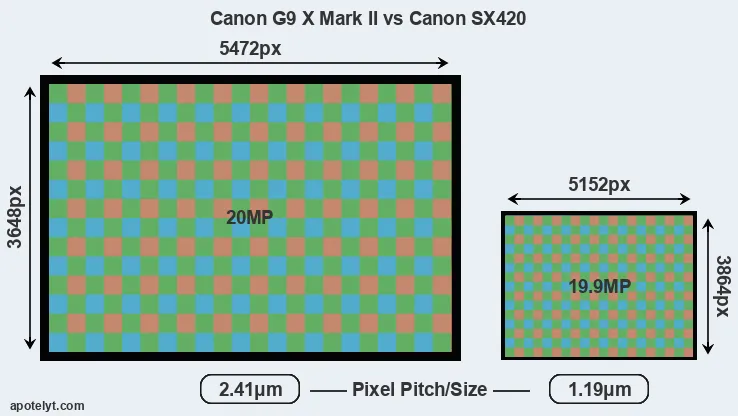

With 20MP, the G9X Mark II offers a slightly higher resolution than the SX420 (19.9MP), but the G9X Mark II nevertheless has larger individual pixels (pixel pitch of 2.41μm versus 1.19μm for the SX420) due to its larger sensor. Moreover, the G9X Mark II is a somewhat more recent model (by 1 year) than the SX420, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX420 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon PowerShot G9 X Mark II has a native sensitivity range from ISO 125 to ISO 12800. The corresponding ISO settings for the Canon PowerShot SX420 IS are ISO 100 to ISO 1600 (no boost).

In terms of underlying technology, the G9X Mark II is build around a BSI-CMOS sensor, while the SX420 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
2.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
3.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
4.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
5.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
6.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
7.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
8.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
9.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
10.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
11.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
12.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
13.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
14.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
15.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
16.		Sony HX99	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1058	51
17.		Sony HX95	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1057	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the G9X Mark II provides a higher video resolution than the SX420. It can shoot video footage at 1080/60p, while the SX420 is limited to 720/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The G9X Mark II and the SX420 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The adjacent table lists some of the other core features of the Canon G9 X Mark II and Canon SX420 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
2.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
3.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
5.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
6.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
8.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
10.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
11.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
12.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
13.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
14.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
15.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
16.		Sony HX99	638	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
17.		Sony HX95	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G9X Mark II has a touchscreen, while the SX420 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon G9 X Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the G9X Mark II and the SX420 have zoom lenses built in. The G9X Mark II has a 28-84mm f/2.0-4.9 optic and the SX420 offers a 24-1008mm f/3.5-6.6 (focal lengths in full frame equivalent terms). Hence, the SX420 provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the G9X Mark II. The G9X Mark II offers the faster maximum aperture.

Concerning the storage of imaging data, both the G9X Mark II and the SX420 write their files to SDXC cards. The G9X Mark II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX420 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G9 X Mark II and Canon PowerShot SX420 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
3.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
4.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
6.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
9.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
11.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
12.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
14.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
16.		Sony HX99	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
17.		Sony HX95	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

Both the G9X Mark II and the SX420 have been discontinued, but can regularly be found used on ebay. The SX420 was replaced by the Canon SX430, while the G9X Mark II does not have a direct successor. Further information on the features and operation of the G9X Mark II and SX420 can be found, respectively, in the Canon G9 X Mark II Manual (free pdf) or the online Canon SX420 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon G9 X Mark II and the Canon SX420? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon PowerShot G9 X Mark II:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 4+).
• Better video: Provides higher definition movie capture (1080/60p vs 720/25p).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (8.2 vs 0.5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/3.5).
• More compact: Is smaller (98x58mm vs 104x69mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 119g or 37 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (235 versus 195) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Is somewhat more recent (announced 1 year after the SX420).

Arguments in favor of the Canon PowerShot SX420 IS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More affordable: Was introduced into a lower priced category (43 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in January 2016).

If the number of relative strengths (bullet points above) is taken as a guide, the G9X Mark II is the clear winner of the match-up (19 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G9 X Mark II and the Canon SX420 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the G9X Mark II and the SX420 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	529	ebay.com
2.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	299	ebay.com
3.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	449	amazon.com
4.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	549	amazon.com
5.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	299	amazon.com
6.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
7.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
8.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
9.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	699	ebay.com
10.		Canon SX620	..	..	..	..	..	4/5	May 2016	279	ebay.com
11.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	799	ebay.com
12.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
13.		Canon SX410	..	o	..	..	..	..	Feb 2015	279	ebay.com
14.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	349	ebay.com
15.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	449	ebay.com
16.		Sony HX99	..	..	..	..	4/5	4.5/5	Aug 2018	449	ebay.com
17.		Sony HX95	..	..	..	..	..	..	Aug 2018	429	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check G9X Mark II offers at
ebay.com
Check SX420 offers at
ebay.com
