Canon G7 X Mark II vs Olympus E-5

The Canon PowerShot G7 X Mark II and the Olympus E-5 are two digital cameras that were announced, respectively, in February 2016 and September 2010. The G7X Mark II is a fixed lens compact, while the E-5 is a DSLR. The cameras are based on an one-inch (G7X Mark II) and a Four Thirds (E-5) sensor. The Canon has a resolution of 20 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G7 X Mark II		Olympus E-5
Fixed lens compact camera		Digital single lens reflex
24-100mm f/1.8-2.8		Four Thirds lenses
20 MP – 1" sensor		12.2 MP – Four Thirds sensor
1080/60p Video		720/30p Video
ISO 125-12,800 (125 - 25,600)		ISO 100-6,400
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 920k dots
Tilting touchscreen		Swivel screen (not touch-sensitive)
8 shutter flaps per second		5 shutter flaps per second
Lens-based stabilization		In-body stabilization
not weather sealed		Weathersealed body
265 shots per battery charge		750 shots per battery charge
106 x 61 x 42 mm, 319 g		142 x 117 x 75 mm, 873 g

Check G7X Mark II offers at
ebay.com
Check E-5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G7 X Mark II and the Olympus E-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon G7 X Mark II and the Olympus E-5. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-5 is considerably larger (157 percent) than the Canon G7 X Mark II. It is noteworthy in this context that the E-5 is splash and dust-proof, while the G7X Mark II does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G7X Mark II has a lens built in, whereas the E-5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-5 and their specifications in the Four Thirds Lens Catalog.

Concerning battery life, the G7X Mark II gets 265 shots out of its Canon NB-13L battery, while the E-5 can take 750 images on a single charge of its Olympus BLM-5 power pack. The power pack in the G7X Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
2.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	US$ 1 699	ebay.com
3.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
4.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
5.		Canon G7 X Mark III	105 mm	61 mm	41 mm	304 g	235	n	Jul 2019	US$ 749	amazon.com
6.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
7.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
8.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
9.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
10.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
11.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
12.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
13.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	US$ 1 699	ebay.com
14.		Olympus E-450	130 mm	91 mm	53 mm	440 g	500	n	Mar 2009	US$ 499	ebay.com
15.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	US$ 449	ebay.com
16.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
17.		Sony A77	143 mm	104 mm	81 mm	732 g	470	Y	Aug 2011	US$ 1 399	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The G7X Mark II was launched at a lower price than the E-5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

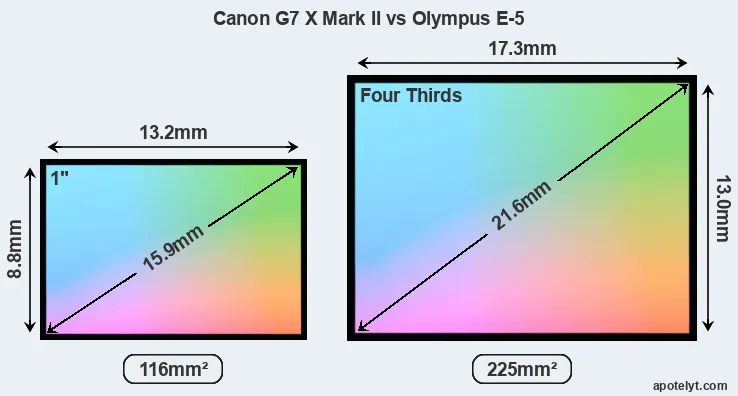

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon G7 X Mark II features an one-inch sensor and the Olympus E-5 a Four Thirds sensor. The sensor area in the E-5 is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the G7X Mark II has a native 3:2 aspect ratio, while the one in the E-5 offers a 4:3 aspect.

Despite having a smaller sensor, the Canon G7 X Mark II offers a higher resolution of 20 megapixels, compared with 12.2 MP of the Olympus E-5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 4.29μm for the E-5). However, it should be noted that the G7X Mark II is much more recent (by 5 years and 5 months) than the E-5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon G7 X Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G7X Mark II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus E-5 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The Canon PowerShot G7 X Mark II has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Olympus E-5 are ISO 100 to ISO 6400 (no boost).

In terms of underlying technology, the G7X Mark II is build around a BSI-CMOS sensor, while the E-5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
2.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
3.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
4.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
5.		Canon G7 X Mark III	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
6.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
7.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
8.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
9.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
10.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
11.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
12.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
13.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
14.		Olympus E-450	Four Thirds	10.0	3648	2736	none	21.5	10.5	512	56
15.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
16.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
17.		Sony A77	APS-C	24.0	6000	4000	1080/60p	24.0	13.2	801	78
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the G7X Mark II provides a higher video resolution than the E-5. It can shoot video footage at 1080/60p, while the Olympus is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the G7X Mark II relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon G7 X Mark II and Olympus E-5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
2.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
3.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
4.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
5.		Canon G7 X Mark III	none	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
6.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
7.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
9.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
10.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
11.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
12.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
13.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
14.		Olympus E-450	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
15.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
16.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
17.		Sony A77	2359	Y	3.0 / 921	full-flex	n	1/8000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G7X Mark II has a touchscreen, while the E-5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon G7 X Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The G7X Mark II writes its imaging data to SDXC cards, while the E-5 uses Compact Flash or xD Picture cards. The E-5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the G7X Mark II only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G7 X Mark II and Olympus E-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
3.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon G7 X Mark III	-	stereo / mono	Y	-	micro	3.1	Y	-	Y
6.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
8.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
9.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
10.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
13.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
14.		Olympus E-450	Y	- / -	-	-	-	2.0	-	-	-
15.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
16.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
17.		Sony A77	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the G7X Mark II offers wifi support, while the E-5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Olympus E-5 (unlike the G7X Mark II) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the G7X Mark II and the E-5 have been discontinued, but can regularly be found used on ebay. The G7X Mark II was replaced by the Canon G7 X Mark III, while the E-5 does not have a direct successor. Further information on the features and operation of the G7X Mark II and E-5 can be found, respectively, in the Canon G7 X Mark II Manual (free pdf) or the online Olympus E-5 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon G7 X Mark II and the Olympus E-5? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot G7 X Mark II:

• More detail: Offers more megapixels (20 vs 12.2MP) with a 30% higher linear resolution.
• Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with a built-in lens, while the E-5 requires a separate lens.
• More compact: Is smaller (106x61mm vs 142x117mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-5).
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 5 years and 5 months of technical progress since the E-5 launch.

Advantages of the Olympus E-5:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (750 versus 265) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in September 2010).

If the count of relative strengths (bullet points above) is taken as a measure, the G7X Mark II emerges as the winner of the contest (14 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G7 X Mark II and the Olympus E-5 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the G7X Mark II or the E-5. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
2.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	US$ 1 699	ebay.com
3.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
4.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
5.		Canon G7 X Mark III	..	+ +	4/5	81/100	4/5	..	Jul 2019	US$ 749	amazon.com
6.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
7.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
8.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
9.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
10.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
11.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
12.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
13.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	US$ 1 699	ebay.com
14.		Olympus E-450	..	..	..	..	4/5	4/5	Mar 2009	US$ 499	ebay.com
15.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	US$ 449	ebay.com
16.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
17.		Sony A77	5/5	91/100	..	81/100	..	5/5	Aug 2011	US$ 1 399	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
