Canon G5 X vs XS

The Canon PowerShot G5 X and the Canon EOS Rebel XS (labelled Canon 1000D in some countries) are two digital cameras that were revealed to the public, respectively, in October 2015 and June 2008. The G5X is a fixed lens compact, while the XS is a DSLR. The cameras are based on an one-inch (G5X) and an APS-C (XS) sensor. The G5X has a resolution of 20 megapixels, whereas the XS provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G5 X		Canon XS
Fixed lens compact camera		Digital single lens reflex
24-100mm f/1.8-2.8		Canon EF mount lenses
20 MP – 1" sensor		10.1 MP – APS-C sensor
1080/60p Video		no Video
ISO 125-12,800 (125 - 25,600)		ISO 100-800 (100 - 1,600)
Electronic viewfinder (2360k dots)		Optical viewfinder
3.0" LCD – 1040k dots		2.5" LCD – 230k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
5.9 shutter flaps per second		3 shutter flaps per second
210 shots per battery charge		500 shots per battery charge
112 x 76 x 44 mm, 353 g		126 x 98 x 65 mm, 502 g

Check G5X offers at
ebay.com
Check XS offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G5 X and the Canon EOS Rebel XS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

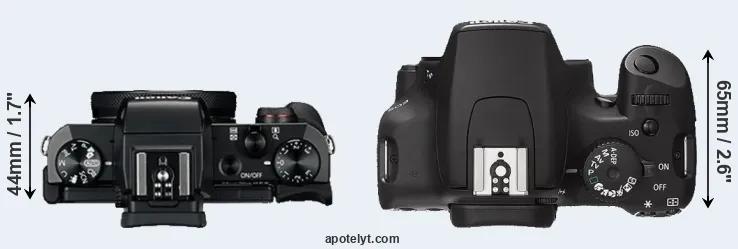

The physical size and weight of the Canon G5 X and the Canon XS are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XS is considerably larger (45 percent) than the Canon G5 X. In this context, it is worth noting that neither the G5X nor the XS are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G5X has a lens built in, whereas the XS is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the XS and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the G5X gets 210 shots out of its Canon NB-13L battery, while the XS can take 500 images on a single charge of its Canon LP-E5 power pack. The power pack in the G5X can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
2.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
3.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
4.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	US$ 899	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
6.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
7.		Canon G7 X Mark III	105 mm	61 mm	41 mm	304 g	235	n	Jul 2019	US$ 749	amazon.com
8.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
9.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
10.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
11.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
12.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
13.		Nikon 1 V3	111 mm	65 mm	33 mm	381 g	310	n	Mar 2014	US$ 799	ebay.com
14.		Panasonic LX10	106 mm	60 mm	42 mm	310 g	260	n	Sep 2016	US$ 699	amazon.com
15.		Panasonic ZS100	111 mm	65 mm	44 mm	312 g	300	n	Jan 2016	US$ 699	ebay.com
16.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
17.		Sony RX100 V	102 mm	58 mm	41 mm	299 g	220	n	Oct 2016	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

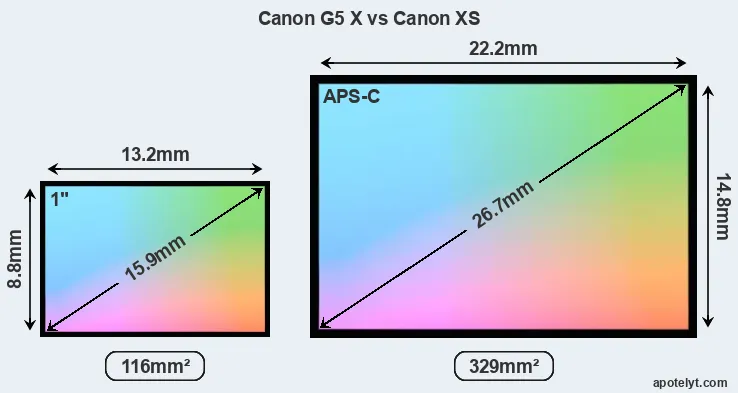

Of the two cameras under consideration, the Canon G5 X features an one-inch sensor and the Canon XS an APS-C sensor. The sensor area in the XS is 184 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the G5X uses a more advanced image processing engine (DIGIC 6) than the XS (DIGIC 3), with benefits for noise reduction, color accuracy, and processing speed.

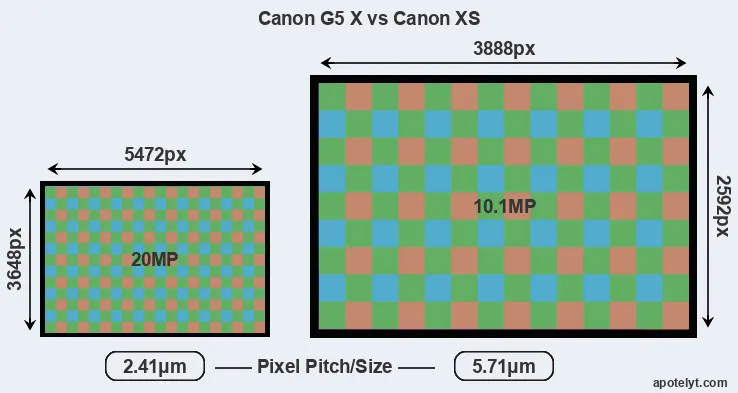

Despite having a smaller sensor, the Canon G5 X offers a higher resolution of 20 megapixels, compared with 10.1 MP of the Canon XS. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 5.71μm for the XS). However, it should be noted that the G5X is much more recent (by 7 years and 4 months) than the XS, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon G5 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G5X for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Canon XS are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The Canon PowerShot G5 X has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Canon EOS Rebel XS are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-1600.

In terms of underlying technology, the G5X is build around a BSI-CMOS sensor, while the XS uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
2.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
3.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
4.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
7.		Canon G7 X Mark III	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
8.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
9.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
10.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
11.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
12.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
13.		Nikon 1 V3	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	384	52
14.		Panasonic LX10	1-inch	20.0	5472	3648	4K/30p	22.8	12.5	581	70
15.		Panasonic ZS100	1-inch	20.0	5472	3648	4K/30p	22.8	12.5	559	70
16.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
17.		Sony RX100 V	1-inch	20.0	5472	3648	4K/30p	22.8	12.4	586	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The G5X indeed provides movie recording capabilities, while the XS does not. The highest resolution format that the G5X can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the G5X has an electronic viewfinder (2360k dots), while the XS has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon G5 X, the Canon XS, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
2.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
4.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
7.		Canon G7 X Mark III	none	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
8.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
9.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
10.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
13.		Nikon 1 V3	optional	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
14.		Panasonic LX10	none	n	3.0 / 1040	tilting	Y	1/4000s	10.0/s	Y	Y
15.		Panasonic ZS100	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
16.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony RX100 V	2359	n	3.0 / 1229	tilting	n	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G5X has a touchscreen, while the XS has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon G5 X has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The G5X writes its imaging data to SDXC cards, while the XS uses SDHC cards. The G5X supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XS cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G5 X and Canon EOS Rebel XS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G7 X Mark III	-	stereo / mono	Y	-	micro	3.1	Y	-	Y
8.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
10.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
12.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
13.		Nikon 1 V3	-	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Panasonic LX10	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Panasonic ZS100	-	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX100 V	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the G5X offers wifi support, while the XS does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the G5X and the XS have been discontinued, but can regularly be found used on ebay. The XS was replaced by the Canon T3, while the G5X was followed by the Canon G5 X Mark II. Further information on the features and operation of the G5X and XS can be found, respectively, in the Canon G5 X Manual (free pdf) or the online Canon XS Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon G5 X and the Canon XS? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon PowerShot G5 X:

• More detail: Offers more megapixels (20 vs 10.1MP) with a 41% higher linear resolution.
• More dynamic range: Captures a larger spectrum of light and dark details (1.4 EV of extra DR).
• Better jpgs: Has a more modern image processing engine (DIGIC 6 vs DIGIC 3).
• Broader imaging potential: Can record not only still images but also 1080/60p movies.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (5.9 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with a built-in lens, while the XS requires a separate lens.
• More compact: Is smaller (112x76mm vs 126x98mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the XS).
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 7 years and 4 months of technical progress since the XS launch.

Advantages of the Canon EOS Rebel XS:

• Better low-light sensitivity: Can shoot in dim conditions (0.6 stops ISO advantage).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (500 versus 210) out of a single battery charge.
• More heavily discounted: Has been around for much longer (launched in June 2008).

If the number of relative strengths (bullet points above) is taken as a guide, the G5X is the clear winner of the match-up (21 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G5 X and the Canon XS place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the G5X and the XS in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
2.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
3.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
4.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	US$ 899	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
6.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
7.		Canon G7 X Mark III	..	+ +	4/5	81/100	4/5	..	Jul 2019	US$ 749	amazon.com
8.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
9.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
10.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
11.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
12.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
13.		Nikon 1 V3	3/5	..	..	76/100	4.5/5	4/5	Mar 2014	US$ 799	ebay.com
14.		Panasonic LX10	..	+ +	4/5	81/100	4/5	4.5/5	Sep 2016	US$ 699	amazon.com
15.		Panasonic ZS100	4.5/5	+ +	..	82/100	4.5/5	4.5/5	Jan 2016	US$ 699	ebay.com
16.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
17.		Sony RX100 V	4.5/5	+ +	..	83/100	4/5	4.5/5	Oct 2016	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check G5X offers at
ebay.com
Check XS offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check G5X offers at
ebay.com
Check XS offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
