Canon 7D vs Olympus E-520
The Canon EOS 7D and the Olympus E-520 are two digital cameras that were revealed to the public, respectively, in September 2009 and May 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (7D) and a Four Thirds (E-520) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 7D and the Olympus E-520? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon 7D and the Olympus E-520. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-520 is notably smaller (24 percent) than the Canon 7D. Moreover, the E-520 is substantially lighter (38 percent) than the 7D. It is worth mentioning in this context that the 7D is splash and dust resistant, while the E-520 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (7D) and the Four Thirds Lens Catalog (E-520).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 7D||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699|
|Olympus E-520||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699|
|Canon 7D II||5.9 in||4.4 in||3.1 in||32.1 oz||670||Y||Sep 2014||1,799|
|Canon 70D||5.5 in||4.1 in||3.1 in||26.6 oz||920||Y||Jul 2013||1,199|
|Canon 60D||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399|
|Canon T2i||5.1 in||3.9 in||2.4 in||18.7 oz||440||n||Feb 2010||699|
|Canon T1i||5.1 in||3.9 in||2.4 in||18.3 oz||400||n||Mar 2009||799|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Canon 50D||5.7 in||4.3 in||2.9 in||29.0 oz||800||Y||Aug 2008||1,299|
|Canon 30D||5.7 in||4.2 in||2.9 in||27.7 oz||750||n||Feb 2006||1,399|
|Canon 20D||5.7 in||4.2 in||2.8 in||27.2 oz||700||n||Aug 2004||1,499|
|Nikon D7000||5.2 in||4.1 in||3.0 in||27.5 oz||1050||Y||Sep 2010||1,499|
|Olympus E-600||5.1 in||3.7 in||2.4 in||18.9 oz||500||n||Aug 2009||449|
|Olympus E-620||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699|
|Olympus E-420||5.1 in||3.6 in||2.1 in||15.5 oz||500||n||Mar 2008||599|
|Olympus E-410||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699|
|Olympus E-510||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-520 was launched at a markedly lower price (by 59 percent) than the 7D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

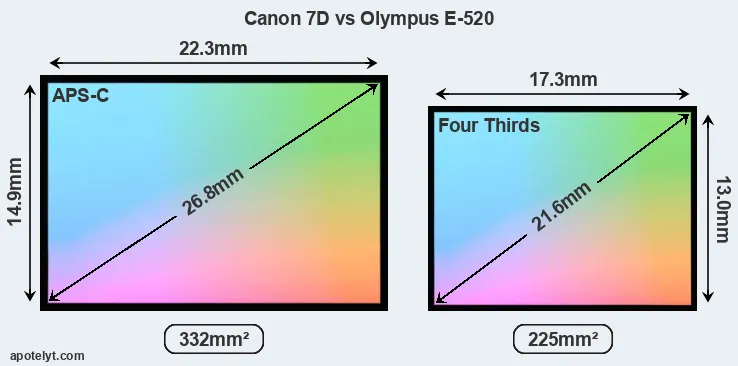

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 7D features an APS-C sensor and the Olympus E-520 a Four Thirds sensor. The sensor area in the E-520 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 7D has a native 3:2 aspect ratio, while the one in the E-520 offers a 4:3 aspect.
With 17.9MP, the 7D offers a higher resolution than the E-520 (10MP), but the 7D has smaller individual pixels (pixel pitch of 4.31μm versus 4.74μm for the E-520). However, the 7D is a somewhat more recent model (by 1 year and 3 months) than the E-520, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 7D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 7D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus E-520 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The Canon EOS 7D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus E-520 are ISO 100 to ISO 1600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 7D provides substantially higher image quality than the E-520, with an overall score that is 11 points higher. This advantage is based on 0.6 bits higher color depth, 1.3 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Olympus E-600||Four Thirds||12.2||4032||3024||none||21.5||10.3||541||55|
|Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
Many modern cameras cannot only take still pictures, but also record videos. The 7D indeed provides movie recording capabilities, while the E-520 does not. The highest resolution format that the 7D can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The 7D and the E-520 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 7D offers a wider field of view (100%) than the one in the E-520 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 7D has a higher magnification (0.63x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 7D and Olympus E-520 in connection with corresponding information for a sample of similar cameras.
|Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
One feature that is present on the 7D, but is missing on the E-520 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 7D writes its imaging data to Compact Flash cards, while the E-520 uses Compact Flash or xD Picture cards. The E-520 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 7D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 7D and Olympus E-520 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
Studio photographers will appreciate that the Canon 7D (unlike the E-520) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 7D and the E-520 have been discontinued, but can regularly be found used on eBay. The 7D was replaced by the Canon 7D Mark II, while the E-520 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Which of the two cameras – the Canon 7D or the Olympus E-520 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS 7D:
- More detail: Offers more megapixels (17.9 vs 10MP) with a 37% higher linear resolution.
- Better image quality: Scores substantially higher (11 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (1.3 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.6 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (920k vs 215k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (8 vs 3.5 flaps/sec) to capture the decisive moment.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More modern: Is somewhat more recent (announced 1 year and 3 months after the E-520).
Reasons to prefer the Olympus E-520:
- More compact: Is smaller (136x92mm vs 148x111mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 325g or 38 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (59 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in May 2008).
If the count of individual advantages (bullet points above) is taken as a guide, the 7D is the clear winner of the match-up (15 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 7D and the Olympus E-520 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 7D or the E-520. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 7D||+ +||84/100||4.5/5||5/5||4.5/5||Sep 2009||1,699|
|Olympus E-520||87/100||+ +||4.5/5||4/5||4.5/5||May 2008||699|
|Canon 7D II||+||84/100||4/5||5/5||4.5/5||Sep 2014||1,799|
|Canon 70D||+ +||83/100||4.5/5||4.5/5||5/5||Jul 2013||1,199|
|Canon 60D||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399|
|Canon T2i||+ +||77/100||4/5||5/5||4.5/5||Feb 2010||699|
|Canon T1i||+ +||74/100||4.5/5||5/5||4.5/5||Mar 2009||799|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 50D||+ +||+ +||4.5/5||5/5||4.5/5||Aug 2008||1,299|
|Canon 30D||+ +||+ +||o||o||..||Feb 2006||1,399|
|Canon 20D||..||+ +||..||o||..||Aug 2004||1,499|
|Nikon D7000||..||80/100||4.5/5||5/5||4.5/5||Sep 2010||1,499|
|Olympus E-600||..||..||..||..||4.5/5||Aug 2009||449|
|Olympus E-620||88/100||72/100||4.5/5||o||5/5||Feb 2009||699|
|Olympus E-420||85/100||+ +||4/5||o||4.5/5||Mar 2008||599|
|Olympus E-410||86/100||+ +||4/5||o||4.5/5||Mar 2007||699|
|Olympus E-510||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 30D vs Canon 7D
- Canon 7D vs Canon SX520
- Canon 7D vs Fujifilm X20
- Canon 7D vs Nikon D7000
- Canon 7D vs Nikon D7500
- Canon 7D vs Olympus E-M10 III
- Leica X1 vs Olympus E-520
- Nikon B500 vs Olympus E-520
- Olympus E-3 vs Olympus E-520
- Olympus E-520 vs Panasonic S1
- Olympus E-520 vs Pentax 645D
- Olympus E-520 vs Pentax KP
Specifications: Canon 7D vs Olympus E-520
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 7D||Olympus E-520|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||September 2009||May 2008|
|Launch Price||USD 1,699||USD 699|
|Sensor Specs||Canon 7D||Olympus E-520|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||10 Megapixels|
|Image Resolution||5184 x 3456 pixels||3648 x 2736 pixels|
|Pixel Pitch||4.31 μm||4.74 μm|
|Pixel Density||5.39 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 6,400 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 12,800 ISO||no Enhancement|
|Image Processor||DIGIC 4 (Dual)||TruePic III|
|DXO Sensor Quality (score)||66||55|
|DXO Color Depth (bits)||22.0||21.4|
|DXO Dynamic Range (EV)||11.7||10.4|
|DXO Low Light (ISO)||854||548|
|Screen Specs||Canon 7D||Olympus E-520|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.7inch|
|LCD Resolution||920k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 7D||Olympus E-520|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||8 shutter flaps/s||3.5 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 7D||Olympus E-520|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 7D||Olympus E-520|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||800 shots per charge||750 shots per charge|
148 x 111 x 74 mm
(5.8 x 4.4 x 2.9 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||860 g (30.3 oz)||535 g (18.9 oz)|
