Canon 77D vs Nikon D3000
The Canon EOS 77D and the Nikon D3000 are two digital cameras that were officially introduced, respectively, in February 2017 and July 2009. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Nikon provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 77D||Nikon D3000|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Nikon F mount lenses|
|24 MP, APS-C Sensor||10 MP, APS-C Sensor|
|1080/60p Video||no Video|
|ISO 100-25600 (100-51200)||ISO 100-1600 (100-3200)|
|Optical viewfinder||Optical viewfinder|
|3.0" LCD, 1040k dots||3.0" LCD, 230k dots|
|Swivel touchscreen||Fixed screen (not touch-sensitive)|
|6 shutter flaps per second||3 shutter flaps per second|
|600 shots per battery charge||500 shots per battery charge|
|131 x 100 x 76 mm, 540 g||126 x 97 x 64 mm, 536 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 77D and the Nikon D3000? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

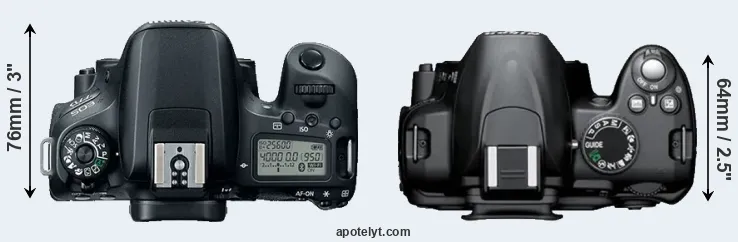

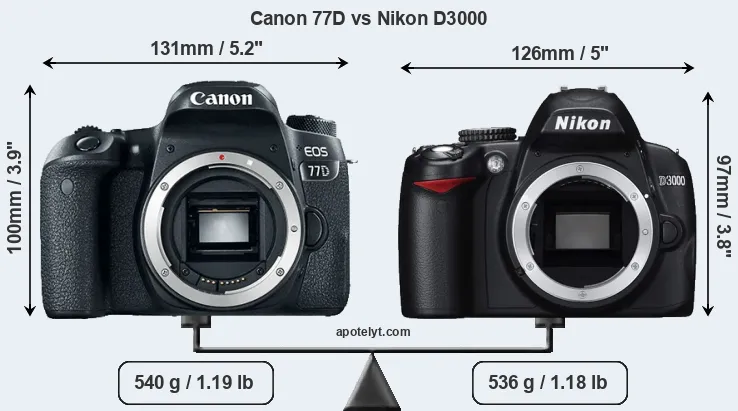

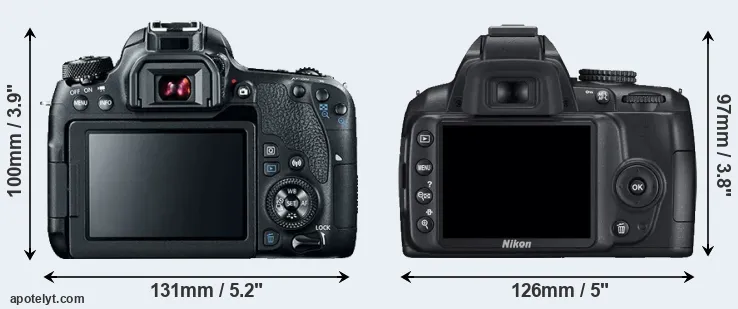

An illustration of the physical size and weight of the Canon 77D and the Nikon D3000 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3000 is notably smaller (7 percent) than the Canon 77D. Moreover, the D3000 is slightly lighter (1 percent) than the 77D. In this context, it is worth noting that neither the 77D nor the D3000 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (77D) and the Nikon Lens Catalog (D3000).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 77D»||5.2 in||3.9 in||3.0 in||19.0 oz||600||n||Feb 2017||899||Canon 77D|
|Nikon D3000«||5.0 in||3.8 in||2.5 in||18.9 oz||500||n||Jul 2009||599||Nikon D3000|
|Canon T8i« »||5.2 in||4.1 in||3.0 in||18.2 oz||800||n||Feb 2020||749||Canon T8i|
|Canon T7« »||5.1 in||4.0 in||3.1 in||16.8 oz||500||n||Feb 2018||449||Canon T7|
|Canon SL2« »||4.8 in||3.7 in||2.8 in||16.0 oz||650||n||Jun 2017||549||Canon SL2|
|Canon T7i« »||5.2 in||3.9 in||3.0 in||18.8 oz||600||n||Feb 2017||749||Canon T7i|
|Canon M5« »||4.6 in||3.5 in||2.4 in||15.1 oz||295||n||Sep 2016||979||Canon M5|
|Canon T6« »||5.1 in||4.0 in||3.1 in||17.1 oz||500||n||Mar 2016||449||Canon T6|
|Canon T6i« »||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749||Canon T6i|
|Canon T6s« »||5.2 in||4.0 in||3.1 in||19.9 oz||440||n||Feb 2015||649||Canon T6s|
|Canon T4i« »||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849||Canon T4i|
|Canon T3i« »||5.2 in||3.9 in||3.1 in||20.1 oz||440||n||Feb 2011||599||Canon T3i|
|Nikon D3100« »||4.9 in||3.8 in||3.0 in||17.8 oz||550||n||Aug 2010||599||Nikon D3100|
|Nikon D5000« »||5.0 in||4.1 in||3.1 in||20.8 oz||510||n||Apr 2009||749||Nikon D5000|
|Nikon D60« »||5.0 in||3.7 in||2.5 in||18.4 oz||500||n||Jan 2008||629||Nikon D60|
|Nikon D40X« »||4.9 in||3.7 in||2.5 in||18.4 oz||520||n||Mar 2007||729||Nikon D40X|
|Nikon D40« »||4.9 in||3.7 in||2.5 in||18.4 oz||470||n||Nov 2006||499||Nikon D40|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D3000 was launched at a markedly lower price (by 33 percent) than the 77D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D3000 is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (77D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Despite having a smaller sensor, the Canon 77D offers a higher resolution of 24 megapixels, compared with 10 MP of the Nikon D3000. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 6.11μm for the D3000). However, it should be noted that the 77D is much more recent (by 7 years and 6 months) than the D3000, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon 77D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 77D for good quality output (200 dots per inch) amounts to 30 x 20 inch or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inch or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inch or 50.8 x 33.9 cm. The corresponding values for the Nikon D3000 are 19.4 x 13 inch or 49.2 x 32.9 cm for good quality, 15.5 x 10.4 inch or 39.3 x 26.3 cm for very good quality, and 12.9 x 8.6 inch or 32.8 x 21.9 cm for excellent quality prints.
The 77D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 77D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Nikon D3000 are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 77D provides substantially higher image quality than the D3000, with an overall score that is 16 points higher. This advantage is based on 1.3 bits higher color depth, 2.2 EV in additional dynamic range, and 0.8 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 77D||APS-C||24.0||6000||4000||1080/60p||23.6||13.3||971||78||Canon 77D|
|Nikon D3000||APS-C||10.0||3872||2592||none||22.3||11.1||563||62||Nikon D3000|
|Canon T8i||APS-C||24.0||6000||4000||4K/24p||..||..||..||..||Canon T8i|
|Canon T7||APS-C||24.0||6000||4000||1080/30p||..||..||..||..||Canon T7|
|Canon SL2||APS-C||24.0||6000||4000||1080/60p||23.6||13.4||1041||79||Canon SL2|
|Canon T7i||APS-C||24.0||6000||4000||1080/60p||..||..||..||..||Canon T7i|
|Canon M5||APS-C||24.0||6000||4000||1080/60p||23.4||12.4||1262||77||Canon M5|
|Canon T6||APS-C||17.9||5184||3456||1080/30p||..||..||..||..||Canon T6|
|Canon T6i||APS-C||24.0||6000||4000||1080/30p||22.7||12.0||919||71||Canon T6i|
|Canon T6s||APS-C||24.0||6000||4000||1080/30p||22.6||12.0||915||70||Canon T6s|
|Canon T4i||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||722||62||Canon T4i|
|Canon T3i||APS-C||17.9||5184||3456||1080/30p||22.1||11.5||793||65||Canon T3i|
|Nikon D3100||APS-C||14.2||4608||3072||1080/24p||22.5||11.3||919||67||Nikon D3100|
|Nikon D5000||APS-C||12.2||4288||2848||720/24p||22.7||12.5||868||72||Nikon D5000|
|Nikon D60||APS-C||10.0||3872||2592||none||22.5||11.4||562||65||Nikon D60|
|Nikon D40X||APS-C||10.0||3872||2592||none||22.4||11.4||516||63||Nikon D40X|
|Nikon D40||APS-C||6.0||3008||2000||none||21.0||11.0||561||56||Nikon D40|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 77D indeed provides movie recording capabilities, while the D3000 does not. The highest resolution format that the 77D can use is 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. The 77D and the D3000 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the D3000 has a higher magnification than the one of the 77D (0.53x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 77D, the Nikon D3000, and comparable cameras.
|Canon 77D||optical||Y||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon 77D|
|Nikon D3000||optical||n||3.0||230||fixed||n||1/4000s||3.0||Y||n||Nikon D3000|
|Canon T8i||optical||n||3.0||1040||swivel||Y||1/4000s||7.5||Y||n||Canon T8i|
|Canon T7||optical||n||3.0||920||fixed||n||1/4000s||3.0||Y||n||Canon T7|
|Canon SL2||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon SL2|
|Canon T7i||optical||n||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon T7i|
|Canon M5||2360||n||3.2||1620||tilting||Y||1/4000s||9.0||Y||n||Canon M5|
|Canon T6||optical||n||3.0||920||fixed||n||1/4000s||3.0||Y||n||Canon T6|
|Canon T6i||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T6i|
|Canon T6s||optical||Y||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T6s|
|Canon T4i||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T4i|
|Canon T3i||optical||n||3.0||1040||swivel||n||1/4000s||3.7||Y||n||Canon T3i|
|Nikon D3100||optical||n||3.0||230||fixed||n||1/4000s||3.0||Y||n||Nikon D3100|
|Nikon D5000||optical||n||2.7||230||full-flex||n||1/4000s||4.0||Y||n||Nikon D5000|
|Nikon D60||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Nikon D60|
|Nikon D40X||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Nikon D40X|
|Nikon D40||optical||n||2.5||230||fixed||n||1/4000s||2.5||Y||n||Nikon D40|
One feature that is present on the 77D, but is missing on the D3000 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 77D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D3000 does not have a selfie-screen.
The Canon 77D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 77D writes its imaging data to SDXC cards, while the D3000 uses SDHC cards. The 77D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the D3000 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 77D and Nikon D3000 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 77D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 77D|
|Nikon D3000||Y||none||none||-||-||none||2.0||-||-||-||Nikon D3000|
|Canon T8i||Y||stereo||mono||Y||-||mini||2.0||Y||-||Y||Canon T8i|
|Canon T7||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon T7|
|Canon SL2||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon SL2|
|Canon T7i||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon T7i|
|Canon M5||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon M5|
|Canon T6||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon T6|
|Canon T6i||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon T6i|
|Canon T6s||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon T6s|
|Canon T4i||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon T4i|
|Canon T3i||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon T3i|
|Nikon D3100||Y||mono||mono||-||-||mini||2.0||-||-||-||Nikon D3100|
|Nikon D5000||Y||mono||mono||-||-||mini||2.0||-||-||-||Nikon D5000|
|Nikon D60||Y||none||none||-||-||none||2.0||-||-||-||Nikon D60|
|Nikon D40X||Y||none||none||-||-||none||2.0||-||-||-||Nikon D40X|
|Nikon D40||Y||none||none||-||-||none||2.0||-||-||-||Nikon D40|
It is notable that the 77D offers wifi support, while the D3000 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
The 77D is a recent model that features in the current product line-up of Canon. In contrast, the D3000 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the D3000 was succeeded by the Nikon D3100. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what is the bottom line? Is there a clear favorite between the Canon 77D and the Nikon D3000? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 77D:
- More detail: Offers more megapixels (24 vs 10MP) with a 55% higher linear resolution.
- Better image quality: Scores substantially higher (16 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.3 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2.2 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.8 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (600 versus 500) on a single battery charge.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 7 years and 6 months of technical progress since the D3000 launch.
Reasons to prefer the Nikon D3000:
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.53x vs 0.51x).
- More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in July 2009).
If the number of relative strengths (bullet points above) is taken as a guide, the 77D is the clear winner of the match-up (20 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 77D and the Nikon D3000 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 77D or the D3000. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 77D vs Nikon D3000
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 77D||Nikon D3000|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||February 2017||July 2009|
|Launch Price||USD 899||USD 599|
|Sensor Specs||Canon 77D||Nikon D3000|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.6 x 15.8 mm|
|Sensor Area||332.27 mm2||372.88 mm2|
|Sensor Diagonal||26.8 mm||28.4 mm|
|Sensor Resolution||24 Megapixels||10 Megapixels|
|Image Resolution||6000 x 4000 pixels||3872 x 2592 pixels|
|Pixel Pitch||3.72 μm||6.11 μm|
|Pixel Density||7.22 MP/cm2||2.69 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||no Video|
|ISO Setting||100-25600 ISO||100-1600 ISO|
|ISO Boost||100-51200 ISO||100-3200 ISO|
|Image Processor||DIGIC 7||EXPEED|
|DXO Sensor Quality (score)||78||62|
|DXO Color Depth (bits)||23.6||22.3|
|DXO Dynamic Range (EV)||13.3||11.1|
|DXO Low Light (ISO)||971||563|
|Screen Specs||Canon 77D||Nikon D3000|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1040k dots||230k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 77D||Nikon D3000|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||6 shutter flaps/s||3 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon 77D||Nikon D3000|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon 77D||Nikon D3000|
|Battery Life (CIPA)||600 shots per charge||500 shots per charge|
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
126 x 97 x 64 mm
(5.0 x 3.8 x 2.5 in)
|Camera Weight||540 g (19.0 oz)||536 g (18.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
