Canon 77D vs 700D
The Canon EOS 77D and the Canon EOS 700D (labelled Canon T5i in some countries) are two digital cameras that were revealed to the public, respectively, in February 2017 and March 2013. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The 77D has a resolution of 24 megapixels, whereas the 700D provides 17.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 77D||Canon 700D|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|24 MP, APS-C Sensor||17.9 MP, APS-C Sensor|
|1080/60p Video||1080/30p Video|
|ISO 100-25600 (100-51200)||ISO 100-12800 (100-25600)|
|Optical viewfinder||Optical viewfinder|
|3.0" LCD, 1040k dots||3.0" LCD, 1040k dots|
|Swivel touchscreen||Swivel touchscreen|
|6 shutter flaps per second||5 shutter flaps per second|
|600 shots per battery charge||440 shots per battery charge|
|131 x 100 x 76 mm, 540 g||133 x 100 x 79 mm, 580 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 77D and the Canon EOS 700D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

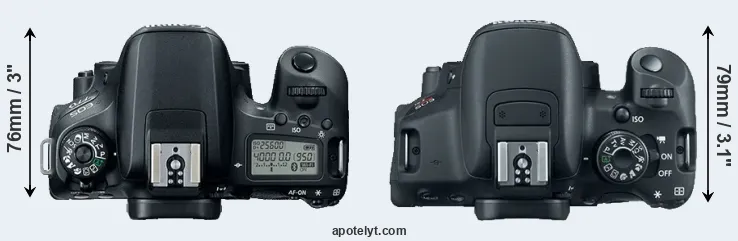

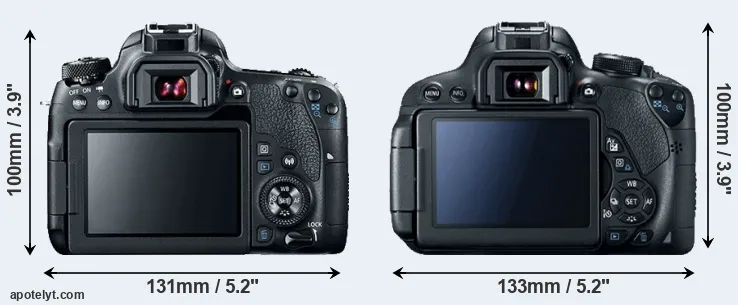

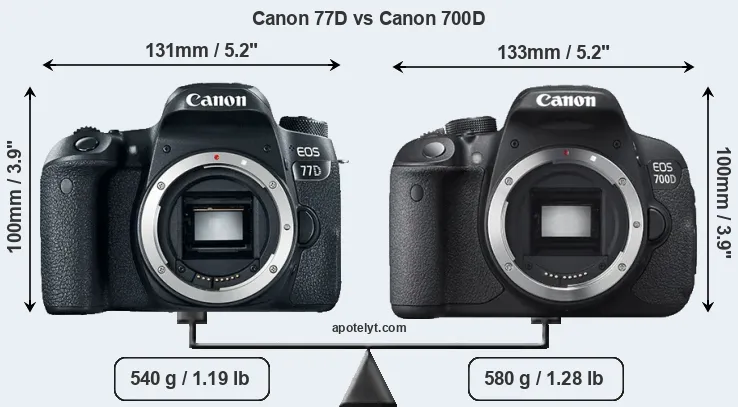

The side-by-side display below illustrates the physical size and weight of the Canon 77D and the Canon 700D. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 700D is somewhat larger (2 percent) than the Canon 77D. Moreover, the 700D is markedly heavier (7 percent) than the 77D. In this context, it is worth noting that neither the 77D nor the 700D are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 77D»||5.2 in||3.9 in||3.0 in||19.0 oz||600||n||Feb 2017||899||Canon 77D|
|Canon 700D«||5.2 in||3.9 in||3.1 in||20.5 oz||440||n||Mar 2013||649||Canon 700D|
|Canon T8i« »||5.2 in||4.1 in||3.0 in||18.2 oz||800||n||Feb 2020||749||Canon T8i|
|Canon T7« »||5.1 in||4.0 in||3.1 in||16.8 oz||500||n||Feb 2018||449||Canon T7|
|Canon SL2« »||4.8 in||3.7 in||2.8 in||16.0 oz||650||n||Jun 2017||549||Canon SL2|
|Canon T7i« »||5.2 in||3.9 in||3.0 in||18.8 oz||600||n||Feb 2017||749||Canon T7i|
|Canon M5« »||4.6 in||3.5 in||2.4 in||15.1 oz||295||n||Sep 2016||979||Canon M5|
|Canon T6« »||5.1 in||4.0 in||3.1 in||17.1 oz||500||n||Mar 2016||449||Canon T6|
|Canon 750D« »||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749||Canon 750D|
|Canon T6i« »||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749||Canon T6i|
|Canon T6s« »||5.2 in||4.0 in||3.1 in||19.9 oz||440||n||Feb 2015||649||Canon T6s|
|Canon 1200D« »||5.1 in||3.9 in||3.1 in||16.9 oz||500||n||Feb 2014||449||Canon 1200D|
|Canon 100D« »||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549||Canon 100D|
|Canon 650D« »||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849||Canon 650D|
|Canon T4i« »||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849||Canon T4i|
|Canon 600D« »||5.2 in||3.9 in||3.1 in||20.1 oz||440||n||Feb 2011||599||Canon 600D|
|Canon T3i« »||5.2 in||3.9 in||3.1 in||20.1 oz||440||n||Feb 2011||599||Canon T3i|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 700D was launched at a markedly lower price (by 28 percent) than the 77D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

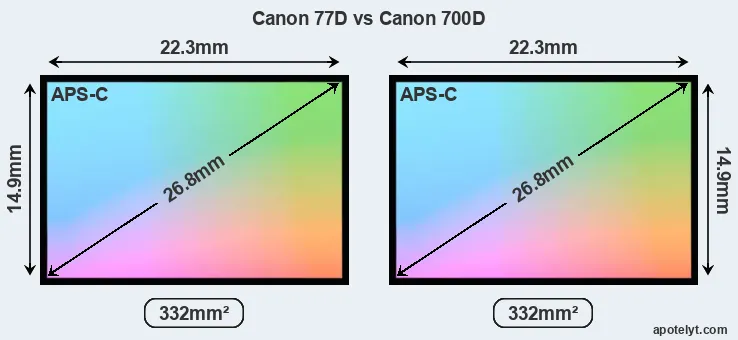

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of chip-set technology, the 77D uses a more advanced image processing engine (DIGIC 7) than the 700D (DIGIC 5), with benefits for noise reduction, color accuracy, and processing speed.

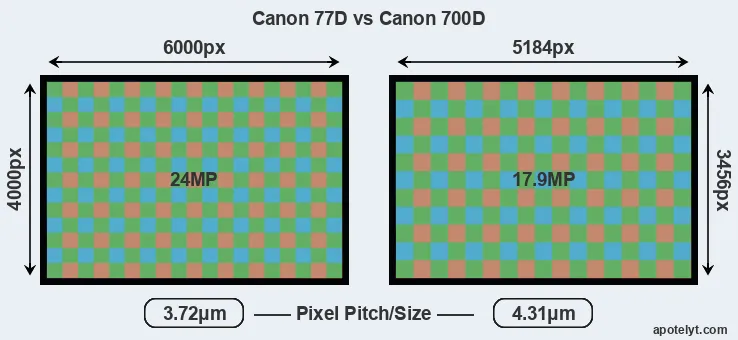

While the two cameras under review share the same sensor size, the 77D offers a higher resolution of 24 megapixels, compared with 17.9 MP of the 700D. This megapixels advantage translates into a 16 percent gain in linear resolution. On the other hand, these sensor specs imply that the 77D has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 4.31μm for the 700D). In this context, it should be noted, however, that the 77D is much more recent (by 3 years and 10 months) than the 700D, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.
The resolution advantage of the Canon 77D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 77D for good quality output (200 dots per inch) amounts to 30 x 20 inch or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inch or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inch or 50.8 x 33.9 cm. The corresponding values for the Canon 700D are 25.9 x 17.3 inch or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inch or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inch or 43.9 x 29.3 cm for excellent quality prints.
The Canon EOS 77D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon EOS 700D are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 77D provides substantially higher image quality than the 700D, with an overall score that is 17 points higher. This advantage is based on 1.9 bits higher color depth, 2.1 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 77D||APS-C||24.0||6000||4000||1080/60p||23.6||13.3||971||78||Canon 77D|
|Canon 700D||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||681||61||Canon 700D|
|Canon T8i||APS-C||24.0||6000||4000||4K/24p||..||..||..||..||Canon T8i|
|Canon T7||APS-C||24.0||6000||4000||1080/30p||..||..||..||..||Canon T7|
|Canon SL2||APS-C||24.0||6000||4000||1080/60p||23.6||13.4||1041||79||Canon SL2|
|Canon T7i||APS-C||24.0||6000||4000||1080/60p||..||..||..||..||Canon T7i|
|Canon M5||APS-C||24.0||6000||4000||1080/60p||23.4||12.4||1262||77||Canon M5|
|Canon T6||APS-C||17.9||5184||3456||1080/30p||..||..||..||..||Canon T6|
|Canon 750D||APS-C||24.0||6000||4000||1080/30p||22.7||12.0||919||71||Canon 750D|
|Canon T6i||APS-C||24.0||6000||4000||1080/30p||22.7||12.0||919||71||Canon T6i|
|Canon T6s||APS-C||24.0||6000||4000||1080/30p||22.6||12.0||915||70||Canon T6s|
|Canon 1200D||APS-C||17.9||5184||3456||1080/30p||21.9||11.3||724||63||Canon 1200D|
|Canon 100D||APS-C||17.9||5184||3456||1080/30p||21.8||11.3||843||63||Canon 100D|
|Canon 650D||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||722||62||Canon 650D|
|Canon T4i||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||722||62||Canon T4i|
|Canon 600D||APS-C||17.9||5184||3456||1080/30p||22.1||11.5||793||65||Canon 600D|
|Canon T3i||APS-C||17.9||5184||3456||1080/30p||22.1||11.5||793||65||Canon T3i|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 77D provides a higher frame rate than the 700D. It can shoot video footage at 1080/60p, while the 700D is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The 77D and the 700D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the 700D has a higher magnification than the one of the 77D (0.53x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 77D and Canon 700D along with similar information for a selection of comparators.
|Canon 77D||optical||Y||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon 77D|
|Canon 700D||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 700D|
|Canon T8i||optical||n||3.0||1040||swivel||Y||1/4000s||7.5||Y||n||Canon T8i|
|Canon T7||optical||n||3.0||920||fixed||n||1/4000s||3.0||Y||n||Canon T7|
|Canon SL2||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon SL2|
|Canon T7i||optical||n||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon T7i|
|Canon M5||2360||n||3.2||1620||tilting||Y||1/4000s||9.0||Y||n||Canon M5|
|Canon T6||optical||n||3.0||920||fixed||n||1/4000s||3.0||Y||n||Canon T6|
|Canon 750D||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 750D|
|Canon T6i||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T6i|
|Canon T6s||optical||Y||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T6s|
|Canon 1200D||optical||n||3.0||460||fixed||n||1/4000s||3.0||Y||n||Canon 1200D|
|Canon 100D||optical||n||3.0||1040||fixed||Y||1/4000s||4.9||Y||n||Canon 100D|
|Canon 650D||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 650D|
|Canon T4i||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T4i|
|Canon 600D||optical||n||3.0||1040||swivel||n||1/4000s||3.7||Y||n||Canon 600D|
|Canon T3i||optical||n||3.0||1040||swivel||n||1/4000s||3.7||Y||n||Canon T3i|
One feature that is present on the 77D, but is missing on the 700D is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The Canon 77D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 77D and the 700D write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 77D and Canon EOS 700D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 77D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 77D|
|Canon 700D||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon 700D|
|Canon T8i||Y||stereo||mono||Y||-||mini||2.0||Y||-||Y||Canon T8i|
|Canon T7||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon T7|
|Canon SL2||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon SL2|
|Canon T7i||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon T7i|
|Canon M5||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon M5|
|Canon T6||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon T6|
|Canon 750D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon 750D|
|Canon T6i||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon T6i|
|Canon T6s||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon T6s|
|Canon 1200D||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon 1200D|
|Canon 100D||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 100D|
|Canon 650D||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon 650D|
|Canon T4i||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon T4i|
|Canon 600D||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 600D|
|Canon T3i||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon T3i|
It is notable that the 77D offers wifi support, while the 700D does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
The 77D is a recent model that features in the current product line-up of Canon. In contrast, the 700D has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 700D was succeeded by the Canon 750D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Is the Canon 77D better than the Canon 700D or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 77D:
- More detail: Offers more megapixels (24 vs 17.9MP) with a 16% higher linear resolution.
- Better image quality: Scores substantially higher (17 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.9 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2.1 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 5).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster burst: Shoots at higher frequency (6 vs 5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (600 versus 440) on a single battery charge.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Reflects 3 years and 10 months of technical progress since the 700D launch.
Advantages of the Canon EOS 700D:
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.53x vs 0.51x).
- More affordable: Was introduced into a lower priced category (28 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in March 2013).
If the number of relative strengths (bullet points above) is taken as a guide, the 77D is the clear winner of the match-up (15 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 77D and the Canon 700D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 77D or the 700D. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1000D vs Canon 700D
- Canon 1Ds Mark II vs Canon 77D
- Canon 1Ds Mark III vs Canon 77D
- Canon 700D vs Canon T7i
- Canon 700D vs Leica S Typ 006
- Canon 700D vs Leica V-LUX 4
- Canon 700D vs Olympus E-M5
- Canon 700D vs Panasonic G5
- Canon 700D vs Sony RX1
- Canon 77D vs Canon 80D
- Canon 77D vs Canon G12
- Canon 77D vs Fujifilm X-A10
Specifications: Canon 77D vs Canon 700D
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 77D||Canon 700D|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||February 2017||March 2013|
|Launch Price||USD 899||USD 649|
|Sensor Specs||Canon 77D||Canon 700D|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||22.3 x 14.9 mm|
|Sensor Area||332.27 mm2||332.27 mm2|
|Sensor Diagonal||26.8 mm||26.8 mm|
|Sensor Resolution||24 Megapixels||17.9 Megapixels|
|Image Resolution||6000 x 4000 pixels||5184 x 3456 pixels|
|Pixel Pitch||3.72 μm||4.31 μm|
|Pixel Density||7.22 MP/cm2||5.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/30p Video|
|ISO Setting||100-25600 ISO||100-12800 ISO|
|ISO Boost||100-51200 ISO||100-25600 ISO|
|Image Processor||DIGIC 7||DIGIC 5|
|DXO Sensor Quality (score)||78||61|
|DXO Color Depth (bits)||23.6||21.7|
|DXO Dynamic Range (EV)||13.3||11.2|
|DXO Low Light (ISO)||971||681|
|Screen Specs||Canon 77D||Canon 700D|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Shooting Specs||Canon 77D||Canon 700D|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||6 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 77D||Canon 700D|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon 77D||Canon 700D|
|Battery Life (CIPA)||600 shots per charge||440 shots per charge|
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
133 x 100 x 79 mm
(5.2 x 3.9 x 3.1 in)
|Camera Weight||540 g (19.0 oz)||580 g (20.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
