Canon 60D vs Nikon D3500
The Canon EOS 60D and the Nikon D3500 are two digital cameras that were officially introduced, respectively, in August 2010 and August 2018. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Nikon provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 60D||Nikon D3500|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Nikon F mount lenses|
|17.9 MP, APS-C Sensor||24 MP, APS-C Sensor|
|1080/30p Video||1080/60p Video|
|ISO 100-6400 (100-12800)||ISO 100-25600|
|Optical viewfinder||Optical viewfinder|
|3.0" LCD, 1040k dots||3.0" LCD, 921k dots|
|Swivel screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|5.3 shutter flaps per second||5 shutter flaps per second|
|Weathersealed body||Not weather sealed|
|1100 shots per battery charge||1550 shots per battery charge|
|145 x 106 x 79 mm, 755 g||124 x 97 x 70 mm, 365 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 60D and the Nikon D3500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

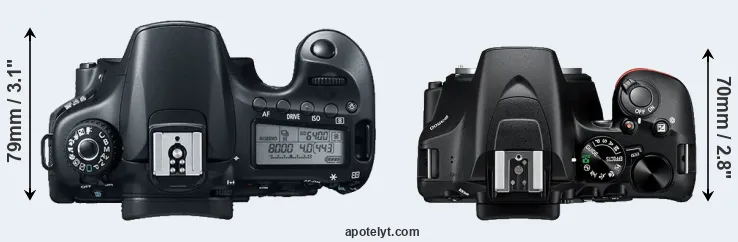

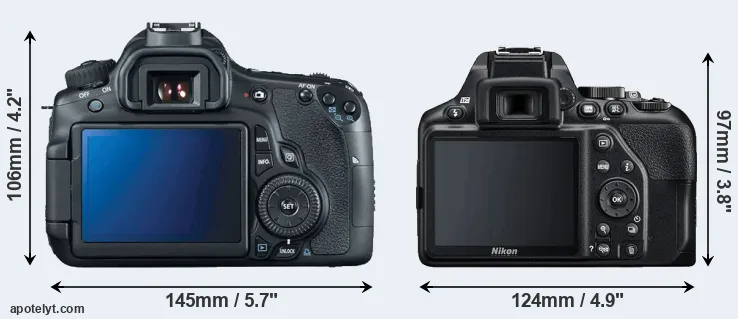

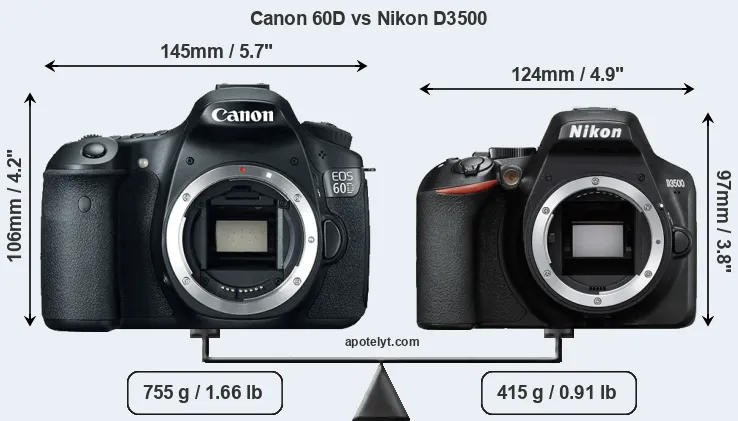

An illustration of the physical size and weight of the Canon 60D and the Nikon D3500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3500 is notably smaller (22 percent) than the Canon 60D. Moreover, the D3500 is substantially lighter (52 percent) than the 60D. It is worth mentioning in this context that the 60D is splash and dust resistant, while the D3500 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (60D) and the Nikon Lens Catalog (D3500).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 60D»||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399||Canon 60D|
|Nikon D3500«||4.9 in||3.8 in||2.8 in||12.9 oz||1550||n||Aug 2018||429||Nikon D3500|
|Canon M100« »||4.3 in||2.6 in||1.4 in||10.7 oz||295||n||Aug 2017||499||Canon M100|
|Canon 80D« »||5.5 in||4.1 in||3.1 in||25.8 oz||960||Y||Feb 2016||1,199||Canon 80D|
|Canon 7D II« »||5.9 in||4.4 in||3.1 in||32.1 oz||670||Y||Sep 2014||1,799||Canon 7D II|
|Canon 70D« »||5.5 in||4.1 in||3.1 in||26.6 oz||920||Y||Jul 2013||1,199||Canon 70D|
|Canon T3i« »||5.2 in||3.9 in||3.1 in||20.1 oz||440||n||Feb 2011||599||Canon T3i|
|Canon T2i« »||5.1 in||3.9 in||2.4 in||18.7 oz||440||n||Feb 2010||699||Canon T2i|
|Canon 7D« »||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699||Canon 7D|
|Canon T1i« »||5.1 in||3.9 in||2.4 in||18.3 oz||400||n||Mar 2009||799||Canon T1i|
|Canon 50D« »||5.7 in||4.3 in||2.9 in||29.0 oz||800||Y||Aug 2008||1,299||Canon 50D|
|Canon 40D« »||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299||Canon 40D|
|Fujifilm X-A7« »||4.7 in||2.7 in||1.6 in||11.3 oz||440||n||Sep 2019||499||Fujifilm X-A7|
|Fujifilm X-E3« »||4.8 in||2.9 in||1.7 in||11.9 oz||350||n||Sep 2017||899||Fujifilm X-E3|
|Nikon D3400« »||4.9 in||3.9 in||3.0 in||15.7 oz||1200||n||Aug 2016||499||Nikon D3400|
|Nikon D3300« »||4.9 in||3.9 in||3.0 in||15.2 oz||700||n||Jan 2014||499||Nikon D3300|
|Nikon D7000« »||5.2 in||4.1 in||3.0 in||27.5 oz||1050||Y||Sep 2010||1,499||Nikon D7000|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D3500 was launched at a markedly lower price (by 69 percent) than the 60D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

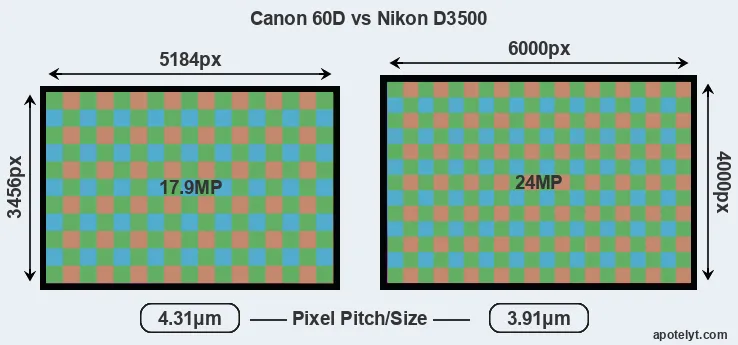

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D3500 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (60D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 24MP, the D3500 offers a higher resolution than the 60D (17.9MP), but the D3500 has smaller individual pixels (pixel pitch of 3.91μm versus 4.31μm for the 60D). Yet, the D3500 is a much more recent model (by 8 years) than the 60D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the D3500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D3500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3500 for good quality output (200 dots per inch) amounts to 30 x 20 inch or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inch or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inch or 50.8 x 33.9 cm. The corresponding values for the Canon 60D are 25.9 x 17.3 inch or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inch or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inch or 43.9 x 29.3 cm for excellent quality prints.
The Canon EOS 60D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Nikon D3500 are ISO 100 to ISO 25600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 60D||APS-C||17.9||5184||3456||1080/30p||22.2||11.5||813||66||Canon 60D|
|Nikon D3500||APS-C||24.0||6000||4000||1080/60p||..||..||..||..||Nikon D3500|
|Canon M100||APS-C||24.0||6000||4000||1080/60p||23.5||12.9||1272||78||Canon M100|
|Canon 80D||APS-C||24.0||6000||4000||1080/60p||23.6||13.2||1135||79||Canon 80D|
|Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70||Canon 7D II|
|Canon 70D||APS-C||20.0||5472||3648||1080/30p||22.5||11.6||926||68||Canon 70D|
|Canon T3i||APS-C||17.9||5184||3456||1080/30p||22.1||11.5||793||65||Canon T3i|
|Canon T2i||APS-C||17.9||5184||3456||1080/30p||22.1||11.5||784||66||Canon T2i|
|Canon 7D||APS-C||17.9||5184||3456||1080/30p||22.0||11.7||854||66||Canon 7D|
|Canon T1i||APS-C||15.1||4752||3168||1080/20p||21.7||11.5||663||63||Canon T1i|
|Canon 50D||APS-C||15.1||4752||3168||none||21.8||11.4||696||63||Canon 50D|
|Canon 40D||APS-C||10.1||3888||2592||none||22.1||11.3||703||64||Canon 40D|
|Fujifilm X-A7||APS-C||24.0||6000||4000||4K/30p||..||..||..||..||Fujifilm X-A7|
|Fujifilm X-E3||APS-C||24.0||6000||4000||4K/30p||..||..||..||..||Fujifilm X-E3|
|Nikon D3400||APS-C||24.0||6000||4000||1080/60p||24.8||13.9||1192||86||Nikon D3400|
|Nikon D3300||APS-C||24.0||6000||4000||1080/60p||24.3||12.8||1385||82||Nikon D3300|
|Nikon D7000||APS-C||16.1||4928||3264||10800/24p||23.5||13.9||1167||80||Nikon D7000|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the D3500 provides a faster frame rate than the 60D. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The 60D and the D3500 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 60D offers a wider field of view (96%) than the one in the D3500 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 60D has a higher magnification (0.59x vs 0.57x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 60D, the Nikon D3500, and comparable cameras.
|Canon 60D||optical||Y||3.0||1040||swivel||n||1/8000s||5.3||Y||n||Canon 60D|
|Nikon D3500||optical||n||3.0||921||fixed||n||1/4000s||5.0||Y||n||Nikon D3500|
|Canon M100||none||n||3.0||1040||tilting||Y||1/4000s||6.1||Y||n||Canon M100|
|Canon 80D||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 80D|
|Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n||Canon 7D II|
|Canon 70D||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 70D|
|Canon T3i||optical||n||3.0||1040||swivel||n||1/4000s||3.7||Y||n||Canon T3i|
|Canon T2i||optical||n||3.0||1040||fixed||n||1/4000s||3.7||Y||n||Canon T2i|
|Canon 7D||optical||Y||3.0||920||fixed||n||1/8000s||8.0||Y||n||Canon 7D|
|Canon T1i||optical||n||3.0||920||fixed||n||1/4000s||3.4||Y||n||Canon T1i|
|Canon 50D||optical||Y||3.0||920||fixed||n||1/8000s||6.3||Y||n||Canon 50D|
|Canon 40D||optical||Y||3.0||230||fixed||n||1/8000s||6.5||Y||n||Canon 40D|
|Fujifilm X-A7||none||n||3.5||2760||swivel||Y||1/4000s||6.0||Y||n||Fujifilm X-A7|
|Fujifilm X-E3||2360||n||3.0||1040||fixed||Y||1/4000s||8.0||n||n||Fujifilm X-E3|
|Nikon D3400||optical||n||3.0||921||fixed||n||1/4000s||5.0||Y||n||Nikon D3400|
|Nikon D3300||optical||n||3.0||921||fixed||n||1/4000s||5.0||Y||n||Nikon D3300|
|Nikon D7000||optical||Y||3.0||921||fixed||n||1/8000s||6.0||Y||n||Nikon D7000|
One feature that is present on the 60D, but is missing on the D3500 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 60D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D3500 does not have a selfie-screen.
Concerning the storage of imaging data, both the 60D and the D3500 write their files to SDXC cards. The D3500 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 60D cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 60D and Nikon D3500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 60D||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 60D|
|Nikon D3500||Y||mono||mono||-||-||mini||2.0||-||-||Y||Nikon D3500|
|Canon M100||-||stereo||mono||-||-||mini||2.0||Y||Y||Y||Canon M100|
|Canon 80D||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Canon 80D|
|Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-||Canon 7D II|
|Canon 70D||Y||stereo||mono||Y||-||mini||2.0||Y||-||-||Canon 70D|
|Canon T3i||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon T3i|
|Canon T2i||Y||stereo||none||Y||-||mini||2.0||-||-||-||Canon T2i|
|Canon 7D||Y||mono||none||Y||-||mini||2.0||-||-||-||Canon 7D|
|Canon T1i||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon T1i|
|Canon 50D||Y||none||none||-||-||mini||2.0||-||-||-||Canon 50D|
|Canon 40D||Y||none||none||-||-||none||2.0||-||-||-||Canon 40D|
|Fujifilm X-A7||Y||stereo||mono||Y||-||mini||2.0||Y||-||Y||Fujifilm X-A7|
|Fujifilm X-E3||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y||Fujifilm X-E3|
|Nikon D3400||Y||mono||mono||-||-||mini||2.0||-||-||Y||Nikon D3400|
|Nikon D3300||Y||mono||mono||Y||-||mini||2.0||-||-||-||Nikon D3300|
|Nikon D7000||Y||mono||mono||Y||-||mini||2.0||-||-||-||Nikon D7000|
It is notable that the 60D has a microphone port, which is missing on the D3500. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 60D (unlike the D3500) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The D3500 is a recent model that features in the current product line-up of Nikon. In contrast, the 60D has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 60D was succeeded by the Canon 70D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what conclusions can be drawn? Is there a clear favorite between the Canon 60D and the Nikon D3500? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS 60D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More complete view: Has a viewfinder with a larger field of view (96% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.59x vs 0.57x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2010).
Reasons to prefer the Nikon D3500:
- More detail: Has more megapixels (24 vs 17.9MP), which boosts linear resolution by 16%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- More compact: Is smaller (124x97mm vs 145x106mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 390g or 52 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (1550 versus 1100) out of a single battery charge.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (69 percent cheaper at launch).
- More modern: Reflects 8 years of technical progress since the 60D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the 60D emerges as the winner of the contest (12 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 60D and the Nikon D3500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 60D and the D3500 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 60D vs Nikon D3500
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 60D||Nikon D3500|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||August 2010||August 2018|
|Launch Price||USD 1399||USD 429|
|Sensor Specs||Canon 60D||Nikon D3500|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.5 x 15.6 mm|
|Sensor Area||332.27 mm2||366.6 mm2|
|Sensor Diagonal||26.8 mm||28.2 mm|
|Sensor Resolution||17.9 Megapixels||24 Megapixels|
|Image Resolution||5184 x 3456 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.31 μm||3.91 μm|
|Pixel Density||5.39 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100-6400 ISO||100-25600 ISO|
|ISO Boost||100-12800 ISO||no Enhancement|
|Image Processor||DIGIC 4||EXPEED 4|
|DXO Sensor Quality (score)||66||..|
|DXO Color Depth (bits)||22.2||..|
|DXO Dynamic Range (EV)||11.5||..|
|DXO Low Light (ISO)||813||..|
|Screen Specs||Canon 60D||Nikon D3500|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1040k dots||921k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Shooting Specs||Canon 60D||Nikon D3500|
|Autofocus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5.3 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 60D||Nikon D3500|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 60D||Nikon D3500|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Life (CIPA)||1100 shots per charge||1550 shots per charge|
145 x 106 x 79 mm
(5.7 x 4.2 x 3.1 in)
124 x 97 x 70 mm
(4.9 x 3.8 x 2.8 in)
|Camera Weight||755 g (26.6 oz)||365 g (12.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
