Canon 5D vs Olympus E-410
The Canon EOS 5D and the Olympus E-410 are two digital cameras that were revealed to the public, respectively, in August 2005 and March 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D) and a Four Thirds (E-410) sensor. The Canon has a resolution of 12.7 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Olympus E-410? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

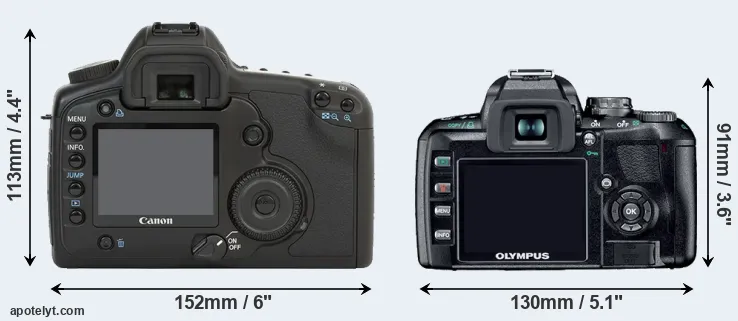

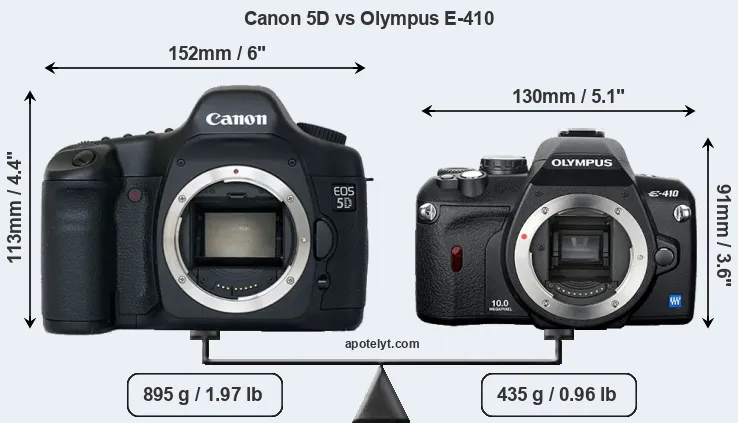

The physical size and weight of the Canon 5D and the Olympus E-410 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-410 is considerably smaller (31 percent) than the Canon 5D. Moreover, the E-410 is substantially lighter (51 percent) than the 5D. It is worth mentioning in this context that the 5D is splash and dust resistant, while the E-410 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D) and the Four Thirds Lens Catalog (E-410).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|2.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|5.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|6.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|7.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|8.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|9.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|10.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|11.||Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999|
|12.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999|
|13.||Olympus E-420||130 mm||91 mm||53 mm||440 g||500||n||Mar 2008||599|
|14.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699|
|15.||Olympus E-510||136 mm||92 mm||68 mm||538 g||750||n||Mar 2007||799|
|16.||Olympus E-400||130 mm||91 mm||53 mm||435 g||500||n||Sep 2006||699|
|17.||Panasonic L10||135 mm||96 mm||78 mm||556 g||450||n||Aug 2007||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-410 was launched at a markedly lower price (by 79 percent) than the 5D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

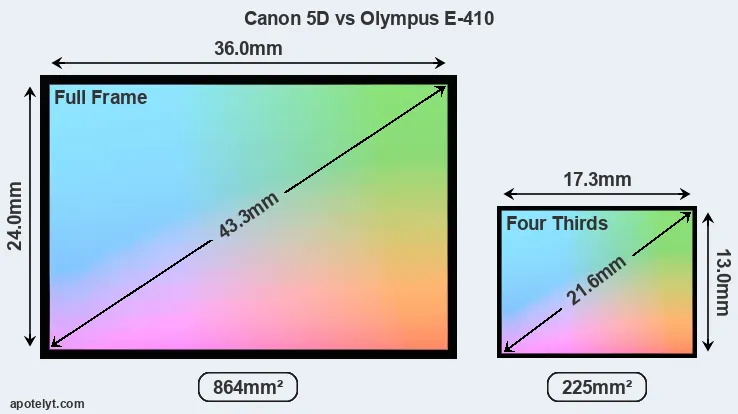

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Olympus E-410 a Four Thirds sensor. The sensor area in the E-410 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the 5D has a native 3:2 aspect ratio, while the one in the E-410 offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

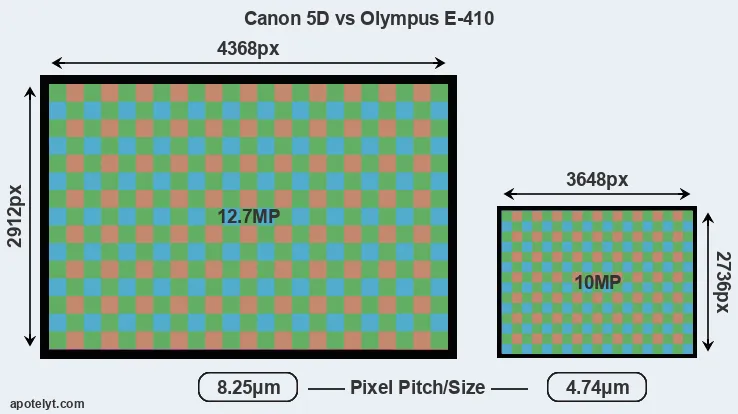

With 12.7MP, the 5D offers a higher resolution than the E-410 (10MP), but the 5D nevertheless has larger individual pixels (pixel pitch of 8.25μm versus 4.74μm for the E-410) due to its larger sensor. However, the E-410 is a somewhat more recent model (by 1 year and 6 months) than the 5D, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D for good quality output (200 dots per inch) amounts to 21.8 x 14.6 inches or 55.5 x 37 cm, for very good quality (250 dpi) 17.5 x 11.6 inches or 44.4 x 29.6 cm, and for excellent quality (300 dpi) 14.6 x 9.7 inches or 37 x 24.7 cm. The corresponding values for the Olympus E-410 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Olympus E-410 are ISO 100 to ISO 1600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 5D provides substantially higher image quality than the E-410, with an overall score that is 20 points higher. This advantage is based on 1.8 bits higher color depth, 1.1 EV in additional dynamic range, and 1.5 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|1.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|2.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|5.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|6.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|7.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|8.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|9.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|11.||Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|12.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
|13.||Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|14.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|15.||Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|16.||Olympus E-400||Four Thirds||10.0||3648||2736||none||..||..||..||..|
|17.||Panasonic L10||Four Thirds||10.0||3648||2736||none||21.3||10.8||429||55|
Beyond body and sensor, cameras can and do differ across a range of features. The 5D and the E-410 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D offers a wider field of view (96%) than the one in the E-410 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5D has a higher magnification (0.71x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5D and Olympus E-410 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 5D||optical||Y||2.5 / 230||fixed||n||1/8000s||3.0||n||n|
|2.||Olympus E-410||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||n|
|3.||Canon 6D Mark II||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.5||n||n|
|4.||Canon 5D Mark IV||optical||Y||3.2 / 1620||fixed||Y||1/8000s||7.0||n||n|
|5.||Canon 5DS||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0||n||n|
|6.||Canon 5DS R||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0||n||n|
|7.||Canon 5D Mark III||optical||Y||3.2 / 1040||fixed||n||1/8000s||6.0||n||n|
|8.||Canon 6D||optical||Y||3.0 / 1040||fixed||n||1/4000s||4.5||n||n|
|9.||Canon 5D Mark II||optical||Y||3.0 / 920||fixed||n||1/8000s||3.9||n||n|
|10.||Canon 50D||optical||Y||3.0 / 920||fixed||n||1/8000s||6.3||Y||n|
|11.||Canon 1D Mark II N||optical||Y||2.5 / 230||fixed||n||1/8000s||8.5||n||n|
|12.||Nikon D700||optical||Y||3.0 / 922||fixed||n||1/8000s||8.0||Y||n|
|13.||Olympus E-420||optical||n||2.7 / 215||fixed||n||1/4000s||3.5||Y||n|
|14.||Olympus E-520||optical||n||2.7 / 215||fixed||n||1/4000s||3.5||Y||Y|
|15.||Olympus E-510||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||Y|
|16.||Olympus E-400||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||n|
|17.||Panasonic L10||optical||n||2.5 / 207||swivel||n||1/4000s||3.0||Y||n|
One feature that is present on the 5D, but is missing on the E-410 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 5D writes its imaging data to Compact Flash cards, while the E-410 uses Compact Flash or xD Picture cards. The E-410 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 5D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Olympus E-410 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 5D||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Olympus E-410||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Canon 6D Mark II||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 5D Mark IV||Y||mono / mono||Y||Y||mini||3.0||Y||Y||-|
|5.||Canon 5DS||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|6.||Canon 5DS R||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|7.||Canon 5D Mark III||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|8.||Canon 6D||Y||mono / mono||Y||-||mini||2.0||Y||-||-|
|9.||Canon 5D Mark II||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon 50D||Y||- / -||-||-||mini||2.0||-||-||-|
|11.||Canon 1D Mark II N||Y||- / -||-||-||-||1.1||-||-||-|
|12.||Nikon D700||Y||- / -||-||-||mini||2.0||-||-||-|
|13.||Olympus E-420||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Olympus E-520||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Olympus E-510||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Olympus E-400||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Panasonic L10||Y||- / -||-||-||-||2.0||-||-||-|
Studio photographers will appreciate that the Canon 5D (unlike the E-410) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D and the E-410 have been discontinued, but can regularly be found used on eBay. The 5D was replaced by the Canon 5D Mark II, while the E-410 was followed by the Olympus E-420. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Which of the two cameras – the Canon 5D or the Olympus E-410 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 5D:
- More detail: Offers more megapixels (12.7 vs 10MP) with a 15% higher linear resolution.
- Better image quality: Scores substantially higher (20 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.8 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.1 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.5 stops ISO advantage).
- More complete view: Has a viewfinder with a larger field of view (96% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been on the market for longer (launched in August 2005).
Reasons to prefer the Olympus E-410:
- More compact: Is smaller (130x91mm vs 152x113mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 460g or 51 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (500 versus 400) out of a single battery charge.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (79 percent cheaper at launch).
- More modern: Was introduced somewhat (1 year and 6 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the 5D is the clear winner of the match-up (12 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D and the Olympus E-410 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 5D and the E-410 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D||..||88/100||..||+ +||o||..||Aug 2005||3,299|
|2.||Olympus E-410||..||86/100||..||+ +||4/5||4.5/5||Mar 2007||699|
|3.||Canon 6D Mark II||4/5||+||4/5||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 5D Mark IV||4.5/5||+ +||4/5||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|5.||Canon 5DS||..||+||..||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|6.||Canon 5DS R||5/5||+||..||83/100||5/5||4.5/5||Feb 2015||3,699|
|7.||Canon 5D Mark III||..||+ +||..||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|8.||Canon 6D||5/5||+ +||..||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|9.||Canon 5D Mark II||4/5||91/100||..||79/100||4/5||..||Sep 2008||3,499|
|10.||Canon 50D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|11.||Canon 1D Mark II N||..||..||..||..||..||..||Aug 2005||3,999|
|12.||Nikon D700||..||89/100||..||+ +||4.5/5||4.5/5||Jul 2008||2,999|
|13.||Olympus E-420||..||85/100||..||+ +||4/5||4.5/5||Mar 2008||599|
|14.||Olympus E-520||..||87/100||..||+ +||4.5/5||4.5/5||May 2008||699|
|15.||Olympus E-510||..||89/100||..||+ +||3.5/5||4.5/5||Mar 2007||799|
|16.||Olympus E-400||..||85/100||..||..||4/5||4/5||Sep 2006||699|
|17.||Panasonic L10||..||85/100||..||+||3.5/5||4/5||Aug 2007||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 5D vs Olympus E-410
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D||Olympus E-410|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||August 2005||March 2007|
|Launch Price||USD 3,299||USD 699|
|Sensor Specs||Canon 5D||Olympus E-410|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||36.0 x 24.0 mm||17.3 x 13.0 mm|
|Sensor Area||864 mm2||224.9 mm2|
|Sensor Diagonal||43.3 mm||21.6 mm|
|Sensor Resolution||12.7 Megapixels||10 Megapixels|
|Image Resolution||4368 x 2912 pixels||3648 x 2736 pixels|
|Pixel Pitch||8.25 μm||4.74 μm|
|Pixel Density||1.47 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||no Video|
|ISO Setting||100 - 1,600 ISO||100 - 1,600 ISO|
|ISO Boost||50 - 3,200 ISO||no Enhancement|
|Image Processor||DIGIC 2||TruePic III|
|DXO Sensor Quality (score)||71||51|
|DXO Color Depth (bits)||22.9||21.1|
|DXO Dynamic Range (EV)||11.1||10.0|
|DXO Low Light (ISO)||1368||494|
|Screen Specs||Canon 5D||Olympus E-410|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||2.5inch|
|LCD Resolution||230k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 5D||Olympus E-410|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||3 shutter flaps/s|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 5D||Olympus E-410|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 5D||Olympus E-410|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||400 shots per charge||500 shots per charge|
152 x 113 x 75 mm
(6.0 x 4.4 x 3.0 in)
130 x 91 x 53 mm
(5.1 x 3.6 x 2.1 in)
|Camera Weight||895 g (31.6 oz)||435 g (15.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
