Canon 5D vs Leica S3
The Canon EOS 5D and the Leica S3 are two professional cameras that were announced, respectively, in August 2005 and September 2018. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D) and a medium format (S3) sensor. The Canon has a resolution of 12.7 megapixels, whereas the Leica provides 64 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Leica S3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

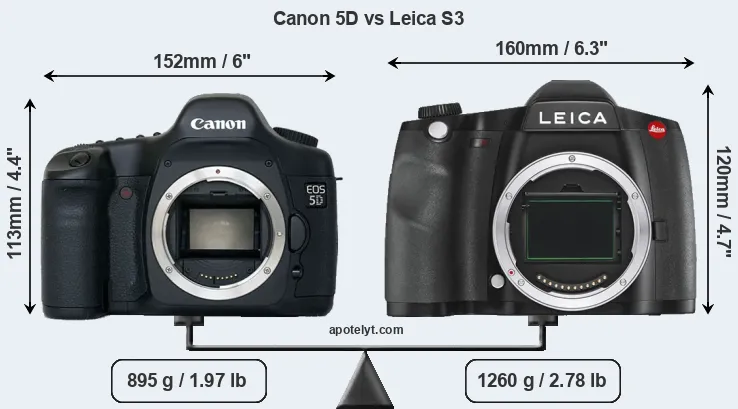

The side-by-side display below illustrates the physical size and weight of the Canon 5D and the Leica S3. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica S3 is notably larger (12 percent) than the Canon 5D. Moreover, the S3 is substantially heavier (41 percent) than the 5D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|2.||Leica S3||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2018||18,995|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|5.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|6.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|7.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|8.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|9.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|10.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|11.||Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999|
|12.||Leica M10||139 mm||80 mm||39 mm||660 g||210||Y||Jan 2017||6,595|
|13.||Leica S-E Typ 006||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2014||16,900|
|14.||Leica S Typ 007||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2014||24,490|
|15.||Leica S Typ 006||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2012||21,950|
|16.||Leica S2||160 mm||120 mm||80 mm||1410 g||..||Y||Sep 2008||22,995|
|17.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 5D was launched at a markedly lower price (by 83 percent) than the S3, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Leica S3 a medium format sensor. The sensor area in the S3 is 56 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 0.8. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
With 64MP, the S3 offers a higher resolution than the 5D (12.7MP), but the S3 has smaller individual pixels (pixel pitch of 4.59μm versus 8.25μm for the 5D). Yet, the S3 is a much more recent model (by 13 years and 1 month) than the 5D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S3 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica S3 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S3 for good quality output (200 dots per inch) amounts to 49 x 32.7 inches or 124.5 x 83 cm, for very good quality (250 dpi) 39.2 x 26.1 inches or 99.6 x 66.4 cm, and for excellent quality (300 dpi) 32.7 x 21.8 inches or 83 x 55.3 cm. The corresponding values for the Canon 5D are 21.8 x 14.6 inches or 55.5 x 37 cm for good quality, 17.5 x 11.6 inches or 44.4 x 29.6 cm for very good quality, and 14.6 x 9.7 inches or 37 x 24.7 cm for excellent quality prints.
The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Leica S3 are ISO 100 to ISO 50000 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|2.||Leica S3||Medium Format||64.0||9800||6533||4K/24p||..||..||..||..|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|5.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|6.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|7.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|8.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|9.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|11.||Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|12.||Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|13.||Leica S-E Typ 006||Medium Format||37.5||7500||5000||none||..||..||..||..|
|14.||Leica S Typ 007||Medium Format||37.5||7500||5000||4K/24p||..||..||..||..|
|15.||Leica S Typ 006||Medium Format||37.5||7500||5000||none||23.9||12.2||824||76|
|16.||Leica S2||Medium Format||37.5||7500||5000||none||..||..||..||..|
|17.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The S3 indeed provides for movie recording, while the 5D does not. The highest resolution format that the S3 can use is 4K/24p.
Apart from body and sensor, cameras can and do differ across a range of features. The 5D and the S3 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the S3 offers a wider field of view (98%) than the one in the 5D (96%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the S3 has a higher magnification (0.87x vs 0.71x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 5D, the Leica S3, and comparable cameras.
|3.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|4.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|6.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|7.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|9.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|11.||Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n|
|13.||Leica S-E Typ 006||optical||Y||3.0||922||fixed||n||1/4000s||1.5||n||n|
|14.||Leica S Typ 007||optical||Y||3.0||922||fixed||n||1/4000s||3.5||n||n|
|15.||Leica S Typ 006||optical||Y||3.0||922||fixed||n||1/4000s||1.5||n||n|
The 5D writes its imaging data to Compact Flash cards, while the S3 uses Compact Flash or SDXC cards. The S3 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 5D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Leica S3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|6.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|7.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|9.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|11.||Canon 1D Mark II N||Y||-||-||-||-||-||1.1||-||-||-|
|13.||Leica S-E Typ 006||Y||-||-||-||-||mini||2.0||-||-||-|
|14.||Leica S Typ 007||Y||stereo||mono||Y||Y||mini||3.0||Y||-||-|
|15.||Leica S Typ 006||Y||-||-||-||-||mini||2.0||-||-||-|
It is notable that the S3 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5D does not provide wifi capability.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the S3 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The S3 is a recent model that features in the current product line-up of Leica. In contrast, the 5D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 5D was succeeded by the Canon 5D Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So what is the bottom line? Is there a clear favorite between the Canon 5D and the Leica S3? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS 5D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- More compact: Is smaller (152x113mm vs 160x120mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 365g or 29 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced category (83 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2005).
Reasons to prefer the Leica S3:
- More detail: Has more megapixels (64 vs 12.7MP), which boosts linear resolution by 124%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can capture not only stills but also 4K/24p video.
- More complete view: Has a viewfinder with a larger field of view (98% vs 96%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.87x vs 0.71x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More modern: Reflects 13 years and 1 month of technical progress since the 5D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the S3 is the clear winner of the contest (17 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D and the Leica S3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D or the S3. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|2.||Leica S3||..||..||..||..||..||Sep 2018||18,995|
|3.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|5.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|6.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|7.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|8.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|9.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|10.||Canon 50D||..||+ +||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|11.||Canon 1D Mark II N||..||..||..||..||..||Aug 2005||3,999|
|12.||Leica M10||4.5/5||..||..||4/5||4.5/5||Jan 2017||6,595|
|13.||Leica S-E Typ 006||..||..||..||..||..||Sep 2014||16,900|
|14.||Leica S Typ 007||4/5||..||..||..||..||Sep 2014||24,490|
|15.||Leica S Typ 006||..||..||..||..||..||Sep 2012||21,950|
|16.||Leica S2||..||..||..||..||..||Sep 2008||22,995|
|17.||Nikon D700||..||89/100||+ +||4.5/5||4.5/5||Jul 2008||2,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 5D vs Leica S3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D||Leica S3|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Leica S mount lenses|
|Launch Date||August 2005||September 2018|
|Launch Price||USD 3,299||USD 18,995|
|Sensor Specs||Canon 5D||Leica S3|
|Sensor Format||Full Frame Sensor||Medium Format Sensor|
|Sensor Size||36.0 x 24.0 mm||45.0 x 30.0 mm|
|Sensor Area||864 mm2||1350 mm2|
|Sensor Diagonal||43.3 mm||54.1 mm|
|Sensor Resolution||12.7 Megapixels||64 Megapixels|
|Image Resolution||4368 x 2912 pixels||9800 x 6533 pixels|
|Pixel Pitch||8.25 μm||4.59 μm|
|Pixel Density||1.47 MP/cm2||4.74 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||4K/24p Video|
|ISO Setting||100 - 1,600 ISO||100 - 50,000 ISO|
|ISO Boost||50 - 3,200 ISO||no Enhancement|
|Image Processor||DIGIC 2||Maestro II|
|DXO Sensor Quality (score)||71||..|
|DXO Color Depth (bits)||22.9||..|
|DXO Dynamic Range (EV)||11.1||..|
|DXO Low Light (ISO)||1368||..|
|Screen Specs||Canon 5D||Leica S3|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||98%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||922k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 5D||Leica S3|
|Focus System||Phase-detect AF||Phase-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||3 shutter flaps/s||3 shutter flaps/s|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||CF or SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 5D||Leica S3|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon 5D||Leica S3|
|Environmental Sealing||Weathersealed body||Weathersealed body|
152 x 113 x 75 mm
(6.0 x 4.4 x 3.0 in)
160 x 120 x 80 mm
(6.3 x 4.7 x 3.1 in)
|Camera Weight||895 g (31.6 oz)||1260 g (44.4 oz)|
