Canon 5D vs Epson R-D1

The Canon EOS 5D and the Epson R-D1 are two digital cameras that were announced, respectively, in August 2005 and March 2004. The 5D is a DSLR, while the R-D1 is a rangefinder-focusing mirrorless camera. The cameras are based on a full frame (5D) and an APS-C (R-D1) sensor. The Canon has a resolution of 12.7 megapixels, whereas the Epson provides 6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 5D		Epson R-D1
Digital single lens reflex		Rangefinder camera
Canon EF mount lenses		Leica M mount lenses
12.7 MP – Full Frame sensor		6 MP – APS-C sensor
no Video		no Video
ISO 100-1,600 (50 - 3,200)		ISO 200-1,600
Optical viewfinder		Optical viewfinder
2.5" LCD – 230k dots		2.0" LCD – 235k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		1 shutter flaps per second
Weathersealed body		not weather sealed
152 x 113 x 75 mm, 895 g		142 x 89 x 40 mm, 620 g

Check 5D offers at
ebay.com
Check R-D1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Epson R-D1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

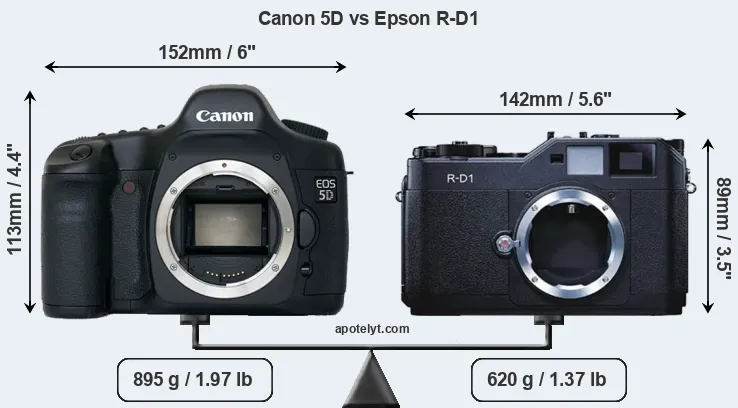

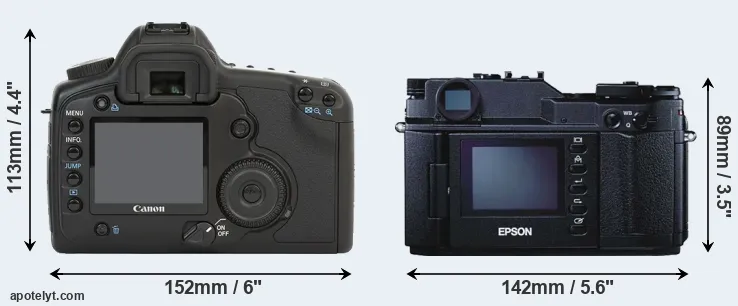

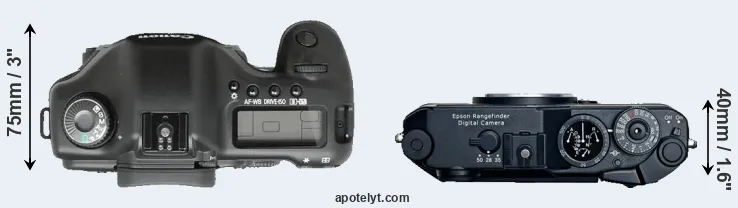

Body comparison

The physical size and weight of the Canon 5D and the Epson R-D1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Epson R-D1 is notably smaller (26 percent) than the Canon 5D. Moreover, the R-D1 is markedly lighter (31 percent) than the 5D. It is worth mentioning in this context that the 5D is splash and dust resistant, while the R-D1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D) and the Leica M Lens Catalog (R-D1).

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 5D	152 mm	113 mm	75 mm	895 g	400	Y	Aug 2005	US$ 3 299	ebay.com
2.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	US$ 2 999	ebay.com
3.		Canon 1D Mark II N	156 mm	158 mm	80 mm	1565 g	1200	Y	Aug 2005	US$ 3 999	ebay.com
4.		Canon 1Ds	156 mm	158 mm	80 mm	1265 g	600	Y	Sep 2002	US$ 8 999	ebay.com
5.		Canon 1Ds Mark II	156 mm	158 mm	80 mm	1215 g	1200	Y	Sep 2004	US$ 7 999	ebay.com
6.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	US$ 3 499	ebay.com
7.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	US$ 3 499	ebay.com
8.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
9.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
10.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
11.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
12.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
13.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
14.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
15.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
16.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
17.		Nikon D700	147 mm	123 mm	77 mm	1074 g	1000	Y	Jul 2008	US$ 2 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The R-D1 was somewhat cheaper (by 9 percent) than the 5D at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

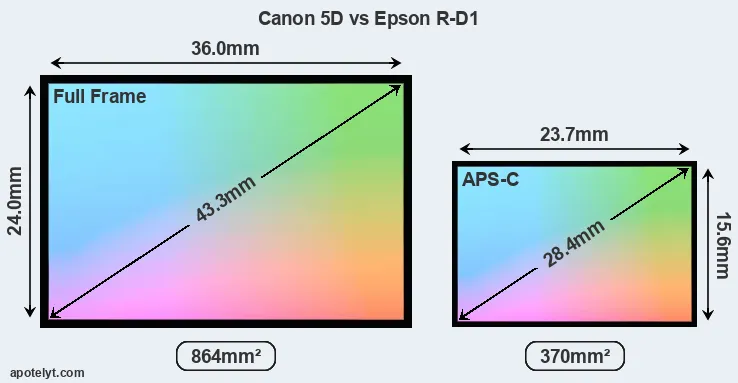

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Epson R-D1 an APS-C sensor. The sensor area in the R-D1 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 12.7MP, the 5D offers a higher resolution than the R-D1 (6MP), but the 5D nevertheless has larger individual pixels (pixel pitch of 8.25μm versus 7.85μm for the R-D1) due to its larger sensor. Moreover, the 5D is a somewhat more recent model (by 1 year and 5 months) than the R-D1, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 5D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D for good quality output (200 dots per inch) amounts to 21.8 x 14.6 inches or 55.5 x 37 cm, for very good quality (250 dpi) 17.5 x 11.6 inches or 44.4 x 29.6 cm, and for excellent quality (300 dpi) 14.6 x 9.7 inches or 37 x 24.7 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Epson R-D1 are ISO 200 to ISO 1600 (no boost).

In terms of underlying technology, the 5D is build around a CMOS sensor, while the R-D1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 5D	Full Frame	12.7	4368	2912	none	22.9	11.1	1368	71
2.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
3.		Canon 1D Mark II N	APS-H	8.2	3504	2336	none	22.3	11.2	975	66
4.		Canon 1Ds	Full Frame	11.0	4064	2704	none	21.8	11.0	954	63
5.		Canon 1Ds Mark II	Full Frame	16.6	4992	3328	none	23.3	11.3	1480	74
6.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
7.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
8.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
9.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
10.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
11.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
12.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
13.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
14.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
15.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
16.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
17.		Nikon D700	Full Frame	12.1	4256	2832	none	23.5	12.2	2303	80
Note: DXO values in italics represent estimates based on sensor size and age.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The 5D and the R-D1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The adjacent table lists some of the other core features of the Canon 5D and Epson R-D1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 5D	optical	Y	2.5 / 230	fixed	n	1/8000s	3.0/s	n	n
2.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
3.		Canon 1D Mark II N	optical	Y	2.5 / 230	fixed	n	1/8000s	8.5/s	n	n
4.		Canon 1Ds	optical	Y	2.0 / 120	fixed	n	1/8000s	3.0/s	n	n
5.		Canon 1Ds Mark II	optical	Y	2.0 / 230	fixed	n	1/8000s	4.0/s	n	n
6.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
7.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
8.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
9.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
10.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
11.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
12.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
13.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
14.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
15.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
16.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
17.		Nikon D700	optical	Y	3.0 / 922	fixed	n	1/8000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 5D, but is missing on the R-D1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 5D writes its imaging data to Compact Flash cards, while the R-D1 uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Epson R-D1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 5D	Y	- / -	-	-	-	2.0	-	-	-
2.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
3.		Canon 1D Mark II N	Y	- / -	-	-	-	1.1	-	-	-
4.		Canon 1Ds	Y	- / -	-	-	-	FW	-	-	-
5.		Canon 1Ds Mark II	Y	- / -	-	-	-	2.0	-	-	-
6.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
7.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
8.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
9.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
10.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
11.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
12.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
13.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
15.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
16.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
17.		Nikon D700	Y	- / -	-	-	mini	2.0	-	-	-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the 5D and the R-D1 have been discontinued, but can regularly be found used on ebay. The 5D was replaced by the Canon 5D Mark II, while the R-D1 does not have a direct successor. Further information on the features and operation of the 5D and R-D1 can be found, respectively, in the Canon 5D Manual (free pdf) or the online Epson R-D1 Manual.

Review summary

So what is the bottom line? Is the Canon 5D better than the Epson R-D1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS 5D:

• More detail: Offers more megapixels (12.7 vs 6MP) with a 45% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Larger screen: Has a bigger rear LCD (2.5" vs 2.0") for image review and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (3 vs 1 flaps/sec) to capture the decisive moment.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• More modern: Is somewhat more recent (announced 1 year and 5 months after the R-D1).

Arguments in favor of the Epson R-D1:

• More compact: Is smaller (142x89mm vs 152x113mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 275g or 31 percent) and is thus easier to take along.
• More heavily discounted: Has been on the market for longer (launched in March 2004).

If the count of individual advantages (bullet points above) is taken as a guide, the 5D is the clear winner of the match-up (11 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 5D and the R-D1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 5D	..	88/100	..	+ +	o	..	Aug 2005	US$ 3 299	ebay.com
2.		Epson R-D1	..	..	..	..	..	..	Mar 2004	US$ 2 999	ebay.com
3.		Canon 1D Mark II N	..	..	..	..	..	..	Aug 2005	US$ 3 999	ebay.com
4.		Canon 1Ds	..	..	..	+ +	..	..	Sep 2002	US$ 8 999	ebay.com
5.		Canon 1Ds Mark II	..	..	..	+ +	..	..	Sep 2004	US$ 7 999	ebay.com
6.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	US$ 3 499	ebay.com
7.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	US$ 3 499	ebay.com
8.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
9.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
10.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
11.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
12.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
13.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
14.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
15.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
16.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
17.		Nikon D700	..	89/100	..	+ +	4.5/5	4.5/5	Jul 2008	US$ 2 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
