Canon 20D vs Leica S3

The Canon EOS 20D and the Leica S3 are two digital cameras that were officially introduced, respectively, in August 2004 and September 2018. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (20D) and a medium format (S3) sensor. The Canon has a resolution of 8.2 megapixels, whereas the Leica provides 64 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 20D		Leica S3
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Leica S mount lenses
8.2 MP – APS-C sensor		64 MP – Medium Format sensor
no Video		4K/24p Video
ISO 100-1,600 (100 - 3,200)		ISO 100-50,000
Optical viewfinder		Optical viewfinder
1.8" LCD – 118k dots		3.0" LCD – 922k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		3 shutter flaps per second
not weather sealed		Weathersealed body
144 x 106 x 72 mm, 770 g		160 x 120 x 80 mm, 1260 g

Check 20D offers at
ebay.com
Check S3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 20D and the Leica S3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

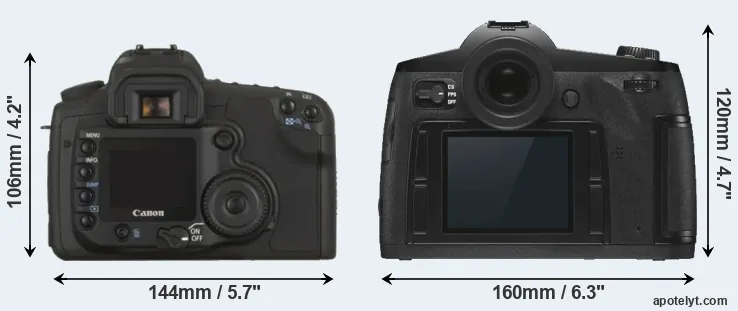

The physical size and weight of the Canon 20D and the Leica S3 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica S3 is notably larger (26 percent) than the Canon 20D. Moreover, the S3 is substantially heavier (64 percent) than the 20D. It is noteworthy in this context that the S3 is splash and dust-proof, while the 20D does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 20D gets 700 shots out of its Canon BP-511A battery, while the S3 can take .. images on a single charge of its Leica BP-PRO1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	US$ 1 499	ebay.com
2.		Leica S3	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2018	US$ 18 999	ebay.com
3.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
4.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	US$ 1 799	ebay.com
5.		Canon 10D	150 mm	107 mm	75 mm	850 g	500	n	Feb 2003	US$ 1 999	ebay.com
6.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	US$ 1 399	ebay.com
7.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
8.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
9.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
10.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
11.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
12.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
13.		Leica S2	160 mm	120 mm	80 mm	1410 g	..	Y	Sep 2008	US$ 22 999	ebay.com
14.		Leica S Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2012	US$ 21 949	ebay.com
15.		Leica S-E Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2014	US$ 16 599	ebay.com
16.		Leica S Typ 007	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2014	US$ 24 499	ebay.com
17.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	US$ 1 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 20D was launched at a markedly lower price (by 92 percent) than the S3, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 20D features an APS-C sensor and the Leica S3 a medium format sensor. The sensor area in the S3 is 299 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 0.8. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

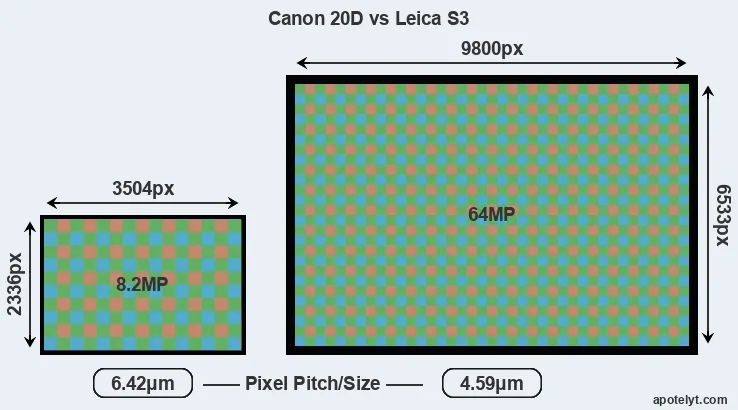

With 64MP, the S3 offers a higher resolution than the 20D (8.2MP), but the S3 has smaller individual pixels (pixel pitch of 4.59μm versus 6.42μm for the 20D). Yet, the S3 is a much more recent model (by 14 years and 1 month) than the 20D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S3 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica S3 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S3 for good quality output (200 dots per inch) amounts to 49 x 32.7 inches or 124.5 x 83 cm, for very good quality (250 dpi) 39.2 x 26.1 inches or 99.6 x 66.4 cm, and for excellent quality (300 dpi) 32.7 x 21.8 inches or 83 x 55.3 cm. The corresponding values for the Canon 20D are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.

The Canon EOS 20D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Leica S3 are ISO 100 to ISO 50000 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
2.		Leica S3	Medium Format	64.0	9800	6533	4K/24p	25.6	14.4	3143	98
3.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
4.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
5.		Canon 10D	APS-C	6.3	3072	2048	none	21.1	10.9	571	57
6.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
7.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
8.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
9.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
10.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
11.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
12.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
13.		Leica S2	Medium Format	37.5	7500	5000	none	23.9	12.5	2224	82
14.		Leica S Typ 006	Medium Format	37.5	7500	5000	none	23.9	12.2	824	76
15.		Leica S-E Typ 006	Medium Format	37.5	7500	5000	none	25.1	13.7	2763	93
16.		Leica S Typ 007	Medium Format	37.5	7500	5000	4K/24p	25.1	13.7	2763	93
17.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The S3 indeed provides for movie recording, while the 20D does not. The highest resolution format that the S3 can use is 4K/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The 20D and the S3 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the S3 offers a wider field of view (98%) than the one in the 20D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the S3 has a higher magnification (0.87x vs 0.56x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 20D, the Leica S3, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
2.		Leica S3	optical	Y	3.0 / 922	fixed	n	1/4000s	3.0/s	n	n
3.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
4.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
5.		Canon 10D	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
7.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
8.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
9.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
10.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
11.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
12.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
13.		Leica S2	optical	Y	3.0 / 460	fixed	n	1/4000s	1.5/s	n	n
14.		Leica S Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
15.		Leica S-E Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
16.		Leica S Typ 007	optical	Y	3.0 / 922	fixed	n	1/4000s	3.5/s	n	n
17.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 20D has one, while the S3 does not. While the built-in flash of the 20D is not very powerful, it can at times be useful as a fill-in light.

The 20D writes its imaging data to Compact Flash cards, while the S3 uses Compact Flash or SDXC cards. The S3 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 20D only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 20D and Leica S3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
2.		Leica S3	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
3.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
4.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
5.		Canon 10D	Y	- / -	-	-	-	1.1	-	-	-
6.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
7.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
8.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
9.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
11.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-
12.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
13.		Leica S2	Y	- / -	-	-	mini	2.0	-	-	-
14.		Leica S Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
15.		Leica S-E Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
16.		Leica S Typ 007	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
17.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the S3 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 20D does not provide wifi capability.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Travel and landscape photographers will find it useful that the S3 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the 20D and the S3 have been discontinued, but can regularly be found used on ebay. The 20D was replaced by the Canon 30D, while the S3 does not have a direct successor. Further information on the features and operation of the 20D and S3 can be found, respectively, in the Canon 20D Manual (free pdf) or the online Leica S3 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon 20D and the Leica S3? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS 20D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (144x106mm vs 160x120mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 490g or 39 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (92 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in August 2004).

Arguments in favor of the Leica S3:

• More detail: Has more megapixels (64 vs 8.2MP), which boosts linear resolution by 180%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can capture not only stills but also 4K/24p video.
• More complete view: Has a viewfinder with a larger field of view (98% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.87x vs 0.56x).
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (922k vs 118k dots).
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 1.1).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More modern: Reflects 14 years and 1 month of technical progress since the 20D launch.

If the count of relative strengths (bullet points above) is taken as a measure, the S3 is the clear winner of the contest (18 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 20D and the Leica S3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 20D or the S3. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	US$ 1 499	ebay.com
2.		Leica S3	..	..	..	..	..	..	Sep 2018	US$ 18 999	ebay.com
3.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
4.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	US$ 1 799	ebay.com
5.		Canon 10D	..	..	..	+ +	..	..	Feb 2003	US$ 1 999	ebay.com
6.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	US$ 1 399	ebay.com
7.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
8.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
9.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
10.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
11.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
12.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
13.		Leica S2	..	..	..	..	..	..	Sep 2008	US$ 22 999	ebay.com
14.		Leica S Typ 006	..	..	..	..	..	..	Sep 2012	US$ 21 949	ebay.com
15.		Leica S-E Typ 006	..	..	..	..	..	..	Sep 2014	US$ 16 599	ebay.com
16.		Leica S Typ 007	4/5	..	..	..	..	..	Sep 2014	US$ 24 499	ebay.com
17.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	US$ 1 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
