Canon 20D vs Epson R-D1

The Canon EOS 20D and the Epson R-D1 are two enthusiast cameras that were revealed to the public, respectively, in August 2004 and March 2004. The 20D is a DSLR, while the R-D1 is a rangefinder-focusing mirrorless camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 8.2 megapixels, whereas the Epson provides 6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 20D		Epson R-D1
Digital single lens reflex		Rangefinder camera
Canon EF mount lenses		Leica M mount lenses
8.2 MP – APS-C sensor		6 MP – APS-C sensor
no Video		no Video
ISO 100-1,600 (100 - 3,200)		ISO 200-1,600
Optical viewfinder		Optical viewfinder
1.8" LCD – 118k dots		2.0" LCD – 235k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		1 shutter flaps per second
144 x 106 x 72 mm, 770 g		142 x 89 x 40 mm, 620 g

Check 20D offers at
ebay.com
Check R-D1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 20D and the Epson R-D1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

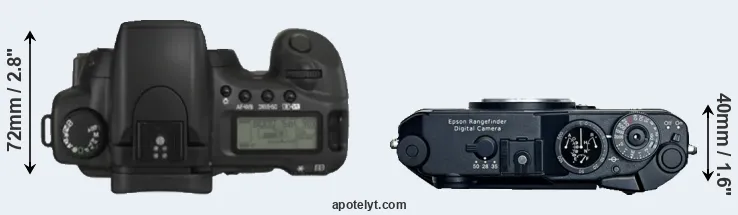

The side-by-side display below illustrates the physical size and weight of the Canon 20D and the Epson R-D1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Epson R-D1 is notably smaller (17 percent) than the Canon 20D. Moreover, the R-D1 is markedly lighter (19 percent) than the 20D. In this context, it is worth noting that neither the 20D nor the R-D1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (20D) and the Leica M Lens Catalog (R-D1).

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	US$ 1 499	ebay.com
2.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	US$ 2 999	ebay.com
3.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
4.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	US$ 1 799	ebay.com
5.		Canon 10D	150 mm	107 mm	75 mm	850 g	500	n	Feb 2003	US$ 1 999	ebay.com
6.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	US$ 1 399	ebay.com
7.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
8.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
9.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
10.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
11.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
12.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
13.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
14.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
15.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
16.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	US$ 1 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 20D was launched at a markedly lower price (by 50 percent) than the R-D1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the R-D1 is 9 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (20D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the Canon 20D offers a higher resolution of 8.2 megapixels, compared with 6 MP of the Epson R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 6.42μm versus 7.85μm for the R-D1). However, it should be noted that the 20D is a somewhat more recent model (by 5 months) than the R-D1, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage.

The resolution advantage of the Canon 20D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 20D for good quality output (200 dots per inch) amounts to 17.5 x 11.7 inches or 44.5 x 29.7 cm, for very good quality (250 dpi) 14 x 9.3 inches or 35.6 x 23.7 cm, and for excellent quality (300 dpi) 11.7 x 7.8 inches or 29.7 x 19.8 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Canon EOS 20D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Epson R-D1 are ISO 200 to ISO 1600 (no boost).

In terms of underlying technology, the 20D is build around a CMOS sensor, while the R-D1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
2.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
3.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
4.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
5.		Canon 10D	APS-C	6.3	3072	2048	none	21.1	10.9	571	57
6.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
7.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
8.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
9.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
10.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
11.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
12.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
13.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
14.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
15.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
16.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
Note: DXO values in italics represent estimates based on sensor size and age.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The 20D and the R-D1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The adjacent table lists some of the other core features of the Canon 20D and Epson R-D1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
2.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
3.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
4.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
5.		Canon 10D	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
7.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
8.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
9.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
10.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
11.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
12.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
13.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
14.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
15.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
16.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 20D has one, while the R-D1 does not. While the built-in flash of the 20D is not very powerful, it can at times be useful as a fill-in light.

The 20D writes its imaging data to Compact Flash cards, while the R-D1 uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 20D and Epson R-D1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
2.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
3.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
4.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
5.		Canon 10D	Y	- / -	-	-	-	1.1	-	-	-
6.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
7.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
8.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
9.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
11.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-
12.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
14.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
15.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
16.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the 20D and the R-D1 have been discontinued, but can regularly be found used on ebay. The 20D was replaced by the Canon 30D, while the R-D1 does not have a direct successor. Further information on the features and operation of the 20D and R-D1 can be found, respectively, in the Canon 20D Manual (free pdf) or the online Epson R-D1 Manual.

Review summary

So what conclusions can be drawn? Is the Canon 20D better than the Epson R-D1 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS 20D:

• More detail: Offers more megapixels (8.2 vs 6MP) with a 17% higher linear resolution.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (5 vs 1 flaps/sec) to capture the decisive moment.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 5 months after the R-D1).

Arguments in favor of the Epson R-D1:

• Larger screen: Has a bigger rear LCD (2.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (235k vs 118k dots).
• More compact: Is smaller (142x89mm vs 144x106mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 150g or 19 percent) and is thus easier to take along.
• More heavily discounted: Has been on the market for longer (launched in March 2004).

If the number of relative strengths (bullet points above) is taken as a guide, the 20D emerges as the winner of the contest (7 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 20D and the R-D1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	US$ 1 499	ebay.com
2.		Epson R-D1	..	..	..	..	..	..	Mar 2004	US$ 2 999	ebay.com
3.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
4.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	US$ 1 799	ebay.com
5.		Canon 10D	..	..	..	+ +	..	..	Feb 2003	US$ 1 999	ebay.com
6.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	US$ 1 399	ebay.com
7.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
8.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
9.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
10.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
11.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
12.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
13.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
14.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
15.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
16.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	US$ 1 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
