Canon 20D versus Canon 700D

The Canon EOS 20D and the Canon EOS 700D (labelled Canon T5i in some countries) are two digital cameras that were revealed to the public, respectively, in August 2004 and March 2013. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The 20D has a resolution of 8.2 megapixel, whereas the 700D provides 17.9 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 20D vs Canon 700D

An illustration of the physical size and weight of the Canon 20D and the Canon 700D is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left – the 20D – represents 100 percent across all the size and weight measures).

Compare Canon 20D vs Canon 700D

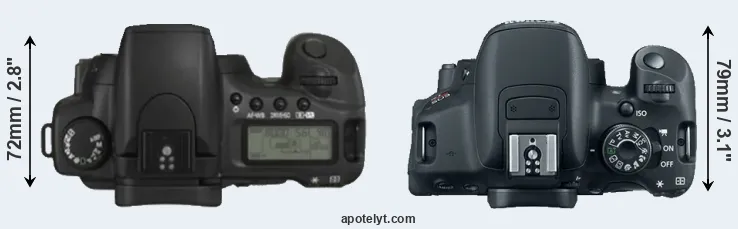

Compare 20D versus 700D top
Compare 20D and 700D rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 700D is notably smaller (13 percent) than the Canon 20D. Moreover, the 700D is markedly lighter (25 percent) than the 20D. In this context, it is worth noting that neither the 20D nor the 700D are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can find an overview of suitable optics in the Canon EF Lens Catalog.

Concerning battery life, the 20D gets 700 shots out of its BP-511A battery, while the 700D can take 440 images on a single charge of its LP-E8 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 20D» 5.7 in 4.2 in 2.8 in 27.2 oz 700 n Aug 2004 1,499- i Canon 20D
Canon 700D« 5.2 in 3.9 in 3.1 in 20.5 oz 440 n Mar 2013 649- i Canon 700D
Canon 750D« » 5.2 in 4.0 in 3.1 in 19.6 oz 440 n Feb 2015 749- i Canon 750D
Canon 7D II« » 5.9 in 4.4 in 3.1 in 32.1 oz 670 Y Sep 2014 1,799 i i Canon 7D II
Canon 1200D« » 5.1 in 3.9 in 3.1 in 16.9 oz 500 n Feb 2014 449- i Canon 1200D
Canon 100D« » 4.6 in 3.6 in 2.7 in 14.4 oz 380 n Mar 2013 549- i Canon 100D
Canon 650D« » 5.2 in 3.9 in 3.1 in 20.3 oz 440 n Jun 2012 849- i Canon 650D
Canon 600D« » 5.2 in 3.9 in 3.1 in 20.1 oz 440 n Feb 2011 599- i Canon 600D
Canon 60D« » 5.7 in 4.2 in 3.1 in 26.6 oz 1100 Y Aug 2010 1,399- i Canon 60D
Canon 7D« » 5.8 in 4.4 in 2.9 in 30.3 oz 800 Y Sep 2009 1,699- i Canon 7D
Canon 50D« » 5.7 in 4.3 in 2.9 in 29.0 oz 800 Y Aug 2008 1,299- i Canon 50D
Canon 40D« » 5.7 in 4.3 in 2.9 in 29.0 oz 750 n Aug 2007 1,299- i Canon 40D
Canon 30D« » 5.7 in 4.2 in 2.9 in 27.7 oz 750 n Feb 2006 1,399- i Canon 30D
Canon XT« » 5.0 in 3.7 in 2.5 in 19.0 oz 400 n Feb 2005 899- i Canon XT
Canon 10D« » 5.9 in 4.2 in 3.0 in 30.0 oz 500 n Feb 2003 1,999- i Canon 10D
Canon Rebel« » 5.6 in 3.9 in 2.8 in 22.9 oz 400 n Aug 2003 899- i Canon Rebel
Nikon D200« » 5.8 in 4.4 in 2.9 in 32.5 oz 400 Y Nov 2005 1,699- i Nikon D200

Any camera purchase will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 700D was launched at a markedly lower price (by 57 percent) than the 20D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 20D vs Canon 700D

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the 700D is 2 percent smaller. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the 700D uses a more advanced image processing engine (DIGIC 5) than the 20D (DIGIC 2), with benefits for noise reduction, color accuracy, and processing speed.

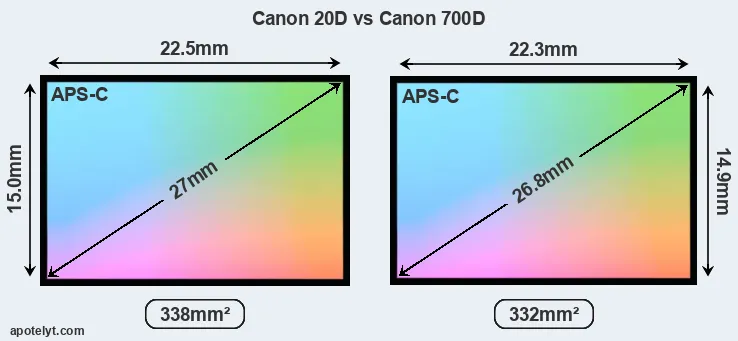

Canon 20D and Canon 700D sensor measures

Despite having a slightly smaller sensor, the 700D offers a higher resolution of 17.9 megapixel, compared with 8.2 MP of the 20D. This megapixel advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 6.42μm for the 20D). However, it should be noted that the 700D is much more recent (by 8 years and 7 months) than the 20D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The 700D has on-sensor phase detect pixels, which results in relatively fast and reliable autofocus acquisition during video recording.

20D versus 700D MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar image quality. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 20D» APS-C 8.2 3504 2336-21.911.072162Canon 20D
Canon 700D« APS-C 17.9 5184 34561080/30p21.711.268161Canon 700D
Canon 750D« » APS-C 24.0 6000 40001080/60p22.712.091971Canon 750D
Canon 7D II« » APS-C 20.0 5472 36481080/60p22.411.8108270Canon 7D II
Canon 1200D« » APS-C 17.9 5184 34561080/30p21.911.372463Canon 1200D
Canon 100D« » APS-C 17.9 5184 34561080/30p21.811.384363Canon 100D
Canon 650D« » APS-C 17.9 5184 34561080/30p21.711.272262Canon 650D
Canon 600D« » APS-C 17.9 5184 34561080/30p22.111.579365Canon 600D
Canon 60D« » APS-C 17.9 5184 34561080/30p22.211.581366Canon 60D
Canon 7D« » APS-C 17.9 5184 34561080/30p22.011.785466Canon 7D
Canon 50D« » APS-C 15.1 4752 3168-21.811.469663Canon 50D
Canon 40D« » APS-C 10.1 3888 2592-22.111.370364Canon 40D
Canon 30D« » APS-C 8.2 3504 2336-21.510.873659Canon 30D
Canon XT« » APS-C 8.0 3456 2304-21.810.863760Canon XT
Canon 10D« » APS-C 6.3 3072 2048-21.110.957157Canon 10D
Canon Rebel« » APS-C 6.3 3072 2048-21.010.854455Canon Rebel
Nikon D200« » APS-C 10.0 3872 2592-22.311.558364Nikon D200

Many modern cameras are not only capable of taking still images, but can also record movies. The 700D indeed provides for movie recording, while the 20D does not. The highest resolution format that the 700D can use is 1080/30p.



Feature comparison: Canon 20D vs Canon 700D

Beyond body and sensor, cameras can and do differ across a range of features. The 20D and the 700D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The adjacent table lists some of the other core features of the Canon 20D and Canon 700D along with similar information for a selection of comparators. If you need more detail on the specs, you can find comprehensive listings, for example, in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 20D»optical Y 1.8 118 fixed n 8000 5.0 Y n Canon 20D
Canon 700D«optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 700D
Canon 750D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 750D
Canon 7D II« »optical Y 3.0 1040 fixed n 8000 10.0 Y n Canon 7D II
Canon 1200D« »optical n 3.0 460 fixed n 4000 3.0 Y n Canon 1200D
Canon 100D« »optical n 3.0 1040 fixed Y 4000 4.9 Y n Canon 100D
Canon 650D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 650D
Canon 600D« »optical n 3.0 1040 swivel n 4000 3.7 Y n Canon 600D
Canon 60D« »optical Y 3.0 1040 swivel n 8000 5.3 Y n Canon 60D
Canon 7D« »optical Y 3.0 920 fixed n 8000 8.0 Y n Canon 7D
Canon 50D« »optical Y 3.0 920 fixed n 8000 6.3 Y n Canon 50D
Canon 40D« »optical Y 3.0 230 fixed n 8000 6.5 Y n Canon 40D
Canon 30D« »optical Y 2.5 230 fixed n 8000 5.0 Y n Canon 30D
Canon XT« »optical n 1.8 115 fixed n 4000 3.0 Y n Canon XT
Canon 10D« »optical Y 1.8 118 fixed n 4000 3.0 Y n Canon 10D
Canon Rebel« »optical n 1.8 118 fixed n 4000 2.5 Y n Canon Rebel
Nikon D200« »optical Y 2.5 230 fixed n 8000 5.0 Y n Nikon D200

One feature that is present on the 20D, but is missing on the 700D is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 20D writes its imaging data to Compact Flash cards, while the 700D uses SDXC cards.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 20D»Y-----1.1---Canon 20D
Canon 700D«YstereomonoY-mini2.0---Canon 700D
Canon 750D« »YstereomonoY-mini2.0YY-Canon 750D
Canon 7D II« »YstereomonoYYmini3.0---Canon 7D II
Canon 1200D« »Ymonomono--mini2.0---Canon 1200D
Canon 100D« »YmonomonoY-mini2.0---Canon 100D
Canon 650D« »YstereomonoY-mini2.0---Canon 650D
Canon 600D« »YmonomonoY-mini2.0---Canon 600D
Canon 60D« »YmonomonoY-mini2.0---Canon 60D
Canon 7D« »Ymono-Y-mini2.0---Canon 7D
Canon 50D« »Y----mini2.0---Canon 50D
Canon 40D« »Y-----2.0---Canon 40D
Canon 30D« »Y-----2.0---Canon 30D
Canon XT« »Y-----2.0---Canon XT
Canon 10D« »Y-----1.1---Canon 10D
Canon Rebel« »Y-----1.1---Canon Rebel
Nikon D200« »Y-----2.0---Nikon D200

Both the 20D and the 700D have been discontinued, but can regularly be found used on eBay. The 20D was replaced by the Canon 30D, while the 700D was followed by the Canon 750D.

Review summary: Canon 20D vs Canon 700D

So what is the bottom line? Which of the two cameras – the Canon 20D or the Canon 700D – has the upper hand? Below is a summary of the relative strengths of each of the two contestants.


Advantages of the Canon EOS 20D:

  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
  • Longer lasting: Can take more shots (700 versus 440) on a single battery charge.
  • More heavily discounted: Has been available for much longer (launched in August 2004).


Arguments in favor of the Canon EOS 700D:

  • More detail: Has more megapixels (17.9 vs 8.2MP), which boosts linear resolution by 48%.
  • Better jpgs: Has a more modern image processing engine (DIGIC 5 vs DIGIC 2).
  • Broader imaging potential: Can capture not only stills but also 1080/30p video.
  • Better video autofocus: Features on-sensor phase-detection for more confident movie autofocus.
  • Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 118k dots).
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More compact: Is smaller (133x100mm vs 144x106mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 190g or 25 percent) and is thus easier to take along.
  • Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
  • More affordable: Was introduced into a lower priced category (57 percent cheaper at launch).
  • More modern: Reflects 8 years and 7 months of technical progress since the 20D launch.

If the count of individual advantages (bullet points above) is taken as a guide, the 700D is the clear winner of the contest (13 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision.

20D 04:13 700D

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 20D or the 700D handle or perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is where reviews by experts come in. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The full reviews are available by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 20D»-HiRec-rev- Aug 2004 1,499- i Canon 20D
Canon 700D«-76/1004.5/54.5/54.5/5 Mar 2013 649- i Canon 700D
Canon 750D« »-75/1004.5/54.5/54.5/5 Feb 2015 749- i Canon 750D
Canon 7D II« »Rec84/1004/55/54.5/5 Sep 2014 1,799 i i Canon 7D II
Canon 1200D« »Rec-4/54/54.5/5 Feb 2014 449- i Canon 1200D
Canon 100D« »Rec78/1004/54/54/5 Mar 2013 549- i Canon 100D
Canon 650D« »HiRec77/1004.5/54.5/54.5/5 Jun 2012 849- i Canon 650D
Canon 600D« »rev77/1004.5/55/54.5/5 Feb 2011 599- i Canon 600D
Canon 60D« »Rec79/1004/55/54.5/5 Aug 2010 1,399- i Canon 60D
Canon 7D« »HiRec84/1004.5/55/54.5/5 Sep 2009 1,699- i Canon 7D
Canon 50D« »HiRecHiRec4.5/55/54.5/5 Aug 2008 1,299- i Canon 50D
Canon 40D« »HiRecHiRec4.5/5rev4.5/5 Aug 2007 1,299- i Canon 40D
Canon 30D« »HiRecHiRecrevrev- Feb 2006 1,399- i Canon 30D
Canon XT« »80/100HiRecrevrev- Feb 2005 899- i Canon XT
Canon 10D« »-HiRec-rev- Feb 2003 1,999- i Canon 10D
Canon Rebel« »-HiRec-rev- Aug 2003 899- i Canon Rebel
Nikon D200« »HiRecHiRecrev5/5- Nov 2005 1,699- i Nikon D200

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.



Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored. If you cannot find the camera you are interested in, please send me an email, and I will try to add information on that model to the database.

~
