Canon 1D Mark IV vs 1DX
The Canon EOS-1D Mark IV and the Canon EOS-1D X are two professional cameras that were revealed to the public, respectively, in October 2009 and October 2011. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D Mark IV) and a full frame (1DX) sensor. The 1D Mark IV has a resolution of 16 megapixels, whereas the 1DX provides 17.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D Mark IV and the Canon EOS-1D X? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

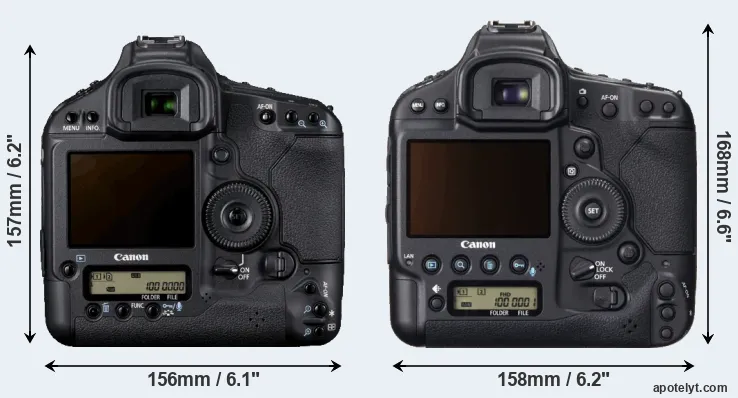

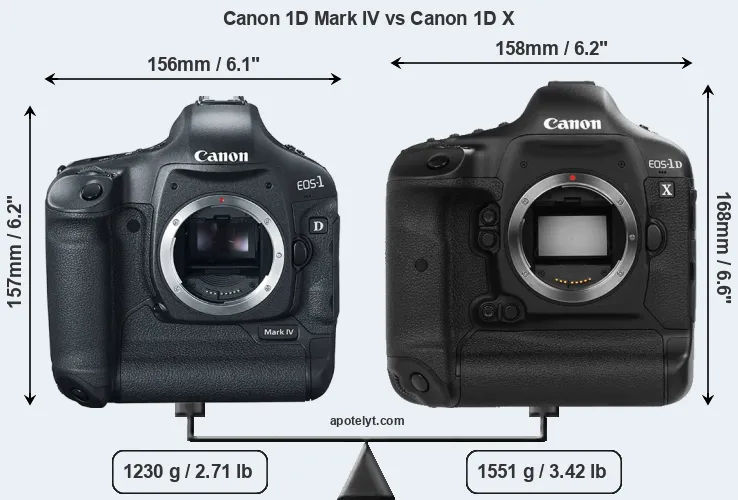

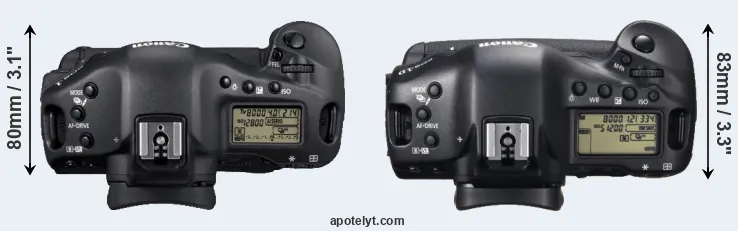

The physical size and weight of the Canon 1D Mark IV and the Canon 1D X are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 1D X is notably larger (8 percent) than the Canon 1D Mark IV. Moreover, the 1DX is markedly heavier (26 percent) than the 1D Mark IV. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 1DX) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (1D Mark IV). You can compare the optics available in the Canon EF Lens Catalog.
Concerning battery life, the 1D Mark IV gets 1500 shots out of its LP-E4 battery, while the 1DX can take 1120 images on a single charge of its LP-E4N power pack. As can be seen in the images above, both cameras have a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 1D Mark IV||156 mm||157 mm||80 mm||1230 g||1500||Y||Oct 2009||4,999||ebay.com|
|2.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799||ebay.com|
|3.||Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499||amazon.com|
|4.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999||ebay.com|
|5.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099||ebay.com|
|6.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399||ebay.com|
|7.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699||ebay.com|
|8.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499||ebay.com|
|9.||Canon 1D Mark III||156 mm||157 mm||80 mm||1155 g||2200||Y||Feb 2007||4,499||ebay.com|
|10.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999||ebay.com|
|11.||Canon 1D Mark II||156 mm||158 mm||80 mm||1535 g||1200||Y||Jan 2004||4,499||ebay.com|
|12.||Canon 1Ds Mark II||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999||ebay.com|
|13.||Nikon D4||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999||ebay.com|
|14.||Nikon D3S||160 mm||157 mm||88 mm||1240 g||4200||Y||Oct 2009||5,199||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 1D Mark IV was launched at a markedly lower price (by 26 percent) than the 1DX, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

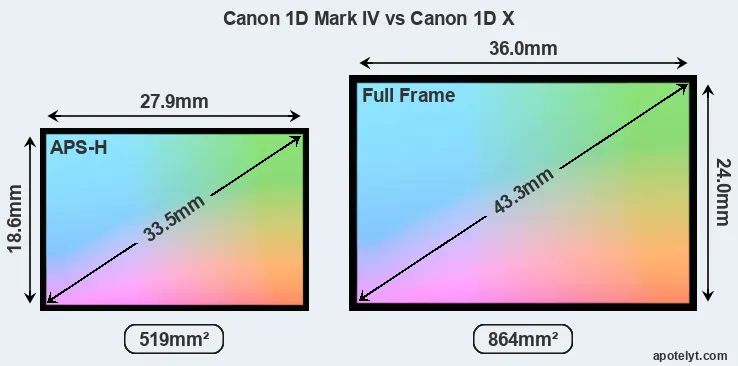

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 1D Mark IV features an APS-H sensor and the Canon 1D X a full frame sensor. The sensor area in the 1DX is 66 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

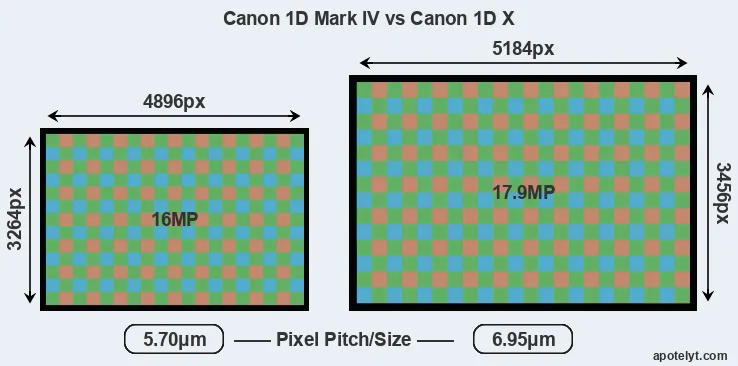

With 17.9MP, the 1DX offers a higher resolution than the 1D Mark IV (16MP), but the 1DX nevertheless has larger individual pixels (pixel pitch of 6.95μm versus 5.70μm for the 1D Mark IV) due to its larger sensor. Moreover, the 1DX is a somewhat more recent model (by 1 year and 11 months) than the 1D Mark IV, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Canon 1D X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 1DX for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Canon 1D Mark IV are 24.5 x 16.3 inches or 62.2 x 41.5 cm for good quality, 19.6 x 13.1 inches or 49.7 x 33.2 cm for very good quality, and 16.3 x 10.9 inches or 41.5 x 27.6 cm for excellent quality prints.
The Canon EOS-1D Mark IV has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS-1D X are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the 1DX has a markedly higher DXO score than the 1D Mark IV (overall score 8 points higher), which will translate into better image quality. The advantage is based on 1 bits higher color depth, 0.2 EV of lower dynamic range, and 1.1 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|1.||Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|2.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|3.||Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|4.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|5.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|8.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|9.||Canon 1D Mark III||APS-H||10.1||3888||2592||none||22.7||11.7||1078||71|
|10.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|11.||Canon 1D Mark II||APS-H||8.2||3504||2336||none||22.3||11.1||1003||66|
|12.||Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|13.||Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
|14.||Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).
Beyond body and sensor, cameras can and do differ across a range of features. The 1D Mark IV and the 1DX are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 1DX has a higher magnification than the one of the 1D Mark IV (0.76x vs 0.58x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 1D Mark IV and Canon 1D X along with similar information for a selection of comparators.
|1.||Canon 1D Mark IV||optical||Y||3.0 / 920||fixed||n||1/8000s||10.0/s||n||n|
|2.||Canon 1D X||optical||Y||3.2 / 1040||fixed||n||1/8000s||14.0/s||n||n|
|3.||Canon 1D X Mark III||optical||Y||3.2 / 2100||fixed||Y||1/8000s||20.0/s||n||n|
|4.||Canon 1D X Mark II||optical||Y||3.2 / 1620||fixed||Y||1/8000s||16.0/s||n||n|
|5.||Canon 6D||optical||Y||3.0 / 1040||fixed||n||1/4000s||4.5/s||n||n|
|6.||Canon 60D||optical||Y||3.0 / 1040||swivel||n||1/8000s||5.3/s||Y||n|
|7.||Canon 7D||optical||Y||3.0 / 920||fixed||n||1/8000s||8.0/s||Y||n|
|8.||Canon 5D Mark II||optical||Y||3.0 / 920||fixed||n||1/8000s||3.9/s||n||n|
|9.||Canon 1D Mark III||optical||Y||3.0 / 230||fixed||n||1/8000s||10.0/s||n||n|
|10.||Canon 1Ds Mark III||optical||Y||3.0 / 230||fixed||n||1/8000s||5.0/s||n||n|
|11.||Canon 1D Mark II||optical||Y||2.0 / 230||fixed||n||1/8000s||8.3/s||n||n|
|12.||Canon 1Ds Mark II||optical||Y||2.0 / 230||fixed||n||1/8000s||4.0/s||n||n|
|13.||Nikon D4||optical||Y||3.2 / 921||fixed||n||1/8000s||11.0/s||n||n|
|14.||Nikon D3S||optical||Y||3.0 / 921||fixed||n||1/8000s||11.0/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
The 1D Mark IV writes its imaging data to Compact Flash or SDHC cards, while the 1DX uses Compact Flash cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark IV and Canon EOS-1D X and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 1D Mark IV||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|2.||Canon 1D X||Y||mono / -||Y||-||mini||2.0||-||-||-|
|3.||Canon 1D X Mark III||Y||mono / mono||Y||Y||mini||3.1||Y||-||Y|
|4.||Canon 1D X Mark II||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|5.||Canon 6D||Y||mono / mono||Y||-||mini||2.0||Y||-||-|
|6.||Canon 60D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|7.||Canon 7D||Y||mono / -||Y||-||mini||2.0||-||-||-|
|8.||Canon 5D Mark II||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon 1D Mark III||Y||- / -||-||-||-||2.0||-||-||-|
|10.||Canon 1Ds Mark III||Y||mono / -||-||-||-||2.0||-||-||-|
|11.||Canon 1D Mark II||Y||- / -||-||-||-||1.1||-||-||-|
|12.||Canon 1Ds Mark II||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Nikon D4||Y||mono / mono||Y||Y||micro||2.0||-||-||-|
|14.||Nikon D3S||Y||stereo / -||-||-||mini||2.0||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the 1D Mark IV and the 1DX have been discontinued, but can regularly be found used on ebay. The 1DX was replaced by the Canon 1DX Mark II, while the 1D Mark IV does not have a direct successor. Further information on the features and operation of the 1D Mark IV and 1DX can be found, respectively, in the Canon 1D Mark IV Manual (free pdf) or the online Canon 1D X Manual.
So what conclusions can be drawn? Is there a clear favorite between the Canon 1D Mark IV and the Canon 1D X? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS-1D Mark IV:
- Less heavy: Is lighter (by 321g or 21 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (1500 versus 1120) on a single battery charge.
- More affordable: Was introduced into a lower priced category (26 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in October 2009).
Advantages of the Canon EOS-1D X:
- More detail: Has more megapixels (17.9 vs 16MP), which boosts linear resolution by 6%.
- Better image quality: Scores markedly higher (8 points) in the DXO overall evaluation.
- Better low-light sensitivity: Can shoot in dim conditions (1.1 stops ISO advantage).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.58x).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- Faster burst: Shoots at higher frequency (14 vs 10 flaps/sec) to capture the decisive moment.
- More modern: Was introduced somewhat (1 year and 11 months) more recently.
If the count of relative strengths (bullet points above) is taken as a measure, the 1DX is the clear winner of the contest (8 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D Mark IV and the Canon 1D X place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 1D Mark IV or the 1DX perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 1D Mark IV||5/5||..||..||89/100||..||..||Oct 2009||4,999||ebay.com|
|2.||Canon 1D X||5/5||..||..||..||4.5/5||4.5/5||Oct 2011||6,799||ebay.com|
|3.||Canon 1D X Mark III||..||+ +||5/5||..||4.5/5||4/5||Jan 2020||6,499||amazon.com|
|4.||Canon 1D X Mark II||..||..||4.5/5||89/100||4.5/5||4.5/5||Feb 2016||5,999||ebay.com|
|5.||Canon 6D||5/5||+ +||..||83/100||4.5/5||4.5/5||Sep 2012||2,099||ebay.com|
|6.||Canon 60D||5/5||+||..||79/100||4/5||4.5/5||Aug 2010||1,399||ebay.com|
|7.||Canon 7D||5/5||+ +||..||84/100||4.5/5||4.5/5||Sep 2009||1,699||ebay.com|
|8.||Canon 5D Mark II||4/5||91/100||..||79/100||4/5||..||Sep 2008||3,499||ebay.com|
|9.||Canon 1D Mark III||..||..||..||..||..||..||Feb 2007||4,499||ebay.com|
|10.||Canon 1Ds Mark III||..||..||..||+ +||4.5/5||..||Aug 2007||7,999||ebay.com|
|11.||Canon 1D Mark II||..||..||..||+ +||..||..||Jan 2004||4,499||ebay.com|
|12.||Canon 1Ds Mark II||..||..||..||+ +||..||..||Sep 2004||7,999||ebay.com|
|13.||Nikon D4||..||..||..||..||4.5/5||4.5/5||Jan 2012||5,999||ebay.com|
|14.||Nikon D3S||5/5||..||..||89/100||4.5/5||5/5||Oct 2009||5,199||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D Mark IV vs Canon 90D
- Canon 1D Mark IV vs Fujifilm X10
- Canon 1D Mark IV vs Panasonic LX100 II
- Canon 1D Mark IV vs Sony A7R III
- Canon 1D Mark IV vs Sony RX0
- Canon 1D Mark IV vs Sony RX10 II
- Canon 1D X vs Canon T2i
- Canon 1D X vs Olympus E-420
- Canon 1D X vs Olympus E-M1 III
- Canon 1D X vs Panasonic GX9
- Canon 1D X vs Pentax K-1 II
- Canon 1D X vs Sony A5000
Specifications: Canon 1D Mark IV vs Canon 1D X
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D Mark IV||Canon 1D X|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||October 2009||October 2011|
|Launch Price||USD 4,999||USD 6,799|
|Sensor Specs||Canon 1D Mark IV||Canon 1D X|
|Sensor Format||APS-H Sensor||Full Frame Sensor|
|Sensor Size||27.9 x 18.6 mm||36.0 x 24.0 mm|
|Sensor Area||518.94 mm2||864 mm2|
|Sensor Diagonal||33.5 mm||43.3 mm|
|Sensor Resolution||16 Megapixels||17.9 Megapixels|
|Image Resolution||4896 x 3264 pixels||5184 x 3456 pixels|
|Pixel Pitch||5.70 μm||6.95 μm|
|Pixel Density||3.08 MP/cm2||2.07 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||100 - 12,800 ISO||100 - 51,200 ISO|
|ISO Boost||50 - 102,400 ISO||50 - 204,800 ISO|
|Image Processor||DIGIC IV||DIGIC 5+ (Dual)|
|DXO Sensor Quality (score)||74||82|
|DXO Color Depth (bits)||22.8||23.8|
|DXO Dynamic Range (EV)||12.0||11.8|
|DXO Low Light (ISO)||1320||2786|
|Screen Specs||Canon 1D Mark IV||Canon 1D X|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||920k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D Mark IV||Canon 1D X|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||10 shutter flaps/s||14 shutter flaps/s|
|Shutter Life Expectancy||300 000 actuations||400 000 actuations|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SDHC cards||CF cards|
|Single or Dual Card Slots||Dual card slots||Dual card slots|
|Connectivity Specs||Canon 1D Mark IV||Canon 1D X|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 1D Mark IV||Canon 1D X|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||1500 shots per charge||1120 shots per charge|
156 x 157 x 80 mm
(6.1 x 6.2 x 3.1 in)
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
|Camera Weight||1230 g (43.4 oz)||1551 g (54.7 oz)|
