Canon 1D Mark II vs Olympus E-520
The Canon EOS-1D Mark II and the Olympus E-520 are two digital cameras that were announced, respectively, in January 2004 and May 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D Mark II) and a Four Thirds (E-520) sensor. The Canon has a resolution of 8.2 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 1D Mark II||Olympus E-520|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Four Thirds lenses|
|8.2 MP, APS-H Sensor||10 MP, Four Thirds Sensor|
|no Video||no Video|
|ISO 100-1600 (50-3200)||ISO 100-1600|
|Optical viewfinder||Optical viewfinder|
|2.0" LCD, 230k dots||2.7" LCD, 215k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|8.3 shutter flaps per second||3.5 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||Not weather sealed|
|1200 shots per battery charge||750 shots per battery charge|
|156 x 158 x 80 mm, 1535 g||136 x 92 x 68 mm, 535 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D Mark II and the Olympus E-520? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

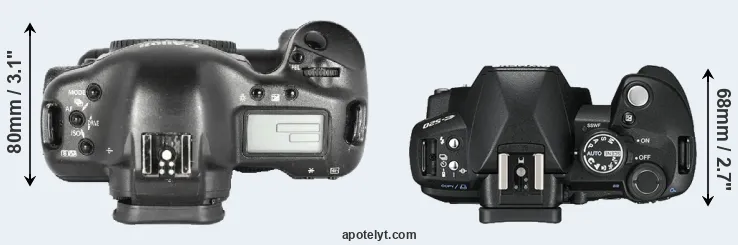

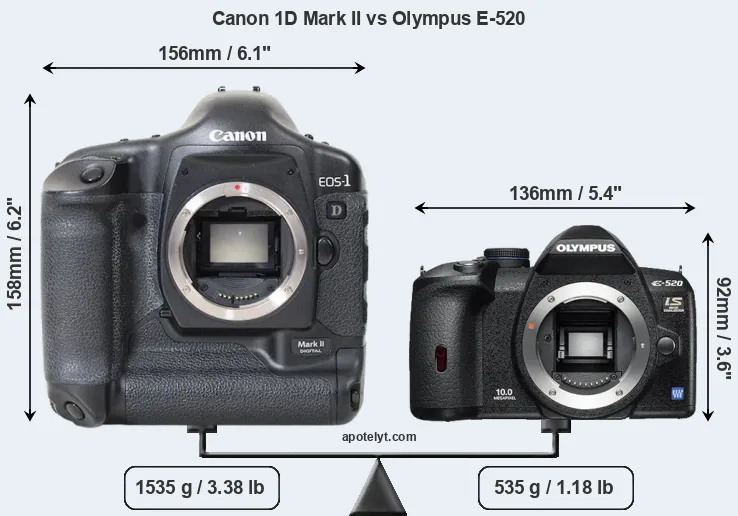

An illustration of the physical size and weight of the Canon 1D Mark II and the Olympus E-520 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-520 is considerably smaller (49 percent) than the Canon 1D Mark II. Moreover, the E-520 is substantially lighter (65 percent) than the 1D Mark II. It is worth mentioning in this context that the 1D Mark II is splash and dust resistant, while the E-520 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1D Mark II) and the Four Thirds Lens Catalog (E-520).
Concerning battery life, the 1D Mark II gets 1200 shots out of its NP-E3 battery, while the E-520 can take 750 images on a single charge of its BLM-1 power pack. As can be seen in the images above, the 1D Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 1D Mark II»||6.1 in||6.2 in||3.1 in||54.1 oz||1200||Y||Jan 2004||4,499||-||Canon 1D Mark II|
|Olympus E-520«||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699||-||Olympus E-520|
|Canon 5DS« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon 1D Mark IV« »||6.1 in||6.2 in||3.1 in||43.4 oz||1500||Y||Oct 2009||4,999||-||Canon 1D Mark IV|
|Canon 1D Mark III« »||6.1 in||6.2 in||3.1 in||40.7 oz||2200||Y||Feb 2007||4,499||-||Canon 1D Mark III|
|Canon 1Ds Mark III« »||5.9 in||6.3 in||3.1 in||48.9 oz||1800||Y||Aug 2007||7,999||-||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||6.1 in||6.2 in||3.1 in||55.2 oz||1200||Y||Aug 2005||3,999||-||Canon 1D Mark II N|
|Canon 5D« »||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299||-||Canon 5D|
|Canon 1Ds Mark II« »||6.1 in||6.2 in||3.1 in||42.9 oz||1200||Y||Sep 2004||7,999||-||Canon 1Ds Mark II|
|Canon 1Ds« »||6.1 in||6.2 in||3.1 in||44.6 oz||600||Y||Sep 2002||8,999||-||Canon 1Ds|
|Canon 1D« »||6.1 in||6.2 in||3.1 in||55.9 oz||500||Y||Sep 2001||6,499||-||Canon 1D|
|Olympus E-600« »||5.1 in||3.7 in||2.4 in||18.9 oz||500||n||Aug 2009||449||-||Olympus E-600|
|Olympus E-620« »||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699||-||Olympus E-620|
|Olympus E-420« »||5.1 in||3.6 in||2.1 in||15.5 oz||500||n||Mar 2008||599||-||Olympus E-420|
|Olympus E-410« »||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699||-||Olympus E-410|
|Olympus E-510« »||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799||-||Olympus E-510|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-520 was launched at a markedly lower price (by 84 percent) than the 1D Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 1D Mark II features an APS-H sensor and the Olympus E-520 a Four Thirds sensor. The sensor area in the E-520 is 59 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 2.0. The sensor in the 1D Mark II has a native 3:2 aspect ratio, while the one in the E-520 offers a 4:3 aspect.
Despite having a smaller sensor, the E-520 offers a higher resolution of 10 megapixels, compared with 8.2 MP of the 1D Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.74μm versus 8.17μm for the 1D Mark II). However, it should be noted that the E-520 is much more recent (by 4 years and 3 months) than the 1D Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus E-520 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-520 for good quality output (200 dots per inch) amounts to 18.2 x 13.7 inch or 46.3 x 34.7 cm, for very good quality (250 dpi) 14.6 x 10.9 inch or 37.1 x 27.8 cm, and for excellent quality (300 dpi) 12.2 x 9.1 inch or 30.9 x 23.2 cm. The corresponding values for the Canon 1D Mark II are 17.5 x 11.7 inch or 44.5 x 29.7 cm for good quality, 14 x 9.3 inch or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inch or 29.7 x 19.8 cm for excellent quality prints.
The Canon EOS-1D Mark II has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Olympus E-520 are ISO 100 to ISO 1600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 1D Mark II provides substantially higher image quality than the E-520, with an overall score that is 11 points higher. This advantage is based on 0.9 bits higher color depth, 0.7 EV in additional dynamic range, and 0.9 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 1D Mark II»||APS-H||8.2||3504||2336||-||22.3||11.1||1003||66||Canon 1D Mark II|
|Olympus E-520«||Four Thirds||10.0||3648||2736||-||21.4||10.4||548||55||Olympus E-520|
|Canon 5DS« »||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5DS R« »||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86||Canon 5DS R|
|Canon 1D Mark IV« »||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74||Canon 1D Mark IV|
|Canon 1D Mark III« »||APS-H||10.1||3888||2592||-||22.7||11.7||1078||71||Canon 1D Mark III|
|Canon 1Ds Mark III« »||Full Frame||21.0||5616||3744||-||24.0||12.0||1663||80||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||APS-H||8.2||3504||2336||-||22.3||11.2||975||66||Canon 1D Mark II N|
|Canon 5D« »||Full Frame||12.7||4368||2912||-||22.9||11.1||1368||71||Canon 5D|
|Canon 1Ds Mark II« »||Full Frame||16.6||4992||3328||-||23.3||11.3||1480||74||Canon 1Ds Mark II|
|Canon 1Ds« »||Full Frame||11.0||4064||2704||-||21.8||11.0||954||63||Canon 1Ds|
|Canon 1D« »||APS-H||4.1||2496||1662||-||-||-||-||-||Canon 1D|
|Olympus E-600« »||Four Thirds||12.2||4032||3024||-||21.5||10.3||541||55||Olympus E-600|
|Olympus E-620« »||Four Thirds||12.2||4032||3024||-||21.3||10.3||536||55||Olympus E-620|
|Olympus E-420« »||Four Thirds||10.0||3648||2736||-||21.5||10.4||527||56||Olympus E-420|
|Olympus E-410« »||Four Thirds||10.0||3648||2736||-||21.1||10.0||494||51||Olympus E-410|
|Olympus E-510« »||Four Thirds||10.0||3648||2736||-||21.2||10.0||442||52||Olympus E-510|
Beyond body and sensor, cameras can and do differ across a range of features. The 1D Mark II and the E-520 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1D Mark II offers a wider field of view (100%) than the one in the E-520 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 1D Mark II has a higher magnification (0.55x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 1D Mark II, the Olympus E-520, and comparable cameras.
|Canon 1D Mark II»||optical||Y||2.0||230||fixed||n||1/8000s||8.3||n||n||Canon 1D Mark II|
|Olympus E-520«||optical||n||2.7||215||fixed||n||1/4000s||3.5||Y||Y||Olympus E-520|
|Canon 5DS« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 5DS R« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS R|
|Canon 1D Mark IV« »||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n||Canon 1D Mark IV|
|Canon 1D Mark III« »||optical||Y||3.0||230||fixed||n||1/8000s||10.0||n||n||Canon 1D Mark III|
|Canon 1Ds Mark III« »||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n||Canon 1D Mark II N|
|Canon 5D« »||optical||Y||2.5||230||fixed||n||1/8000s||3.0||n||n||Canon 5D|
|Canon 1Ds Mark II« »||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n||Canon 1Ds Mark II|
|Canon 1Ds« »||optical||Y||2.0||120||fixed||n||1/8000s||3.0||n||n||Canon 1Ds|
|Canon 1D« »||optical||Y||2.0||120||fixed||n||1/16000s||8.0||n||n||Canon 1D|
|Olympus E-600« »||optical||n||2.7||230||swivel||n||1/4000s||4.0||Y||Y||Olympus E-600|
|Olympus E-620« »||optical||n||2.7||230||swivel||n||1/4000s||4.0||Y||Y||Olympus E-620|
|Olympus E-420« »||optical||n||2.7||215||fixed||n||1/4000s||3.5||Y||n||Olympus E-420|
|Olympus E-410« »||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||n||Olympus E-410|
|Olympus E-510« »||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||Y||Olympus E-510|
One feature that is present on the 1D Mark II, but is missing on the E-520 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 1D Mark II writes its imaging data to Compact Flash or SD cards, while the E-520 uses Compact Flash or xD Picture cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark II and Olympus E-520 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 1D Mark II»||Y||-||-||-||-||-||1.1||-||-||-||Canon 1D Mark II|
|Olympus E-520«||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-520|
|Canon 5DS« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5DS R« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon 1D Mark IV« »||Y||stereo||-||Y||-||mini||2.0||-||-||-||Canon 1D Mark IV|
|Canon 1D Mark III« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1D Mark III|
|Canon 1Ds Mark III« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||Y||-||-||-||-||-||1.1||-||-||-||Canon 1D Mark II N|
|Canon 5D« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 5D|
|Canon 1Ds Mark II« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1Ds Mark II|
|Canon 1Ds« »||Y||-||-||-||-||-||FW||-||-||-||Canon 1Ds|
|Canon 1D« »||Y||-||-||-||-||-||FW||-||-||-||Canon 1D|
|Olympus E-600« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-600|
|Olympus E-620« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-620|
|Olympus E-420« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-420|
|Olympus E-410« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-410|
|Olympus E-510« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-510|
Studio photographers will appreciate that the Canon 1D Mark II (unlike the E-520) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 1D Mark II and the E-520 have been discontinued, but can regularly be found used on eBay. The 1D Mark II was replaced by the Canon 1D Mark II N, while the E-520 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Is there a clear favorite between the Canon 1D Mark II and the Olympus E-520? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS-1D Mark II:
- Better image quality: Scores substantially higher (11 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (0.7 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.9 stops ISO advantage).
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.55x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (8.3 vs 3.5 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1200 versus 750) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in January 2004).
Arguments in favor of the Olympus E-520:
- More detail: Has more megapixels (10 vs 8.2MP), which boosts linear resolution by 8%.
- Larger screen: Has a bigger rear LCD (2.7" vs 2.0") for image review and settings control.
- More compact: Is smaller (136x92mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 1000g or 65 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
- More affordable: Was introduced into a lower priced category (84 percent cheaper at launch).
- More modern: Reflects 4 years and 3 months of technical progress since the 1D Mark II launch.
If the number of relative strengths (bullet points above) is taken as a guide, the 1D Mark II is the clear winner of the match-up (13 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D Mark II and the Olympus E-520 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 1D Mark II or the E-520 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1D Mark II»||-||+ +||-||o||-||Jan 2004||4,499||-||Canon 1D Mark II|
|Olympus E-520«||87/100||+ +||4.5/5||4/5||4.5/5||May 2008||699||-||Olympus E-520|
|Canon 5DS« »||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS R|
|Canon 1D Mark IV« »||-||89/100||-||5/5||-||Oct 2009||4,999||-||Canon 1D Mark IV|
|Canon 1D Mark III« »||-||-||-||o||-||Feb 2007||4,499||-||Canon 1D Mark III|
|Canon 1Ds Mark III« »||-||+ +||4.5/5||-||-||Aug 2007||7,999||-||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||-||-||-||-||-||Aug 2005||3,999||-||Canon 1D Mark II N|
|Canon 5D« »||88/100||+ +||o||o||-||Aug 2005||3,299||-||Canon 5D|
|Canon 1Ds Mark II« »||-||+ +||-||-||-||Sep 2004||7,999||-||Canon 1Ds Mark II|
|Canon 1Ds« »||-||+ +||-||-||-||Sep 2002||8,999||-||Canon 1Ds|
|Canon 1D« »||-||+ +||-||-||-||Sep 2001||6,499||-||Canon 1D|
|Olympus E-600« »||-||-||-||-||4.5/5||Aug 2009||449||-||Olympus E-600|
|Olympus E-620« »||88/100||72/100||4.5/5||o||5/5||Feb 2009||699||-||Olympus E-620|
|Olympus E-420« »||85/100||+ +||4/5||o||4.5/5||Mar 2008||599||-||Olympus E-420|
|Olympus E-410« »||86/100||+ +||4/5||o||4.5/5||Mar 2007||699||-||Olympus E-410|
|Olympus E-510« »||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799||-||Olympus E-510|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D Mark II N vs Leica M8
- Canon 1D Mark II N vs Panasonic FZ200
- Canon 1D Mark II N vs Sony A9
- Canon 1D Mark II vs Canon G1 X Mark II
- Canon 1D Mark II vs Canon M6 Mark II
- Canon 1D Mark II vs Fujifilm X-Pro2
- Canon 1D Mark II vs Leica X1
- Canon 1D Mark II vs Nikon 1 V2
- Canon 1D Mark II vs Nikon D3500
- Canon 1D Mark II vs Panasonic LF1
- Canon 1D Mark II vs Sony RX10
- Canon R vs Olympus E-520
Specifications: Canon 1D Mark II vs Olympus E-520
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D Mark II||Olympus E-520|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||January 2004||May 2008|
|Launch Price||USD 4499||USD 699|
|Sensor Specs||Canon 1D Mark II||Olympus E-520|
|Sensor Format||APS-H Sensor||Four Thirds Sensor|
|Sensor Size||28.7 x 19.1 mm||17.3 x 13.0 mm|
|Sensor Area||548.17 mm2||224.9 mm2|
|Sensor Diagonal||34.5 mm||21.6 mm|
|Sensor Resolution||8.2 Megapixels||10 Megapixels|
|Image Resolution||3504 x 2336 pixels||3648 x 2736 pixels|
|Pixel Pitch||8.17 μm||4.74 μm|
|Pixel Density||1.49 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||no Video|
|ISO Setting||100-1600 ISO||100-1600 ISO|
|ISO Boost||50-3200 ISO||no Enhancement|
|Image Processor||DIGIC II||TruePic III|
|DXO Sensor Quality (score)||66||55|
|DXO Color Depth (bits)||22.3||21.4|
|DXO Dynamic Range (EV)||11.1||10.4|
|DXO Low Light (ISO)||1003||548|
|Screen Specs||Canon 1D Mark II||Olympus E-520|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.0 inch||2.7 inch|
|LCD Resolution||230k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D Mark II||Olympus E-520|
|Autofocus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||8.3 shutter flaps/s||3.5 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or SD cards||CF or XD cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Canon 1D Mark II||Olympus E-520|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 1.1||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 1D Mark II||Olympus E-520|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Life (CIPA)||1200 shots per charge||750 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||1535 g (54.1 oz)||535 g (18.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
