Canon 1300D vs SX420

The Canon EOS 1300D (called Canon T6 in some regions) and the Canon PowerShot SX420 IS are two digital cameras that were announced, respectively, in March 2016 and January 2016. The 1300D is a DSLR, while the SX420 is a fixed lens compact. The cameras are based on an APS-C (1300D) and a 1/2.3-inch (SX420) sensor. The 1300D has a resolution of 17.9 megapixels, whereas the SX420 provides 19.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 1300D		Canon SX420
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-1008mm f/3.5-6.6
17.9 MP – APS-C sensor		19.9 MP – 1/2.3" sensor
1080/30p Video		720/25p Video
ISO 100-6,400 (100 - 12,800)		ISO 100-1,600
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 920k dots		3.0" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		0.5 shutter flaps per second
500 shots per battery charge		195 shots per battery charge
129 x 101 x 78 mm, 485 g		104 x 69 x 85 mm, 325 g

Check 1300D offers at
ebay.com
Check SX420 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 1300D and the Canon PowerShot SX420 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

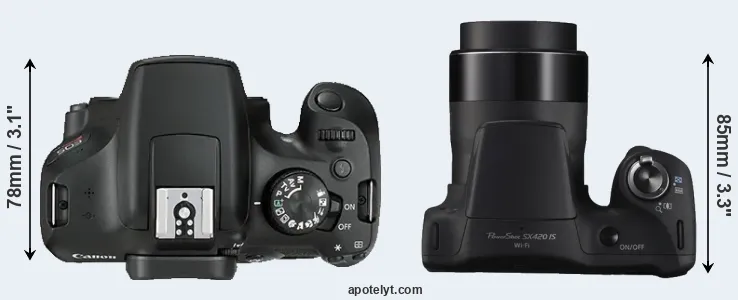

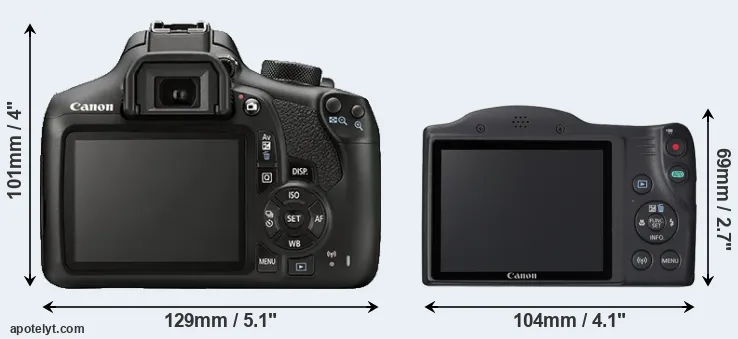

The physical size and weight of the Canon 1300D and the Canon SX420 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The SX420 can be obtained in two different colors (black, red), while the 1300D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX420 is considerably smaller (45 percent) than the Canon 1300D. In this context, it is worth noting that neither the 1300D nor the SX420 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX420 has a lens built in, whereas the 1300D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 1300D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 1300D gets 500 shots out of its LP-E10 battery, while the SX420 can take 195 images on a single charge of its NB-11LH power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
2.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	299	ebay.com
3.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	449	amazon.com
4.		Canon 4000D	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	399	amazon.com
5.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	299	amazon.com
6.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
7.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
8.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	529	amazon.com
9.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	399	ebay.com
10.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	399	ebay.com
11.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
12.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
13.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	279	ebay.com
14.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	429	ebay.com
15.		Canon SX610	105 mm	61 mm	27 mm	191 g	270	n	Jan 2015	249	ebay.com
16.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	349	ebay.com
17.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX420 was launched at a lower price than the 1300D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

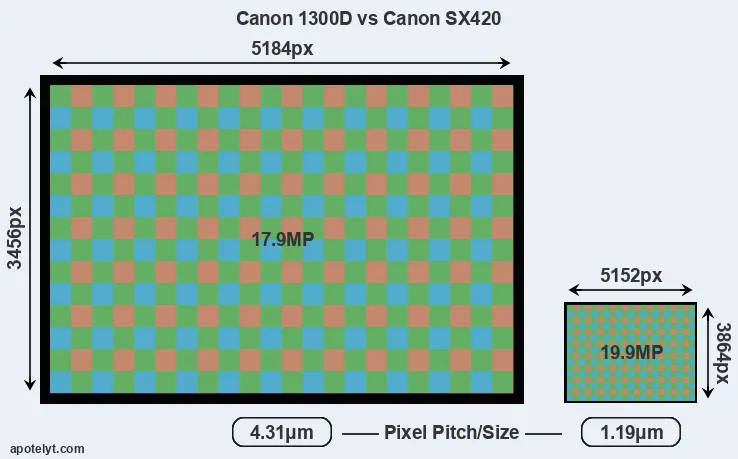

Of the two cameras under consideration, the Canon 1300D features an APS-C sensor and the Canon SX420 a 1/2.3-inch sensor. The sensor area in the SX420 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 1300D has a native 3:2 aspect ratio, while the one in the SX420 offers a 4:3 aspect.

Despite having a smaller sensor, the SX420 offers a higher resolution of 19.9 megapixels, compared with 17.9 MP of the 1300D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.19μm versus 4.31μm for the 1300D). It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the SX420 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS 1300D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Canon PowerShot SX420 IS are ISO 100 to ISO 1600 (no boost).

In terms of underlying technology, the 1300D is build around a CMOS sensor, while the SX420 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	23.6	12.9	1497	79
2.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
3.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
4.		Canon 4000D	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
5.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
6.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
7.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
8.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
9.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
10.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
11.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
12.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
13.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
14.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
15.		Canon SX610	1/2.3	20.2	5184	3888	1080/30p	20.2	11.6	712	47
16.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
17.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 1300D provides a higher video resolution than the SX420. It can shoot video footage at 1080/30p, while the SX420 is limited to 720/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the 1300D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX420 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon 1300D and Canon SX420 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
2.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
3.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 4000D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
6.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
7.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
9.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
10.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
11.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
13.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
14.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
15.		Canon SX610	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
16.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
17.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the 1300D and the SX420 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 1300D and Canon PowerShot SX420 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
2.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
3.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
4.		Canon 4000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
6.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
10.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
11.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
14.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
15.		Canon SX610	-	- / -	-	-	micro	2.0	Y	Y	-
16.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-

It is notable that the 1300D has a hotshoe, while the SX420 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the 1300D and the SX420 have been discontinued, but can regularly be found used on ebay. The SX420 was replaced by the Canon SX430, while the 1300D was followed by the Canon 2000D. Further information on the features and operation of the 1300D and SX420 can be found, respectively, in the Canon 1300D Manual (free pdf) or the online Canon SX420 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon 1300D and the Canon SX420? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS 1300D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher definition movie capture (1080/30p vs 720/25p).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
• Faster burst: Shoots at higher frequency (3 vs 0.5 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (500 versus 195) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.

Advantages of the Canon PowerShot SX420 IS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Ready to shoot: Comes with an integrated lens, while the 1300D requires a separate lens.
• More compact: Is smaller (104x69mm vs 129x101mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 1300D).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.

If the count of relative strengths (bullet points above) is taken as a measure, the 1300D is the clear winner of the match-up (12 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 1300D and the Canon SX420 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1300D or the SX420. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
2.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	299	ebay.com
3.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	449	amazon.com
4.		Canon 4000D	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	399	amazon.com
5.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	299	amazon.com
6.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
7.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
8.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	529	amazon.com
9.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	399	ebay.com
10.		Canon SX540	..	..	..	..	..	..	Jan 2016	399	ebay.com
11.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
12.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
13.		Canon SX410	..	o	..	..	..	..	Feb 2015	279	ebay.com
14.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	429	ebay.com
15.		Canon SX610	..	..	..	..	4/5	4/5	Jan 2015	249	ebay.com
16.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	349	ebay.com
17.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
