Canon 10D vs Olympus E-520
The Canon EOS 10D and the Olympus E-520 are two digital cameras that were announced, respectively, in February 2003 and May 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (10D) and a Four Thirds (E-520) sensor. The Canon has a resolution of 6.3 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 10D||Olympus E-520|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Four Thirds lenses|
|6.3 MP, APS-C Sensor||10 MP, Four Thirds Sensor|
|no Video||no Video|
|ISO 100-3200||ISO 100-1600|
|Optical viewfinder||Optical viewfinder|
|1.8" LCD, 118k dots||2.7" LCD, 215k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|3 shutter flaps per second||3.5 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|500 shots per battery charge||750 shots per battery charge|
|150 x 107 x 75 mm, 850 g||136 x 92 x 68 mm, 535 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 10D and the Olympus E-520? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

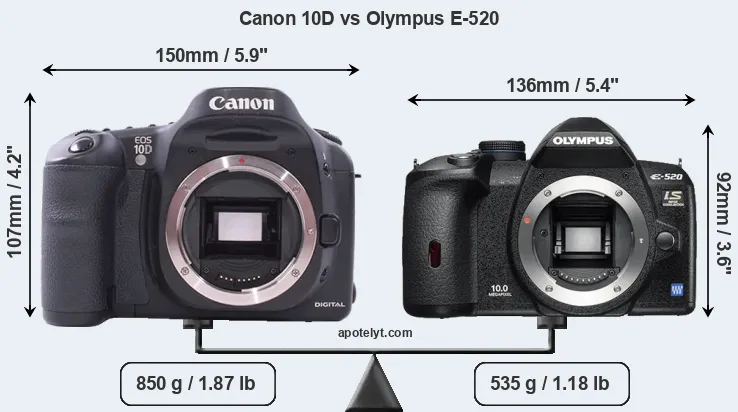

An illustration of the physical size and weight of the Canon 10D and the Olympus E-520 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-520 is notably smaller (22 percent) than the Canon 10D. Moreover, the E-520 is substantially lighter (37 percent) than the 10D. In this context, it is worth noting that neither the 10D nor the E-520 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (10D) and the Four Thirds Lens Catalog (E-520).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 10D»||5.9 in||4.2 in||3.0 in||30.0 oz||500||n||Feb 2003||1,999||Canon 10D|
|Olympus E-520«||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699||Olympus E-520|
|Canon T5« »||5.1 in||3.9 in||3.1 in||16.9 oz||500||n||Feb 2014||449||Canon T5|
|Canon SL1« »||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549||Canon SL1|
|Canon T4i« »||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849||Canon T4i|
|Canon 7D« »||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699||Canon 7D|
|Canon 40D« »||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299||Canon 40D|
|Canon 30D« »||5.7 in||4.2 in||2.9 in||27.7 oz||750||n||Feb 2006||1,399||Canon 30D|
|Canon 20D« »||5.7 in||4.2 in||2.8 in||27.2 oz||700||n||Aug 2004||1,499||Canon 20D|
|Canon Rebel« »||5.6 in||3.9 in||2.8 in||22.9 oz||400||n||Aug 2003||899||Canon Rebel|
|Canon D60« »||5.9 in||4.2 in||3.0 in||30.2 oz||620||n||Feb 2002||2,999||Canon D60|
|Nikon D100« »||5.7 in||4.6 in||3.2 in||27.5 oz||370||n||Feb 2002||1,999||Nikon D100|
|Olympus E-600« »||5.1 in||3.7 in||2.4 in||18.9 oz||500||n||Aug 2009||449||Olympus E-600|
|Olympus E-620« »||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699||Olympus E-620|
|Olympus E-420« »||5.1 in||3.6 in||2.1 in||15.5 oz||500||n||Mar 2008||599||Olympus E-420|
|Olympus E-410« »||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699||Olympus E-410|
|Olympus E-510« »||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799||Olympus E-510|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-520 was launched at a markedly lower price (by 65 percent) than the 10D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 10D features an APS-C sensor and the Olympus E-520 a Four Thirds sensor. The sensor area in the E-520 is 34 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 10D has a native 3:2 aspect ratio, while the one in the E-520 offers a 4:3 aspect.
Despite having a smaller sensor, the E-520 offers a higher resolution of 10 megapixels, compared with 6.3 MP of the 10D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.74μm versus 7.38μm for the 10D). However, it should be noted that the E-520 is much more recent (by 5 years and 2 months) than the 10D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus E-520 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-520 for good quality output (200 dots per inch) amounts to 18.2 x 13.7 inch or 46.3 x 34.7 cm, for very good quality (250 dpi) 14.6 x 10.9 inch or 37.1 x 27.8 cm, and for excellent quality (300 dpi) 12.2 x 9.1 inch or 30.9 x 23.2 cm. The corresponding values for the Canon 10D are 15.4 x 10.2 inch or 39 x 26 cm for good quality, 12.3 x 8.2 inch or 31.2 x 20.8 cm for very good quality, and 10.2 x 6.8 inch or 26 x 17.3 cm for excellent quality prints.
The Canon EOS 10D has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Olympus E-520 are ISO 100 to ISO 1600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 10D||APS-C||6.3||3072||2048||none||21.1||10.9||571||57||Canon 10D|
|Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55||Olympus E-520|
|Canon T5||APS-C||17.9||5184||3456||1080/30p||21.9||11.3||724||63||Canon T5|
|Canon SL1||APS-C||17.9||5184||3456||1080/30p||21.8||11.3||843||63||Canon SL1|
|Canon T4i||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||722||62||Canon T4i|
|Canon 7D||APS-C||17.9||5184||3456||1080/30p||22.0||11.7||854||66||Canon 7D|
|Canon 40D||APS-C||10.1||3888||2592||none||22.1||11.3||703||64||Canon 40D|
|Canon 30D||APS-C||8.2||3504||2336||none||21.5||10.8||736||59||Canon 30D|
|Canon 20D||APS-C||8.2||3504||2336||none||21.9||11.0||721||62||Canon 20D|
|Canon Rebel||APS-C||6.3||3072||2048||none||21.0||10.8||544||55||Canon Rebel|
|Canon D60||APS-C||6.3||3072||2048||none||..||..||..||..||Canon D60|
|Nikon D100||APS-C||6.0||3008||2000||none||..||..||..||..||Nikon D100|
|Olympus E-600||Four Thirds||12.2||4032||3024||none||21.5||10.3||541||55||Olympus E-600|
|Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55||Olympus E-620|
|Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56||Olympus E-420|
|Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51||Olympus E-410|
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52||Olympus E-510|
Apart from body and sensor, cameras can and do differ across a range of features. The 10D and the E-520 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the 10D has a higher magnification than the one of the E-520 (0.55x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 10D and Olympus E-520 in connection with corresponding information for a sample of similar cameras.
|Canon 10D||optical||Y||1.8||118||fixed||n||1/4000s||3.0||Y||n||Canon 10D|
|Olympus E-520||optical||n||2.7||215||fixed||n||1/4000s||3.5||Y||Y||Olympus E-520|
|Canon T5||optical||n||3.0||460||fixed||n||1/4000s||3.0||Y||n||Canon T5|
|Canon SL1||optical||n||3.0||1040||fixed||Y||1/4000s||4.9||Y||n||Canon SL1|
|Canon T4i||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T4i|
|Canon 7D||optical||Y||3.0||920||fixed||n||1/8000s||8.0||Y||n||Canon 7D|
|Canon 40D||optical||Y||3.0||230||fixed||n||1/8000s||6.5||Y||n||Canon 40D|
|Canon 30D||optical||Y||2.5||230||fixed||n||1/8000s||5.0||Y||n||Canon 30D|
|Canon 20D||optical||Y||1.8||118||fixed||n||1/8000s||5.0||Y||n||Canon 20D|
|Canon Rebel||optical||n||1.8||118||fixed||n||1/4000s||2.5||Y||n||Canon Rebel|
|Canon D60||optical||Y||1.8||114||fixed||n||1/4000s||3.0||Y||n||Canon D60|
|Nikon D100||optical||Y||1.8||118||fixed||n||1/4000s||3.0||Y||n||Nikon D100|
|Olympus E-600||optical||n||2.7||230||swivel||n||1/4000s||4.0||Y||Y||Olympus E-600|
|Olympus E-620||optical||n||2.7||230||swivel||n||1/4000s||4.0||Y||Y||Olympus E-620|
|Olympus E-420||optical||n||2.7||215||fixed||n||1/4000s||3.5||Y||n||Olympus E-420|
|Olympus E-410||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||n||Olympus E-410|
|Olympus E-510||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||Y||Olympus E-510|
One feature that is present on the 10D, but is missing on the E-520 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 10D writes its imaging data to Compact Flash cards, while the E-520 uses Compact Flash or xD Picture cards. The E-520 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 10D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 10D and Olympus E-520 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 10D||Y||none||none||-||-||none||1.1||-||-||-||Canon 10D|
|Olympus E-520||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-520|
|Canon T5||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon T5|
|Canon SL1||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon SL1|
|Canon T4i||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon T4i|
|Canon 7D||Y||mono||none||Y||-||mini||2.0||-||-||-||Canon 7D|
|Canon 40D||Y||none||none||-||-||none||2.0||-||-||-||Canon 40D|
|Canon 30D||Y||none||none||-||-||none||2.0||-||-||-||Canon 30D|
|Canon 20D||Y||none||none||-||-||none||1.1||-||-||-||Canon 20D|
|Canon Rebel||Y||none||none||-||-||none||1.1||-||-||-||Canon Rebel|
|Canon D60||Y||none||none||-||-||none||1.1||-||-||-||Canon D60|
|Nikon D100||Y||none||none||-||-||none||1.1||-||-||-||Nikon D100|
|Olympus E-600||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-600|
|Olympus E-620||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-620|
|Olympus E-420||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-420|
|Olympus E-410||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-410|
|Olympus E-510||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-510|
Studio photographers will appreciate that the Canon 10D (unlike the E-520) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 10D and the E-520 have been discontinued, but can regularly be found used on eBay. The 10D was replaced by the Canon 20D, while the E-520 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Is the Canon 10D better than the Olympus E-520 or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 10D:
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.55x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in February 2003).
Reasons to prefer the Olympus E-520:
- More detail: Has more megapixels (10 vs 6.3MP), which boosts linear resolution by 24%.
- Larger screen: Has a bigger rear LCD (2.7" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (215k vs 118k dots).
- Faster burst: Shoots at higher frequency (3.5 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (136x92mm vs 150x107mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 315g or 37 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (750 versus 500) out of a single battery charge.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (65 percent cheaper at launch).
- More modern: Reflects 5 years and 2 months of technical progress since the 10D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the E-520 is the clear winner of the contest (12 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 10D and the Olympus E-520 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 10D or the E-520 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 10D vs Fujifilm X-Pro1
- Canon 10D vs Nikon B600
- Canon 10D vs Nikon D50
- Canon 10D vs Olympus E-300
- Canon 10D vs Olympus E-PL6
- Canon 10D vs Olympus E-PL7
- Canon 10D vs Olympus E-PL8
- Canon 10D vs Olympus E-PL9
- Canon 10D vs Olympus E-PM1
- Canon 10D vs Panasonic FZ200
- Canon 1D Mark II vs Olympus E-520
- Nikon D40X vs Olympus E-520
Specifications: Canon 10D vs Olympus E-520
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 10D||Olympus E-520|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||February 2003||May 2008|
|Launch Price||USD 1999||USD 699|
|Sensor Specs||Canon 10D||Olympus E-520|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.7 x 15.1 mm||17.3 x 13.0 mm|
|Sensor Area||342.77 mm2||224.9 mm2|
|Sensor Diagonal||27.3 mm||21.6 mm|
|Sensor Resolution||6.3 Megapixels||10 Megapixels|
|Image Resolution||3072 x 2048 pixels||3648 x 2736 pixels|
|Pixel Pitch||7.38 μm||4.74 μm|
|Pixel Density||1.84 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||no Video|
|ISO Setting||100-3200 ISO||100-1600 ISO|
|Image Processor||DIGIC||TruePic III|
|DXO Sensor Quality (score)||57||55|
|DXO Color Depth (bits)||21.1||21.4|
|DXO Dynamic Range (EV)||10.9||10.4|
|DXO Low Light (ISO)||571||548|
|Screen Specs||Canon 10D||Olympus E-520|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||1.8 inch||2.7 inch|
|LCD Resolution||118k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 10D||Olympus E-520|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||3.5 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 10D||Olympus E-520|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 1.1||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 10D||Olympus E-520|
|Battery Life (CIPA)||500 shots per charge||750 shots per charge|
150 x 107 x 75 mm
(5.9 x 4.2 x 3.0 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||850 g (30.0 oz)||535 g (18.9 oz)|
