What is the sensor size of the Sony ZV-1?

The Sony Cyber-shot ZV-1 is a digital camera that has an one-inch sensor at its core. This imager measures 13.2mm in width and 8.8mm in height, so that the total imaging area of the sensor amounts to 116 mm2.

The ZV-1 provides an image resolution of 20 megapixels, based on 5 472 horizontal pixels and 3 648 vertical pixels.

camera

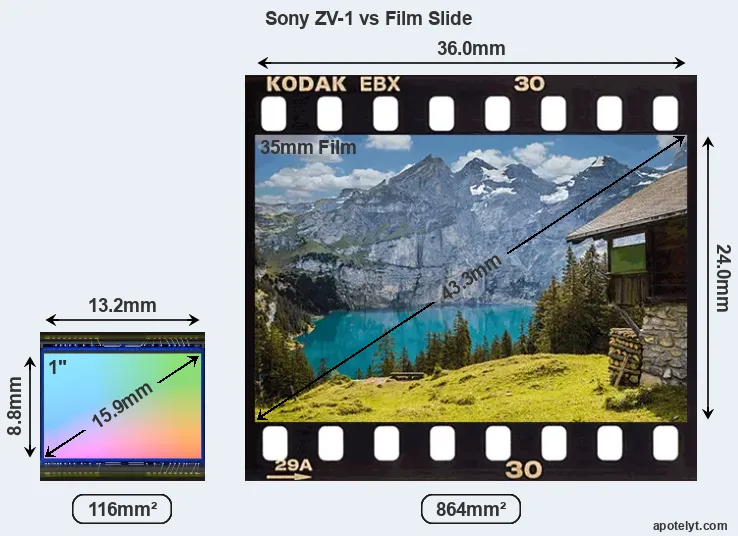

Sensor size comparison with a film slide

The sensor diagonal measures 15.9mm, which gives rise to a format factor (or crop factor) of 2.7. Hence, the Sony ZV-1 is a crop-sensor camera, as its sensor is smaller than a traditional 35mm film slide or negative.

Sony ZV-1 and Credit Card sensor measures
ad

Sensor specs and performance

The table below compares the sensor specs of the Sony ZV-1 to those of several similar cameras. The reported DXO values are indicators of the sensor's imaging quality (higher is better), covering color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.

scroll hint
Sensor Characteristics
#   Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Sony ZV-1 1-inch 20.0 5472 36484K/30p22.212.666966
2.

Canon G5 X Mark II 1-inch 20.0 5472 36484K/30p22.212.458365
3.

Canon G7 X Mark III 1-inch 20.0 5472 36484K/30p22.212.458365
4.

Sony ZV-1 II 1-inch 20.0 5472 36484K/30p22.312.996567
5.

Sony ZV-E10 APS-C 24.0 6000 40004K/30p24.213.8213485
6.

Sony A6400 APS-C 24.0 6000 40004K/30p24.013.6143183
7.

Sony RX100 VII 1-inch 20.0 5472 36484K/30p21.812.441863
8.

Sony RX100 VI 1-inch 20.0 5472 36484K/30p22.112.347864
9.

Sony HX99 1/2.3 18.0 4896 36724K/30p20.612.1105851
10.

Sony RX100 III 1-inch 20.0 5472 36481080/60p22.412.349567
11.

Sony RX100 II 1-inch 20.0 5472 36481080/60p22.512.448367
Note: DXO values in italics represent estimates based on sensor size and age.
padding
Further information on the sensor in the Sony ZV-1 and the camera's operation can be found in the camera manual.

In the United States, the ZV-1 was initially launched in May 2020 at a price of $799.

logo
Check ZV-1 offers at
ebay.com

Camera to camera comparisons

In case you are interested in seeing how this camera compares to another one, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications Summary
    Camera Model Sony ZV-1
    Camera Type Fixed lens compact camera
    Camera Lens 24-70mm f/1.8-2.8
    Launch Date May 2020
    Launch Price USD 799
    Sensor Specs
    Sensor Technology BSI-CMOS
    Sensor Format 1" Sensor
    Sensor Size 13.2 x 8.8 mm
    Sensor Area 116 mm2
    Sensor Diagonal 15.9 mm
    Crop Factor 2.7x
    Sensor Resolution 20 Megapixels
    Image Resolution 5 472 x 3 648 pixels
    Pixel Pitch 2.41 μm
    Pixel Density 17.18 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 4K/30p Video
    ISO Setting 125 - 12 800 ISO
    ISO Boost 80 - 25 600 ISO
    Image Processor BIONZ X
    Screen Specs
    Viewfinder Type No viewfinder
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 922k dots
    LCD Attachment Swivel screen
    V-logging Friendliness Front-flip possible
    Touch Input Touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing AidFocus Peaking
    Maximum Shutter Speed 1/2000s
    Continuous Shooting 24 shutter flaps/s
    Silent ShootingElectronic Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Fill Flash no On-Board Flash
    Storage Medium MS or SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port micro HDMI
    Microphone Port External MIC port
    Wifi Support Wifi built-in
    Bluetooth Support Bluetooth built-in
    Body Specs
    Battery Type Sony NP-BX1 power pack
    Battery Life (CIPA)260 shots per charge
    In-Camera Charging USB charging
    Body Dimensions 105 x 60 x 44 mm
    (4.1 x 2.4 x 1.7 in)
    Camera Weight 294 g (10.4 oz)
