LCD resolution of the Olympus E-M10 III
The rear LCD screen of the Olympus OM-D E-M10 Mark III has a resolution of 1,040,000 dots and measures 3.0 inches across its diagonal. A high-resolution display offers a clearer and crisper user experience than a lower pixel screen, notably during live view framing and image review. While the physical size of the LCD is naturally limited by the space that is available on the back of the camera, the resolution of the rear screen has continued to increase over time, with new camera models often featuring nicer rear panels as one of the key arguments for a camera upgrade.
Viewfinder Type | Electronic viewfinder | |
Viewfinder Field of View | 100% | |
Viewfinder Magnification | 0.62x | |
Viewfinder Resolution | 2360k dots | |
Top-Level Screen | no Top Display | |
LCD Framing | Live View | |
LCD Size | 3.0 inch | |
LCD Resolution | 1040k dots | |
LCD Attachment | Tilting screen | |
Touch Input | Touchscreen |
In terms of screen handling characteristics, the LCD of the Olympus E-M10 III is touch sensitive and is flexibly attached to the body to allow for odd-angle shots.

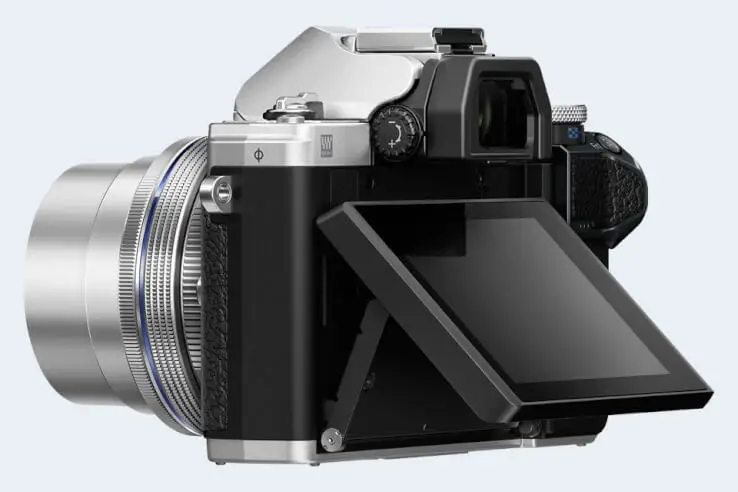

Back side of the Olympus E-M10 III with LCD
As can be seen from the rear-side image, the 3.0-inch LCD occupies a large part of the backside of the camera. For comparison, the diagonal on a standard credit card measures 4 inches.
Camera to camera comparisons
The Olympus OM-D E-M10 Mark III is a mirrorless interchangeable lens camera that was revealed to the public in August 2017 and is equipped with a Four Thirds sensor. It offers a resolution of 15.9 megapixel. In the United States, the Olympus E-M10 III was initially launched at a price of $649.
The table below compares the rear screen specs of the Olympus E-M10 III to those of several similar cameras. Additionally, the table includes some information on other core features, such as the viewfinder, shutter, flash, and image stabilization system.
# | Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Mech Shutter Speed |
Shutter Flaps (1/sec) |
Built-in Flash (yes/no) |
Built-in Image Stab |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-M10 III | 2360 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.6/s | Y | Y | |
2. | Olympus E-M10 IV | 2360 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 15.0/s | Y | Y | |
3. | Olympus E-PL10 | none | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.6/s | Y | Y | |
4. | Olympus E-PL9 | none | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.6/s | Y | Y | |
5. | Olympus E-PL8 | optional | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
6. | Olympus PEN-F | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
7. | Olympus E-M10 II | 2360 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.0/s | Y | Y | |
8. | Olympus E-M10 | 1440 | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | Y | Y | |
9. | Olympus E-PL7 | optional | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
10. | Olympus E-PL6 | optional | n | 3.0 / 460 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
11. | Panasonic GX85 | 2765 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.0/s | Y | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One convenient feature of the E-M10 III is the presence of an on-board flash. While this built-in flash is not very powerful, it can at times be useful as a fill-in light to brighten deep shadow areas.
In case you would like to check on the differences and similarities with other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 2000D vs Olympus E-M10 III
- Canon 350D vs Olympus E-M10 III
- Canon M10 vs Olympus E-M10 III
- Canon T7i vs Olympus E-M10 III
- Fujifilm X-S20 vs Olympus E-M10 III
- Nikon D2X vs Olympus E-M10 III
- Olympus E-M10 III vs Panasonic FZ330
- Olympus E-M10 III vs Panasonic GF3
- Olympus E-M10 III vs Pentax K-5
- Olympus E-M10 III vs Sony A6500
- Olympus E-M10 III vs Sony A7S
- Olympus E-M10 III vs Sony A900
Camera Model | Olympus E-M10 III | |
---|---|---|
Camera Type | Mirrorless system camera | |
Camera Lens | Micro Four Thirds lenses | |
Launch Date | August 2017 | |
Launch Price | USD 649 | |
Sensor Specs | ||
Sensor Technology | CMOS | |
Sensor Format | Four Thirds Sensor | |
Sensor Size | 17.3 x 13.0 mm | |
Sensor Area | 225 mm2 | |
Sensor Diagonal | 21.6 mm | |
Crop Factor | 2.0x | |
Sensor Resolution | 15.9 Megapixels | |
Image Resolution | 4 608 x 3 456 pixels | |
Pixel Pitch | 3.76 μm | |
Pixel Density | 7.08 MP/cm2 | |
Moiré control | no AA filter | |
Movie Capability | 4K/30p Video | |
ISO Setting | 200 - 25 600 ISO | |
ISO Boost | 100 - 25 600 ISO | |
Image Processor | TruePic VIII | |
Screen Specs | ||
Viewfinder Type | Electronic viewfinder | |
Viewfinder Field of View | 100% | |
Viewfinder Magnification | 0.62x | |
Viewfinder Resolution | 2360k dots | |
Top-Level Screen | no Top Display | |
LCD Framing | Live View | |
LCD Size | 3.0 inch | |
LCD Resolution | 1040k dots | |
LCD Attachment | Tilting screen | |
V-logging Friendliness | No front-flip | |
Touch Input | Touchscreen | |
Shooting Specs | ||
Focus System | Contrast-detect AF | |
Manual Focusing Aid | Focus Peaking | |
Maximum Shutter Speed | 1/4000s | |
Continuous Shooting | 8.6 shutter flaps/s | |
Shutter Life Expectancy | 100 000 actuations | |
Silent Shooting | Electronic Shutter | |
Time Lapse Photography | Intervalometer Built-in | |
Image Stabilization | In-body stabilization | |
Fill Flash | Built-in Flash | |
Storage Medium | SDXC cards | |
Single or Dual Card Slots | Single card slot | |
UHS card support | UHS-II | |
Connectivity Specs | ||
External Flash | Hotshoe | |
USB Connector | USB 2.0 | |
HDMI Port | micro HDMI | |
Wifi Support | Wifi built-in | |
Body Specs | ||
Battery Type | Olympus BLS-50 power pack | |
Battery Life (CIPA) | 330 shots per charge | |
Body Dimensions |
122 x 84 x 50 mm (4.8 x 3.3 x 2.0 in) |
|
Camera Weight | 410 g (14.5 oz) |
