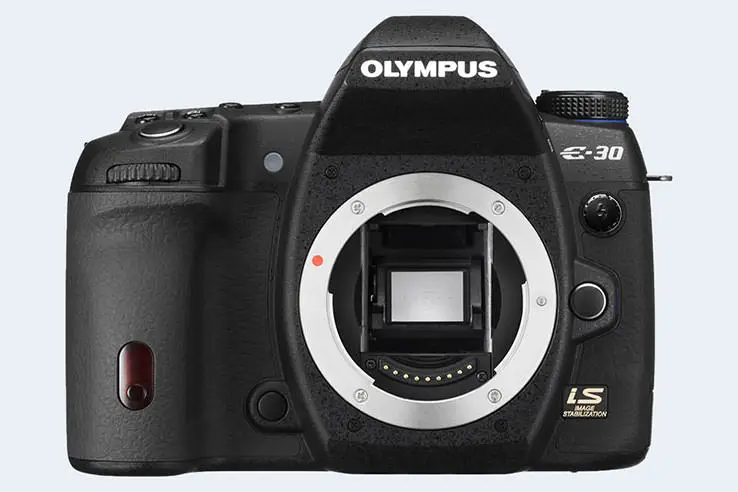

What is the sensor size of the Olympus E-30?
The Olympus E-30 is a digital camera that has a Four Thirds sensor at its core. This imager measures 17.3mm in width and 13.0mm in height, so that the total imaging area of the sensor amounts to 225 mm2.
The E-30 provides an image resolution of 12.2 megapixels, based on 4 032 horizontal pixels and 3 024 vertical pixels.
Sensor size comparison with a film slide
The sensor diagonal measures 21.6mm, which gives rise to a format factor (or crop factor) of 2.0. Hence, the Olympus E-30 is a crop-sensor camera, as its sensor is smaller than a traditional 35mm film slide or negative.
Sensor specs and performance
The table below compares the sensor specs of the Olympus E-30 to those of several similar cameras. The reported DXO values are indicators of the sensor's imaging quality (higher is better), covering color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-30 | Four Thirds | 12.2 | 4032 | 3024 | none | 21.3 | 10.4 | 530 | 55 | |
2. | Olympus E-3 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.6 | 10.5 | 571 | 56 | |
3. | Olympus E-410 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.1 | 10.0 | 494 | 51 | |
4. | Olympus E-420 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.5 | 10.4 | 527 | 56 | |
5. | Olympus E-450 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.5 | 10.5 | 512 | 56 | |
6. | Olympus E-510 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.2 | 10.0 | 442 | 52 | |
7. | Olympus E-520 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.4 | 10.4 | 548 | 55 | |
8. | Olympus E-600 | Four Thirds | 12.2 | 4032 | 3024 | none | 21.5 | 10.3 | 541 | 55 | |
9. | Olympus E-620 | Four Thirds | 12.2 | 4032 | 3024 | none | 21.3 | 10.3 | 536 | 55 | |
10. | Olympus E-P1 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.4 | 10.4 | 536 | 55 | |
11. | Olympus E-P2 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.5 | 10.4 | 505 | 56 |
In the United States, the E-30 was initially launched in November 2008 at a price of $1,299.
Camera to camera comparisons
In case you are interested in seeing how this camera compares to another one, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon G9 X Mark II vs Nikon Z6
- Canon R5 vs Olympus E-30
- Canon T3i vs Olympus E-30
- Fujifilm GFX 50S vs Nikon Z6
- Fujifilm X-T20 vs Olympus E-30
- Leica Q Typ 116 vs Olympus E-30
- Nikon D3400 vs Nikon Z6
- Nikon D5300 vs Nikon Z6
- Nikon Z6 vs Panasonic FZ80
- Nikon Z6 vs Panasonic GF7
- Olympus E-30 vs Pentax 645D
- Olympus E-30 vs Sony NEX-5T
Camera Model | Olympus E-30 | |
---|---|---|
Camera Type | Digital single lens reflex | |
Camera Lens | Four Thirds lenses | |
Launch Date | November 2008 | |
Launch Price | USD 1 299 | |
Sensor Specs | ||
Sensor Technology | CMOS | |
Sensor Format | Four Thirds Sensor | |
Sensor Size | 17.3 x 13.0 mm | |
Sensor Area | 225 mm2 | |
Sensor Diagonal | 21.6 mm | |
Crop Factor | 2.0x | |
Sensor Resolution | 12.2 Megapixels | |
Image Resolution | 4 032 x 3 024 pixels | |
Pixel Pitch | 4.29 μm | |
Pixel Density | 5.42 MP/cm2 | |
Moiré control | Anti-Alias filter | |
Movie Capability | no Video | |
ISO Setting | 100 - 3 200 ISO | |
Image Processor | TruePic III+ | |
DXO Sensor Quality (score) | 55 | |
DXO Color Depth (bits) | 21.3 | |
DXO Dynamic Range (EV) | 10.4 | |
DXO Low Light (ISO) | 530 | |
Screen Specs | ||
Viewfinder Type | Optical viewfinder | |
Viewfinder Field of View | 98% | |
Viewfinder Magnification | 0.51x | |
Top-Level Screen | Control Panel | |
LCD Framing | Live View | |
LCD Size | 2.7 inch | |
LCD Resolution | 230k dots | |
LCD Attachment | Swivel screen | |
V-logging Friendliness | Front-flip possible | |
Touch Input | No touchscreen | |
Shooting Specs | ||
Focus System | Phase-detect AF | |
Manual Focusing Aid | no Peaking Feature | |
Maximum Shutter Speed | 1/8000s | |
Continuous Shooting | 5 shutter flaps/s | |
Shutter Life Expectancy | 100 000 actuations | |
Silent Shooting | no E-Shutter | |
Time Lapse Photography | no Intervalometer | |
Image Stabilization | In-body stabilization | |
Fill Flash | Built-in Flash | |
Storage Medium | CF or XD cards | |
Single or Dual Card Slots | Dual card slots | |
Connectivity Specs | ||
External Flash | Hotshoe | |
USB Connector | USB 2.0 | |
HDMI Port | no HDMI | |
Wifi Support | no Wifi | |
Body Specs | ||
Battery Type | Olympus BLM-1 power pack | |
Battery Life (CIPA) | 750 shots per charge | |
Body Dimensions |
142 x 108 x 75 mm (5.6 x 4.3 x 3.0 in) |
|
Camera Weight | 701 g (24.7 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
