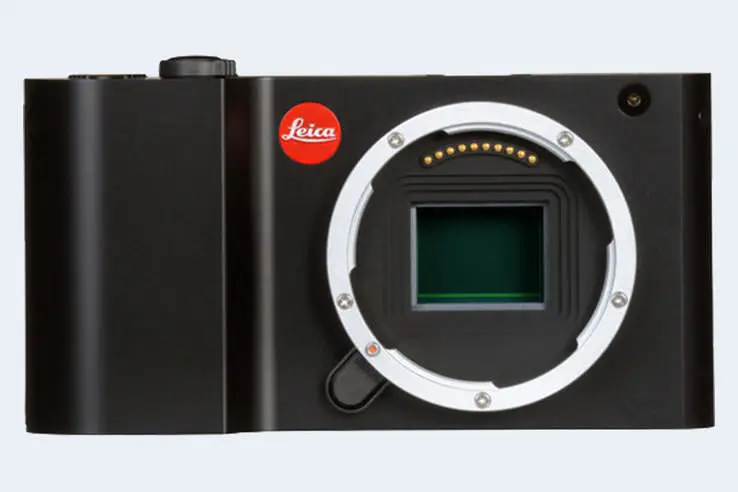

How many Megapixels does the Leica TL have?

The Leica TL is equipped with a an APS-C sensor that offers an image resolution of 16.1 megapixels (MP), or 16.1 million pixels. With its native aspect ratio of 3:2, the sensor has 4 928 horizontal pixels and 3 264 vertical pixels.

A 35mm film slide or negative contains 5-15 MP of useful detail, so that the Leica TL can be considered to be a high-resolution camera that outresolves any 35mm film camera.

camera

A high megapixel count makes it possible to crop any captured image substantially or to make very large prints from the image file. On the downside, large megapixel files are slower to transfer and take up more storage space on the computer harddisk. Also, high-resolution imaging requires sharper, more expensive lenses than low-res picture taking.

How large can I print with 16.1 MP?

The maximum print size of the Leica TL for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. Few people actually print their images that large on a regular basis, but it is nice to have the option to make very large prints of exceptional shots. Also, as mentioned earlier, a key advantage of high-MP cameras is that it is possible to crop an image ex-post and thereby, for example, change the composition of the capture or zoom in on some detail.

ad

Sensor specs and performance

The table below compares the sensor specs of the Leica TL to those of several similar cameras. In addition to sensor class and megapixel count, DXO values are reported as indicators of the sensor's imaging quality (higher is better). Three aspects are covered: color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.

scroll hint
Sensor Characteristics
#   Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Leica TL APS-C 16.1 4928 32641080/30p23.913.2169081
2.

Fujifilm X70 APS-C 16.0 4896 32641080/60p23.713.0160880
3.

Fujifilm X-A10 APS-C 16.0 4896 32641080/30p23.913.2169181
4.

Fujifilm X-E2S APS-C 16.0 4896 32641080/60p23.713.0160880
5.

Fujifilm X-A2 APS-C 16.0 4896 32641080/30p23.612.8151579
6.

Fujifilm X-T10 APS-C 16.0 4896 32641080/60p23.712.9154679
7.

Fujifilm X-Pro1 APS-C 16.0 4896 32641080/24p23.112.3123874
8.

Leica CL APS-C 24.1 6014 40144K/30p24.013.3178882
9.

Leica TL2 APS-C 24.1 6014 40144K/30p23.913.3175382
10.

Leica T APS-C 16.2 4944 32781080/30p23.012.7108275
11.

Leica X2 APS-C 16.1 4928 3264none23.212.4127574
Note: DXO values in italics represent estimates based on sensor size and age.
padding
Further information on the sensor in the Leica TL and the camera's operation can be found in the camera manual.

In the United States, the TL was initially launched in November 2016 at a price of $1,695.

logo
Check TL offers at
ebay.com

Camera to camera comparisons

In case you are interested in seeing how this camera compares to another one, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications Summary
    Camera Model Leica TL
    Camera Type Mirrorless system camera
    Camera Lens Leica T mount lenses
    Launch Date November 2016
    Launch Price USD 1 695
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format APS-C Sensor
    Sensor Size 23.6 x 15.7 mm
    Sensor Area 371 mm2
    Sensor Diagonal 28.3 mm
    Crop Factor 1.5x
    Sensor Resolution 16.1 Megapixels
    Image Resolution 4 928 x 3 264 pixels
    Pixel Pitch 4.80 μm
    Pixel Density 4.34 MP/cm2
    Moiré control no AA filter
    Movie Capability 1080/30p Video
    ISO Setting 100 - 12 500 ISO
    Screen Specs
    Viewfinder Type Viewfinder optional
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.7 inch
    LCD Resolution 1230k dots
    LCD Attachment Fixed screen
    Touch Input Touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing Aidno Peaking Feature
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 5 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent Shootingno E-Shutter
    Time Lapse Photographyno Intervalometer
    Fill Flash Built-in Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support no
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port micro HDMI
    Wifi Support Wifi built-in
    Body Specs
    Battery Type Leica BP-DC13 power pack
    Battery Life (CIPA)400 shots per charge
    In-Camera Charging USB charging
    Body Dimensions 134 x 69 x 33 mm
    (5.3 x 2.7 x 1.3 in)
    Camera Weight 384 g (13.5 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
