What is the sensor size of the Leica S-E Typ 006?
The Leica S-E (Typ 006) is a digital camera that has a medium format sensor at its core. This imager measures 45.0mm in width and 30.0mm in height, so that the total imaging area of the sensor amounts to 1 350 mm2.
The S-E Typ 006 provides an image resolution of 37.5 megapixels, based on 7 500 horizontal pixels and 5 000 vertical pixels.

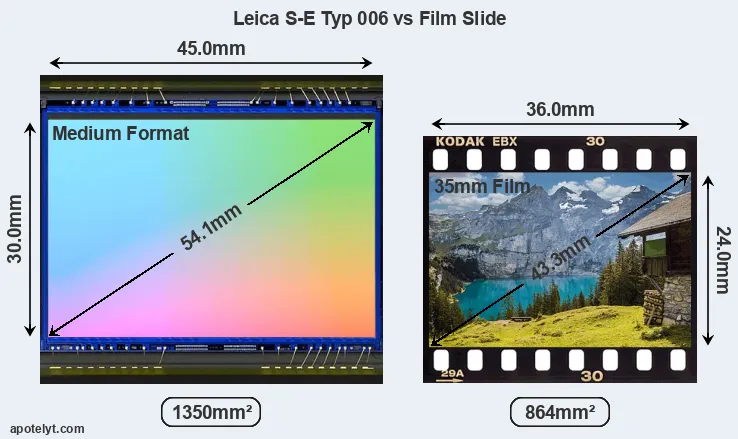

Sensor size comparison with a film slide
The sensor diagonal measures 54.1mm, which gives rise to a format factor (or crop factor) of 0.8. Thus, the Leica S-E Typ 006 is a medium-format camera, as its sensor is larger than a traditional 35mm film slide or negative.
Sensor specs and performance
The table below compares the sensor specs of the Leica S-E Typ 006 to those of several similar cameras. The reported DXO values are indicators of the sensor's imaging quality (higher is better), covering color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Leica S-E Typ 006 | Medium Format | 37.5 | 7500 | 5000 | none | 25.1 | 13.7 | 2763 | 93 | |
2. | Leica M Typ 262 | Full Frame | 23.7 | 5952 | 3976 | none | 24.8 | 13.7 | 2478 | 90 | |
3. | Leica S2 | Medium Format | 37.5 | 7500 | 5000 | none | 23.9 | 12.5 | 2224 | 82 | |
4. | Leica S3 | Medium Format | 64.0 | 9800 | 6533 | 4K/24p | 25.6 | 14.4 | 3143 | 98 | |
5. | Leica S Typ 006 | Medium Format | 37.5 | 7500 | 5000 | none | 23.9 | 12.2 | 824 | 76 | |
6. | Leica S Typ 007 | Medium Format | 37.5 | 7500 | 5000 | 4K/24p | 25.1 | 13.7 | 2763 | 93 | |
7. | Leica SL | Full Frame | 24.0 | 6000 | 4000 | 4K/30p | 25.0 | 13.4 | 1821 | 88 | |
8. | Nikon D4S | Full Frame | 16.2 | 4928 | 3280 | 1080/60p | 24.4 | 13.3 | 3074 | 89 | |
9. | Nikon D810 | Full Frame | 36.2 | 7360 | 4912 | 1080/60p | 25.7 | 14.8 | 2853 | 97 | |
10. | Pentax 645D | Medium Format | 39.5 | 7264 | 5440 | none | 24.6 | 12.6 | 1262 | 82 | |
11. | Sony A7R | Full Frame | 36.2 | 7360 | 4912 | 1080/60p | 25.6 | 14.1 | 2746 | 95 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
In the United States, the S-E Typ 006 was initially launched in September 2014 at a price of $16,900.
Camera to camera comparisons
If you would like to see a side-by-side review with another camera, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1D C vs Leica S-E Typ 006
- Canon 5D Mark IV vs Leica S-E Typ 006
- Canon 600D vs Nikon Z6
- Canon 750D vs Nikon Z6
- Canon M50 Mark II vs Nikon Z6
- Canon SX510 vs Leica S-E Typ 006
- Fujifilm XQ1 vs Leica S-E Typ 006
- Leica S-E Typ 006 vs Leica S1
- Leica S-E Typ 006 vs Sony NEX-5T
- Nikon Z6 vs Olympus E-PM2
- Nikon Z6 vs Pentax K-30
- Nikon Z6 vs Ricoh GR III
Camera Model | Leica S-E Typ 006 | |
---|---|---|
Camera Type | Digital single lens reflex | |
Camera Lens | Leica S mount lenses | |
Launch Date | September 2014 | |
Launch Price | USD 16 900 | |
Sensor Specs | ||
Sensor Technology | CCD | |
Sensor Format | Medium Format Sensor | |
Sensor Size | 45.0 x 30.0 mm | |
Sensor Area | 1 350 mm2 | |
Sensor Diagonal | 54.1 mm | |
Crop Factor | 0.8x | |
Sensor Resolution | 37.5 Megapixels | |
Image Resolution | 7 500 x 5 000 pixels | |
Pixel Pitch | 6.00 μm | |
Pixel Density | 2.78 MP/cm2 | |
Moiré control | no AA filter | |
Movie Capability | no Video | |
ISO Setting | 100 - 1 600 ISO | |
Screen Specs | ||
Viewfinder Type | Optical viewfinder | |
Viewfinder Field of View | 98% | |
Viewfinder Magnification | 0.87x | |
Top-Level Screen | Control Panel | |
LCD Size | 3.0 inch | |
LCD Resolution | 922k dots | |
LCD Attachment | Fixed screen | |
Touch Input | No touchscreen | |
Shooting Specs | ||
Focus System | Phase-detect AF | |
Manual Focusing Aid | no Peaking Feature | |
Maximum Shutter Speed | 1/4000s | |
Continuous Shooting | 1.5 shutter flaps/s | |
Shutter Life Expectancy | 100 000 actuations | |
Silent Shooting | no E-Shutter | |
Time Lapse Photography | no Intervalometer | |
Fill Flash | no On-Board Flash | |
Storage Medium | CF or SDXC cards | |
Single or Dual Card Slots | Dual card slots | |
UHS card support | UHS-I | |
Connectivity Specs | ||
External Flash | Hotshoe | |
Studio Flash | PC Sync socket | |
USB Connector | USB 2.0 | |
HDMI Port | mini HDMI | |
Wifi Support | no Wifi | |
Body Specs | ||
Environmental Sealing | Weathersealed body | |
Battery Type | Leica BP-PRO1 power pack | |
Body Dimensions |
160 x 120 x 80 mm (6.3 x 4.7 x 3.1 in) |
|
Camera Weight | 1 260 g (44.4 oz) |
